◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11604 - FVR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#145026) — 49 parça

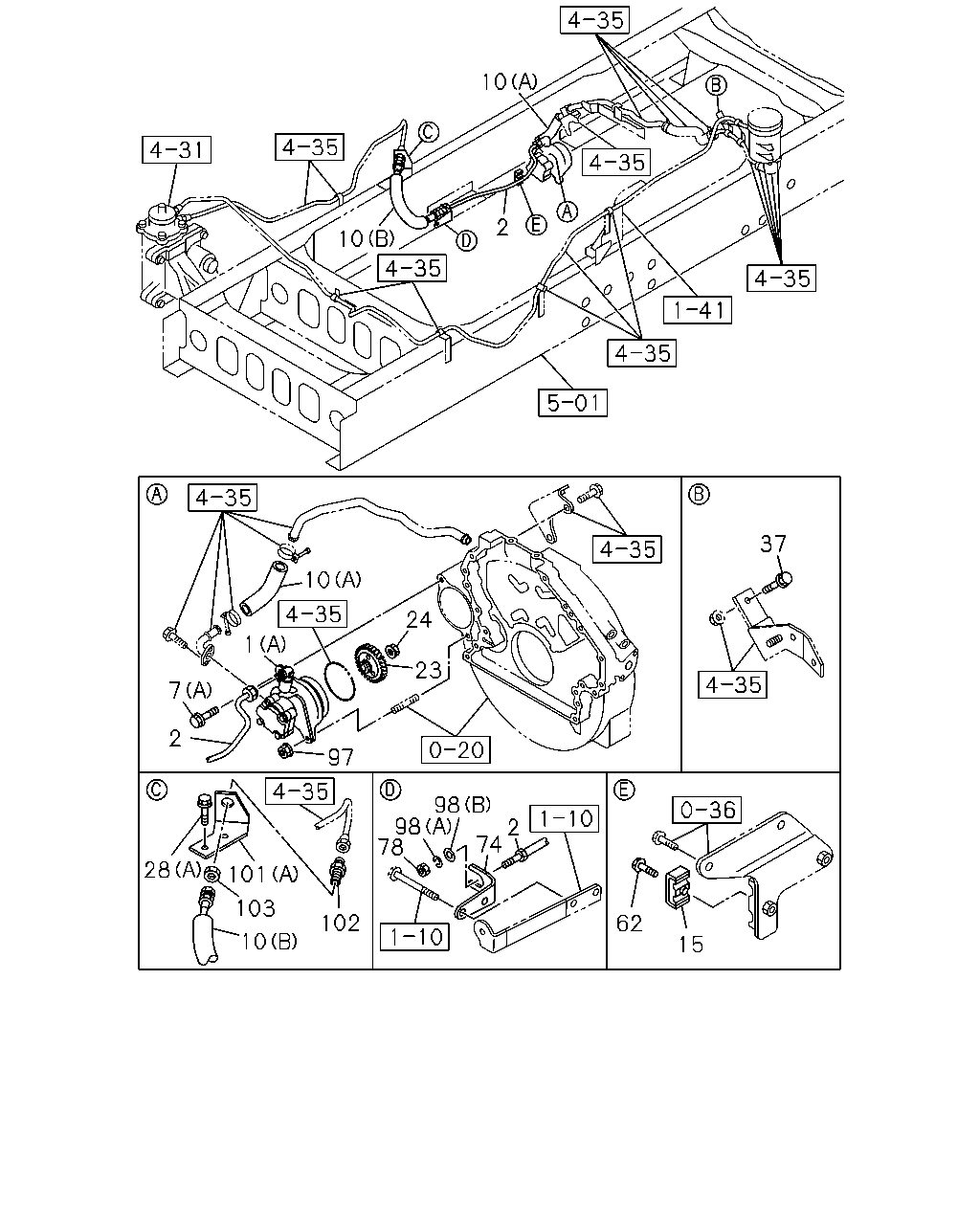

çizim 433323
10 10 2 1 10 7 2 28 101 103 10 78 23 24 62 15 74 98 98 2 102 97 37
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) (B) 		1-19500-629-1 01 1 1410-1504
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		1-19500-629-1 01 1 1505-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (A) 		8-98190-459-0 01 1 1407-
2 PIPE ASM; OIL,SUCTION
4HK1-TCS ENG(RJS) 		8-98086-746-0 01 1 1407-
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (B) M10X55 FLANGE 		8-97365-449-0 02 1 1410-1504
7 BOLT; OIL PUMP,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X55 FLANGE 		8-97365-449-0 02 1 1505-
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (A) M10X30 FLANGE 		0-28751-030-0 01 1 1407-
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCS ENG(80L) (C) 		8-98128-170-1 01 1 1505-
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (C) 		8-98076-172-0 01 1 1410-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (A) 		1-21115-205-0 01 1 1407-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (B) 		8-98212-319-0 01 1 1407-
15 CLIP; OIL PIPE SUCTION
4HK1-TCS ENG(RJS) ID=9 & 9 L=25 		1-09701-212-2 01 1 1407-
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) Z=30 		8-94390-842-1 01 1 1407-
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) M12 FLANGE MAL 		0-91180-112-0 01 1 1407-
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1410-1504
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1505-
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1407-
37 BOLT; P/S PUMP
4HK1-TCS ENG(RJS) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1407-
62 BOLT; CLIP
4HK1-TCS ENG(RJS) M6X30 FLANGE 		0-28650-630-0 01 1 1407-
74 BRACKET; PIPE
4HK1-TCS ENG(RJS) 		8-98060-044-1 01 1 1407-
78 NUT; BRKT
4HK1-TCS ENG(RJS) M20 		0-91111-520-0 01 1 1407-
97 NUT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) M10 FLANGE MAL 		0-91180-110-0 01 1 1407-
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (A) ID=20.2 		0-91510-620-0 01 1 1407-
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (B) ID=21 		0-91610-520-0 01 1 1407-
101 BRACKET; UNION
6HK1-TCN ENG(82L) (B) 		8-98052-888-1 01 1 1410-1504
101 BRACKET; UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		8-98052-888-1 01 1 1505-
101 BRACKET; UNION
4HK1-TCS ENG(RJS) (A) 		8-98205-816-0 01 1 1407-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1407-
103 NUT; UNION
M22 		0-91111-522-0 01 1 1407-

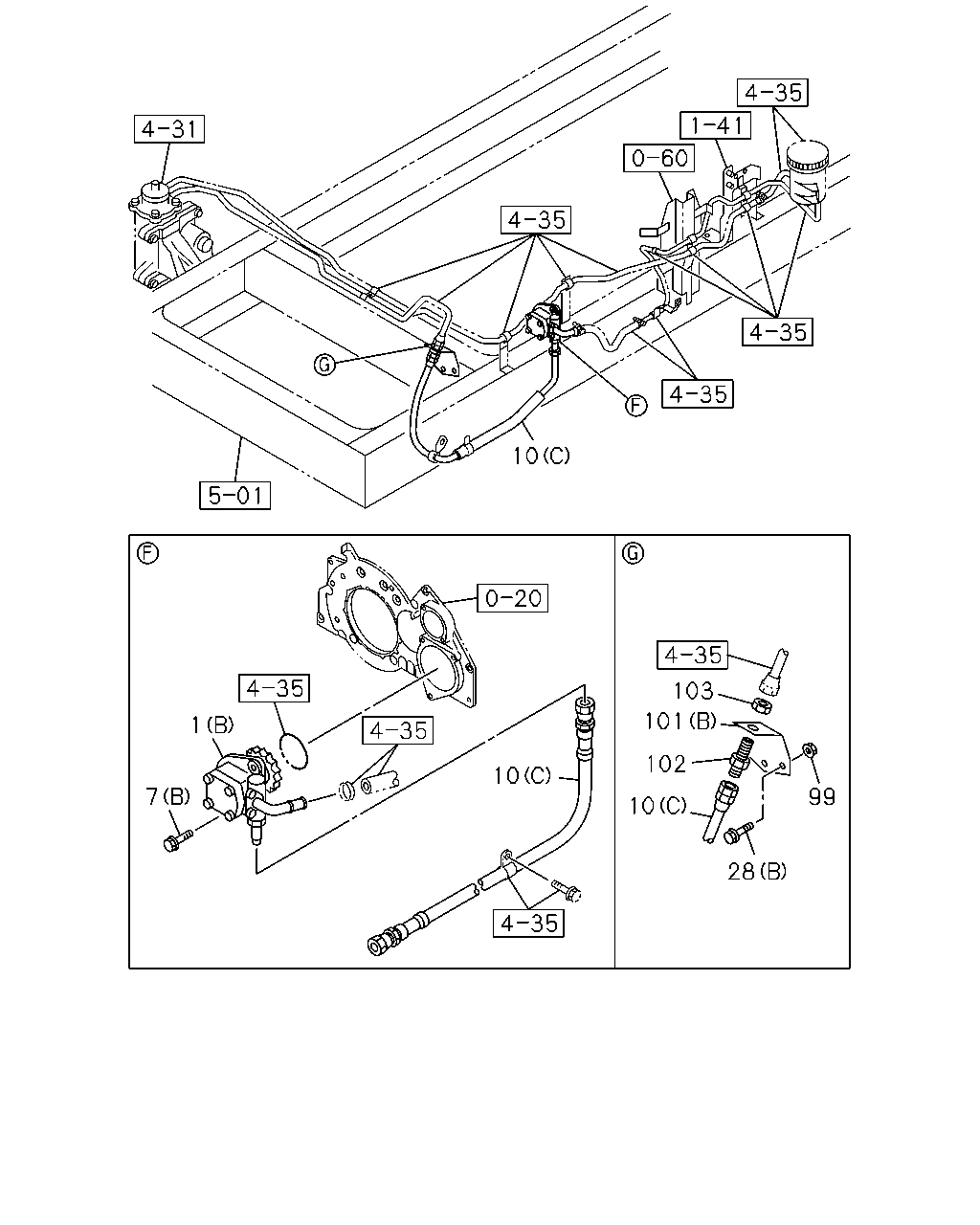

çizim 459664
10 10 1 7 10 101 102 103 99 28
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) (B) 		1-19500-629-1 01 1 1410-1504
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		1-19500-629-1 01 1 1505-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (A) 		8-98190-459-0 01 1 1407-
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (B) M10X55 FLANGE 		8-97365-449-0 02 1 1410-1504
7 BOLT; OIL PUMP,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M10X55 FLANGE 		8-97365-449-0 02 1 1505-
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (A) M10X30 FLANGE 		0-28751-030-0 01 1 1407-
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCS ENG(80L) (C) 		8-98128-170-1 01 1 1505-
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (C) 		8-98076-172-0 01 1 1410-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (A) 		1-21115-205-0 01 1 1407-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (B) 		8-98212-319-0 01 1 1407-
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1410-1504
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1505-
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1407-
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) M8 FLANGE MAL 		0-91180-108-0 02 1 1410-1504
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL 		0-91180-108-0 02 1 1505-
101 BRACKET; UNION
6HK1-TCN ENG(82L) (B) 		8-98052-888-1 01 1 1410-1504
101 BRACKET; UNION
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		8-98052-888-1 01 1 1505-
101 BRACKET; UNION
4HK1-TCS ENG(RJS) (A) 		8-98205-816-0 01 1 1407-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1407-
103 NUT; UNION
M22 		0-91111-522-0 01 1 1407-
