Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#145025) — 251 parça

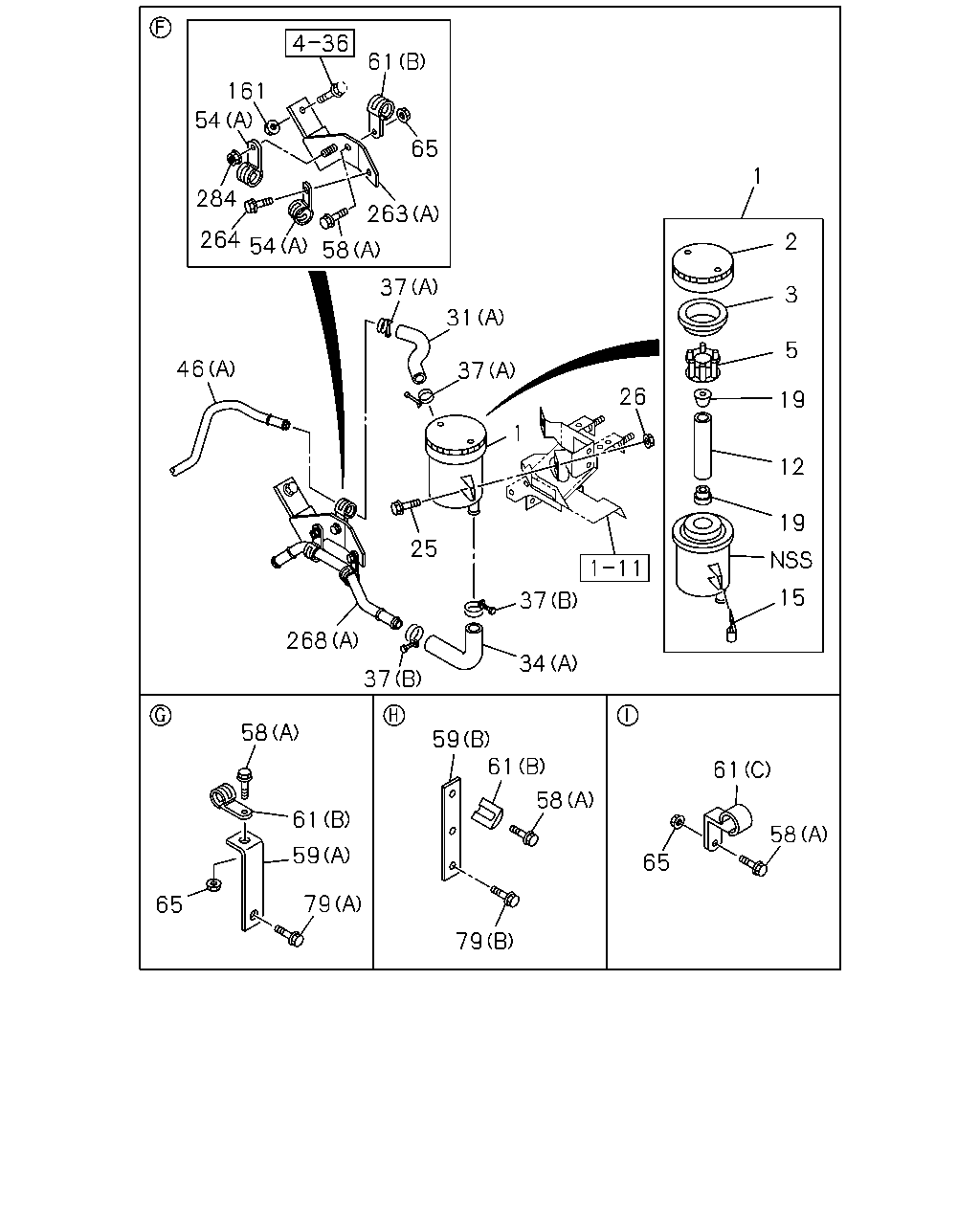

61 65 263 58 54 264 284 54 161 31 37 37 46 26 2 1 3 5 19 12 19 15 61 58 65 58 61 59 37 37 34 268 25 58 65 61 59 79 79 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1407-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1407-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1407-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1407-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1407-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1407-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1407-
25	BOLT; OIL TANK BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-
26	NUT; OIL TANK TO BRKT M8 FLANGE MAL	0-91180-108-0	02	1	1407-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98092-730-0	01	1	1410-1504
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98092-730-0	01	1	1505-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A)	8-98196-261-0	01	1	1407-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98021-827-0	01	1	1410-1504
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98021-827-0	01	1	1505-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98194-565-0	01	1	1407-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1407-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1407-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2775	8-98092-721-0	01	1	1410-1504
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=2775	8-98092-721-0	01	1	1505-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A) L=3131	8-98238-757-0	01	1	1407-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (D) ID=19 L=20	0-95235-836-0	01	1	1410-1504
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=19 L=20	0-95235-836-0	01	1	1505-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1505-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47475-427-1	01	1	1410-1504
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	1-47475-427-1	01	1	1505-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1410-1504
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1505-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (B)	1-36183-202-0	01	1	1407-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1407-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=16 L=20	0-95235-536-0	02	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=16 L=20	0-95235-536-0	02	1	1505-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1505-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (E) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1505-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=13 L=50	0-95235-286-0	01	1	1407-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=16 L=20	0-95235-536-0	04	1	1407-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1407-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1410-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	04	1	1407-
79	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M8X20 FLANGE MAL	0-28650-820-0	01	1	1410-
79	BOLT; BRKT (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
161	NUT; P/S PIPE M8 FLANGE MAL	0-91180-108-0	01	1	1407-
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L) (B)	8-98096-820-1	01	1	1410-1504
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98096-820-1	01	1	1505-
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-632-0	01	1	1407-
264	BOLT; PIPE BRKT M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-047-0	01	1	1410-1504
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98154-047-0	01	1	1505-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (A)	8-98194-491-0	01	1	1407-
284	NUT; PIPE M8 FLANGE MAL	0-91180-108-0	01	1	1407-

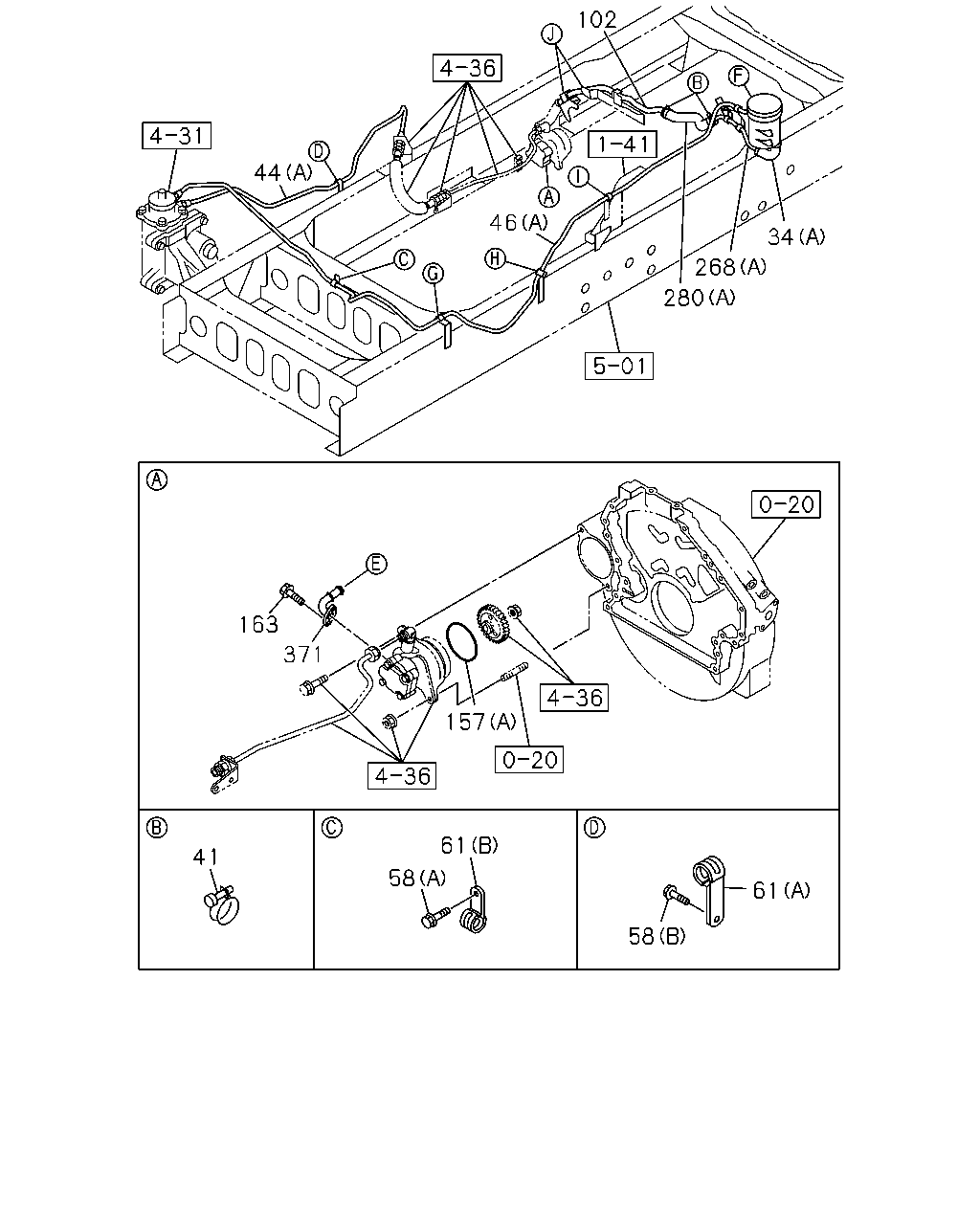

102 44 46 34 268 280 163 371 157 61 58 61 58 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98021-827-0	01	1	1410-1504
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98021-827-0	01	1	1505-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98194-565-0	01	1	1407-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1407-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98075-632-1	01	1	1410-1504
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98075-632-1	01	1	1505-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (A)	8-98205-780-0	01	1	1407-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2775	8-98092-721-0	01	1	1410-1504
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=2775	8-98092-721-0	01	1	1505-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A) L=3131	8-98238-757-0	01	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1505-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=16 L=20	0-95235-536-0	02	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=16 L=20	0-95235-536-0	02	1	1505-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1505-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (E) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1505-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=13 L=50	0-95235-286-0	01	1	1407-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=16 L=20	0-95235-536-0	04	1	1407-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1407-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1407-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (B) ID=96.4	1-09623-467-0	01	1	1410-1504
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=96.4	1-09623-467-0	01	1	1505-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (A) ID=105.6	8-97386-295-0	01	1	1407-
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-047-0	01	1	1410-1504
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98154-047-0	01	1	1505-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (A)	8-98194-491-0	01	1	1407-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (B)	8-98090-818-0	01	1	1410-1504
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98090-818-0	01	1	1505-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (A)	8-98179-991-0	01	1	1407-
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1407-

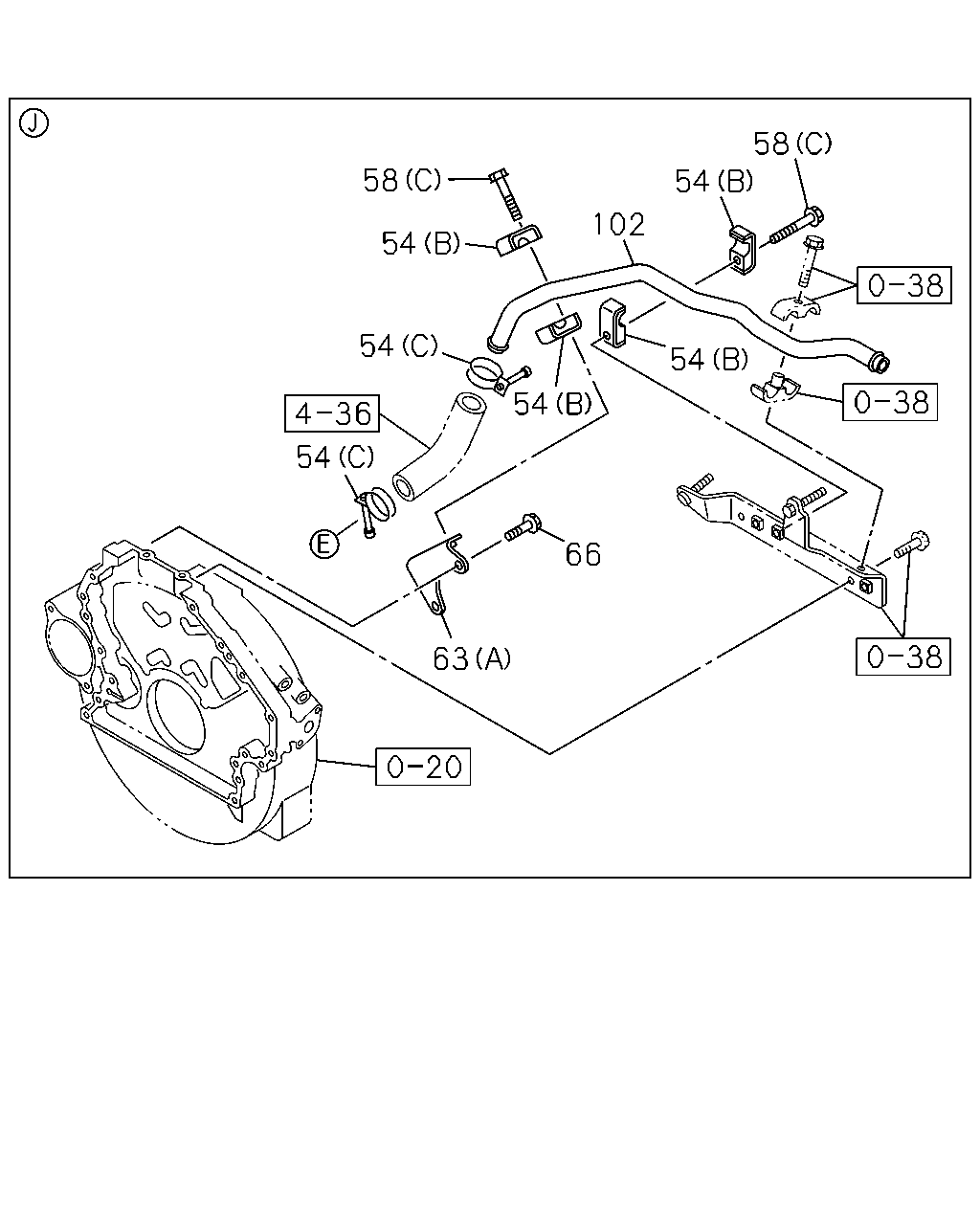

54 102 58 54 54 54 54 63 66 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (D) ID=19 L=20	0-95235-836-0	01	1	1410-1504
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=19 L=20	0-95235-836-0	01	1	1505-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1505-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
63	BRACKET; CLIP,P/S 6HK1-TCN ENG(82L) (B)	1-47476-396-1	01	1	1410-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) (A)	8-97375-107-0	01	1	1407-
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE MAL	0-28050-816-0	02	1	1407-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1407-

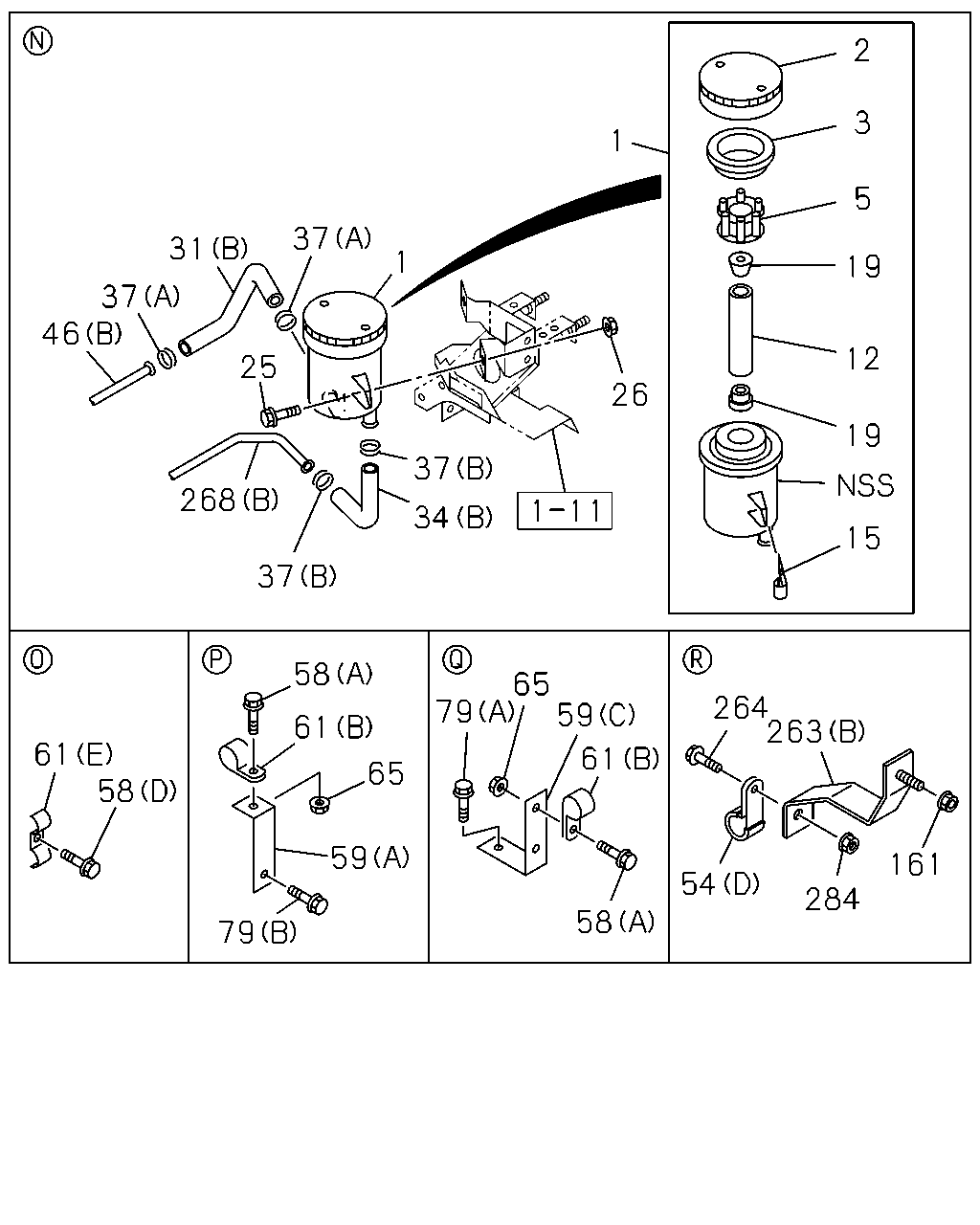

2 3 5 19 12 19 15 26 1 1 37 31 37 46 25 268 37 37 34 61 59 65 79 61 58 65 59 79 58 61 54 58 264 284 263 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1407-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1407-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1407-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1407-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1407-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1407-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1407-
25	BOLT; OIL TANK BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1407-
26	NUT; OIL TANK TO BRKT M8 FLANGE MAL	0-91180-108-0	02	1	1407-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98092-730-0	01	1	1410-1504
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98092-730-0	01	1	1505-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A)	8-98196-261-0	01	1	1407-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98021-827-0	01	1	1410-1504
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98021-827-0	01	1	1505-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98194-565-0	01	1	1407-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1407-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1407-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2775	8-98092-721-0	01	1	1410-1504
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=2775	8-98092-721-0	01	1	1505-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A) L=3131	8-98238-757-0	01	1	1407-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (D) ID=19 L=20	0-95235-836-0	01	1	1410-1504
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=19 L=20	0-95235-836-0	01	1	1505-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1505-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47475-427-1	01	1	1410-1504
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	1-47475-427-1	01	1	1505-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1410-1504
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1505-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (B)	1-36183-202-0	01	1	1407-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1407-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=16 L=20	0-95235-536-0	02	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=16 L=20	0-95235-536-0	02	1	1505-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1505-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (E) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1505-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=13 L=50	0-95235-286-0	01	1	1407-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=16 L=20	0-95235-536-0	04	1	1407-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1407-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1410-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	04	1	1407-
79	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M8X20 FLANGE MAL	0-28650-820-0	01	1	1410-
79	BOLT; BRKT (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
161	NUT; P/S PIPE M8 FLANGE MAL	0-91180-108-0	01	1	1407-
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L) (B)	8-98096-820-1	01	1	1410-1504
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98096-820-1	01	1	1505-
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (A)	8-98225-632-0	01	1	1407-
264	BOLT; PIPE BRKT M8X20 FLANGE MAL	0-28650-820-0	01	1	1407-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-047-0	01	1	1410-1504
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98154-047-0	01	1	1505-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (A)	8-98194-491-0	01	1	1407-
284	NUT; PIPE M8 FLANGE MAL	0-91180-108-0	01	1	1407-

44 46 268 31 34 280 280 63 39 65 41 157 277 277 79 39 41 68 59 58 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98092-730-0	01	1	1410-1504
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98092-730-0	01	1	1505-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (A)	8-98196-261-0	01	1	1407-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98021-827-0	01	1	1410-1504
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98021-827-0	01	1	1505-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98194-565-0	01	1	1407-
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) (A) ID=19 L=58	1-09700-733-1	01	1	1410-1504
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=58	1-09700-733-1	01	1	1505-
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) (B) ID=40	8-94226-553-0	01	1	1410-1504
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=40	8-94226-553-0	01	1	1505-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1407-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98075-632-1	01	1	1410-1504
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98075-632-1	01	1	1505-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (A)	8-98205-780-0	01	1	1407-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2775	8-98092-721-0	01	1	1410-1504
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) L=2775	8-98092-721-0	01	1	1505-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (A) L=3131	8-98238-757-0	01	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	1505-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1410-1504
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) M8X40 FLANGE	0-28650-840-0	01	1	1505-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X45 FLANGE	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE MAL	0-28650-820-0	05	1	1407-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47475-427-1	01	1	1410-1504
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D)	1-47475-427-1	01	1	1505-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1410-1504
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (C)	8-98083-607-0	01	1	1505-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (B)	1-36183-202-0	01	1	1407-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1407-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=16 L=20	0-95235-536-0	02	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=16 L=20	0-95235-536-0	02	1	1505-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1505-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (E) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1410-1504
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (E) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1505-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=13 L=50	0-95235-286-0	01	1	1407-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=16 L=20	0-95235-536-0	04	1	1407-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1407-
63	BRACKET; CLIP,P/S 6HK1-TCN ENG(82L) (B)	1-47476-396-1	01	1	1410-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) (A)	8-97375-107-0	01	1	1407-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1410-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1410-1504
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	02	1	1505-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE MAL	0-91180-108-0	04	1	1407-
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1410-1504
68	NUT; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE MAL	0-91180-108-0	01	1	1505-
79	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M8X20 FLANGE MAL	0-28650-820-0	01	1	1410-
79	BOLT; BRKT (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1407-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (B) ID=96.4	1-09623-467-0	01	1	1410-1504
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=96.4	1-09623-467-0	01	1	1505-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (A) ID=105.6	8-97386-295-0	01	1	1407-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-047-0	01	1	1410-1504
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98154-047-0	01	1	1505-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (A)	8-98194-491-0	01	1	1407-
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE MAL	0-28050-816-0	02	1	1410-1504
277	BOLT; HOSE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X16 FLANGE MAL	0-28050-816-0	02	1	1505-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (B)	8-98090-818-0	01	1	1410-1504
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98090-818-0	01	1	1505-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (A)	8-98179-991-0	01	1	1407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
