Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#145012) — 39 parça
◀

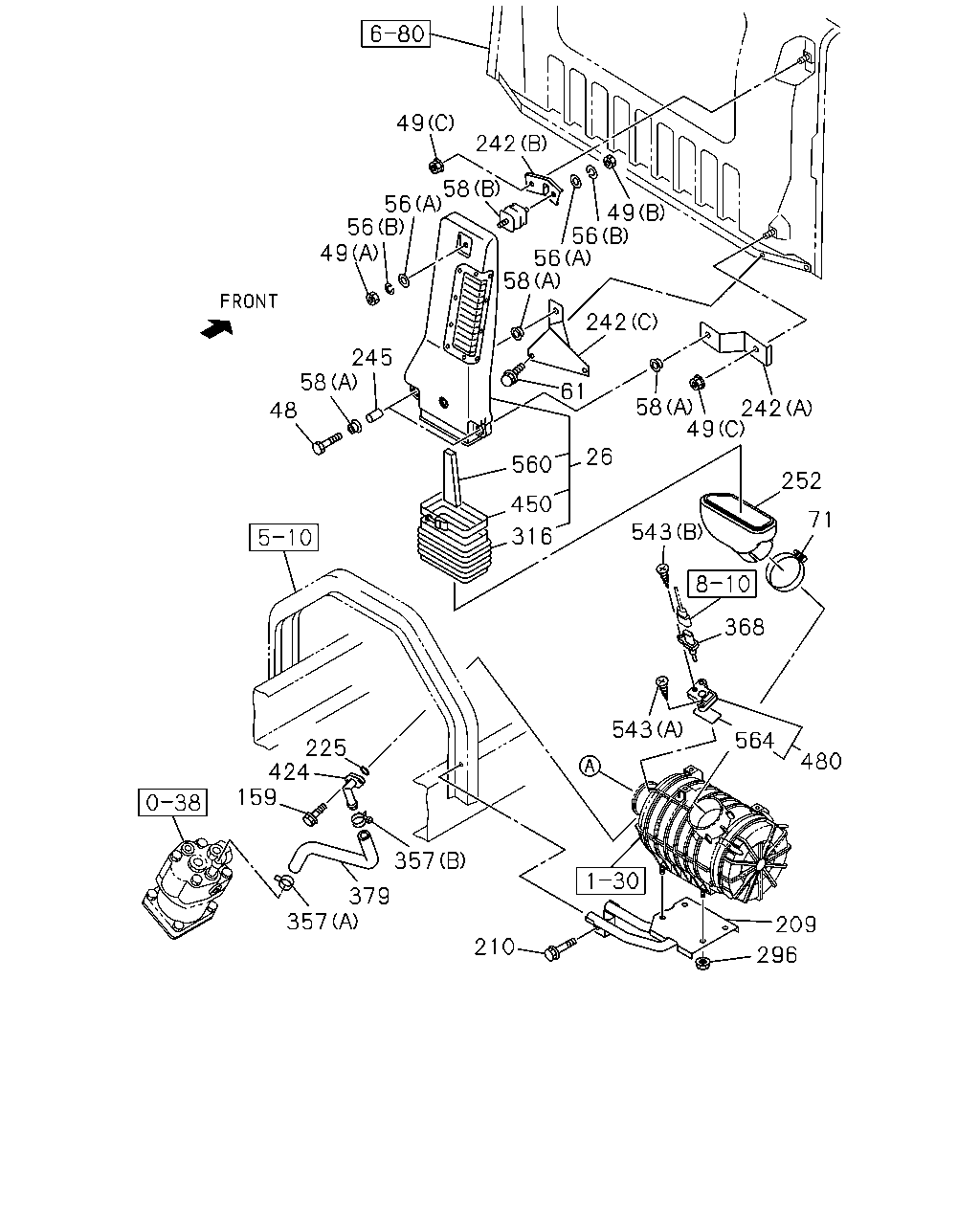

[131A] DUCT FIXING (33 parça)

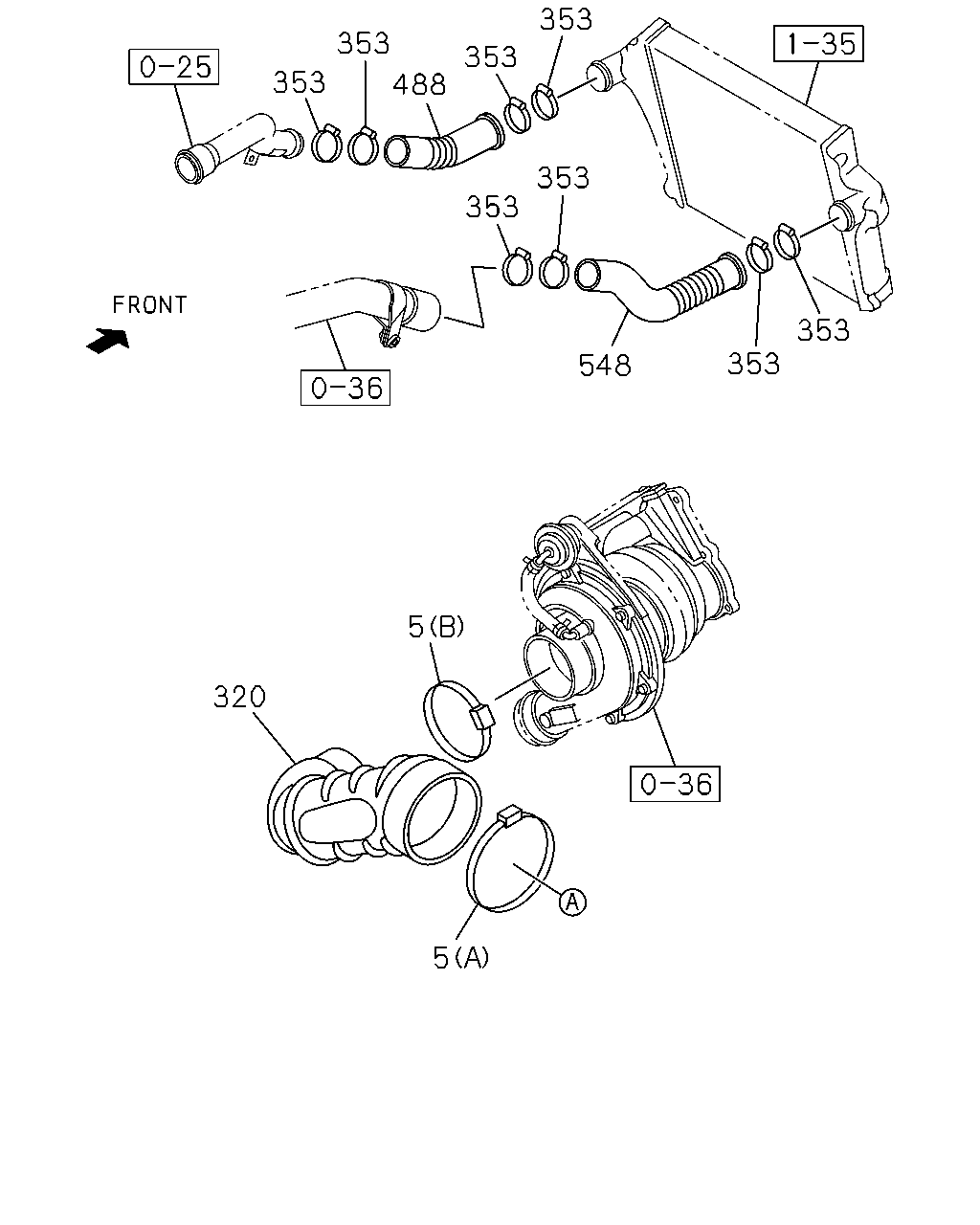

[131A] PIPING (6 parça)
▶
252
368
564
543
480
209
210
357
379
357
159
225
296
71
543
58
242
26
450
560
316
245
58
48
58
56
56
49
49
242
58
56
49
56
49
242
61
424
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1407-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1407-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1407-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1407-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1407-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1407-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1407-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1407-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1407-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1407-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1407-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
1407-
209
BRACKET; ACL
8-98099-677-0
01
1
1407-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
03
1
1407-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1407-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1407-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1407-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
1407-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1407-
252
DUCT; AIR INT
8-98019-843-0
01
1
1407-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1407-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1407-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1407-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1407-
368
SENSOR; TEMP
8-98065-377-0
01
1
1407-
379
HOSE; RUBBER
8-98063-172-0
01
1
1407-
424
PIPE; AIR,INL
8-98081-834-0
01
1
1407-
450
CLAMP; HOSE
9-09915-504-1
01
1
1407-
480
ADAPTER
8-98086-417-0
01
1
1407-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1407-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1407-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1407-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1407-
353
353
548
5
5
320
353
353
353
353
488
353
353
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=87-116
1-09707-138-0
01
1
1407-
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
01
1
1407-
320
HOSE; CONN,ACL
8-98072-934-0
01
1
1407-
353
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
08
1
1407-
488
HOSE; RUBBER,PIPE
8-98017-224-1
01
1
1407-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98181-973-1
01
1
1407-
