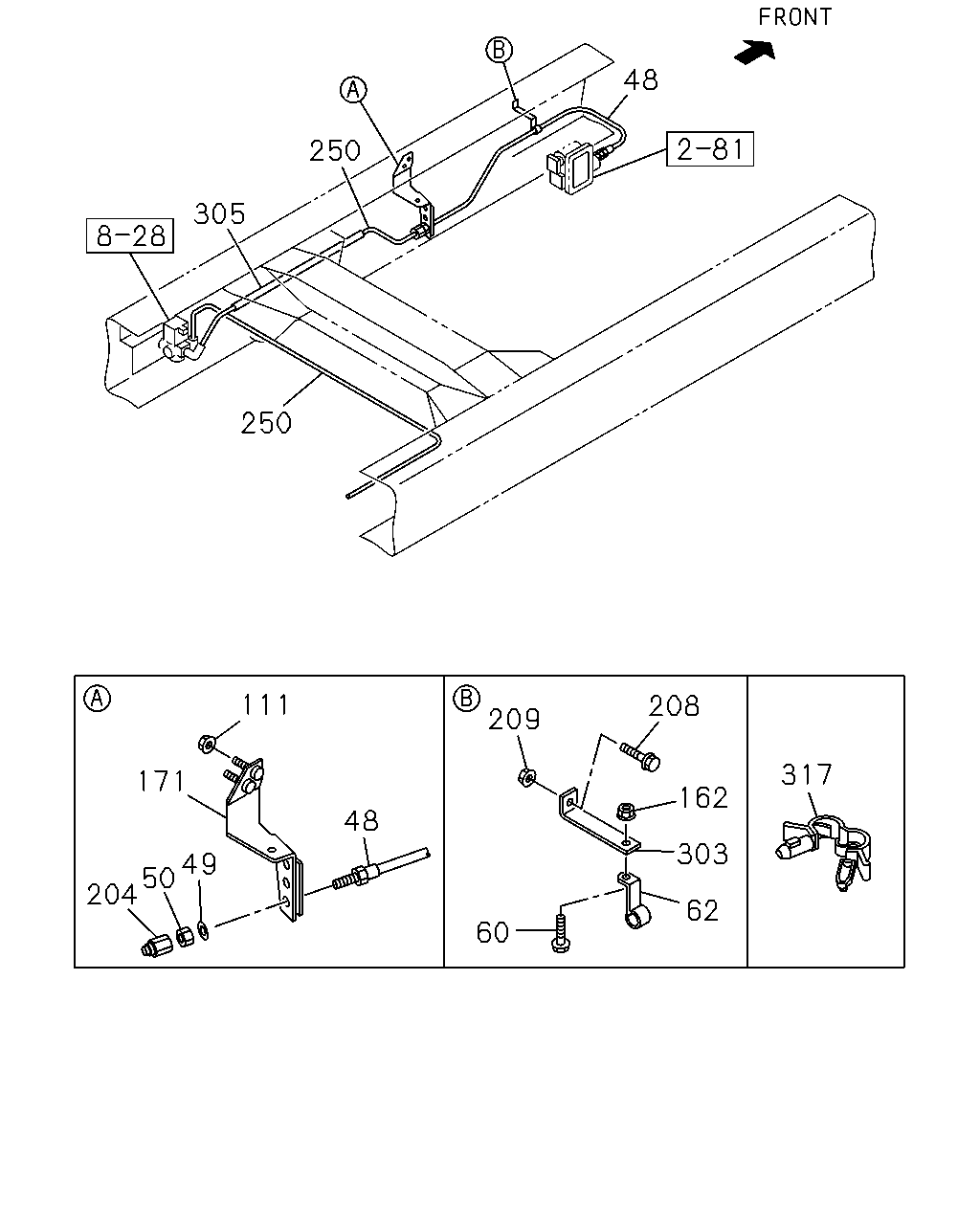

2-85 — POWER TAKE OFF CONTROL (#14501) — 16 parça

48 250 305 250 111 208 209 317 171 162 48 303 49 50 204 62 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	HOSE; FLEX,PTO L=600	1-09363-665-0	01	1	0611-
49	WASHER; LK,FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2	0-91510-512-0	01	1	0611-
50	NUT; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-09840-280-0	01	1	0611-
60	BOLT; CLIP FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	01	1	0611-
62	CLIP; PIPE,AIR TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30	1-09701-215-1	01	1	0611-
111	NUT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0611-
162	NUT; CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	01	1	0611-
171	BRACKET; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-337-0	01	1	0611-
204	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0611-
208	BOLT; BRKT,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE	0-28650-835-0	01	1	0611-
209	NUT; BRKT,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	01	1	0611-
250	TUBE; NYLON TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0611-
303	BRACKET; CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95	1-82699-085-0	01	1	0611-
305	TUBE; CORRUGATE TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0611-
317	CLIP; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=5-12 L=18	1-09709-287-0	01	1	0611-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	55	GROMMET; CABLE	1-09983-068-0	01	1	0611-
