◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11046 - CYZ LHD EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-81 - POWER TAKE OFF; TRANSMISSION SIDE ▶
2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#14500) — 73 parça

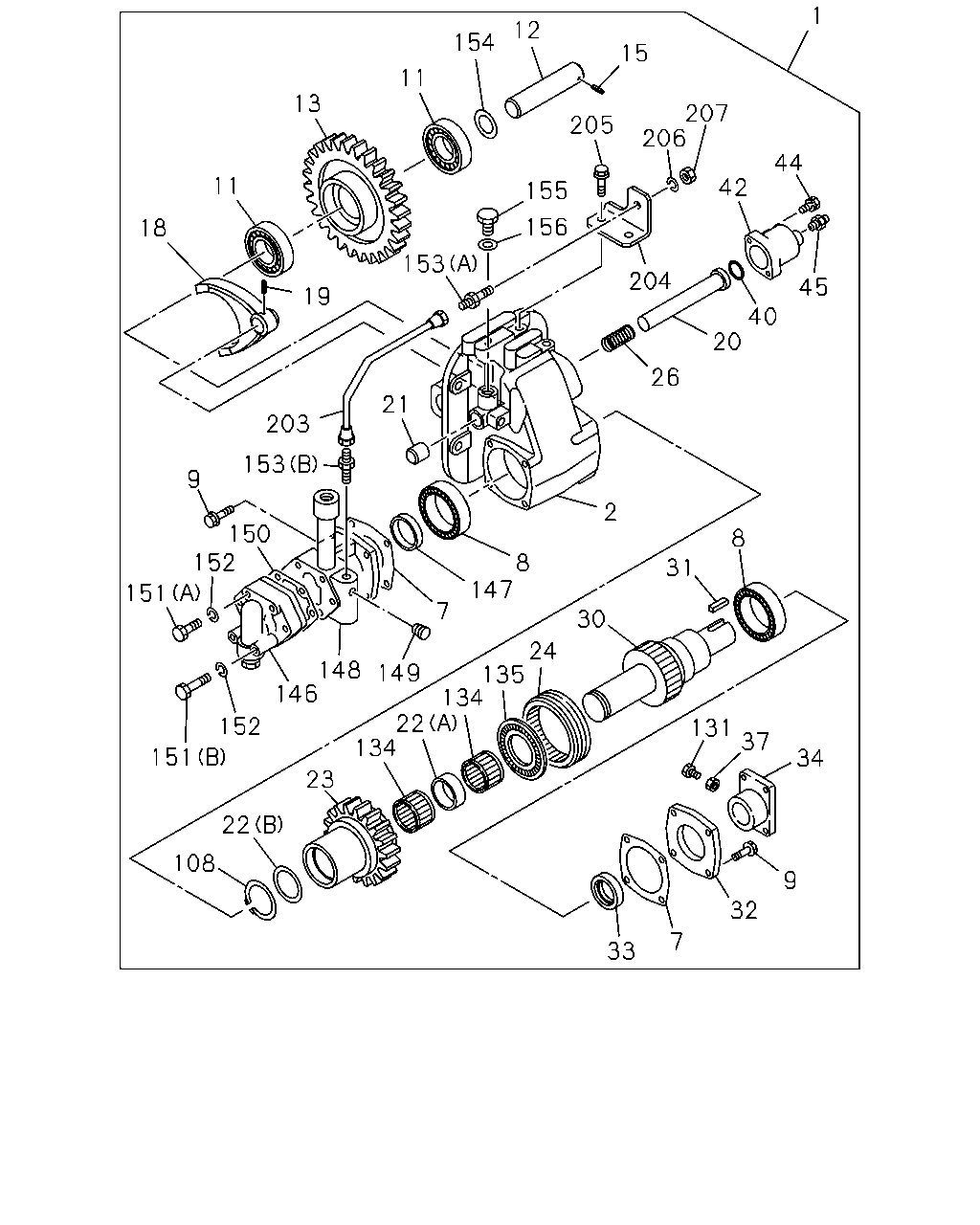

çizim 106436
1 12 154 15 11 13 207 206 205 44 11 42 155 156 18 153 204 45 19 40 20 26 21 203 153 9 2 150 152 8 8 147 31 151 7 30 24 135 134 22 134 148 146 149 152 131 37 151 34 23 22 108 9 32 7 33
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38000-317-2 01 1 0611-1112
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98185-658-0 01 1 1201-
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-093-0 01 1 0611-1112
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98186-096-0 01 1 1201-
7 GASKET; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-002-0 02 1 0611-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09800-208-0 02 1 0611-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28781-025-0 08 1 0611-1112
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE 		0-28151-020-0 08 1 1201-
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK 		9-00093-173-0 02 1 0611-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-026-0 01 1 0611-
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-004-0 01 1 0611-
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16 		9-09878-613-0 01 1 0611-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-034-0 01 1 0611-1112
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-026-0 01 1 1201-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09878-614-0 01 1 0611-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-056-1 01 1 0611-1112
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98186-097-0 01 1 1201-
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33545-001-0 01 1 0611-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38226-050-0 01 1 0611-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38226-051-0 01 1 0611-
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=24 		1-38241-071-0 01 1 0611-
24 SLEEVE; DOG CLU,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38225-002-0 01 1 0611-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-004-1 01 1 0611-
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-012-0 01 1 0611-
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-08050-732-0 01 1 0611-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38161-001-0 01 1 0611-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-792-0 01 1 0611-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-013-1 01 1 0611-
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09111-508-0 01 1 0611-1112
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		0-91111-508-0 01 1 1201-
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09561-324-0 01 1 0611-
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-007-0 01 1 0611-
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28781-025-0 02 1 0611-1112
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE 		0-28151-020-0 02 1 1201-
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0611-
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09588-168-0 01 1 0611-
131 BOLT; FLANGE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 		0-20800-820-0 01 1 0611-1112
131 BOLT; FLANGE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 		0-20850-820-0 01 1 1201-
134 BEARING; NEEDLE,OUTPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09811-322-0 02 1 0611-
135 BEARING; THRUST,OUTPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09810-165-0 01 1 0611-
146 PUMP ASM; OIL,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-34150-038-1 01 1 0611-1112
146 PUMP ASM; OIL,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98186-098-0 01 1 1201-
147 PLUG; OIL PUMP,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09600-066-0 01 1 0611-
148 ADAPTER; OIL PUMP,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38523-007-0 01 1 0611-
149 PLUG; ADAPTER,OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09205-513-0 01 1 0611-1112
149 PLUG; ADAPTER,OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		1-09605-019-0 01 1 1201-
150 GASKET; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-014-0 01 1 0611-
151 BOLT; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X55 		0-10805-855-0 02 1 0611-1112
151 BOLT; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X50 FLANGE 		0-28050-850-0 02 1 1201-
151 BOLT; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X70 		0-10805-870-0 02 1 0611-1112
151 BOLT; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X60 FLANGE 		0-28050-860-0 02 1 1201-
152 WASHER; LK,OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.2 		9-09150-508-0 04 1 0611-1112
153 CONNECTOR; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-09654-382-0 01 1 0611-1112
153 CONNECTOR; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		8-98047-565-0 01 1 1201-
153 CONNECTOR; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M16 & PT1/4 STRAIGHT 		9-09231-810-1 01 1 0611-1112
153 CONNECTOR; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 1201-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.00 		1-38216-011-0 02 1 0611-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.10 		1-38216-012-0 02 1 0611-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.15 		1-38216-013-0 02 1 0611-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.25 		1-38216-014-0 02 1 0611-
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.35 		1-38216-015-0 02 1 0611-
155 PLUG; SHIFTER ROD
TRANSMISSION SIDE PTO WO/LEVER(SH5) M14X9 		9-99202-314-0 01 1 0611-1112
156 GASKET; PLUG,SHIFTER ROD
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2 OD=20.0 		9-09571-414-0 01 1 0611-1112
203 PIPE ASM; PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-32571-142-0 01 1 0611-1112
203 PIPE ASM; PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98047-564-0 01 1 1201-
204 BRACKET; PIPE,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-32579-012-0 01 1 0611-1112
204 BRACKET; PIPE,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98047-563-0 01 1 1201-
205 BOLT; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28781-025-0 02 1 0611-1112
205 BOLT; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE 		0-28151-020-0 02 1 1201-
206 WASHER; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.2 		9-09150-516-0 01 1 0611-1112
206 WASHER; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.2 		0-91510-816-0 01 1 1201-
207 NUT; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M16 		9-99111-416-0 01 1 0611-1112
207 NUT; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M16 		0-91111-516-0 01 1 1201-
