Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11046 - CYZ LHD EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

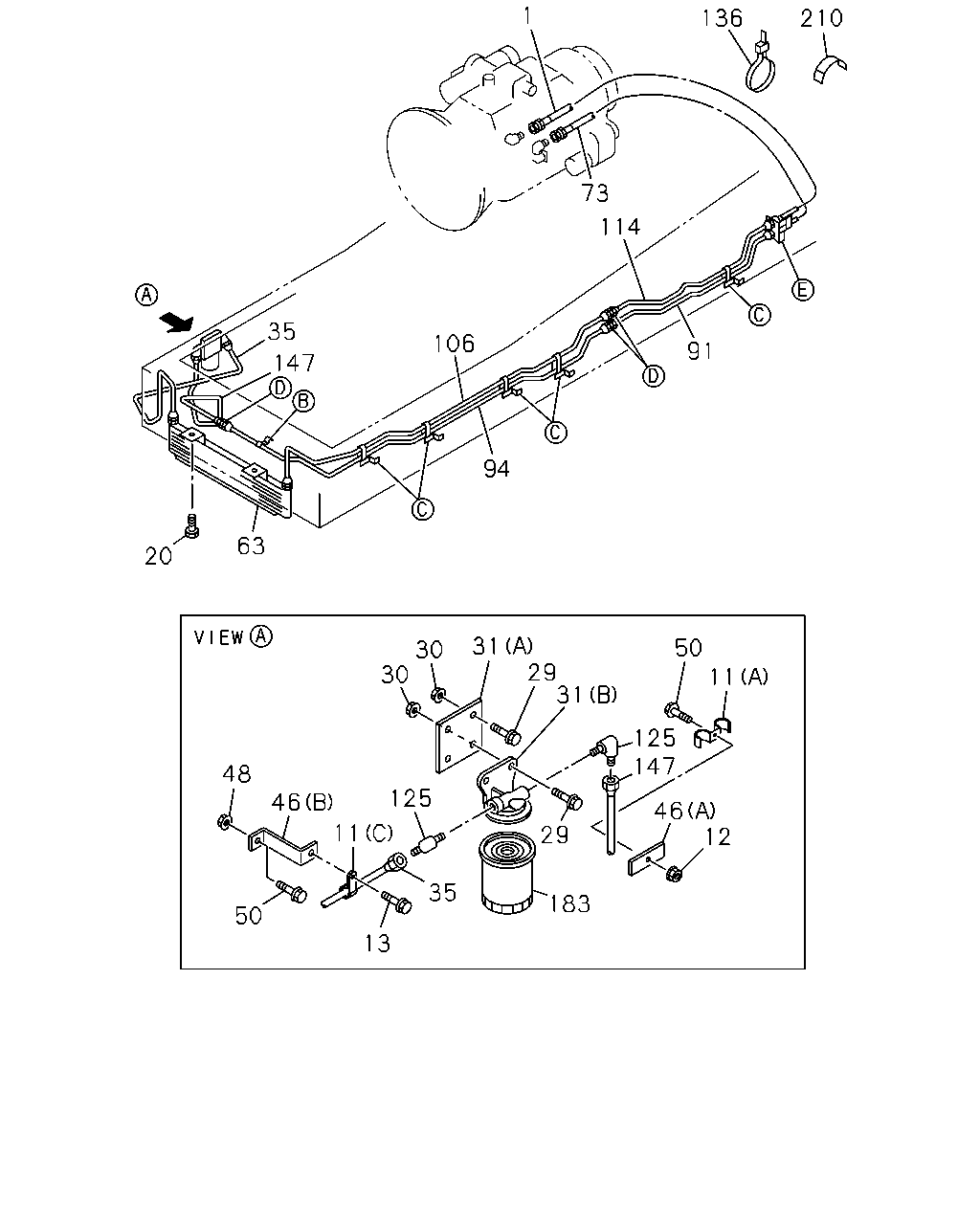

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#14499) — 69 parça
◀
[253A] FIXING;OTHER PARTS (31 parça)
[253A] FRAME SIDE (38 parça)
▶
11
29
178
50
11
12
50
95
1
48
117
116
114
8
109
73
179
77
76
91
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=500
1-09365-150-0
01
1
0611-
8
UNION
M16 STRAIGHT L=42
0-92123-010-0
01
1
0611-
11
CLIP; PIPE
(C) ID=11 L=20
9-09525-033-0
01
1
0611-0702
11
CLIP; PIPE
(C) ID=11 L=20
0-95235-036-0
01
1
0703-
11
CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
01
1
0611-
11
CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5
1-09700-924-0
02
1
0611-
11
CLIP; PIPE
(D) ID=11X2 L=20
9-09535-036-0
01
1
0611-
11
CLIP; PIPE
(D) ID=11X2 L=20
9-09535-036-0
04
1
0611-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0611-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0611-
19
BRACKET; FLEX HOSE
1-47479-559-0
01
1
0611-
29
BOLT; FILTER TO BRKT
M8X35 FLANGE
0-28650-835-0
04
1
0611-
29
BOLT; FILTER TO BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0611-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0611-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0611-
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0611-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
0611-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0611-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0611-
73
HOSE; FLEX,TRANS
L=500
1-09365-150-0
01
1
0611-
76
NUT; FLEX HOSE
M16
0-91111-516-0
01
1
0611-
77
WASHER; LK
ID=16.2
0-91510-516-0
01
1
0611-
91
PIPE; OIL,FLEX HOSE TO UNION
L=799 SERVICED BY L=800
1-47428-872-0
01
1
0611-
95
BRACKET; CLIP
1-47479-482-0
05
1
0611-
109
UNION
M16 STRAIGHT L=42
0-92123-010-0
01
1
0611-
109
UNION
M16 STRAIGHT L=42
0-92123-010-0
01
1
0611-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849 SERVICED BY L=900
1-47428-873-0
01
1
0611-
116
NUT; BRKT,FLEX HOSE
M16
0-91111-516-0
01
1
0611-
117
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
01
1
0611-
178
BOLT; BRKT,CLIP
M8X35 FLANGE
0-28650-835-0
01
1
0611-
179
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
0611-
1
136
210
73
114
35
106
91
147
94
63
20
31
29
31
50
11
30
30
125
147
48
125
46
46
12
11
29
35
183
50
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=500
1-09365-150-0
01
1
0611-
11
CLIP; PIPE
(C) ID=11 L=20
9-09525-033-0
01
1
0611-0702
11
CLIP; PIPE
(C) ID=11 L=20
0-95235-036-0
01
1
0703-
11
CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
01
1
0611-
11
CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5
1-09700-924-0
02
1
0611-
11
CLIP; PIPE
(D) ID=11X2 L=20
9-09535-036-0
01
1
0611-
11
CLIP; PIPE
(D) ID=11X2 L=20
9-09535-036-0
04
1
0611-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0611-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0611-
13
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0611-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0611-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0611-
29
BOLT; FILTER TO BRKT
M8X35 FLANGE
0-28650-835-0
04
1
0611-
29
BOLT; FILTER TO BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0611-
30
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0611-
31
BRACKET; OIL FILTER
(B)
1-33119-222-0
01
1
0611-
31
BRACKET; OIL FILTER
(A)
1-47471-155-0
01
1
0611-
35
PIPE; OIL,OIL COOLER TO FILTER
L=913 SERVICED BY L=1000
1-47428-874-0
01
1
0611-
46
BRACKET; OIL PIPE
(B)
1-46147-101-0
01
1
0611-
46
BRACKET; OIL PIPE
(A) L=50
1-47475-299-2
01
1
0611-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0611-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0611-
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0611-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
0611-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0611-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0611-
63
COOLER; OIL
1-21700-394-0
01
1
0611-1405
63
COOLER; OIL
8-98269-766-0
01
1
1406-
73
HOSE; FLEX,TRANS
L=500
1-09365-150-0
01
1
0611-
91
PIPE; OIL,FLEX HOSE TO UNION
L=799 SERVICED BY L=800
1-47428-872-0
01
1
0611-
94
PIPE; OIL,UNION TO UNION
L=2298 SERVICED BY L=2500
1-47428-883-0
01
1
0611-
106
PIPE ASM; OIL,COOLER TO UNION
L=1747 SERVICED BY L=1900
1-47428-881-0
01
1
0611-
114
PIPE; OIL,UNION TO FLEX HOSE
L=849 SERVICED BY L=900
1-47428-873-0
01
1
0611-
125
CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW
0-92134-310-0
02
1
0611-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
0611-
147
PIPE; OIL,UNION TO FILTER
L=871 SERVICED BY L=900
1-47428-873-0
01
1
0611-
183
CARTRIDGE; OIL FILTER
8-94459-700-1
01
1
0611-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0611-
