Isuzu WW
▶
TRUCKS
▶
FSR
▶
11585 - FSR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#144982) — 21 parça
◀

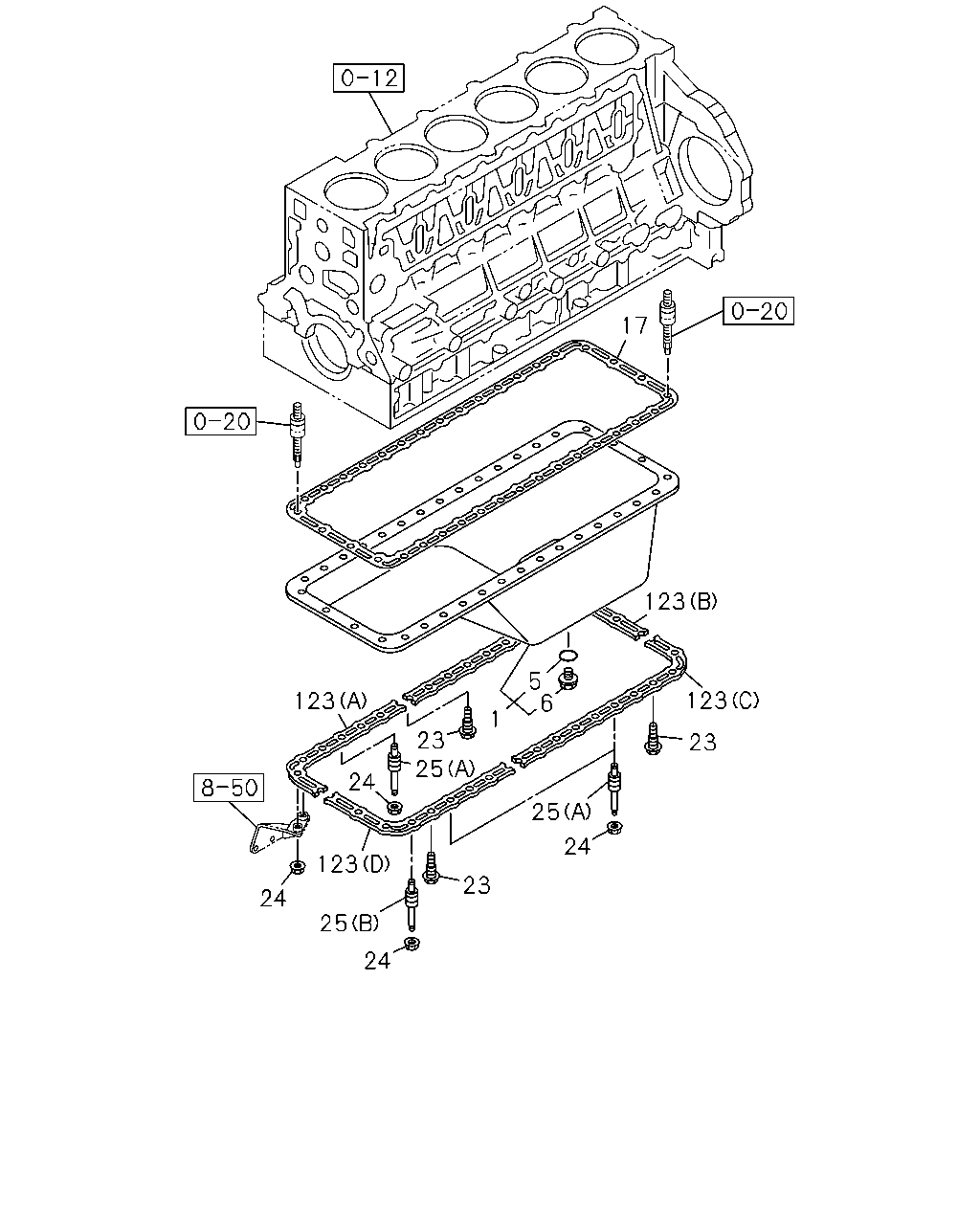

[013A] OIL PAN (12 parça)

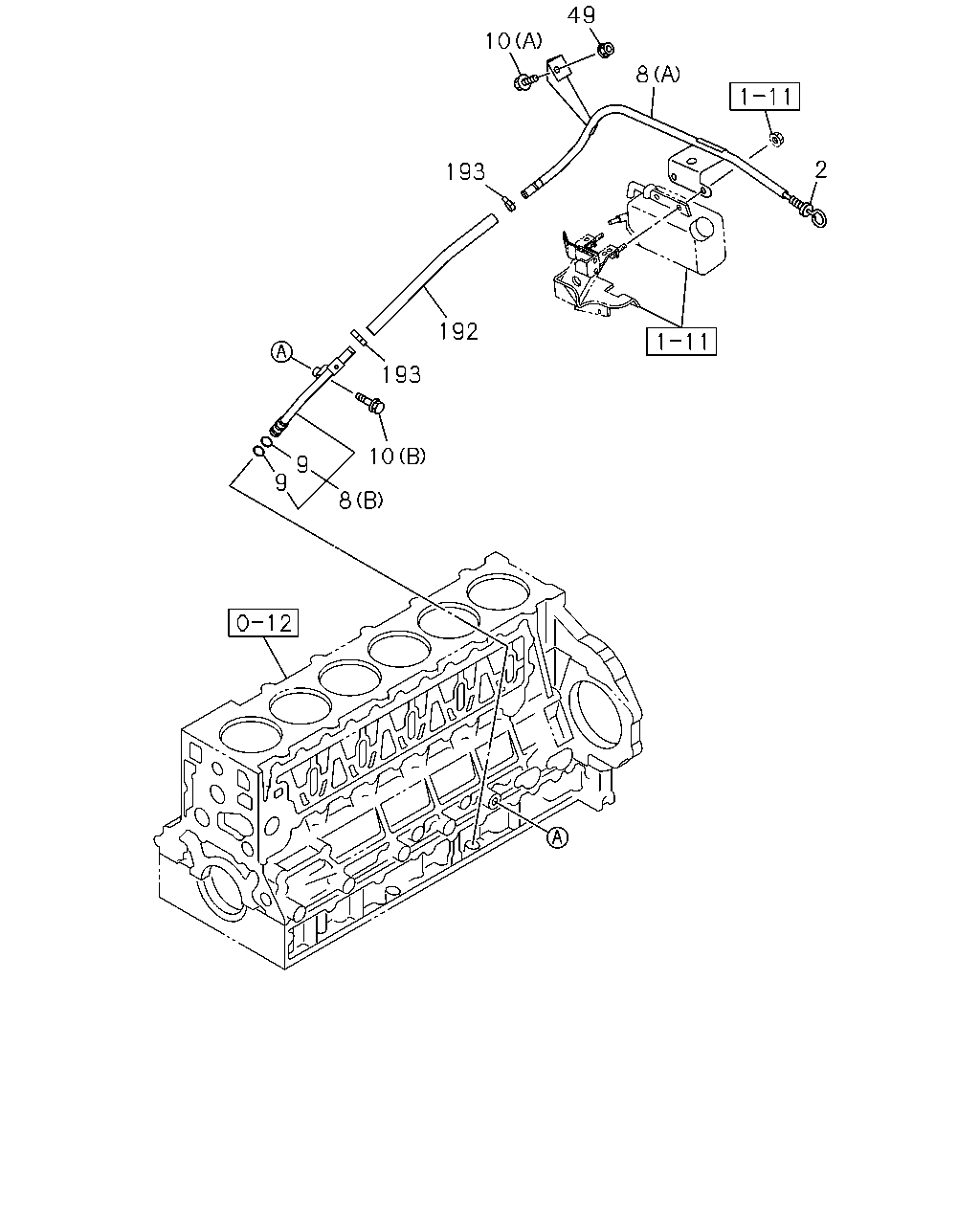

[013A] OIL LEVEL GAUGE AND GUIDE TUBE (9 parça)
▶
17
123
23
25
24
24
123
25
24
23
1
5
6
25
24
23
123
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98061-363-0
01
1
1407-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1407-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1407-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
1407-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
20
1
1407-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
14
1
1407-
25
STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
05
1
1407-
25
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
02
1
1407-
123
RUBBER; SEAL OIL
(A)
8-94391-755-0
01
1
1407-
123
RUBBER; SEAL OIL
(B)
8-94391-757-0
01
1
1407-
123
RUBBER; SEAL OIL
(C)
8-94391-758-0
01
1
1407-
123
RUBBER; SEAL OIL
(D)
8-94392-548-0
01
1
1407-
49
8
10
193
192
193
10
9
8
9
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98092-125-1
01
1
1407-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98063-554-0
01
1
1407-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98098-761-0
01
1
1407-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1407-
10
BOLT; GUIDE TUBE
(B) M10X35 FLANGE
0-28151-035-0
01
1
1407-
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
01
1
1407-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
1407-
192
HOSE; GUIDE TUBE
L=310
8-98092-068-0
01
1
1407-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1407-
