6-05 — FRONT PANEL
(#144972) — 122 parça
◀
[605A] SIDE PANEL (27 parça)
[605A] FENDER (33 parça)
[605A] FRONT PANEL AND OTHER PARTS (16 parça)
[605A] FRONT PANEL COMPONENT (14 parça)
[605A] PROTECTOR AND BLISTER FENDER (32 parça)
▶

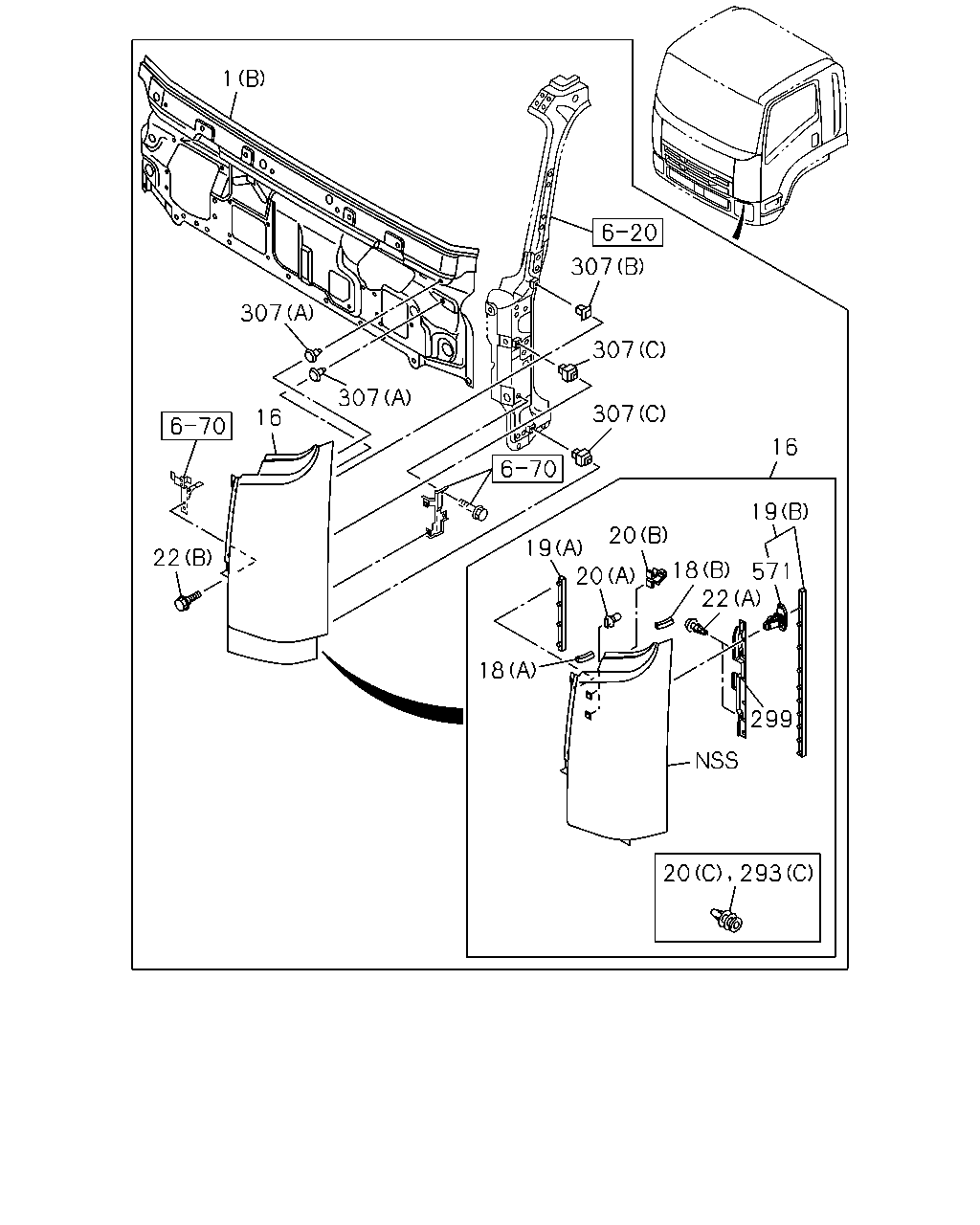

307
307
307
16
19
571
22
18
20
20
19
18
299
20
293
307
307
1
16
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL ASM; FRT
(B) CHI
8-97430-001-0
01
1
1404-
1
PANEL ASM; FRT
(A) CHI
8-98030-234-4
01
1
1404-
16
PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CHI
8-97430-959-0
01
1
1404-
16
PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CHI
8-97430-957-0
01
1
1404-
16
PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CHI
8-97430-960-0
01
1
1404-
16
PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CHI
8-97430-958-0
01
1
1404-
18
SEAL; A-POST UPR,FRT SIDE PANEL
(B) CHI
8-98038-608-0
02
1
1404-
18
SEAL; A-POST UPR,FRT SIDE PANEL
(A) CHI
8-98043-511-1
02
1
1404-
19
SEAL; FRT SIDE PANEL
(A) CHI
8-98036-581-0
01
1
1404-
19
SEAL; FRT SIDE PANEL
(B) CHI
8-98041-359-2
01
1
1404-
19
SEAL; FRT SIDE PANEL
(A) CHI
8-98036-580-0
01
1
1404-
19
SEAL; FRT SIDE PANEL
(B) CHI
8-98041-358-2
01
1
1404-
20
CLIP; FRT PANEL SIDE
(A) CHI
8-97410-739-0
04
1
1404-
20
CLIP; FRT PANEL SIDE
(B) CHI
8-97410-740-2
02
1
1404-
20
CLIP; FRT PANEL SIDE
(C) H=16
8-94318-803-1
01
1
1404-
22
SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER CHI
0-74360-410-0
06
1
1404-
22
SCREW; FRT PANEL SIDE
(B) M6X16 FLANGE CHI
8-98061-108-0
04
1
1404-
293
BRACKET; PANEL
(A) CHI
8-97586-008-1
01
1
1404-
293
BRACKET; PANEL
(B) CHI
8-98008-124-1
01
1
1404-
293
BRACKET; PANEL
(B) CHI
8-98008-126-1
01
1
1404-
293
BRACKET; PANEL
(C) H=16
8-94318-803-1
01
1
1404-
299
COVER; FRT PANEL SIDE
CHI
8-98034-814-1
01
1
1404-
299
COVER; FRT PANEL SIDE
CHI
8-98034-813-1
01
1
1404-
307
GROMMET; FRT PANEL
(B) CHI
8-97410-738-0
02
1
1404-
307
GROMMET; FRT PANEL
(C) CHI
8-98021-300-1
04
1
1404-
307
GROMMET; FRT PANEL
(A) CHI
8-98034-363-1
04
1
1404-
571
CLIP; SEAL
NATURAL CHI
8-98027-457-0
20
1
1404-

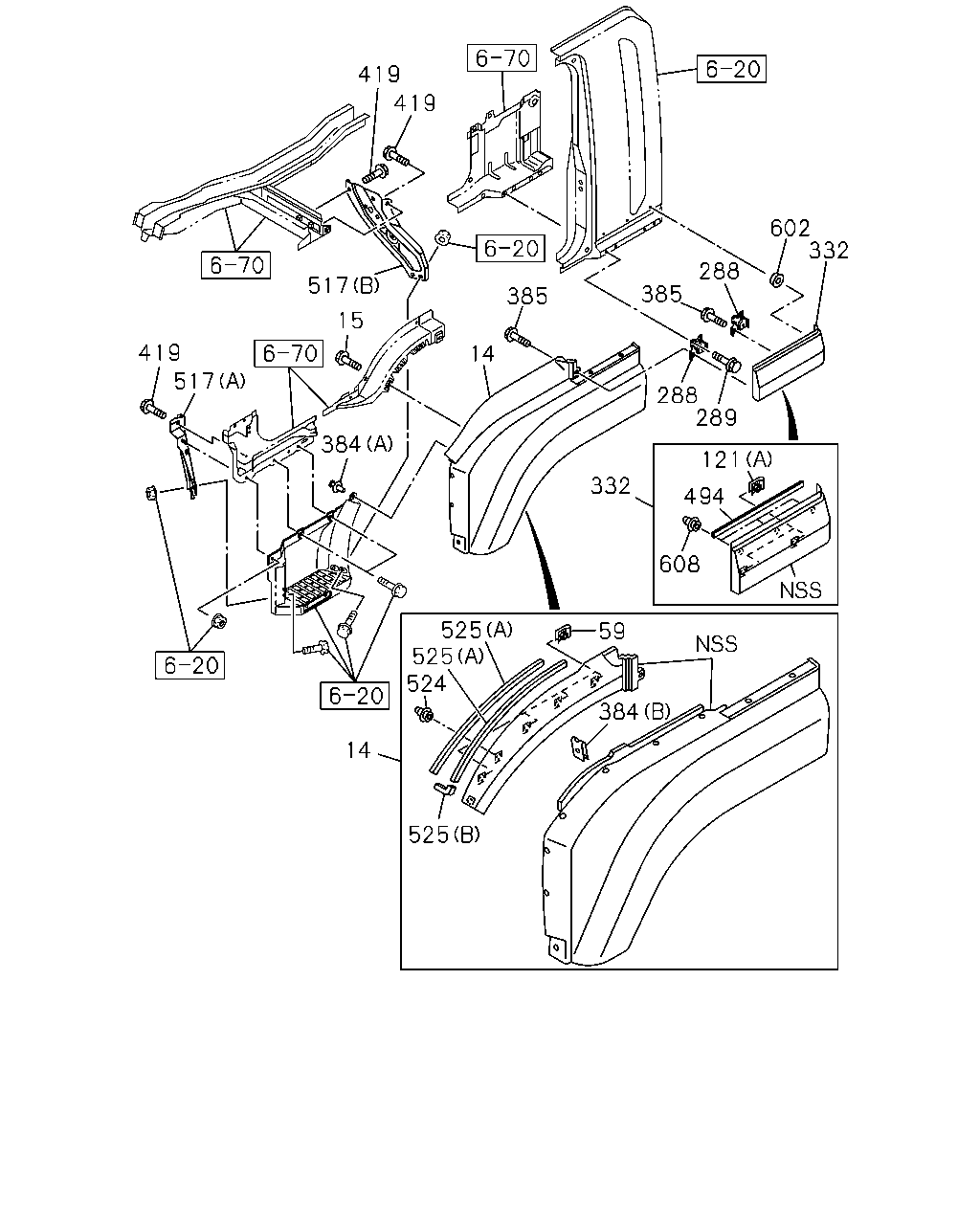

385
14
332
288
289
121
494
608
59
384
525
525
524
525
14
419
517
517
15
419
419
385
288
602
332
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
FENDER; FRT
CHI
8-97430-532-0
01
1
1404-
14
FENDER; FRT
CHI
8-97430-531-0
01
1
1404-
15
BOLT; FENDER
M6X20 W/PL WASHER CHI
8-98059-504-0
06
1
1404-
15
BOLT; FENDER
M8X15.5 HEXALOBULAR CHI
8-98141-874-0
08
1
1404-
59
GROMMET; SCREW
CHI
8-94279-723-0
02
1
1404-
59
GROMMET; SCREW
CHI
8-94279-723-0
06
1
1404-
121
GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 CHI
8-94279-078-0
06
1
1404-
121
GROMMET; FENDER
(D) OD=8.3 CHI
8-94279-989-0
12
1
1404-
121
GROMMET; FENDER
(B) H=15 CHI
8-94463-268-1
04
1
1404-
121
GROMMET; FENDER
(E) CHI
8-98073-421-0
01
1
1404-
121
GROMMET; FENDER
(E) CHI
8-98073-420-0
01
1
1404-
121
GROMMET; FENDER
(A) CHI
8-94279-723-0
04
1
1404-
288
BRACKET; FENDER SKIRT
CHI
8-98059-770-1
04
1
1404-
289
BOLT; FENDER SKIRT BRKT
M6X16 FLANGE CHI
0-28650-616-0
08
1
1404-
332
FENDER; RR
BODY COLOR ARC WHITE(729) WHITE CHI
8-97407-507-2
01
1
1404-
332
FENDER; RR
BODY COLOR ARC WHITE(729) WHITE CHI
8-97407-506-2
01
1
1404-
332
FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE CHI
8-97413-612-2
01
1
1404-
332
FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE CHI
8-97413-602-2
01
1
1404-
384
CLIP; FENDER LWR
(A) D8X13.5 CHI
1-09987-248-1
02
1
1404-
384
CLIP; FENDER LWR
(B) CHI
8-94334-769-0
04
1
1404-
385
SCREW; FENDER LWR
M6X20 W/PL WASHER CHI
8-98059-504-0
04
1
1404-
419
BOLT; STEP
M8X20 FLANGE CHI
0-28650-820-0
08
1
1404-
494
FINISHER; FENDER
CHI
8-98072-723-0
01
1
1404-
494
FINISHER; FENDER
CHI
8-98041-172-1
01
1
1404-
517
SUPPORT; STEP PANEL
(A) CHI
8-98037-336-1
01
1
1404-
517
SUPPORT; STEP PANEL
(B) CHI
8-98037-351-2
01
1
1404-
517
SUPPORT; STEP PANEL
(A) CHI
8-97430-063-0
01
1
1404-
517
SUPPORT; STEP PANEL
(B) CHI
8-98037-350-2
01
1
1404-
524
CLIP; FENDER COVER
OD=7.9 BLACK CHI
8-94279-974-1
02
1
1404-
525
SEAL; FENDER
(A) CHI
8-98061-760-0
02
1
1404-
525
SEAL; FENDER
(B) CHI
8-98061-762-0
02
1
1404-
602
RETAINER; COVER
ID=5.4 OD=6.8 CHI
8-98241-984-0
06
1
1404-
608
CLIP
D5.4X8 CHI
1-09983-154-0
06
1
1404-

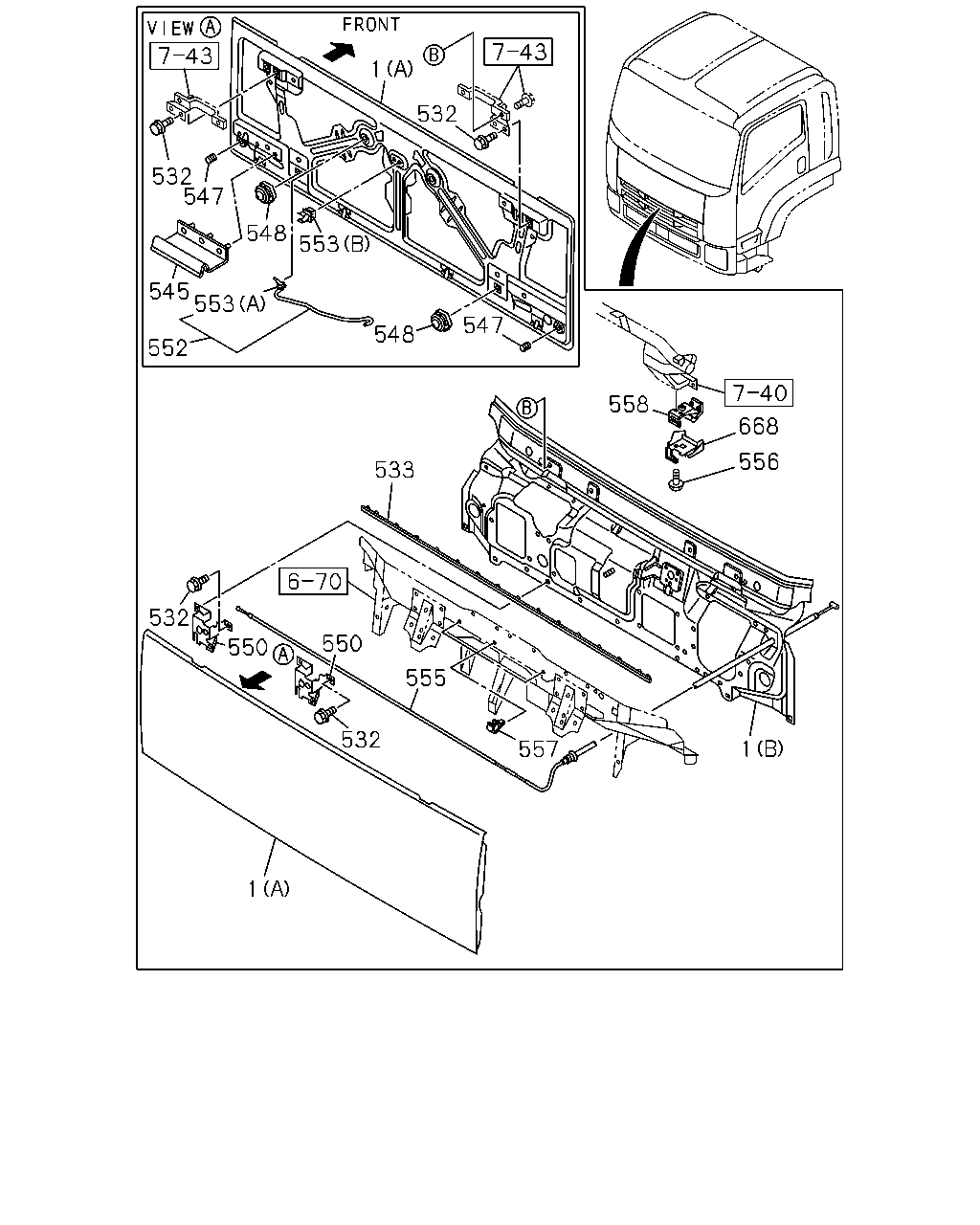

532
548
547
553
545
552
553
532
1
548
547
558
533
550
532
550
532
1
555
557
1
556
668
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL ASM; FRT
(B) CHI
8-97430-001-0
01
1
1404-
1
PANEL ASM; FRT
(A) CHI
8-98030-234-4
01
1
1404-
532
BOLT; FRT PANEL
M8X20 FLANGE CHI
0-28650-820-0
08
1
1404-
533
SEAL; FRT PANEL
CHI
8-98096-289-0
01
1
1404-
545
SEAL; FRT LID
CHI
8-98123-265-0
01
1
1404-
547
RUBBER; CUSHION
OD=22 L=29 CHI
8-94324-556-2
02
1
1404-
548
STRIKER; FRT LID PANEL
CHI
8-98068-145-1
02
1
1404-
550
LOCK ASM; FRT LID
CHI
8-98036-568-2
02
1
1404-
552
STAY; FRT LID
CHI
8-98089-839-1
01
1
1404-
553
CLIP; STAY
(B) CHI
8-97031-428-0
01
1
1404-
553
CLIP; STAY
(A) CHI
8-98094-542-0
01
1
1404-
555
CABLE; FRT LID
CHI
8-98036-574-1
01
1
1404-
556
BOLT; CABLE
M6X16 FLANGE CHI
0-28650-616-0
01
1
1404-
557
CLIP; CABLE
ID=4.8 CHI
8-94128-483-0
03
1
1404-
558
LEVER; FRT LID
CHI
1-79338-007-0
01
1
1404-
668
COVER; LEVER,FRT LID
CHI
8-98076-339-0
01
1
1404-

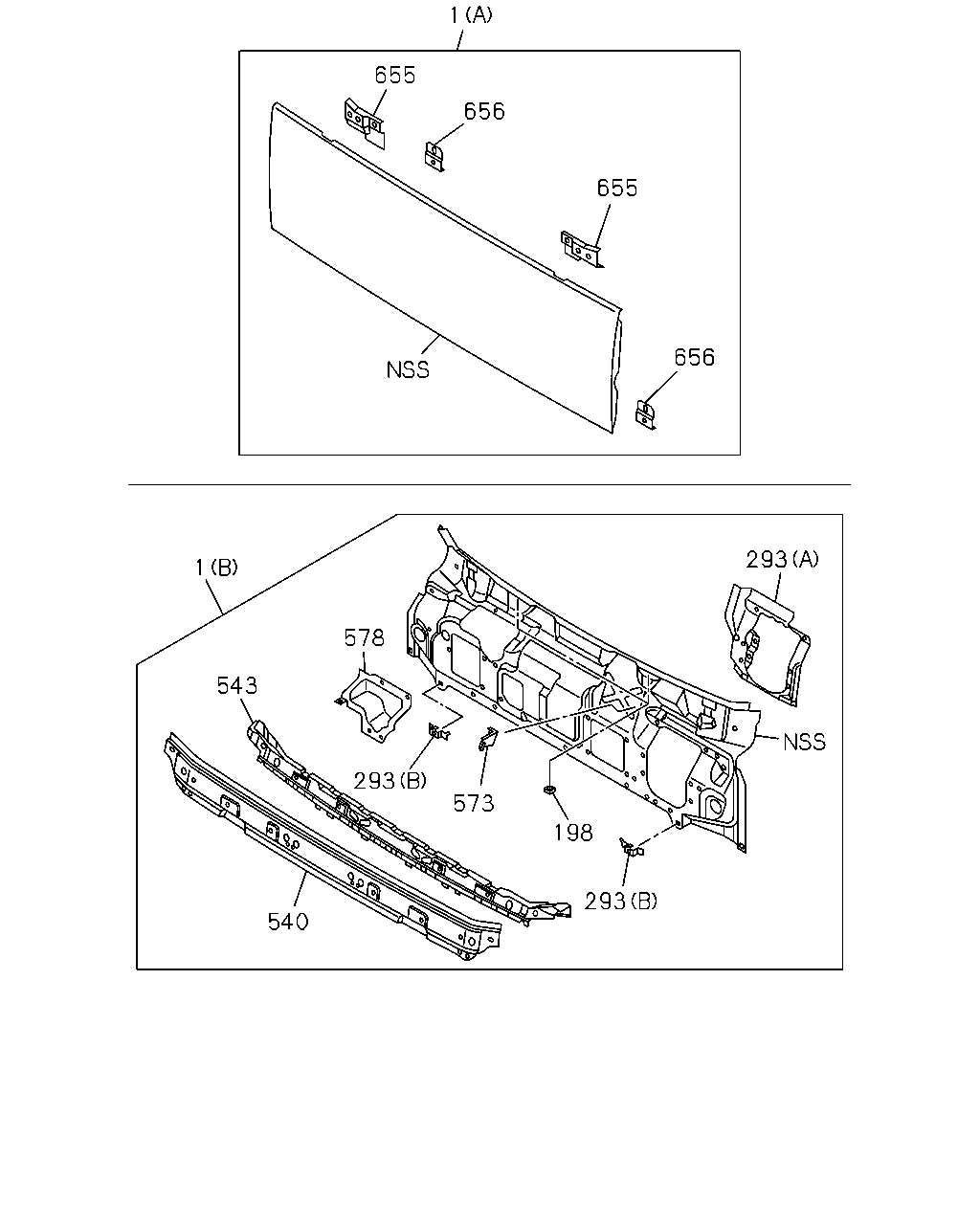

1
655
656
655
656
1
578
543
293
540
573
198
293
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL ASM; FRT
(B) CHI
8-97430-001-0
01
1
1404-
1
PANEL ASM; FRT
(A) CHI
8-98030-234-4
01
1
1404-
198
NUT; PANEL
M6
9-09114-086-0
02
1
1404-
293
BRACKET; PANEL
(A) CHI
8-97586-008-1
01
1
1404-
293
BRACKET; PANEL
(B) CHI
8-98008-124-1
01
1
1404-
293
BRACKET; PANEL
(B) CHI
8-98008-126-1
01
1
1404-
293
BRACKET; PANEL
(C) H=16
8-94318-803-1
01
1
1404-
540
PANEL; FRONT,OUTER
CHI
8-97585-967-1
01
1
1404-
543
CLOSING; FRT MTG RAIL
CHI
8-97430-002-0
01
1
1404-
573
BRACKET; SUPPORT
CHI
8-98008-127-2
01
1
1404-
578
COVER; WIPER MOTOR
CHI
8-98017-702-1
01
1
1404-
655
PATCH; HINGE
CHI
8-98031-263-0
01
1
1404-
655
PATCH; HINGE
CHI
8-98031-264-0
01
1
1404-
656
PATCH; STRIKER
CHI
8-98031-265-0
02
1
1404-

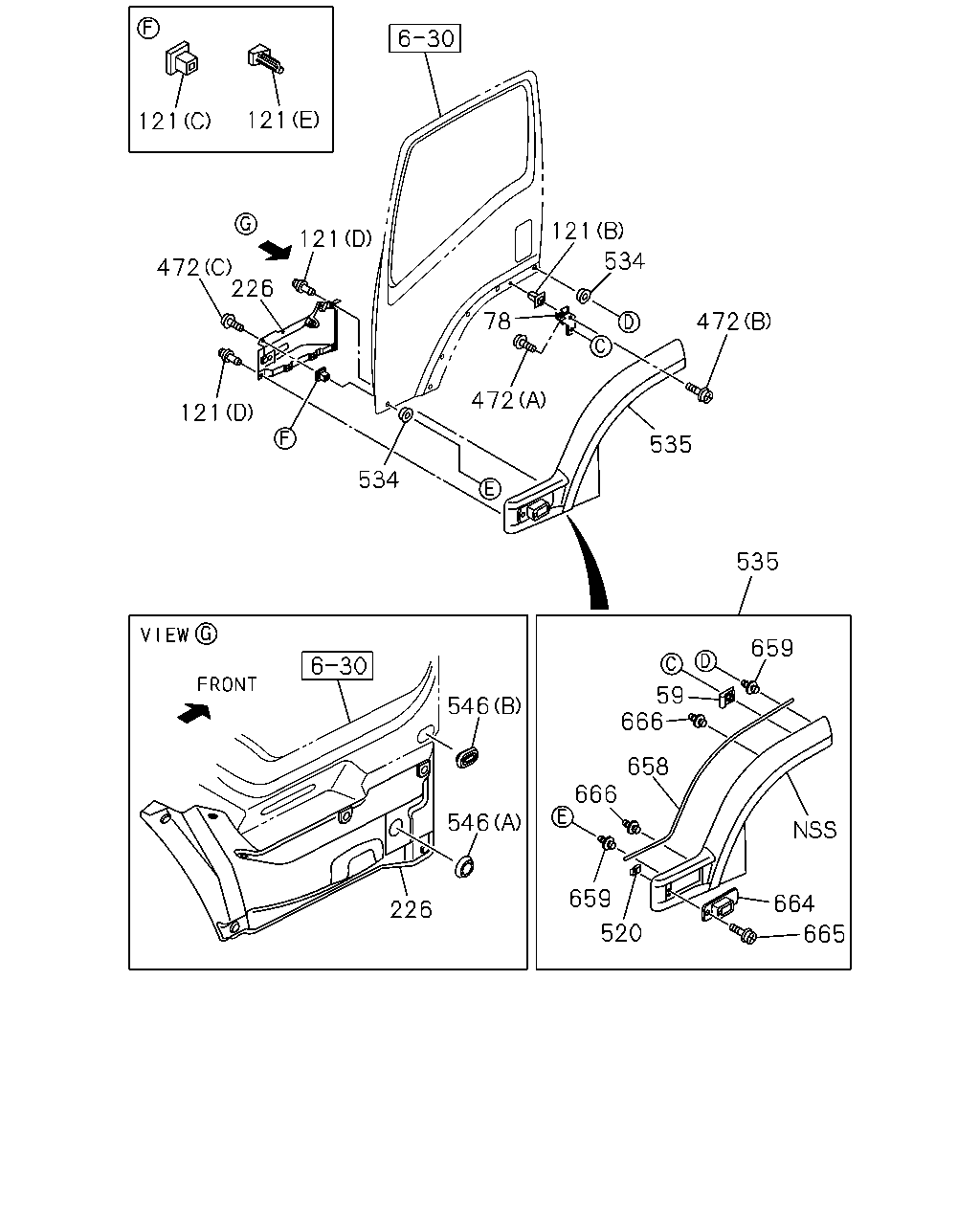

121
534
472
535
535
659
59
666
658
666
659
520
664
665
546
546
226
121
534
472
78
121
226
472
121
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
59
GROMMET; SCREW
CHI
8-94279-723-0
02
1
1404-
59
GROMMET; SCREW
CHI
8-94279-723-0
06
1
1404-
78
BRACKET; FENDER
CHI
8-98041-166-1
01
1
1404-
78
BRACKET; FENDER
CHI
8-98041-165-1
01
1
1404-
121
GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 CHI
8-94279-078-0
06
1
1404-
121
GROMMET; FENDER
(D) OD=8.3 CHI
8-94279-989-0
12
1
1404-
121
GROMMET; FENDER
(B) H=15 CHI
8-94463-268-1
04
1
1404-
121
GROMMET; FENDER
(E) CHI
8-98073-421-0
01
1
1404-
121
GROMMET; FENDER
(E) CHI
8-98073-420-0
01
1
1404-
121
GROMMET; FENDER
(A) CHI
8-94279-723-0
04
1
1404-
226
PROTECTOR; FRT
CHI
8-98037-715-2
01
1
1404-
226
PROTECTOR; FRT
CHI
8-98037-714-2
01
1
1404-
472
SCREW; FENDER TO CAB
(A) M6X18 TAPPING CHI
8-98059-505-0
02
1
1404-
472
SCREW; FENDER TO CAB
(C) M5X16 CHI
8-98090-737-0
08
1
1404-
472
SCREW; FENDER TO CAB
(B) M5X12 CHI
8-98093-669-0
04
1
1404-
520
NUT; FENDER
CHI
8-94279-501-0
02
1
1404-
534
FASTENER
ID=5.4 OD=6.8 CHI
8-98241-984-0
12
1
1404-
535
FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE CHI
8-97415-394-1
01
1
1404-
535
FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE CHI
8-97415-393-1
01
1
1404-
535
FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE CHI
8-97418-329-1
01
1
1404-
535
FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE CHI
8-97418-315-1
01
1
1404-
546
PLUG; DUMMY HOLE
(A) OD=38 CHI
8-94159-507-0
02
1
1404-
546
PLUG; DUMMY HOLE
(B) CHI
8-94430-184-1
02
1
1404-
658
FINISHER; BLISTER FENDER
CHI
8-98041-169-3
01
1
1404-
658
FINISHER; BLISTER FENDER
CHI
8-98041-168-3
01
1
1404-
659
CLIP; FENDER
D5.4X8 CHI
1-09983-154-0
08
1
1404-
664
BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE CHI
8-97421-597-0
01
1
1404-
664
BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE CHI
8-97421-469-0
01
1
1404-
664
BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE CHI
8-97421-626-0
01
1
1404-
664
BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE CHI
8-97421-615-0
01
1
1404-
665
SCREW; FENDER
M6X20 W/PL WASHER CHI
0-36210-620-0
02
1
1404-
666
CLIP; BLISTER FENDER
CHI
8-98071-178-0
04
1
1404-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
