2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#14497) — 39 parça

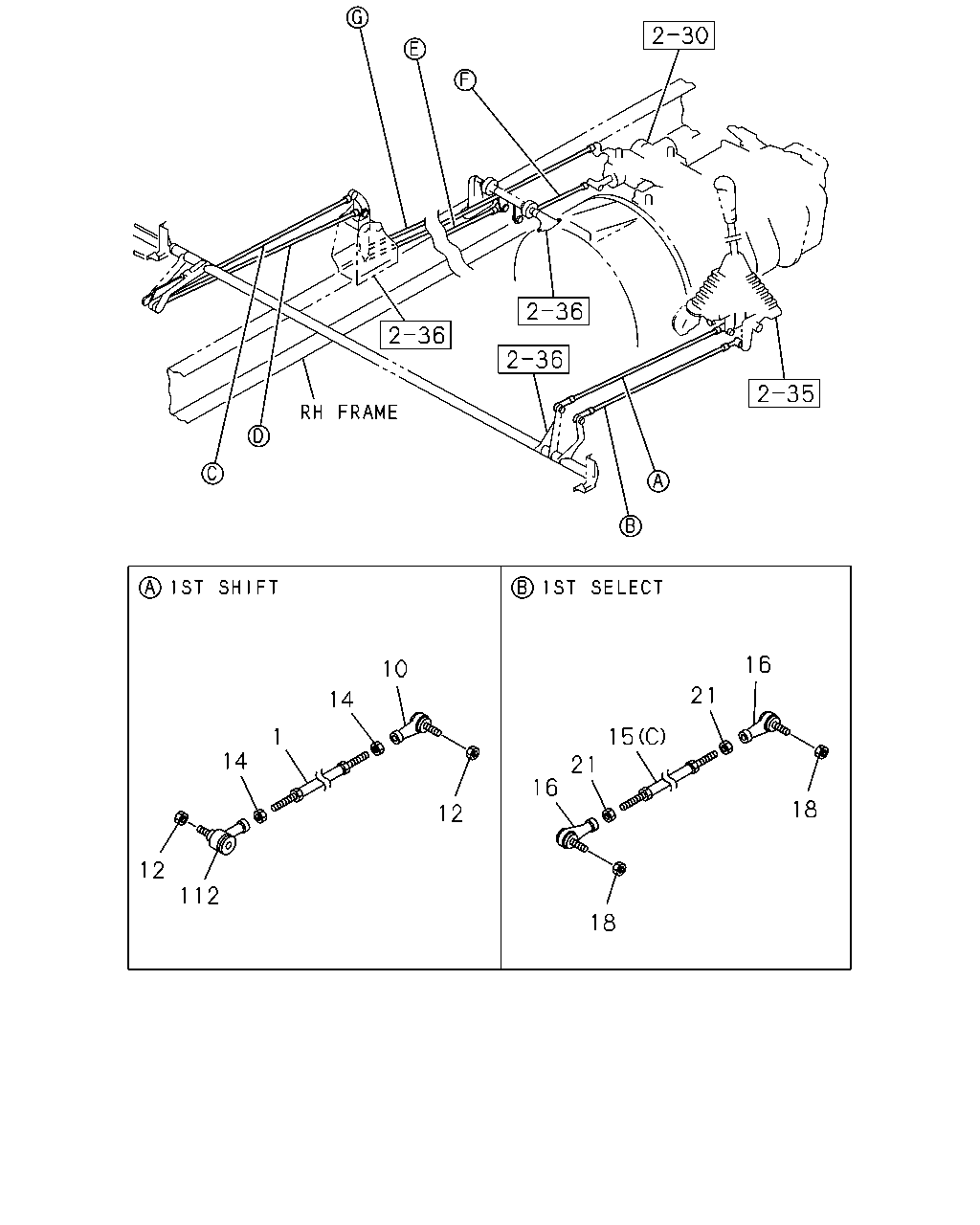

çizim 91789
16 10 21 14 15 1 14 21 16 18 12 12 112 18
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 0611-
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 0611-
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0611-
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0611-
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 0611-
15 ROD; LINK 1ST SHIFT
(A) L=475 		1-33662-018-3 01 1 0611-
15 ROD; LINK 1ST SHIFT
(B) L=460 		1-33662-019-4 01 1 0611-
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 0611-
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0611-
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		0-91111-508-0 02 1 0611-
112 JOINT; RUBBER 1-33670-413-1 01 1 0611-
112 JOINT; RUBBER 1-33670-413-1 01 1 0611-
çizim 106257
22 25 24 112 15 25 25 22 15 22 28 25 28 24 45 35 47 32 49 5 8 47 49 32 35 30 30 45 36 44 38 44 36 38 6
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 0611-
6 ROD; LINK,3RD SELECT
W/TRANS FRT PTO L=1650 		1-33671-918-0 01 1 0611-
6 ROD; LINK,3RD SELECT
WO/TRANS FRT PTO L=1497 		1-33662-011-2 01 1 0611-
8 ROD; LINK,4TH SHIFT
W/TRANS FRT PTO L=370 		1-33671-919-0 01 1 0611-
8 ROD; LINK,4TH SHIFT
WO/TRANS FRT PTO L=216 		1-33662-012-1 01 1 0611-
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 0611-
15 ROD; LINK 1ST SHIFT
(A) L=475 		1-33662-018-3 01 1 0611-
15 ROD; LINK 1ST SHIFT
(B) L=460 		1-33662-019-4 01 1 0611-
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0611-
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 0611-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0611-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0611-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0611-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0611-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0611-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0611-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0611-
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0611-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0611-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0611-
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0611-
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0611-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0611-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0611-
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0611-
112 JOINT; RUBBER 1-33670-413-1 01 1 0611-
112 JOINT; RUBBER 1-33670-413-1 01 1 0611-
