Isuzu WW
▶
TRUCKS
▶
FYH
▶
11602 - FYH(LHD)CHINA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

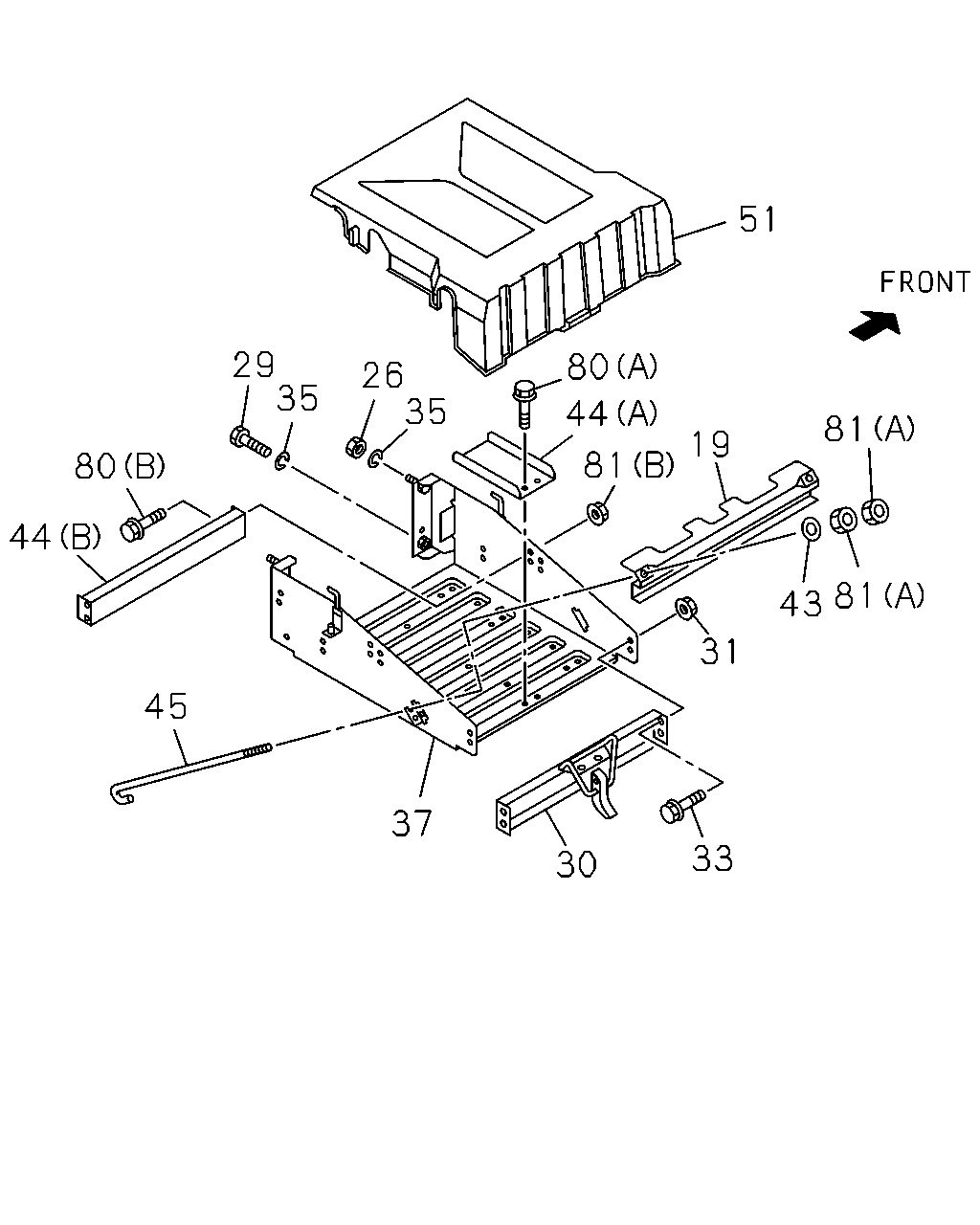

5-20 — BATTERY CARRIER
(#144968) — 17 parça
81
51
81
43
31
33
30
37
45
44
80
29
26
35
35
80
44
81
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
8-97431-298-0
01
1
1404-
26
NUT; BRKT
M14 CHI
1-09440-072-0
02
1
1404-
29
BOLT; BRKT TO FRAME
M14X45 CHI
1-09000-764-0
02
1
1404-
30
PLATE; BATTERY
CHI
1-53619-085-0
01
1
1404-
31
NUT; PLATE
M8 FLANGE CHI
0-91180-108-0
04
1
1404-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE CHI
0-28650-820-0
04
1
1404-
35
WASHER; PL,BATTERY CARRIER
ID=14.2 CHI
0-91510-514-0
04
1
1404-
37
BRACKET; BATTERY
8-97431-297-0
01
1
1404-
43
WASHER; PL,CLAMP
ID=8.4 OD=22 CHI
0-91614-708-0
02
1
1404-
44
SPACER; BATTERY
(B) CHI
8-98091-941-0
01
1
1404-
44
SPACER; BATTERY
(A)
8-97431-333-0
01
1
1404-
45
ROD; TENSION,BATTERY
8-97431-412-0
02
1
1404-
51
COVER; BATTERY
CHI
1-53612-068-0
01
1
1404-
80
BOLT; BATTERY
(A) M8X16 FLANGE CHI
0-28050-816-0
02
1
1404-
80
BOLT; BATTERY
(B) M8X20 FLANGE CHI
0-28050-820-0
04
1
1404-
81
NUT; BATTERY
(A) M8 CHI
0-91110-508-0
04
1
1404-
81
NUT; BATTERY
(B) M8 FLANGE CHI
0-91180-108-0
04
1
1404-
