5-10 — CAB MOUNTING; FRAME SIDE (#144964) — 90 parça

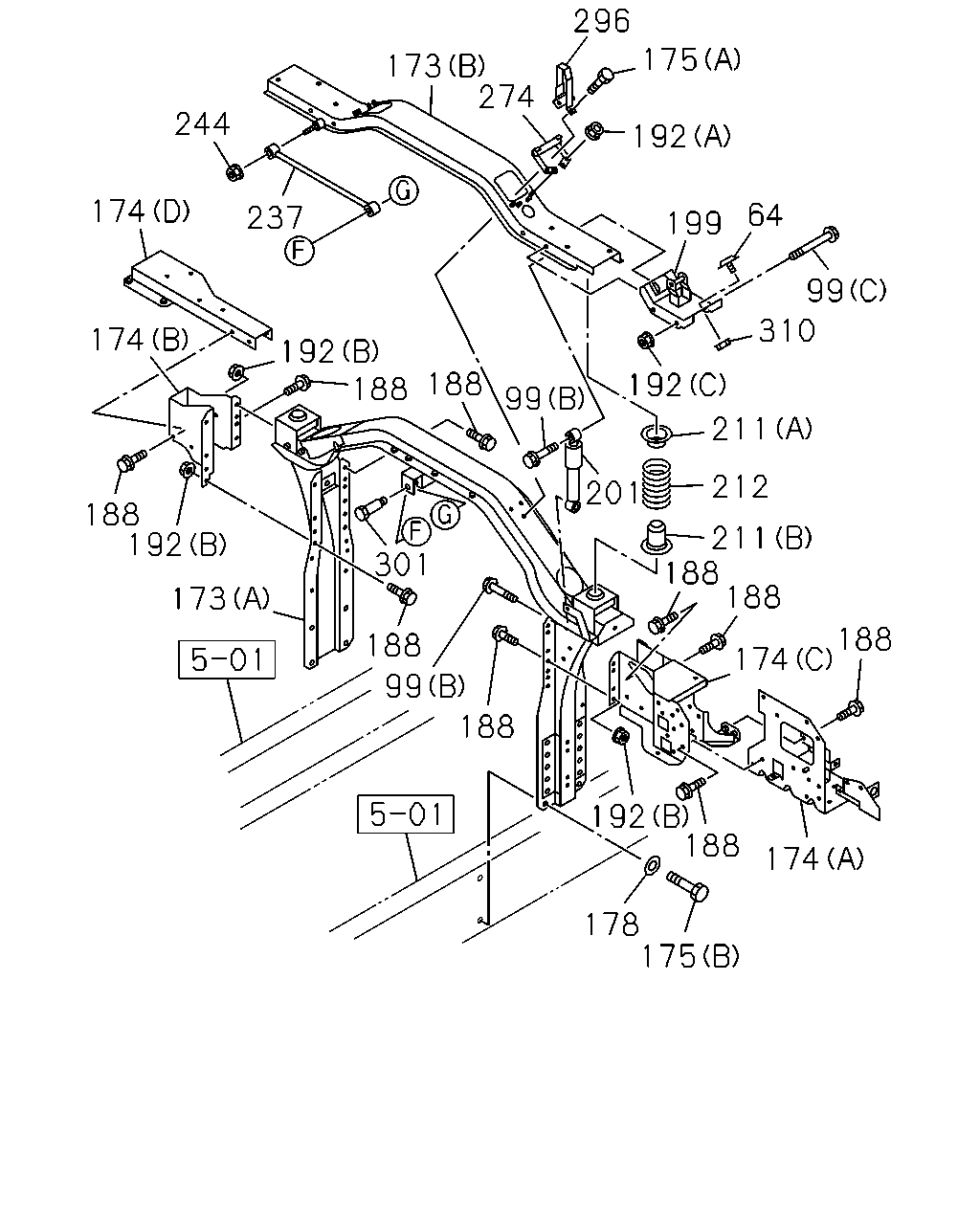

296 192 199 64 99 310 211 212 188 188 174 188 174 188 192 178 175 188 99 188 301 188 99 192 201 211 175 274 173 244 237 174 174 192 188 188 192 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	RUBBER; CUSHION CHI	8-98251-190-0	04	1	1404-
99	BOLT; BRKT (B) M12X60 FLANGE CHI	0-28051-260-0	04	1	1404-
99	BOLT; BRKT (C) M10X150 FLANGE CHI	0-28166-015-0	04	1	1404-
99	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-
173	MEMBER; CAB MTG RR (A)	8-97430-158-2	01	1	1404-
173	MEMBER; CAB MTG RR (B)	8-97430-160-2	01	1	1404-
174	OUTRIGGER (A) CHI	8-97430-162-0	01	1	1404-
174	OUTRIGGER (B) CHI	8-97430-163-0	01	1	1404-
174	OUTRIGGER (C) CHI	8-97430-164-0	01	1	1404-
174	OUTRIGGER (D) CHI	8-98237-297-0	01	1	1404-
175	BOLT; MEMBER TO FRAME (A) CHI	0-20851-025-0	06	1	1404-
175	BOLT; MEMBER TO FRAME (B) M14X40 CHI	0-20951-440-0	08	1	1404-
178	WASHER; LK,MEMBER ID=15 CHI	8-98010-627-1	08	1	1404-
188	BOLT; OUTRIGGER M10X25 FLANGE CHI	0-28651-025-0	21	1	1404-
192	NUT; BRKT FIX (A) M8 FLANGE CHI	0-91180-108-0	08	1	1404-
192	NUT; BRKT FIX (B) M10 FLANGE CHI	0-91180-210-0	09	1	1404-
192	NUT; BRKT FIX (C) M10 FLANGE CHI	0-91280-210-0	04	1	1404-
199	BRACKET; CAB RR MTG	8-97431-334-0	01	1	1404-
199	BRACKET; CAB RR MTG	8-97431-335-0	01	1	1404-
201	ABSORBER ASM; SHOCK,RR MTG CHI	8-98237-282-0	02	1	1404-
211	RUBBER; CUSHION,S/ABS (B) CHI	1-53366-128-0	02	1	1404-
211	RUBBER; CUSHION,S/ABS (A) CHI	1-53366-132-1	02	1	1404-
212	SPRING; COIL CHI	1-09580-515-0	02	1	1404-
237	ROD ASM; LATERAL CHI	8-98237-283-0	01	1	1404-
244	NUT; LATERAL ROD M16 FLANGE CHI	0-91180-216-0	01	1	1404-
274	PIN CHI	8-98259-740-0	02	1	1404-
296	STOPPER; UPR CHI	8-98237-280-0	02	1	1404-
301	PIN; LATERAL ROD M12X57.5 CHI	1-53459-498-1	01	1	1404-
310	NUT; CUSHION M8 FLANGE CHI	0-91180-108-0	04	1	1404-

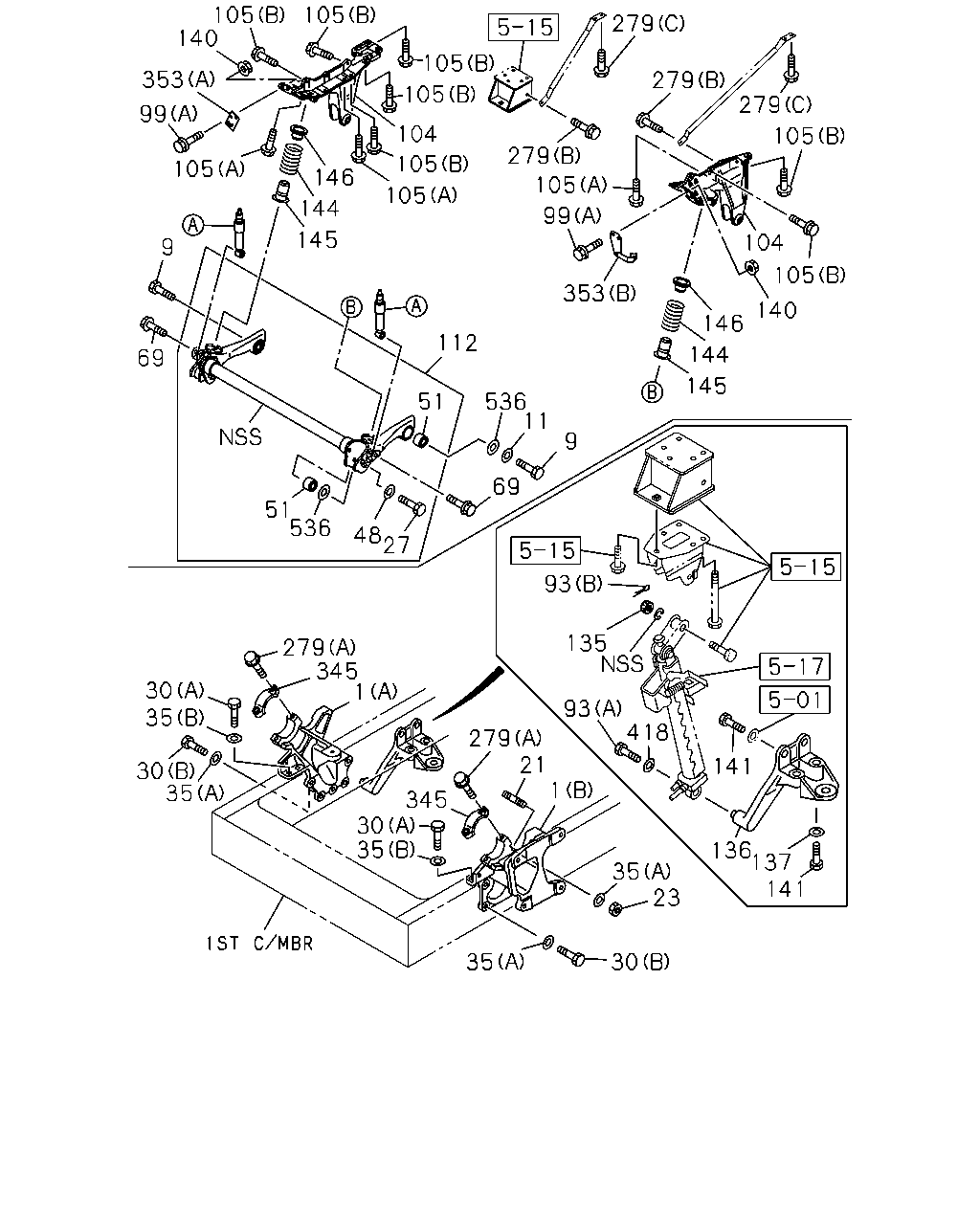

105 105 140 353 99 105 146 145 144 105 105 104 105 105 279 279 279 105 104 140 105 146 145 144 353 99 105 279 112 536 9 11 69 27 48 536 51 69 9 51 93 135 93 418 141 136 137 141 21 279 1 35 23 30 35 35 30 345 1 345 279 30 35 30 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG (A) CHI	8-97430-155-1	01	1	1404-
1	BRACKET; CAB MTG (B) CHI	8-97430-810-0	01	1	1404-
9	BOLT M18X90 CHI	0-10856-890-0	02	1	1404-
11	WASHER; LK ID=19 OD=30 CHI	1-09503-279-0	02	1	1404-
21	STUD; BRKT,CAB TILT M16X50 L=74 CHI	1-09300-117-0	01	1	1404-
23	NUT; MTG BRKT M16 CHI	0-91110-516-0	01	1	1404-
27	BOLT; BUSHING M18X105 CHI	1-09000-079-2	02	1	1404-
30	BOLT; CAB FRT FOOT (A) M14X50 CHI	0-20951-450-0	04	1	1404-
30	BOLT; CAB FRT FOOT (B) M16X60 CHI	0-20951-660-0	10	1	1404-
35	WASHER; PL,CAB MTG BRKT (A) ID=16.2 CHI	1-09503-316-0	11	1	1404-
35	WASHER; PL,CAB MTG BRKT (B) ID=15 CHI	8-98010-627-1	04	1	1404-
48	WASHER; PL ID=19 OD=30 CHI	1-09503-279-0	02	1	1404-
51	BUSHING; RUBBER CHI	8-98261-197-0	04	1	1404-
69	BOLT; S/ABS,CAB FRT SUSPENSION M12X60 FLANGE CHI	0-28051-260-0	02	1	1404-
93	BOLT; PIN (B) OD=2.8 L=25 CHI	0-81123-025-0	01	1	1404-
93	BOLT; PIN (A) M10X30 CHI	1-09000-283-0	01	1	1404-
99	BOLT; BRKT (B) M12X60 FLANGE CHI	0-28051-260-0	04	1	1404-
99	BOLT; BRKT (C) M10X150 FLANGE CHI	0-28166-015-0	04	1	1404-
99	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-
104	BRACKET; CAB FRAME,CAB FRT MTG CHI	8-97430-199-0	01	1	1404-
104	BRACKET; CAB FRAME,CAB FRT MTG CHI	8-97430-201-0	01	1	1404-
105	BOLT; BRKT TO CAB FRAME (A) M12X35 FLANGE CHI	0-28651-235-0	08	1	1404-
105	BOLT; BRKT TO CAB FRAME (B) M10X35 FLANGE CHI	0-28661-035-0	15	1	1404-
112	ARM ASM; LINK,CAB FRT SUSP CHI	8-97430-206-1	01	1	1404-1404
112	ARM ASM; LINK,CAB FRT SUSP	8-97431-658-0	01	1	1404-
135	NUT; PIN M14 SLOTTED CHI	0-91116-514-0	01	1	1404-
136	BRACKET; OIL CYL CHI	8-97430-282-0	01	1	1404-
137	WASHER; PL,BRKT ID=15 CHI	8-98010-627-1	04	1	1404-
140	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-
141	BOLT; BRKT M14X50 CHI	0-20951-450-0	04	1	1404-
144	SPRING; COIL,CAB FRT SUSPENSION CHI	8-98259-510-0	02	1	1404-
145	RUBBER; CUSHION,CAB FRT SUSPENSION CHI	1-53366-139-0	02	1	1404-
146	SEAT; SPRING,CAB FRT SUSPENSION CHI	1-53366-138-0	02	1	1404-
279	BOLT (A) M12X40 FLANGE CHI	0-28061-240-0	04	1	1404-
279	BOLT SPECIAL PACKAGE<7BB> (B) M8X20 FLANGE CHI	0-28050-820-0	02	1	1404-
279	BOLT SPECIAL PACKAGE<7BB> (C) M10X25 FLANGE CHI	0-28051-025-0	04	1	1404-
345	CAP; CAB CHI	1-53458-336-3	02	1	1404-
353	BRACKET (A) CHI	8-97430-203-0	01	1	1404-
353	BRACKET (B) CHI	8-97431-139-0	01	1	1404-
418	WASHER; PL,PIN ID=10.5 OD=32 CHI	0-91614-810-0	01	1	1404-
536	WASHER; SIDE ID=34.5 CHI	1-53458-281-1	02	1	1404-

202 203 202 204 65 205 204 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION CHI	1-51630-604-1	02	1	1404-
202	NUT; S/ABS (A) M10 FLANGE CHI	0-91180-110-0	02	1	1404-
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	1404-
203	WASHER; RUBBER,SHOCK (A) CHI	1-51631-005-0	02	1	1404-
203	WASHER; RUBBER,SHOCK (B) CHI	1-51631-104-0	02	1	1404-
204	RUBBER; CUSHION,SHOCK CHI	1-51631-004-0	04	1	1404-
205	WASHER; RUBBER,SHOCK CHI	1-51631-079-0	02	1	1404-

411 411 411 411 410 140 192 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
99	BOLT; BRKT (B) M12X60 FLANGE CHI	0-28051-260-0	04	1	1404-
99	BOLT; BRKT (C) M10X150 FLANGE CHI	0-28166-015-0	04	1	1404-
99	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-
140	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-
192	NUT; BRKT FIX (A) M8 FLANGE CHI	0-91180-108-0	08	1	1404-
192	NUT; BRKT FIX (B) M10 FLANGE CHI	0-91180-210-0	09	1	1404-
192	NUT; BRKT FIX (C) M10 FLANGE CHI	0-91280-210-0	04	1	1404-
410	REINFORCEMENT; CAB TILT CHI	8-97430-075-0	01	1	1404-
410	REINFORCEMENT; CAB TILT SPECIAL PACKAGE<7BB>	8-98054-960-3	01	1	1404-
411	BOLT; REINFORCEMENT (A) M8X20 FLANGE CHI	0-28650-820-0	03	1	1404-
411	BOLT; REINFORCEMENT SPECIAL PACKAGE<7BB> (A) M8X20 FLANGE CHI	0-28650-820-0	03	1	1404-
411	BOLT; REINFORCEMENT (B) M10X30 FLANGE CHI	0-28661-030-0	02	1	1404-
411	BOLT; REINFORCEMENT SPECIAL PACKAGE<7BB> (B) M10X30 FLANGE CHI	0-28661-030-0	02	1	1404-
