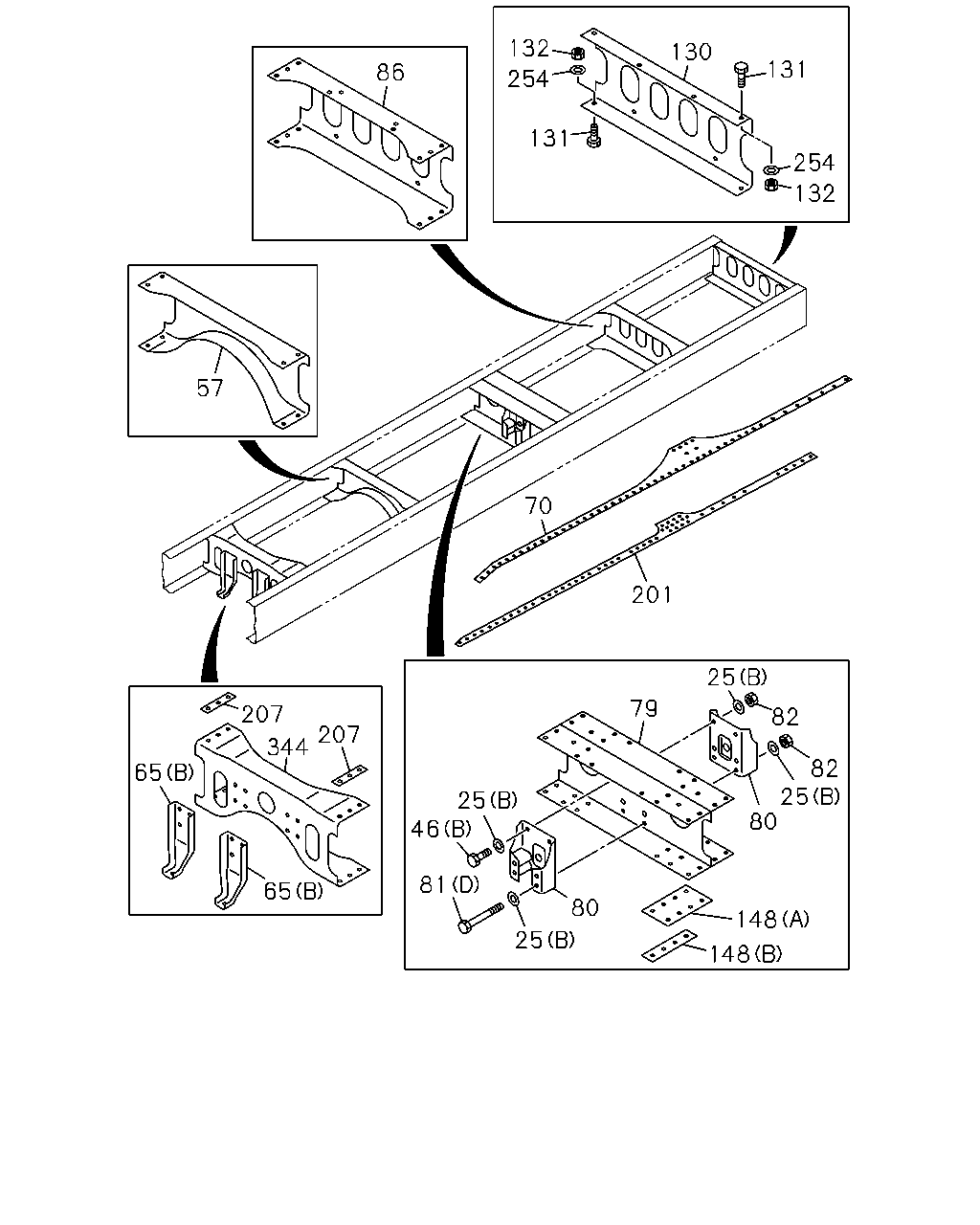

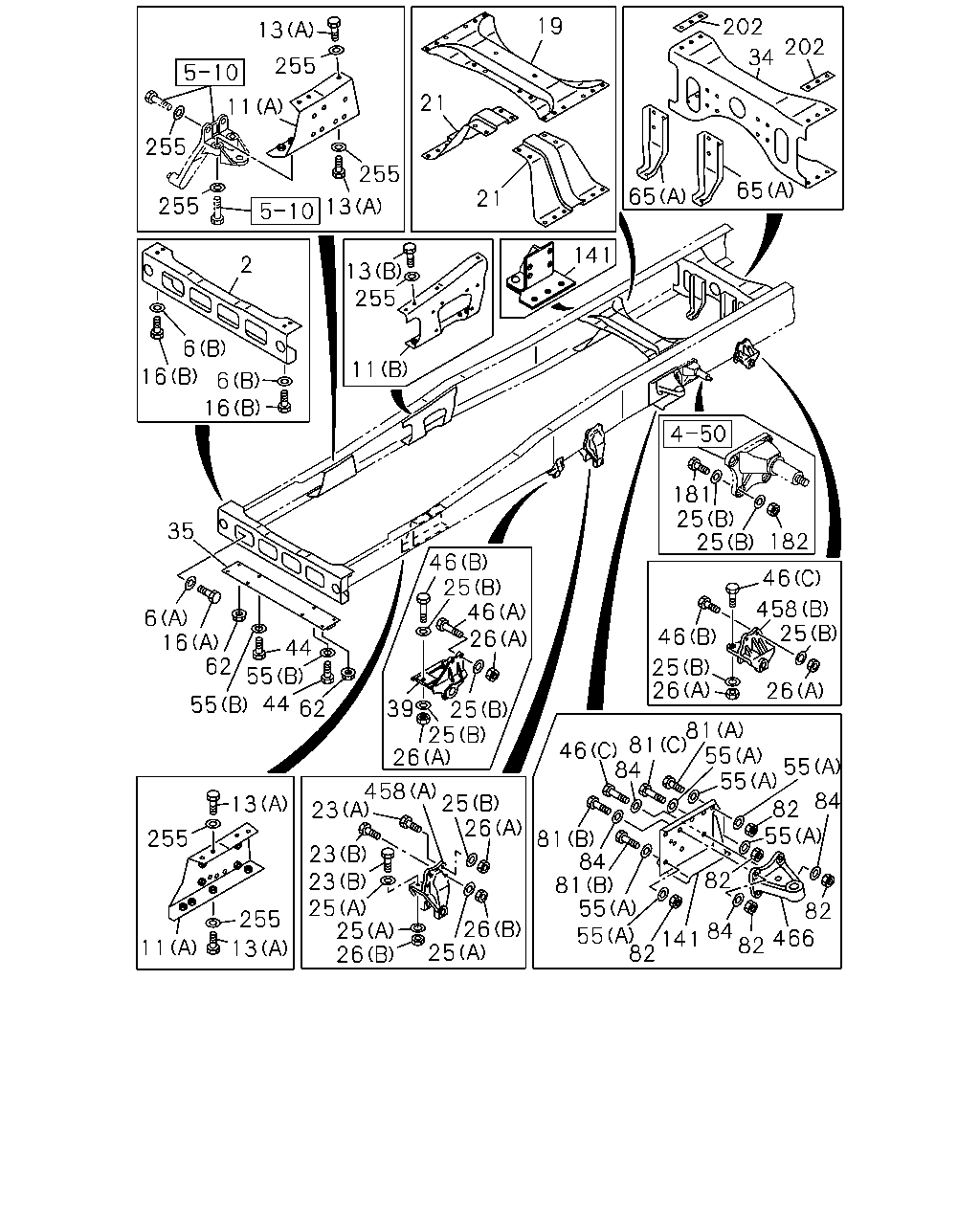

5-01 — FRAME AND OTHER PARTS (#144963) — 78 parça

13 255 11 255 255 2 13 255 6 16 6 16 35 6 16 62 55 44 44 55 62 13 255 255 13 11 23 458 25 26 26 25 26 23 23 25 25 26 25 25 26 46 25 46 39 46 81 84 81 84 81 55 55 82 141 84 82 466 82 55 82 84 82 55 55 55 81 46 25 26 46 458 25 26 181 25 25 182 11 255 13 141 21 21 19 202 202 34 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST CHI	8-97430-268-0	01	1	1404-	●	●
6	WASHER; LK,1ST C/MBR (A) ID=17 OD=30 CHI	0-91610-516-0	08	1	1404-	●	●
6	WASHER; LK,1ST C/MBR (B) ID=15 CHI	8-98010-627-1	04	1	1404-	●	●
11	BRACKET; ENG MTG (A) CHI	8-97430-277-0	01	1	1404-	●	●
11	BRACKET; ENG MTG (A) CHI	8-97430-278-0	01	1	1404-	●	●
11	BRACKET; ENG MTG (B) CHI	8-97430-280-0	01	1	1404-	●	●
11	BRACKET; ENG MTG (B) CHI	8-97430-281-0	01	1	1404-	●	●
13	BOLT; BRKT,ENG MTG (A) M14X40 CHI	0-20951-440-0	09	1	1404-	●	●
13	BOLT; BRKT,ENG MTG (B) M14X50 CHI	0-20951-450-0	08	1	1404-	●	●
16	BOLT; 1ST C/MBR TO S/MBR (B) M14X30 CHI	0-20951-430-0	04	1	1404-	●	●
16	BOLT; 1ST C/MBR TO S/MBR (A) M16X35 CHI	0-20951-635-0	08	1	1404-	●	●
19	MEMBER; CROSS,2ND CHI	8-98098-302-0	01	1	1404-	●	●
21	GUSSET; 2ND CROSS CHI	8-98098-309-0	02	1	1404-	●	●
23	BOLT; BRKT,SPR (A) M14X40 CHI	0-20951-440-0	04	1	1404-	●	●
23	BOLT; BRKT,SPR (B) M16X50 CHI	0-20951-650-0	08	1	1404-	●	●
25	WASHER; PL,BRKT (A) ID=16.2 CHI	1-09503-316-0	12	1	1404-	●	●
25	WASHER; PL,BRKT (B) ID=15 CHI	8-98010-627-1	44	1	1404-	●	●
26	NUT; BRKT,SPR (A) M14 CHI	0-91110-514-0	20	1	1404-	●	●
26	NUT; BRKT,SPR (B) M16 CHI	0-91110-516-0	08	1	1404-	●	●
34	MEMBER; CROSS,3RD CHI	1-53181-643-1	01	1	1404-	●
34	MEMBER; CROSS,3RD CHI	8-98224-576-0	01	1	1404-		●
35	MEMBER; UNDER CHI	8-97430-171-0	01	1	1404-	●	●
39	BRACKET; FRT SPR,RR CHI	1-53352-179-0	01	1	1404-	●	●
39	BRACKET; FRT SPR,RR CHI	1-53352-180-0	01	1	1404-	●	●
44	BOLT; UNDER MBR M16X35 CHI	0-20951-635-0	04	1	1404-	●	●
46	BOLT; BRKT FIX (A) M14X45 CHI	0-20951-445-0	02	1	1404-	●	●
46	BOLT; BRKT FIX (B) M14X50 CHI	0-20951-450-0	12	1	1404-	●	●
46	BOLT; BRKT FIX (C) M14X60 CHI	0-20951-460-0	06	1	1404-	●	●
55	WASHER; PL (A) ID=15 CHI	8-98010-627-1	10	1	1404-	●	●
55	WASHER; PL (B) ID=17 CHI	0-91614-516-0	04	1	1404-	●	●
62	NUT; MBR M12 FLANGE CHI	0-91180-212-0	04	1	1404-	●	●
65	BRACKET; CENTER BRG (A) CHI	8-97621-881-0	02	1	1404-	●
65	BRACKET; CENTER BRG (A) CHI	8-97614-126-0	02	1	1404-		●
65	BRACKET; CENTER BRG (B) CHI	8-97614-127-0	02	1	1404-		●
81	BOLT; BRKT (A) M14X40 CHI	0-20951-440-0	03	1	1404-	●	●
81	BOLT; BRKT (B) M14X50 CHI	0-20951-450-0	03	1	1404-	●	●
81	BOLT; BRKT (C) M14X60 CHI	0-20951-460-0	01	1	1404-	●	●
81	BOLT; BRKT (D) M14X205 CHI	1-09000-147-0	02	1	1404-	●	●
82	NUT; BRKT M14 CHI	0-91110-514-0	13	1	1404-	●	●
84	WASHER; PL,BRKT ID=15 CHI	8-98010-627-1	08	1	1404-	●	●
141	STIFFENER CHI	1-53151-700-0	01	1	1404-	●	●
141	STIFFENER	8-97431-773-0	01	1	1404-	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50 CHI	0-20951-450-0	08	1	1404-	●	●
182	NUT; S/ABS BRKT TO FRAME M14 CHI	0-91110-514-0	08	1	1404-	●	●
202	SPACER; 3RD C/MBR CHI	8-98203-934-0	02	1	1404-	●	●
255	WASHER; PL,BRKT ID=15 CHI	8-98010-627-1	25	1	1404-	●	●
458	BRACKET; LEAF SPRING (A) CHI	1-53351-217-0	01	1	1404-	●	●
458	BRACKET; LEAF SPRING (A) CHI	1-53351-218-0	01	1	1404-	●	●
458	BRACKET; LEAF SPRING (B) CHI	1-53352-067-3	02	1	1404-	●	●
466	BRACKET; BOOSTER CHI	8-98249-975-0	01	1	1404-	●	●

86 132 254 131 130 131 254 132 70 201 79 82 25 82 25 80 148 148 80 25 81 46 25 207 344 207 65 65 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	WASHER; PL,BRKT (A) ID=16.2 CHI	1-09503-316-0	12	1	1404-	●	●
25	WASHER; PL,BRKT (B) ID=15 CHI	8-98010-627-1	44	1	1404-	●	●
46	BOLT; BRKT FIX (A) M14X45 CHI	0-20951-445-0	02	1	1404-	●	●
46	BOLT; BRKT FIX (B) M14X50 CHI	0-20951-450-0	12	1	1404-	●	●
46	BOLT; BRKT FIX (C) M14X60 CHI	0-20951-460-0	06	1	1404-	●	●
57	MEMBER; CROSS,RR SUSP FRT CHI	1-53181-994-1	01	1	1404-	●	●
65	BRACKET; CENTER BRG (A) CHI	8-97621-881-0	02	1	1404-	●
65	BRACKET; CENTER BRG (A) CHI	8-97614-126-0	02	1	1404-		●
65	BRACKET; CENTER BRG (B) CHI	8-97614-127-0	02	1	1404-		●
70	GUSSET; TRUNNION,UPR CHI	1-53161-478-0	02	1	1404-	●	●
79	MEMBER; CROSS,TRUNNION ASM CHI	8-97623-020-3	01	1	1404-	●	●
80	BRACKET; C/MBR CHI	1-53363-031-2	02	1	1404-	●	●
81	BOLT; BRKT (A) M14X40 CHI	0-20951-440-0	03	1	1404-	●	●
81	BOLT; BRKT (B) M14X50 CHI	0-20951-450-0	03	1	1404-	●	●
81	BOLT; BRKT (C) M14X60 CHI	0-20951-460-0	01	1	1404-	●	●
81	BOLT; BRKT (D) M14X205 CHI	1-09000-147-0	02	1	1404-	●	●
82	NUT; BRKT M14 CHI	0-91110-514-0	13	1	1404-	●	●
86	MEMBER; CROSS,RR SUSP RR CHI	1-53181-757-3	01	1	1404-	●	●
130	MEMBER; CROSS,END CHI	8-97430-271-0	01	1	1404-	●	●
131	BOLT; END C/MBR M14X40 CHI	0-20951-440-0	04	1	1404-	●	●
132	NUT; END C/MBR M14 CHI	0-91110-514-0	04	1	1404-	●	●
148	SPACER; C/MBR (A) CHI	8-97430-273-0	02	1	1404-	●	●
148	SPACER; C/MBR (B) CHI	8-97623-199-0	02	1	1404-	●	●
201	GUSSET; C/MBR CHI	8-97430-286-0	02	1	1404-	●
201	GUSSET; C/MBR CHI	8-97430-287-0	02	1	1404-		●
207	SPACER; 4TH C/MBR CHI	8-98203-934-0	02	1	1404-		●
254	WASHER; PL,C/MBR ID=15 CHI	8-98010-627-1	04	1	1404-	●	●
344	MEMBER; CROSS,4TH CHI	8-98224-577-0	01	1	1404-		●
