4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#144953) — 127 parça

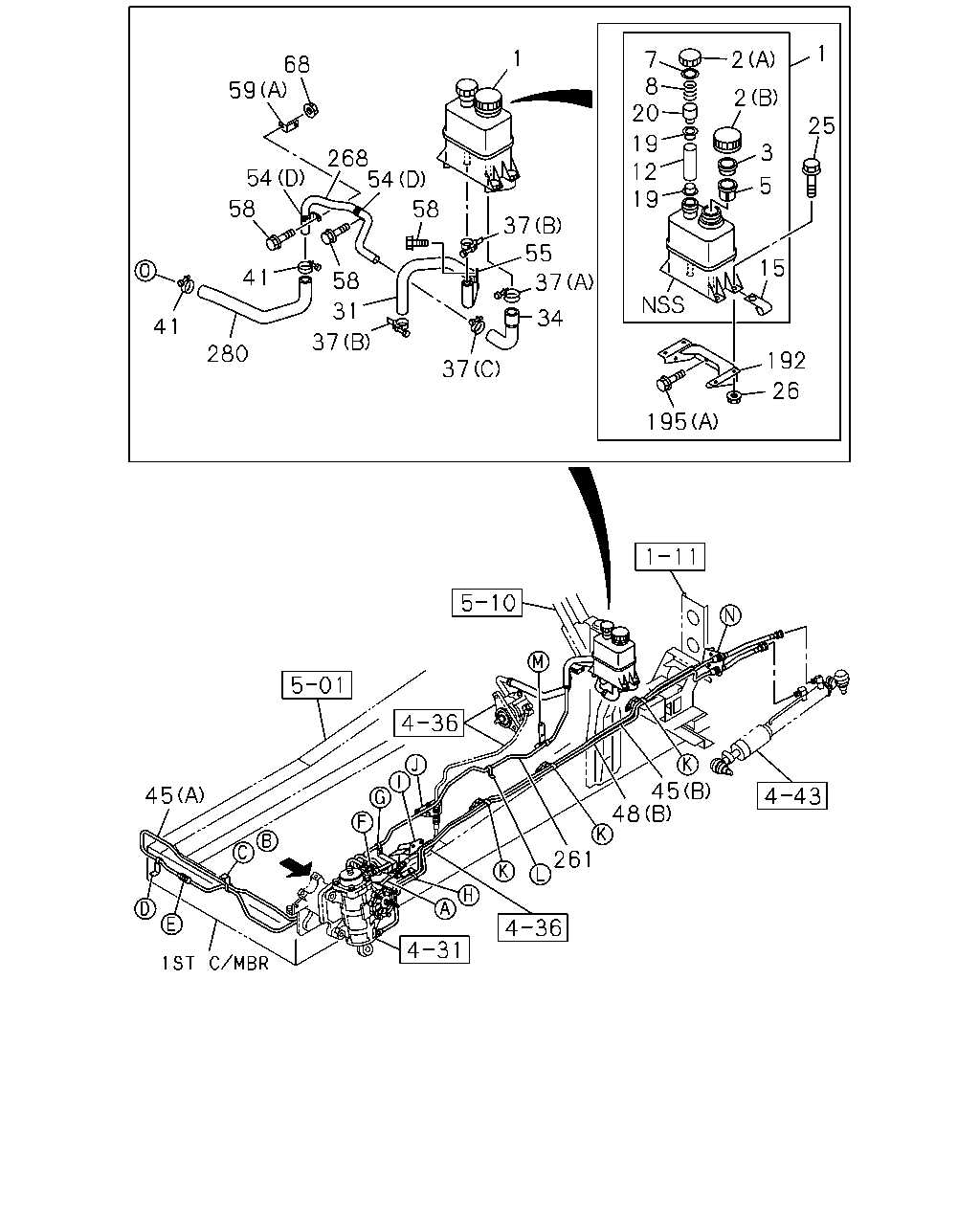

68 59 54 58 41 41 280 37 31 58 54 58 268 1 37 55 37 34 37 15 5 3 25 1 2 2 7 19 12 19 20 8 192 26 195 45 48 261 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S CHI	1-21210-235-1	01	1	1404-
2	CAP; OIL TANK,P/S (A) WO/GAUGE CHI	1-21241-003-6	01	1	1404-
2	CAP; OIL TANK,P/S (B) W/GAUGE CHI	1-21241-006-4	01	1	1404-
3	GASKET; OIL TANK,P/S CHI	1-21249-006-2	01	1	1404-
5	STRAINER; OIL TANK,P/S CHI	1-21235-006-1	01	1	1404-
7	RING; GASKET,OIL TANK,P/S CHI	1-21249-005-0	01	1	1404-
8	SPRING; OIL TANK,P/S CHI	1-09580-599-0	01	1	1404-
12	FILTER; MICROBON,OIL TANK,P/S CHI	1-21235-004-1	01	1	1404-
15	PLATE; FILTER,OIL TANK CHI	1-21249-016-0	04	1	1404-
19	SEAT; OIL TANK CHI	1-21262-001-0	02	1	1404-
20	HOLDER; FILTER,OIL TANK,P/S CHI	1-21239-001-2	01	1	1404-
25	BOLT; OIL TANK BRKT M8X25 FLANGE CHI	0-28650-825-0	04	1	1404-
26	NUT; OIL TANK TO BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-
31	HOSE; P/S OIL TANK,INL CHI	8-97430-526-0	01	1	1404-
34	HOSE; P/S OIL TANK,OUTLET CHI	8-97641-944-0	01	1	1404-
37	CLIP; HOSE,P/S (C) ID=32 CHI	1-09704-085-0	01	1	1404-
37	CLIP; HOSE,P/S (A) ID=38 CHI	9-09915-041-1	01	1	1404-
37	CLIP; HOSE,P/S (B) ID=28 CHI	9-09915-672-1	02	1	1404-
41	CLIP; HOSE,P/S ID=32 CHI	1-09704-085-0	02	1	1404-
45	PIPE; OIL,P/S UNIT TO UNION (A) CHI	8-97430-509-0	01	1	1404-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-97431-535-0	01	1	1404-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) CHI	8-97430-508-0	01	1	1404-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-97431-536-0	01	1	1404-
54	CLIP; OIL PIPE (A) ID=16 L=20 CHI	0-95235-535-0	01	1	1404-
54	CLIP; OIL PIPE (B) ID=13X2 L=20 CHI	0-95325-235-0	04	1	1404-
54	CLIP; OIL PIPE (C) ID=16X2 L=20 CHI	0-95325-535-0	02	1	1404-
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21 CHI	1-09700-109-1	02	1	1404-
55	CLIP; P/S RUBBER HOSE ID=28 L=32 CHI	1-09701-107-1	01	1	1404-
58	BOLT; CLIP M8X20 FLANGE CHI	0-28650-820-0	04	1	1404-
58	BOLT; CLIP M8X20 FLANGE CHI	0-28650-820-0	06	1	1404-
59	BRACKET; CLIP,OIL PIPE (A) L=40 CHI	1-47478-410-0	03	1	1404-
59	BRACKET; CLIP,OIL PIPE (B) CHI	8-97430-507-0	01	1	1404-
68	NUT; CLIP,OIL PIPE M8 FLANGE CHI	0-91180-108-0	02	1	1404-
192	BRACKET; P/S OIL TANK CHI	8-97430-213-0	01	1	1404-
195	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	03	1	1404-
195	BOLT; BRKT (B) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1404-
261	PIPE; OIL,UNION TO HOSE CHI	8-97431-158-0	01	1	1404-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CHI	8-97430-511-0	01	1	1404-
280	HOSE; P/S OIL PUMP,INL CHI	8-97430-524-0	01	1	1404-

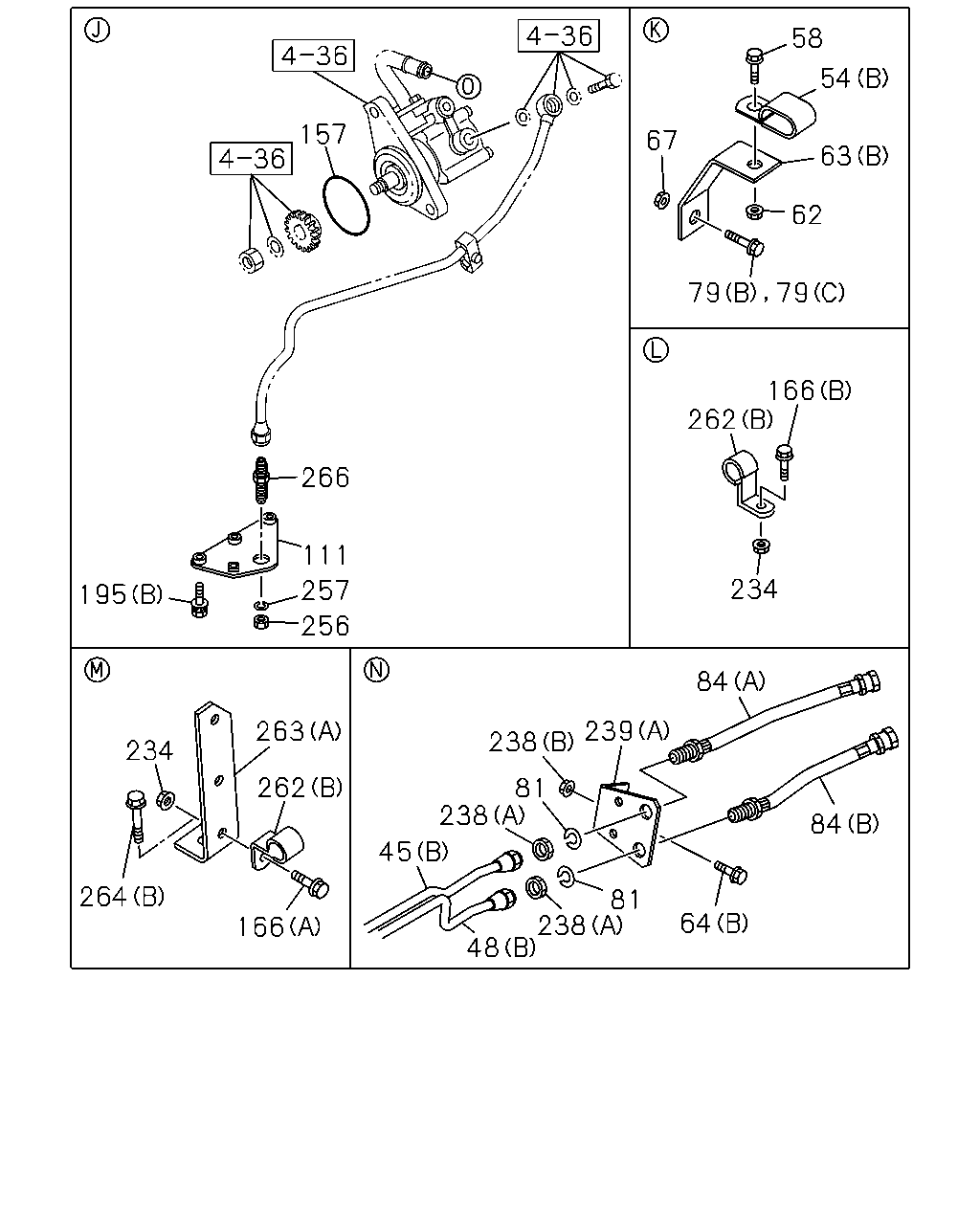

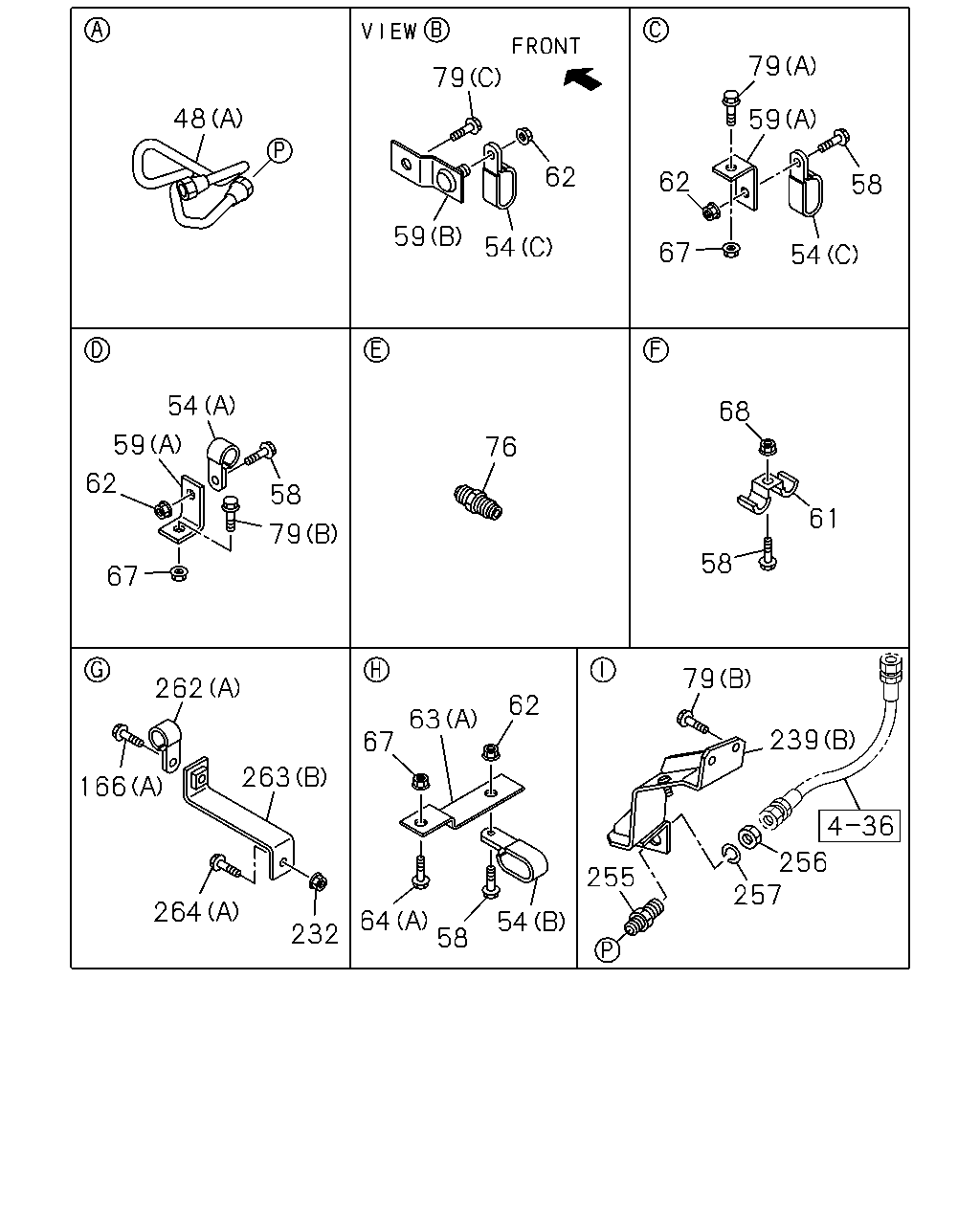

48 54 59 62 67 79 58 76 59 54 62 79 79 59 58 54 67 62 68 61 58 79 239 256 257 255 62 63 67 64 58 54 232 264 263 166 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) CHI	8-97430-508-0	01	1	1404-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-97431-536-0	01	1	1404-
54	CLIP; OIL PIPE (A) ID=16 L=20 CHI	0-95235-535-0	01	1	1404-
54	CLIP; OIL PIPE (B) ID=13X2 L=20 CHI	0-95325-235-0	04	1	1404-
54	CLIP; OIL PIPE (C) ID=16X2 L=20 CHI	0-95325-535-0	02	1	1404-
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21 CHI	1-09700-109-1	02	1	1404-
58	BOLT; CLIP M8X20 FLANGE CHI	0-28650-820-0	04	1	1404-
58	BOLT; CLIP M8X20 FLANGE CHI	0-28650-820-0	06	1	1404-
59	BRACKET; CLIP,OIL PIPE (A) L=40 CHI	1-47478-410-0	03	1	1404-
59	BRACKET; CLIP,OIL PIPE (B) CHI	8-97430-507-0	01	1	1404-
61	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5 CHI	1-09700-674-0	01	1	1404-
62	NUT; CLIP FIX M8 FLANGE CHI	0-91180-108-0	03	1	1404-
62	NUT; CLIP FIX M8 FLANGE CHI	0-91180-108-0	04	1	1404-
63	BRACKET; CLIP,P/S (A) CHI	1-47477-261-0	01	1	1404-
63	BRACKET; CLIP,P/S (B) CHI	1-47478-371-0	03	1	1404-
64	BOLT; CLIP BRKT (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
64	BOLT; CLIP BRKT (B) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
67	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	02	1	1404-
67	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-
68	NUT; CLIP,OIL PIPE M8 FLANGE CHI	0-91180-108-0	02	1	1404-
76	UNION; OIL PIPE M22 CHI	0-92123-015-0	01	1	1404-
79	BOLT; BRKT (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
79	BOLT; BRKT (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
79	BOLT; BRKT (B) M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
79	BOLT; BRKT (B) M8X25 FLANGE CHI	0-28650-825-0	03	1	1404-
79	BOLT; BRKT (C) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
79	BOLT; BRKT (C) M8X30 FLANGE CHI	0-28650-830-0	02	1	1404-
166	BOLT; CLIP (A) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
166	BOLT; CLIP (B) M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
232	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	01	1	1404-
239	BRACKET; FLEX HOSE (A) CHI	1-47479-146-0	01	1	1404-
239	BRACKET; FLEX HOSE (B) CHI	8-97608-869-1	01	1	1404-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT CHI	1-09654-204-2	01	1	1404-
256	NUT; UNION M22 CHI	0-91111-522-0	02	1	1404-
257	WASHER; LK,UNION ID=22.5 CHI	0-91510-522-0	02	1	1404-
262	CLIP; P/S PIPE (A) ID=16 L=20 CHI	0-95235-535-0	01	1	1404-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20 CHI	1-09700-606-0	02	1	1404-
263	BRACKET; P/S PIPE (A) CHI	1-47471-191-1	01	1	1404-
263	BRACKET; P/S PIPE (B) CHI	8-97430-506-0	01	1	1404-
264	BOLT; PIPE BRKT (A) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
264	BOLT; PIPE BRKT (B) M8X40 FLANGE CHI	0-28650-840-0	01	1	1404-

266 111 256 257 195 157 234 263 262 166 264 238 239 81 238 45 238 81 64 48 84 84 234 166 262 79 79 62 63 54 58 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (A) CHI	8-97430-509-0	01	1	1404-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-97431-535-0	01	1	1404-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) CHI	8-97430-508-0	01	1	1404-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-97431-536-0	01	1	1404-
54	CLIP; OIL PIPE (A) ID=16 L=20 CHI	0-95235-535-0	01	1	1404-
54	CLIP; OIL PIPE (B) ID=13X2 L=20 CHI	0-95325-235-0	04	1	1404-
54	CLIP; OIL PIPE (C) ID=16X2 L=20 CHI	0-95325-535-0	02	1	1404-
54	CLIP; OIL PIPE (D) ID=19 L=24 H=21 CHI	1-09700-109-1	02	1	1404-
58	BOLT; CLIP M8X20 FLANGE CHI	0-28650-820-0	04	1	1404-
58	BOLT; CLIP M8X20 FLANGE CHI	0-28650-820-0	06	1	1404-
62	NUT; CLIP FIX M8 FLANGE CHI	0-91180-108-0	03	1	1404-
62	NUT; CLIP FIX M8 FLANGE CHI	0-91180-108-0	04	1	1404-
63	BRACKET; CLIP,P/S (A) CHI	1-47477-261-0	01	1	1404-
63	BRACKET; CLIP,P/S (B) CHI	1-47478-371-0	03	1	1404-
64	BOLT; CLIP BRKT (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
64	BOLT; CLIP BRKT (B) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
67	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	02	1	1404-
67	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	04	1	1404-
79	BOLT; BRKT (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
79	BOLT; BRKT (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
79	BOLT; BRKT (B) M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
79	BOLT; BRKT (B) M8X25 FLANGE CHI	0-28650-825-0	03	1	1404-
79	BOLT; BRKT (C) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
79	BOLT; BRKT (C) M8X30 FLANGE CHI	0-28650-830-0	02	1	1404-
81	WASHER; LK,FLEX HOSE ID=20.2 CHI	0-91510-520-0	02	1	1404-
84	HOSE; FLEX,P/S (A) L=430 CHI	0-89538-430-0	01	1	1404-
84	HOSE; FLEX,P/S (B) L=320 CHI	1-09365-039-0	01	1	1404-
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1404-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1404-
166	BOLT; CLIP (A) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
166	BOLT; CLIP (B) M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
195	BOLT; BRKT (A) M8X25 FLANGE CHI	0-28650-825-0	03	1	1404-
195	BOLT; BRKT (B) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1404-
234	NUT; PIPE CLIP,P/S M8 FLANGE CHI	0-91180-108-0	02	1	1404-
238	NUT; FLEX HOSE (A) M20 CHI	0-91111-520-0	02	1	1404-
238	NUT; FLEX HOSE (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
239	BRACKET; FLEX HOSE (A) CHI	1-47479-146-0	01	1	1404-
239	BRACKET; FLEX HOSE (B) CHI	8-97608-869-1	01	1	1404-
256	NUT; UNION M22 CHI	0-91111-522-0	02	1	1404-
257	WASHER; LK,UNION ID=22.5 CHI	0-91510-522-0	02	1	1404-
262	CLIP; P/S PIPE (A) ID=16 L=20 CHI	0-95235-535-0	01	1	1404-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20 CHI	1-09700-606-0	02	1	1404-
263	BRACKET; P/S PIPE (A) CHI	1-47471-191-1	01	1	1404-
263	BRACKET; P/S PIPE (B) CHI	8-97430-506-0	01	1	1404-
264	BOLT; PIPE BRKT (A) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
264	BOLT; PIPE BRKT (B) M8X40 FLANGE CHI	0-28650-840-0	01	1	1404-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1404-
