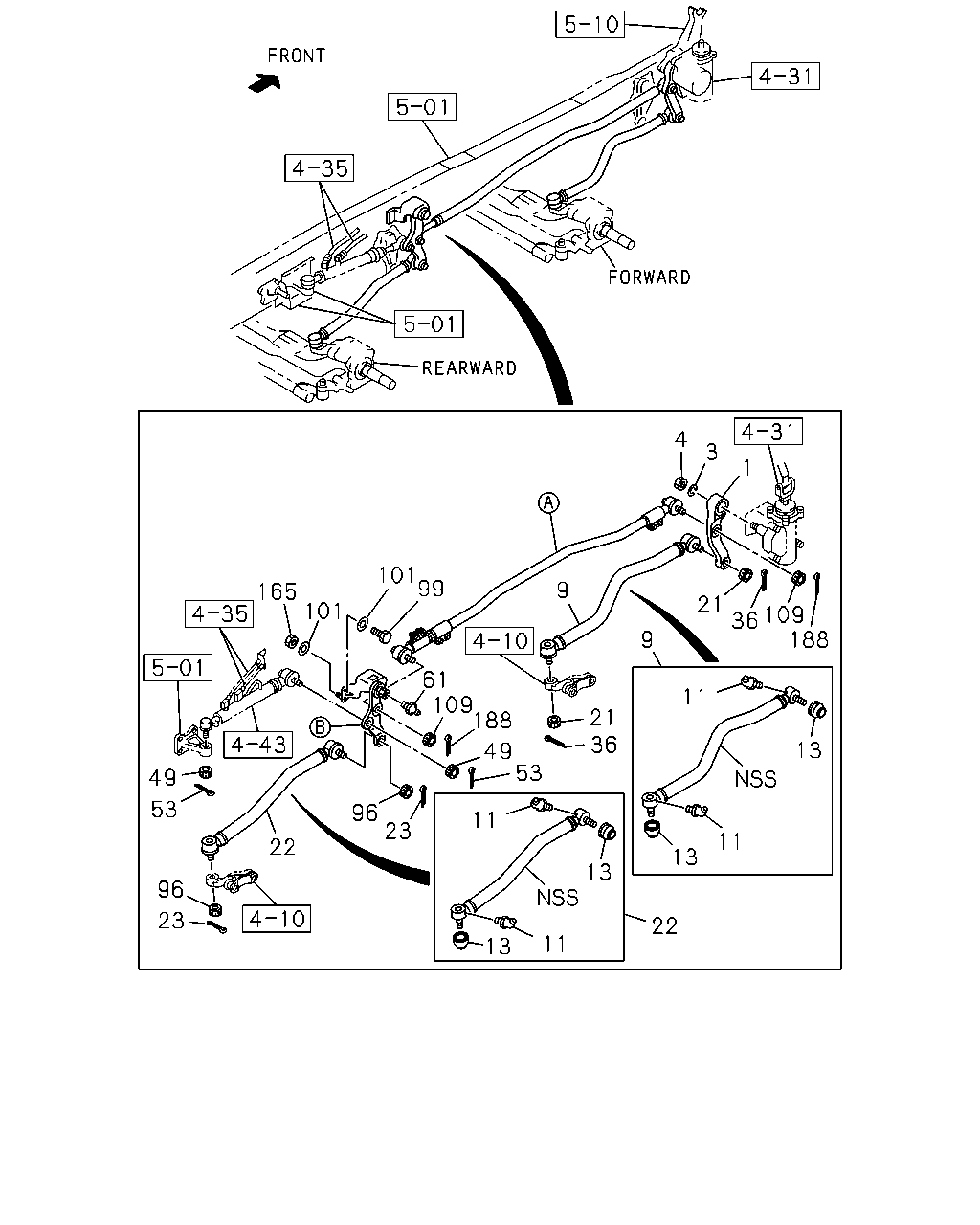

4-33 — STEERING LINKAGE
(#144952) — 35 parça
◀
[433A] FIXING;DRAG LINK (21 parça)
[433A] COMPONENT;DRAG LINK (14 parça)
▶
22
11
13
13
11
13
11
11
13
188
109
36
21
1
3
4
101
101
165
99
61
9
9
21
36
53
49
109
188
96
23
22
49
53
96
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
CHI
8-97430-814-0
01
1
1404-
3
WASHER; LK,PITMAN ARM
ID=36.5 CHI
1-09500-056-0
01
1
1404-
4
NUT; PITMAN ARM
M36 FLANGE CHI
1-09440-098-0
01
1
1404-
9
LINK; DRAG
CHI
8-97430-816-0
01
1
1404-
11
NIPPLE; GREASE,DRAG LINK
CHI
8-98160-122-0
02
1
1404-
11
NIPPLE; GREASE,DRAG LINK
CHI
8-98160-122-0
02
1
1404-
13
BOOT; DRAG LINK
CHI
1-43159-134-0
02
1
1404-
13
BOOT; DRAG LINK
CHI
1-43159-134-0
02
1
1404-
21
NUT; LK,JOINT BALL
M24 SLOTTED CHI
1-09442-028-0
02
1
1404-
22
LINK; DRAG,2ND
CHI
8-97430-817-0
01
1
1404-
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35 CHI
0-81125-035-0
02
1
1404-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35 CHI
0-81125-035-0
02
1
1404-
49
NUT; BOOSTER,BRKT SIDE
M24 CHI
1-09442-032-0
02
1
1404-
53
PIN; SPLIT,BOOSTER,BRKT SIDE
OD=4.6 L=35 CHI
0-81125-035-0
02
1
1404-
61
NIPPLE; PIN LINK ARM
PT1/8 STRAIGHT CHI
0-90301-410-0
01
1
1404-
96
NUT; LINK ARM
M24 SLOTTED CHI
1-09442-028-0
02
1
1404-
99
BOLT; BRKT
M14X50 CHI
0-20951-450-0
03
1
1404-
101
WASHER; PL,BRKT
ID=15 CHI
8-98010-627-1
04
1
1404-
109
NUT; ROD
M24 CHI
1-09442-032-0
02
1
1404-
165
NUT; BRKT
M14 CHI
0-91110-514-0
01
1
1404-
188
PIN; ROD
OD=4.6 L=35 CHI
0-81125-035-0
02
1
1404-
137
135
136
65
134
65
56
33
67
65
66
97
66
85
65
137
135
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
STUD
M14X37 L=66 CHI
1-09300-095-1
01
1
1404-
56
ARM; LINK,FRT,W/JOINT BALL
CHI
8-97430-819-0
01
1
1404-
65
SEAL; DUST,LINK ARM
(A) ID=32 CHI
1-44159-058-1
02
1
1404-
65
SEAL; DUST,LINK ARM
(B) ID=38 CHI
1-44349-017-0
02
1
1404-
66
BEARING; LINK ARM
CHI
1-09812-149-0
02
1
1404-
67
PIN; LINK ARM UPR
CHI
1-44346-011-3
01
1
1404-
85
ROD ASM; LINK
CHI
8-97430-820-0
01
1
1404-
97
BRACKET; LINK ARM
CHI
1-44348-083-0
01
1
1404-
134
BOLT; PIN SET LINK ARM
CHI
1-44349-016-2
01
1
1404-
135
WASHER; LK,PIN SET,LINK ARM
(B) ID=8.2 CHI
0-91510-808-0
01
1
1404-
135
WASHER; LK,PIN SET,LINK ARM
(A) M31 CHI
1-09533-015-1
01
1
1404-
136
WASHER; PL,SPINDLE,LINK ARM
ID=8.4 OD=16 CHI
0-91614-508-0
01
1
1404-
137
NUT; PIN SET LINK ARM
(B) M8 CHI
0-91110-508-0
01
1
1404-
137
NUT; PIN SET LINK ARM
(A) M30 CHI
1-09400-102-0
02
1
1404-
