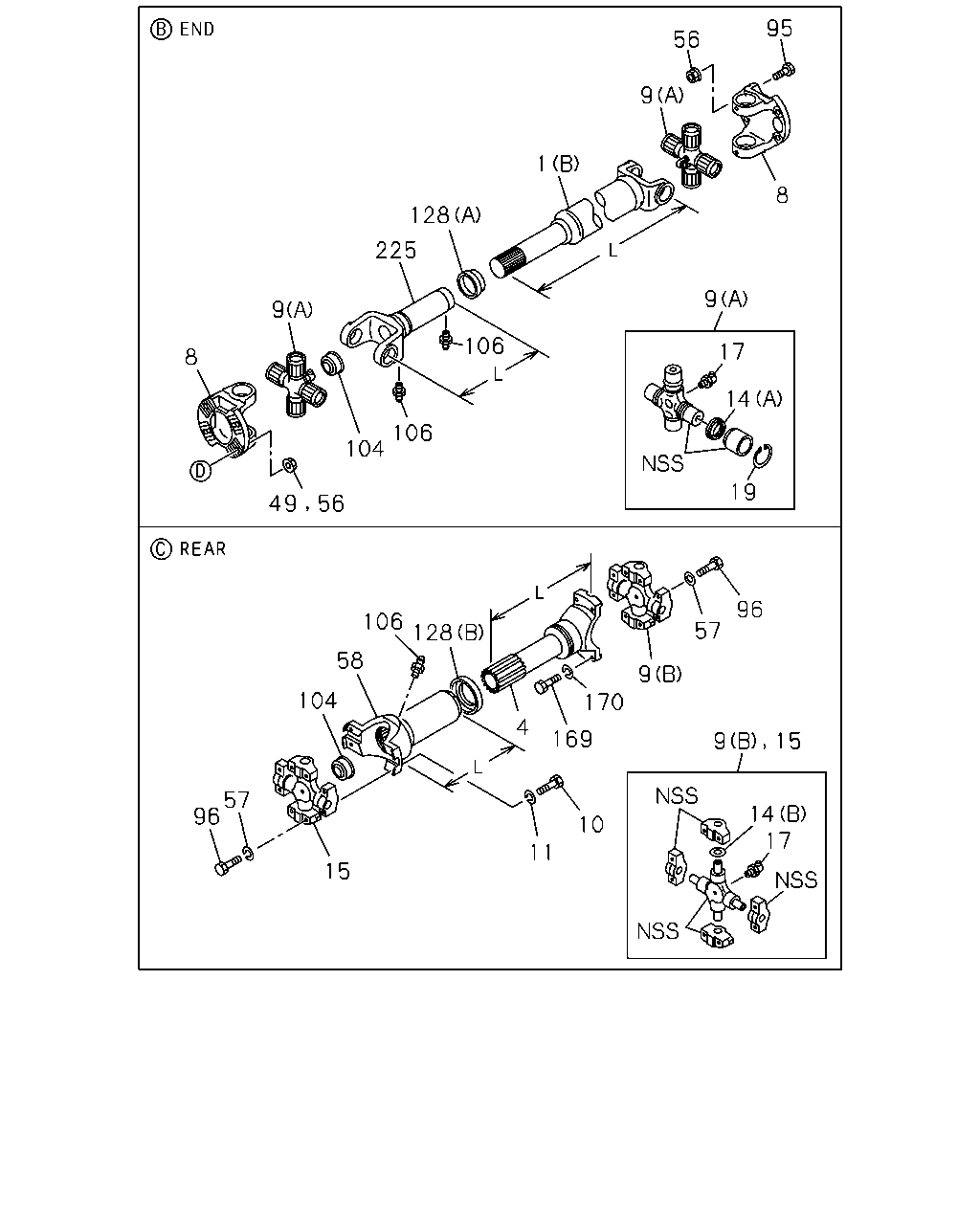

4-01 — PROPELLER SHAFT (#144945) — 79 parça

8 95 56 9 1 128 225 9 8 106 104 56 49 106 96 57 9 170 169 15 9 17 14 10 11 4 128 106 58 104 57 96 15 19 14 17 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (B) END L=1565 CHI	1-37125-382-0	01	1	1404-	●
1	SHAFT; PROP (A) 1ST L=1172 CHI	8-98098-100-0	01	1	1404-	●
1	SHAFT; PROP (B) END L=1270 CHI	8-98094-190-0	01	1	1404-		●
1	SHAFT; PROP (A) 1ST L=1287 CHI	8-98098-105-0	01	1	1404-		●
4	SHAFT; PROP L=348 CHI	1-37171-127-2	01	1	1404-	●	●
8	YOKE; FLANGE,PROP SHAFT CHI	1-37211-084-0	01	1	1404-	●	●
8	YOKE; FLANGE,PROP SHAFT CHI	1-37211-084-0	02	1	1404-	●	●
9	JOURNAL ASM; PROP SHAFT (A) CHI	1-37300-112-0	01	1	1404-	●	●
9	JOURNAL ASM; PROP SHAFT (B) CHI	1-37300-100-1	01	1	1404-	●	●
9	JOURNAL ASM; PROP SHAFT (A) CHI	1-37300-112-0	02	1	1404-	●	●
10	BOLT; UJT M12X45 CHI	8-98036-382-0	04	1	1404-	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2 CHI	0-91510-612-0	04	1	1404-	●	●
14	COVER; DUST,SPIDER (A) CHI	1-37249-133-0	04	1	1404-	●	●
14	COVER; DUST,SPIDER (A) CHI	1-37249-133-0	08	1	1404-	●	●
14	COVER; DUST,SPIDER (B) CHI	1-37319-004-0	08	1	1404-	●	●
15	UNIVERSAL CENTER CHI	1-37300-100-1	01	1	1404-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	01	1	1404-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	02	1	1404-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	02	1	1404-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2 CHI	1-09587-103-1	04	1	1404-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17 CHI	1-09587-107-0	04	1	1404-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2 CHI	1-09587-103-1	08	1	1404-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17 CHI	1-09587-107-0	08	1	1404-	●	●
49	NUT; YOKE M14 FLANGE CHI	8-97365-444-0	04	1	1404-		●
56	NUT; YOKE M14 FLANGE CHI	8-97365-444-0	04	1	1404-	●	●
56	NUT; YOKE M14 FLANGE CHI	8-97365-444-0	04	1	1404-	●	●
57	WASHER; LK,YOKE ID=12.2 CHI	0-91510-612-0	08	1	1404-	●	●
58	FLANGE; SPLINED L=265 CHI	1-37245-317-0	01	1	1404-	●	●
95	BOLT; YOKE,FINAL M14X50 CHI	1-09000-645-0	04	1	1404-	●	●
96	BOLT; PROP SHAFT M12X45 CHI	8-98036-382-0	08	1	1404-	●	●
104	PLUG; SLEEVE YOKE CHI	1-09600-049-0	01	1	1404-	●	●
104	PLUG; SLEEVE YOKE CHI	1-09600-049-0	01	1	1404-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT CHI	0-90301-410-0	01	1	1404-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT CHI	0-90301-410-0	02	1	1404-	●	●
128	SEAL; SLEEVE (A) CHI	1-37247-020-0	01	1	1404-	●	●
128	SEAL; SLEEVE (B) CHI	8-97603-618-0	01	1	1404-	●	●
169	BOLT; YOKE,SLEEVE M12X45 CHI	8-98036-382-0	04	1	1404-	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2 CHI	0-91510-612-0	04	1	1404-	●	●
225	YOKE; SLEEVE,PROP SHAFT L=339 CHI	1-37241-140-0	01	1	1404-	●	●

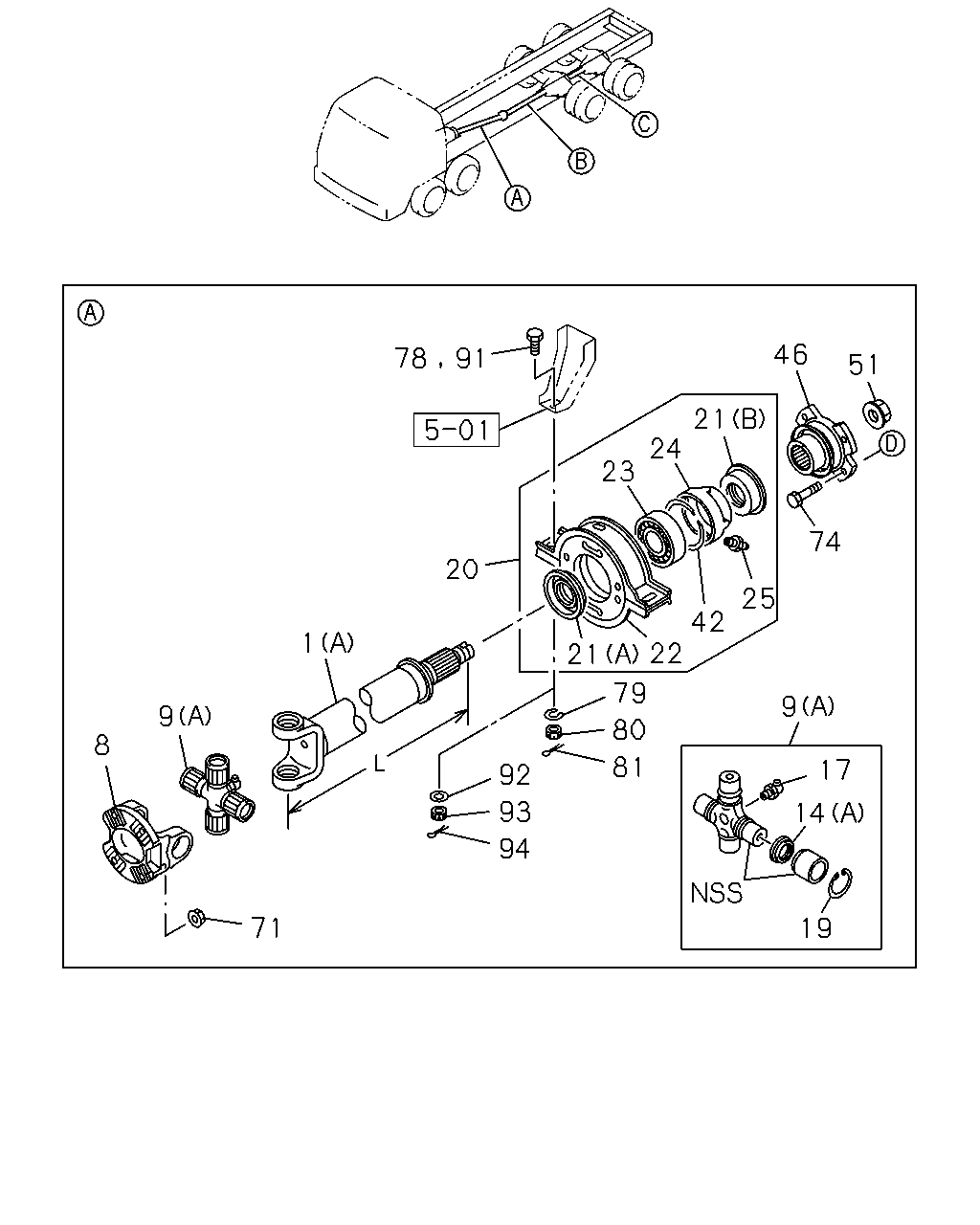

51 46 21 24 23 42 74 25 22 21 79 80 81 9 17 14 19 92 93 94 1 20 91 78 9 8 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (B) END L=1565 CHI	1-37125-382-0	01	1	1404-	●
1	SHAFT; PROP (A) 1ST L=1172 CHI	8-98098-100-0	01	1	1404-	●
1	SHAFT; PROP (B) END L=1270 CHI	8-98094-190-0	01	1	1404-		●
1	SHAFT; PROP (A) 1ST L=1287 CHI	8-98098-105-0	01	1	1404-		●
8	YOKE; FLANGE,PROP SHAFT CHI	1-37211-084-0	01	1	1404-	●	●
8	YOKE; FLANGE,PROP SHAFT CHI	1-37211-084-0	02	1	1404-	●	●
9	JOURNAL ASM; PROP SHAFT (A) CHI	1-37300-112-0	01	1	1404-	●	●
9	JOURNAL ASM; PROP SHAFT (B) CHI	1-37300-100-1	01	1	1404-	●	●
9	JOURNAL ASM; PROP SHAFT (A) CHI	1-37300-112-0	02	1	1404-	●	●
14	COVER; DUST,SPIDER (A) CHI	1-37249-133-0	04	1	1404-	●	●
14	COVER; DUST,SPIDER (A) CHI	1-37249-133-0	08	1	1404-	●	●
14	COVER; DUST,SPIDER (B) CHI	1-37319-004-0	08	1	1404-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	01	1	1404-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	02	1	1404-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES CHI	0-90301-510-0	02	1	1404-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2 CHI	1-09587-103-1	04	1	1404-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17 CHI	1-09587-107-0	04	1	1404-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2 CHI	1-09587-103-1	08	1	1404-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17 CHI	1-09587-107-0	08	1	1404-	●	●
20	BEARING ASM; CTR,PROP SHAFT ID=65 CHI	1-37510-116-0	01	1	1404-	●	●
21	SEAL; OIL,CENTER BRG (A) OD=114 CHI	1-09625-222-1	01	1	1404-	●	●
21	SEAL; OIL,CENTER BRG (B) OD=106 CHI	1-09625-622-0	01	1	1404-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST CHI	1-37516-056-0	01	1	1404-	●	●
23	BEARING; CENTER,PROP SHAFT CHI	1-09800-210-0	01	1	1404-	●	●
24	RETAINER; CENTER BRG,1ST CHI	1-37529-110-0	01	1	1404-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT CHI	1-09380-006-0	01	1	1404-	●	●
42	RING; SNAP,CTR BRG CHI	1-09587-085-0	01	1	1404-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST CHI	1-37245-349-0	01	1	1404-	●	●
51	NUT; FLANGE,SPLINED M45 FLAMGE CHI	1-09449-040-0	01	1	1404-	●	●
71	NUT; YOKE M14 FLANGE CHI	8-97365-444-0	04	1	1404-	●	●
74	BOLT; YOKE,TRANS M14X50 CHI	1-09000-645-0	04	1	1404-	●	●
74	BOLT; YOKE,TRANS M14X50 CHI	1-09000-645-0	04	1	1404-		●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45 CHI	1-09042-030-0	02	1	1404-	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17 CHI	1-09503-241-1	02	1	1404-	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED CHI	8-98049-689-0	02	1	1404-	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25 CHI	0-81124-025-0	02	1	1404-	●	●
91	BOLT; HOLDER SET,CTR BRG M16X45 CHI	1-09042-030-0	02	1	1404-		●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17 CHI	1-09503-241-1	02	1	1404-		●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED CHI	8-98049-689-0	02	1	1404-		●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25 CHI	0-81124-025-0	02	1	1404-		●
