3-78 — FIXING PARTS; AIR PIPING (#144944) — 179 parça

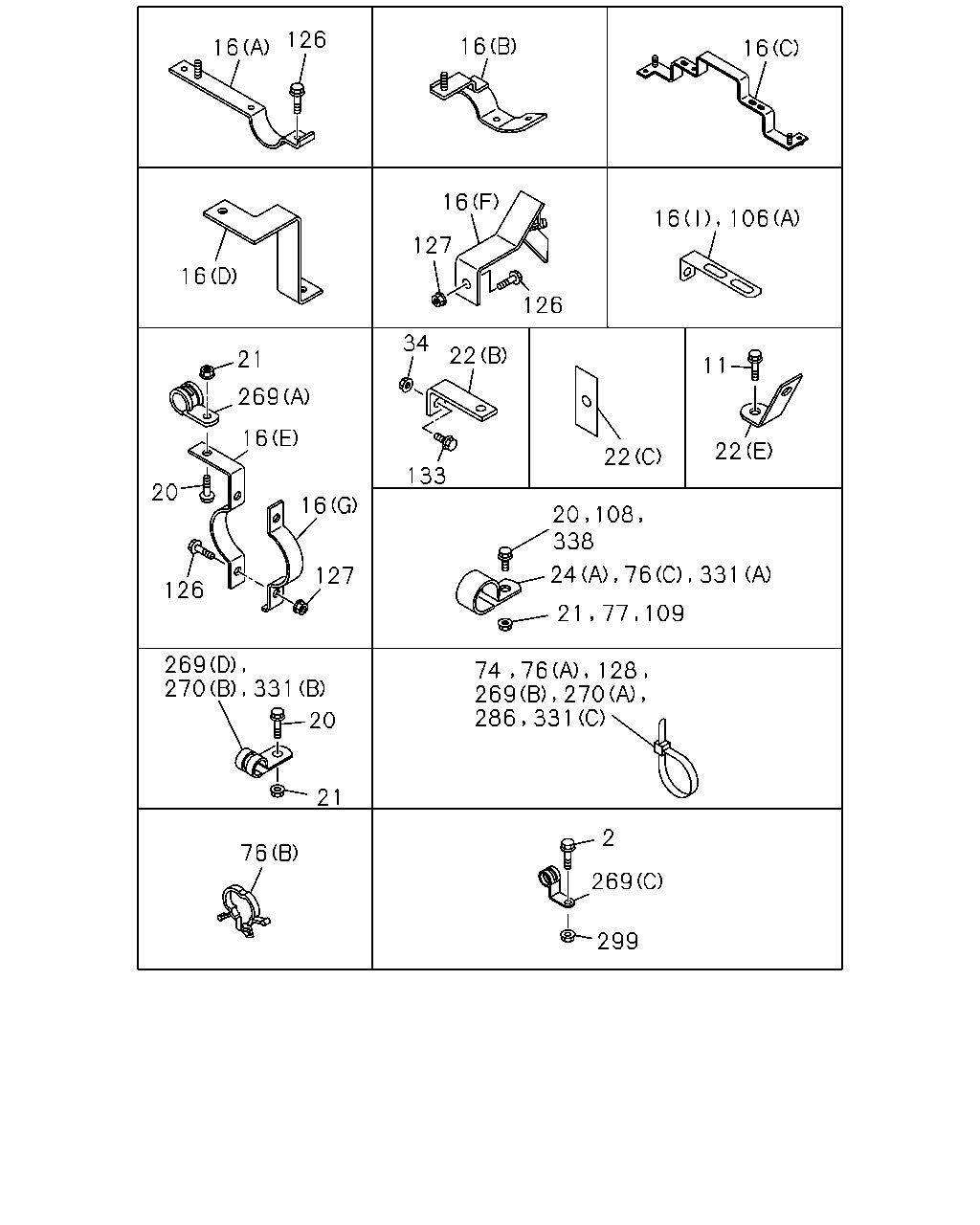

çizim 431865
16 126 16 21 269 16 20 126 127 16 269 270 331 20 21 76 74 269 286 331 76 270 128 2 269 299 21 77 109 24 76 331 338 108 20 22 22 11 16 106 16 126 22 133 34 127 16 16
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
11 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404-
16 BRACKET; PIPE CLIP
(F) CHI 		1-47471-309-0 01 1 1404-
16 BRACKET; PIPE CLIP
(I) L=100 H=30 CHI 		1-47477-645-2 02 1 1404-
16 BRACKET; PIPE CLIP
(A) CHI 		1-47479-856-0 02 1 1404-
16 BRACKET; PIPE CLIP
(B) CHI 		1-47479-857-0 02 1 1404-
16 BRACKET; PIPE CLIP
(C) CHI 		1-47479-898-0 02 1 1404-
16 BRACKET; PIPE CLIP
(H) CHI 		8-98054-389-0 01 1 1404-
16 BRACKET; PIPE CLIP
(D) CHI 		8-98086-226-0 01 1 1404-
16 BRACKET; PIPE CLIP
(E) 		8-97431-537-0 01 1 1404-
16 BRACKET; PIPE CLIP
(G) 		8-97431-538-0 01 1 1404-
16 BRACKET; PIPE CLIP
(E) 		8-97431-537-0 01 1 1404-
16 BRACKET; PIPE CLIP
(G) 		8-97431-538-0 01 1 1404-
20 BOLT; CLIP
M8X20 FLANGE CHI 		0-28650-820-0 03 1 1404-
20 BOLT; CLIP
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
21 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
21 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
22 BRACKET; CLIP
(B) L=112 CHI 		1-47475-694-1 01 1 1404-
22 BRACKET; CLIP
(E) CHI 		1-47477-571-3 01 1 1404-
22 BRACKET; CLIP
(D) L=100 H=30 CHI 		1-47477-645-2 02 1 1404-
22 BRACKET; CLIP
(A) L=60 H=30 CHI 		1-47477-716-1 02 1 1404-
22 BRACKET; CLIP
(C) CHI 		1-47479-554-0 01 1 1404-
22 BRACKET; CLIP
(B) L=95 CHI 		1-82699-085-0 01 1 1404-
24 CLIP; PIPE
(B) ID=16 L=20 CHI 		0-95235-535-0 01 1 1404-
24 CLIP; PIPE
(B) ID=16 L=40 CHI 		0-95235-576-0 01 1 1404-
24 CLIP; PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=25 L=50 CHI 		1-09701-019-0 02 1 1404-
24 CLIP; PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=25 L=50 CHI 		1-09701-019-0 03 1 1404-
24 CLIP; PIPE
(A) ID=15 H=24 L=20 CHI 		1-09700-606-0 01 1 1404-
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 07 1 1404-
74 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 01 1 1404-
74 CLIP; NYLON TUBE
L=350 CHI 		1-09707-183-0 09 1 1404-
76 CLIP; NYLON TUBE
(C) ID=26 L=27 CHI 		1-09701-006-0 01 1 1404-
76 CLIP; NYLON TUBE
(A) L=350 CHI 		1-09707-183-0 04 1 1404-
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 CHI 		1-09709-297-0 01 1 1404-
77 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 01 1 1404-
106 BRACKET; TUBE CLIP
(C) L=60 H=30 CHI 		1-47477-716-1 01 1 1404-
106 BRACKET; TUBE CLIP
(D) CHI 		1-47479-554-0 01 1 1404-
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404-
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404-
106 BRACKET; TUBE CLIP
(E) CHI 		8-97431-107-0 01 1 1404-
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W) (A) L=100 H=30 CHI 		1-47477-645-2 05 1 1404-
106 BRACKET; TUBE CLIP
WHEEL BASE 7700MM(77W) (A) L=100 H=30 CHI 		1-47477-645-2 04 1 1404-
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 02 1 1404-
108 BOLT; TUBE CLIP
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
109 NUT; TUBE CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
109 NUT; TUBE CLIP
M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
126 BOLT; CLIP BRKT
M8X12 FLANGE CHI 		0-28050-812-0 04 1 1404-
126 BOLT; CLIP BRKT
M8X45 FLANGE CHI 		0-28050-845-0 01 1 1404-
126 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 06 1 1404-
126 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404-
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404-
128 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W) L=350 CHI 		1-09707-183-0 14 1 1404-
128 CLIP; NYLON TUBE
WHEEL BASE 7700MM(77W) L=350 CHI 		1-09707-183-0 18 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 02 1 1404-
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 05 1 1404-
133 BOLT; BRKT
WHEEL BASE 6400MM(64W) M8X25 FLANGE CHI 		0-28650-825-0 06 1 1404-
133 BOLT; BRKT
WHEEL BASE 7700MM(77W) M8X25 FLANGE CHI 		0-28650-825-0 05 1 1404-
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 CHI 		1-09700-945-0 06 1 1404-
269 CLIP; BAND,NYLON TUBE
(B) L=350 CHI 		1-09707-183-0 03 1 1404-
269 CLIP; BAND,NYLON TUBE
(B) L=350 CHI 		1-09707-183-0 05 1 1404-
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (D) ID=24 L=27 CHI 		1-09700-809-0 01 1 1404-
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (C) ID=25 H=30 L=35 CHI 		1-09700-875-0 02 1 1404-
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (C) ID=21 L=30 H=40 CHI 		1-09700-991-1 01 1 1404-
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (D) ID=21 L=24 CHI 		8-98019-191-0 02 1 1404-
269 CLIP; BAND,NYLON TUBE
(D) ID=39 L=33 CHI 		8-98009-359-0 02 1 1404-
270 CLIP; NYLON TUBE
(B) ID=18 L=28 CHI 		1-09701-067-0 02 1 1404-
270 CLIP; NYLON TUBE
(A) L=350 CHI 		1-09707-183-0 02 1 1404-
286 CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W) L=350 CHI 		1-09707-183-0 02 1 1404-
299 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
331 CLIP; NYLON TUBE
(A) ID=16 L=20 CHI 		0-95235-535-0 01 1 1404-
331 CLIP; NYLON TUBE
(B) ID=18 L=28 CHI 		1-09701-067-0 01 1 1404-
331 CLIP; NYLON TUBE
(C) L=350 CHI 		1-09707-183-0 03 1 1404-
338 BOLT; PIPE CLIP
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404-
338 BOLT; PIPE CLIP
M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404-
çizim 433204
16 126 127 61 279 24 133 297 94 34 127 279 133 126 106 22 22 11 11 106 388 93
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
11 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404-
16 BRACKET; PIPE CLIP
(F) CHI 		1-47471-309-0 01 1 1404-
16 BRACKET; PIPE CLIP
(I) L=100 H=30 CHI 		1-47477-645-2 02 1 1404-
16 BRACKET; PIPE CLIP
(A) CHI 		1-47479-856-0 02 1 1404-
16 BRACKET; PIPE CLIP
(B) CHI 		1-47479-857-0 02 1 1404-
16 BRACKET; PIPE CLIP
(C) CHI 		1-47479-898-0 02 1 1404-
16 BRACKET; PIPE CLIP
(H) CHI 		8-98054-389-0 01 1 1404-
16 BRACKET; PIPE CLIP
(D) CHI 		8-98086-226-0 01 1 1404-
16 BRACKET; PIPE CLIP
(E) 		8-97431-537-0 01 1 1404-
16 BRACKET; PIPE CLIP
(G) 		8-97431-538-0 01 1 1404-
16 BRACKET; PIPE CLIP
(E) 		8-97431-537-0 01 1 1404-
16 BRACKET; PIPE CLIP
(G) 		8-97431-538-0 01 1 1404-
22 BRACKET; CLIP
(B) L=112 CHI 		1-47475-694-1 01 1 1404-
22 BRACKET; CLIP
(E) CHI 		1-47477-571-3 01 1 1404-
22 BRACKET; CLIP
(D) L=100 H=30 CHI 		1-47477-645-2 02 1 1404-
22 BRACKET; CLIP
(A) L=60 H=30 CHI 		1-47477-716-1 02 1 1404-
22 BRACKET; CLIP
(C) CHI 		1-47479-554-0 01 1 1404-
22 BRACKET; CLIP
(B) L=95 CHI 		1-82699-085-0 01 1 1404-
24 CLIP; PIPE
(B) ID=16 L=20 CHI 		0-95235-535-0 01 1 1404-
24 CLIP; PIPE
(B) ID=16 L=40 CHI 		0-95235-576-0 01 1 1404-
24 CLIP; PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=25 L=50 CHI 		1-09701-019-0 02 1 1404-
24 CLIP; PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=25 L=50 CHI 		1-09701-019-0 03 1 1404-
24 CLIP; PIPE
(A) ID=15 H=24 L=20 CHI 		1-09700-606-0 01 1 1404-
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
34 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 07 1 1404-
61 NUT; CLIP FIX
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
61 NUT; CLIP FIX
POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
61 NUT; CLIP FIX
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
93 BRACKET; PIPE CLIP
CHI 		1-47475-730-0 01 1 1404-
94 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404-
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 01 1 1404-
106 BRACKET; TUBE CLIP
(C) L=60 H=30 CHI 		1-47477-716-1 01 1 1404-
106 BRACKET; TUBE CLIP
(D) CHI 		1-47479-554-0 01 1 1404-
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404-
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404-
106 BRACKET; TUBE CLIP
(E) CHI 		8-97431-107-0 01 1 1404-
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W) (A) L=100 H=30 CHI 		1-47477-645-2 05 1 1404-
106 BRACKET; TUBE CLIP
WHEEL BASE 7700MM(77W) (A) L=100 H=30 CHI 		1-47477-645-2 04 1 1404-
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 02 1 1404-
126 BOLT; CLIP BRKT
M8X12 FLANGE CHI 		0-28050-812-0 04 1 1404-
126 BOLT; CLIP BRKT
M8X45 FLANGE CHI 		0-28050-845-0 01 1 1404-
126 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 06 1 1404-
126 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404-
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
127 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 02 1 1404-
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 05 1 1404-
133 BOLT; BRKT
WHEEL BASE 6400MM(64W) M8X25 FLANGE CHI 		0-28650-825-0 06 1 1404-
133 BOLT; BRKT
WHEEL BASE 7700MM(77W) M8X25 FLANGE CHI 		0-28650-825-0 05 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
279 NUT; BRKT
WHEEL BASE 6400MM(64W) M8 FLANGE CHI 		0-91180-108-0 12 1 1404-
279 NUT; BRKT
WHEEL BASE 7700MM(77W) M8 FLANGE CHI 		0-91180-108-0 11 1 1404-
297 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
388 SEAL
100X40 CHI 		1-72498-022-1 04 1 1404-
çizim 433289
28 55 359 92 31 106 11 106 91 29 30 133 106 279 321 11 321 106 133 279 106 133 27 61 375 91
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
11 BOLT; CLIP BRKT
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404-
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 CHI 		1-09700-875-0 01 1 1404-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404-
29 BRACKET; CLIP,AIR PIPE
CHI 		1-21464-481-0 01 1 1404-
30 BOLT; CLIP BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
31 NUT; CLIP BRKT
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
55 BOLT; PIPE CLIP
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
55 BOLT; PIPE CLIP
M8X30 FLANGE CHI 		0-28650-830-0 01 1 1404-
55 BOLT; PIPE CLIP
M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404-
61 NUT; CLIP FIX
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
61 NUT; CLIP FIX
POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
61 NUT; CLIP FIX
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
91 CLIP; AIR PIPE
ID=12 H=24 L=20 CHI 		1-09700-605-0 04 1 1404-
92 NUT; PIPE CLIP
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
106 BRACKET; TUBE CLIP
(F) L=150 CHI 		1-47471-217-0 01 1 1404-
106 BRACKET; TUBE CLIP
(C) L=60 H=30 CHI 		1-47477-716-1 01 1 1404-
106 BRACKET; TUBE CLIP
(D) CHI 		1-47479-554-0 01 1 1404-
106 BRACKET; TUBE CLIP
(G) CHI 		8-97430-380-0 02 1 1404-
106 BRACKET; TUBE CLIP
(H) CHI 		8-97430-382-0 01 1 1404-
106 BRACKET; TUBE CLIP
(E) CHI 		8-97431-107-0 01 1 1404-
106 BRACKET; TUBE CLIP
WHEEL BASE 6400MM(64W) (A) L=100 H=30 CHI 		1-47477-645-2 05 1 1404-
106 BRACKET; TUBE CLIP
WHEEL BASE 7700MM(77W) (A) L=100 H=30 CHI 		1-47477-645-2 04 1 1404-
106 BRACKET; TUBE CLIP
(B) L=90 CHI 		1-47477-755-1 02 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 02 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X25 FLANGE CHI 		0-28650-825-0 01 1 1404-
133 BOLT; BRKT
M8X30 FLANGE CHI 		0-28650-830-0 02 1 1404-
133 BOLT; BRKT
M8X35 FLANGE CHI 		0-28650-835-0 05 1 1404-
133 BOLT; BRKT
WHEEL BASE 6400MM(64W) M8X25 FLANGE CHI 		0-28650-825-0 06 1 1404-
133 BOLT; BRKT
WHEEL BASE 7700MM(77W) M8X25 FLANGE CHI 		0-28650-825-0 05 1 1404-
279 NUT; BRKT
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
279 NUT; BRKT
WHEEL BASE 6400MM(64W) M8 FLANGE CHI 		0-91180-108-0 12 1 1404-
279 NUT; BRKT
WHEEL BASE 7700MM(77W) M8 FLANGE CHI 		0-91180-108-0 11 1 1404-
321 BRACKET; CLIP
(A) L=150 CHI 		1-47471-217-0 02 1 1404-
321 BRACKET; CLIP
(B) L=112 CHI 		1-47475-694-1 01 1 1404-
359 BOLT; CLIP
M8X20 FLANGE CHI 		0-28650-820-0 01 1 1404-
359 BOLT; CLIP
M8X30 FLANGE CHI 		0-28650-830-0 02 1 1404-
359 BOLT; CLIP
M8X35 FLANGE CHI 		0-28650-835-0 01 1 1404-
375 CLIP; AIR PIPE
ID=12 H=24 L=20 CHI 		1-09700-605-0 04 1 1404-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
