2-30 — GEAR SHIFTER AND QUADRANT BOX (#14494) — 107 parça

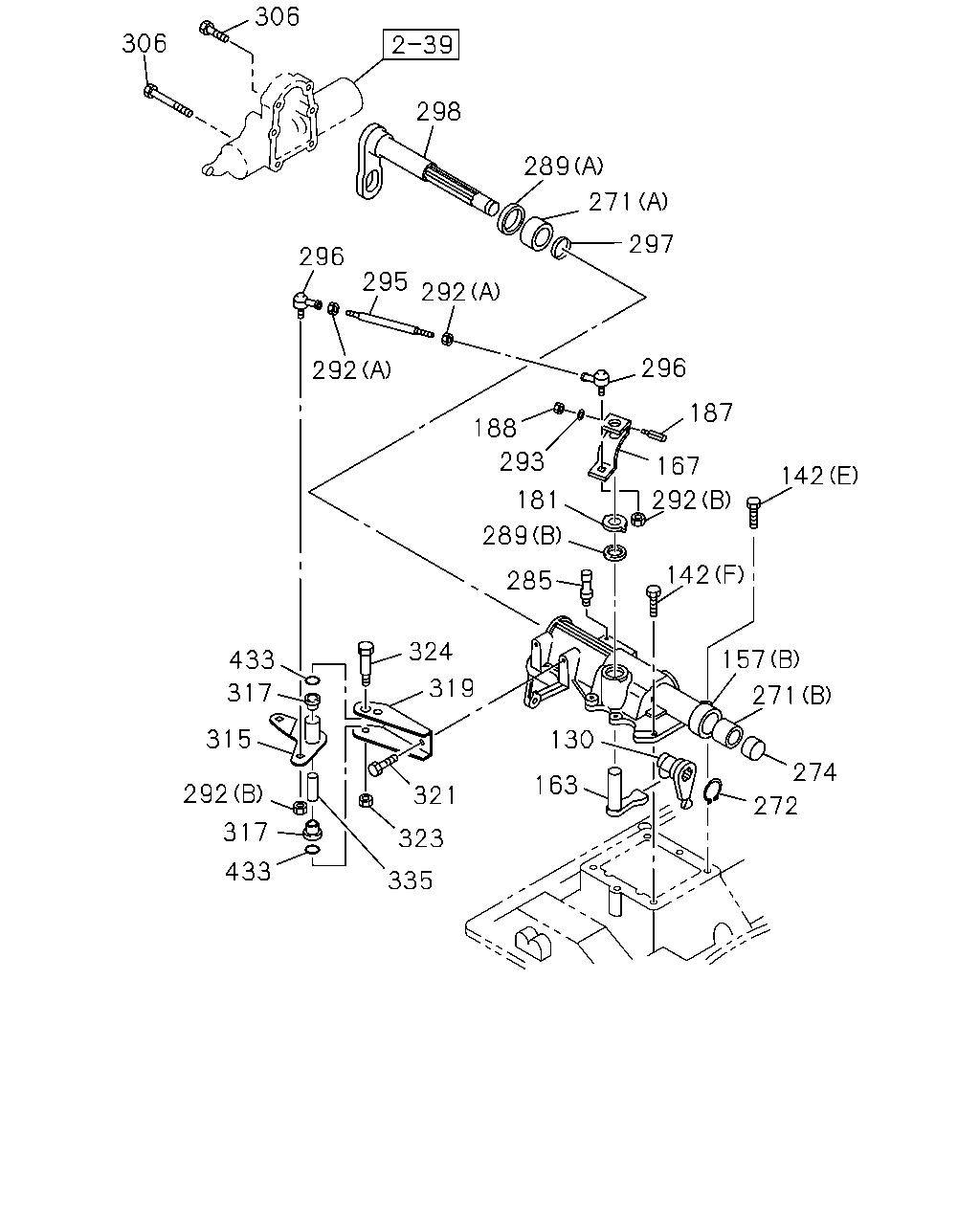

çizim 106258
306 306 298 289 271 297 296 295 292 296 292 187 188 293 167 142 181 292 289 142 285 324 157 433 319 317 271 130 315 274 163 292 321 272 317 323 433 335
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0611-
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0611-0805
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0611-0805
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0611-0805
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806-
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0611-0805
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0611-0805
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0611-0805
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0611-
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0611-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0611-
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0611-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0611-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0611-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0611-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0611-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0611-
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0611-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0611-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0611-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0611-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0611-
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0611-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0611-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0611-
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0611-
296 ROD END 1-09760-108-0 02 1 0611-
297 STOPPER; SELECT 1-33537-020-0 01 1 0611-
298 SHAFT; SHIFT LEVER 1-33522-179-0 01 1 0611-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0611-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0611-
315 LEVER; SELECT 1-33651-960-0 01 1 0611-
317 BUSHING; LEVER 1-09330-119-0 02 1 0611-
319 BRACKET; SELECT LEVER 1-33657-590-0 01 1 0611-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0611-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0611-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0611-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0611-
433 GASKET; BUSHING 1-09623-636-0 02 1 0611-

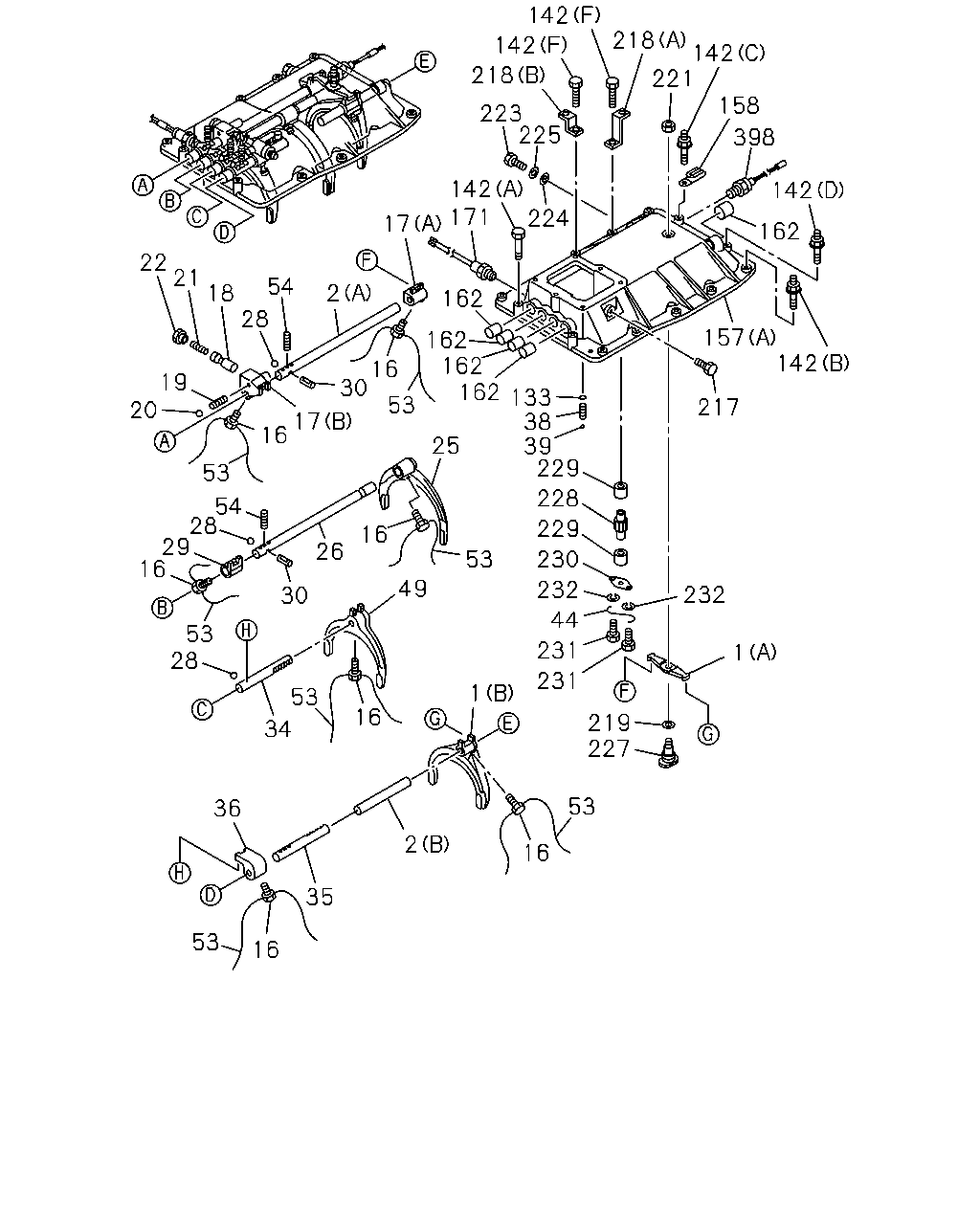

çizim 106260
142 218 142 221 142 218 158 223 225 398 142 171 142 224 17 162 22 21 54 18 28 2 162 157 142 162 162 162 16 30 19 20 133 38 39 229 53 217 17 16 25 53 228 54 28 29 16 229 16 26 53 230 49 232 232 30 44 53 28 231 1 231 1 53 16 219 227 34 53 36 2 16 35 53 16
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0611-
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0611-
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 0611-
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 0611-
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 07 1 0611-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-371-2 01 1 0611-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0611-
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-034-1 01 1 0611-
19 SPRING; COIL COMP 1-09580-438-0 01 1 0611-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0611-
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0611-
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0611-
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0611-
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0611-
28 BALL; INTER LK 9-00097-501-0 03 1 0611-
29 BLOCK; SHIFT,2ND & 3RD 1-33511-364-1 01 1 0611-
30 PIN; INTER LK 9-33534-003-0 02 1 0611-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-403-1 01 1 0611-
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-404-1 01 1 0611-
36 BLOCK; SHIFT,4TH & 5TH 1-33511-367-1 01 1 0611-
38 SPRING; DETENT 1-09580-379-0 03 1 0611-
39 BALL; DETENT 1-09843-012-0 03 1 0611-
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0611-
49 ARM; SHIFT,4TH & 5TH 1-33511-465-0 01 1 0611-
53 WIRE; BOLT
L=180 		1-09780-024-0 05 1 0611-
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0611-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0611-
133 SEAT; SPR 1-33549-072-0 03 1 0611-
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0611-0805
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		8-98044-944-0 11 1 0806-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0611-0805
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0611-0805
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		8-98010-334-0 03 1 0806-
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0611-0805
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		8-98010-335-0 01 1 0806-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0611-0805
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		8-98032-017-0 01 1 0806-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0611-0805
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0611-
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0611-
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0611-
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0611-
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0611-0702
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0611-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0611-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0611-
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0611-
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0611-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0611-
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 0611-
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 0611-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0611-
228 PINION; 4TH & 5TH SHIFT 1-33539-019-0 01 1 0611-
229 BEARING; NEEDLE,PINION 1-09811-202-0 02 1 0611-
230 COVER; BRG,PINION 1-33539-018-0 01 1 0611-
231 BOLT; BRG COVER,PINION
M8X20 		1-09050-005-1 02 1 0611-
232 WASHER; LK,BRG COVER
ID=8.2 		0-91510-508-0 02 1 0611-
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0611-
