3-26 — TRAILER CONTROL (#144934) — 26 parça

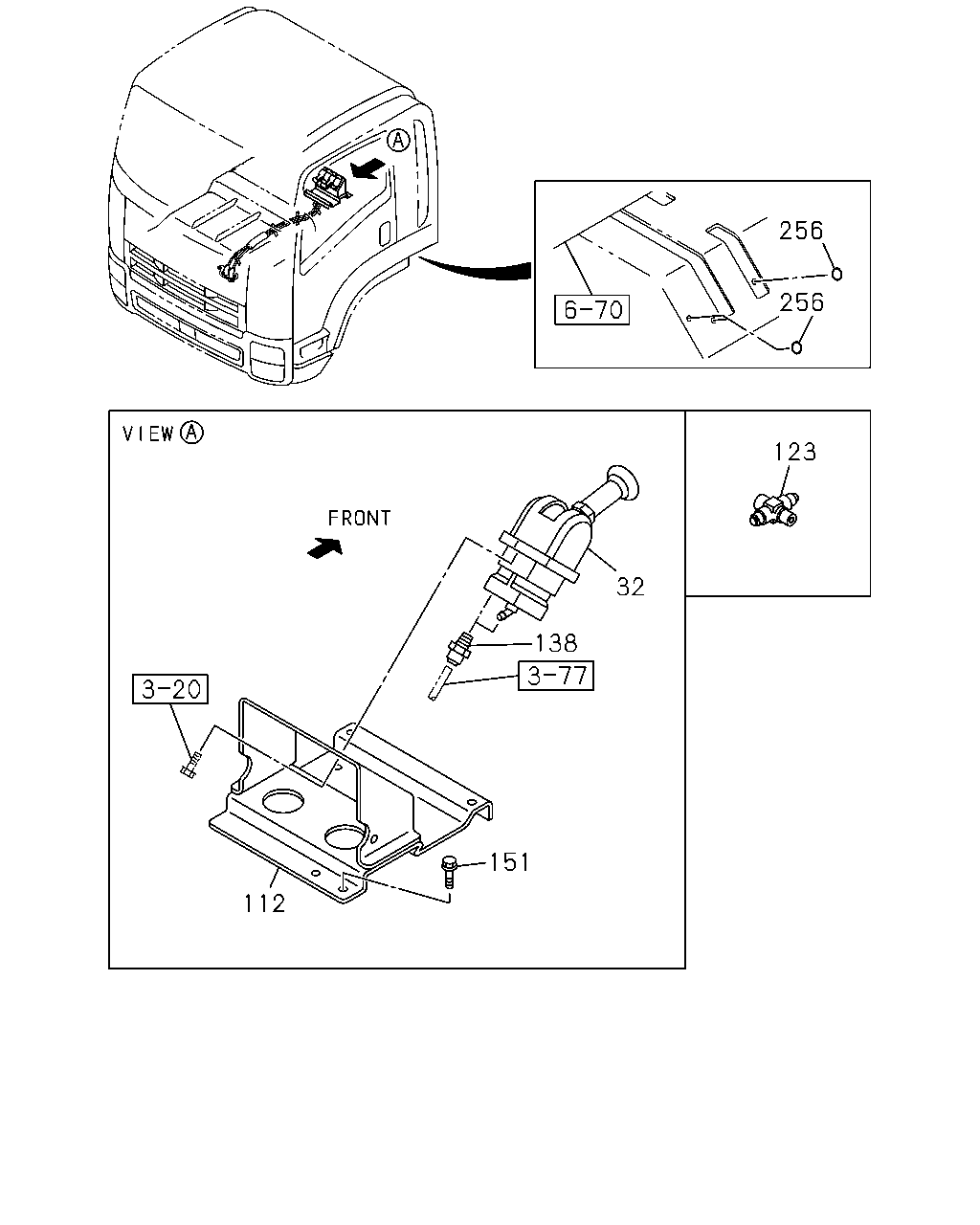

256 256 123 138 32 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT	8-97431-186-0	01	1	1404-
112	BRACKET; CONT VLV CHI	8-97430-080-0	01	1	1404-
123	CONNECTOR; DBL CHECK VLV WHEEL BASE 6400MM(64W) DIN8 RC1/4 & M8 CHI	1-09660-735-1	01	1	1404-
138	CONNECTOR; DELIVERY DIN8 R1/4 STRAIGHT	8-97431-401-0	02	1	1404-
151	BOLT; VLV BRKT M6X16 CHI	0-52000-616-0	04	1	1404-
256	SEAL OD=25 BLACK CHI	1-76798-019-0	03	1	1404-

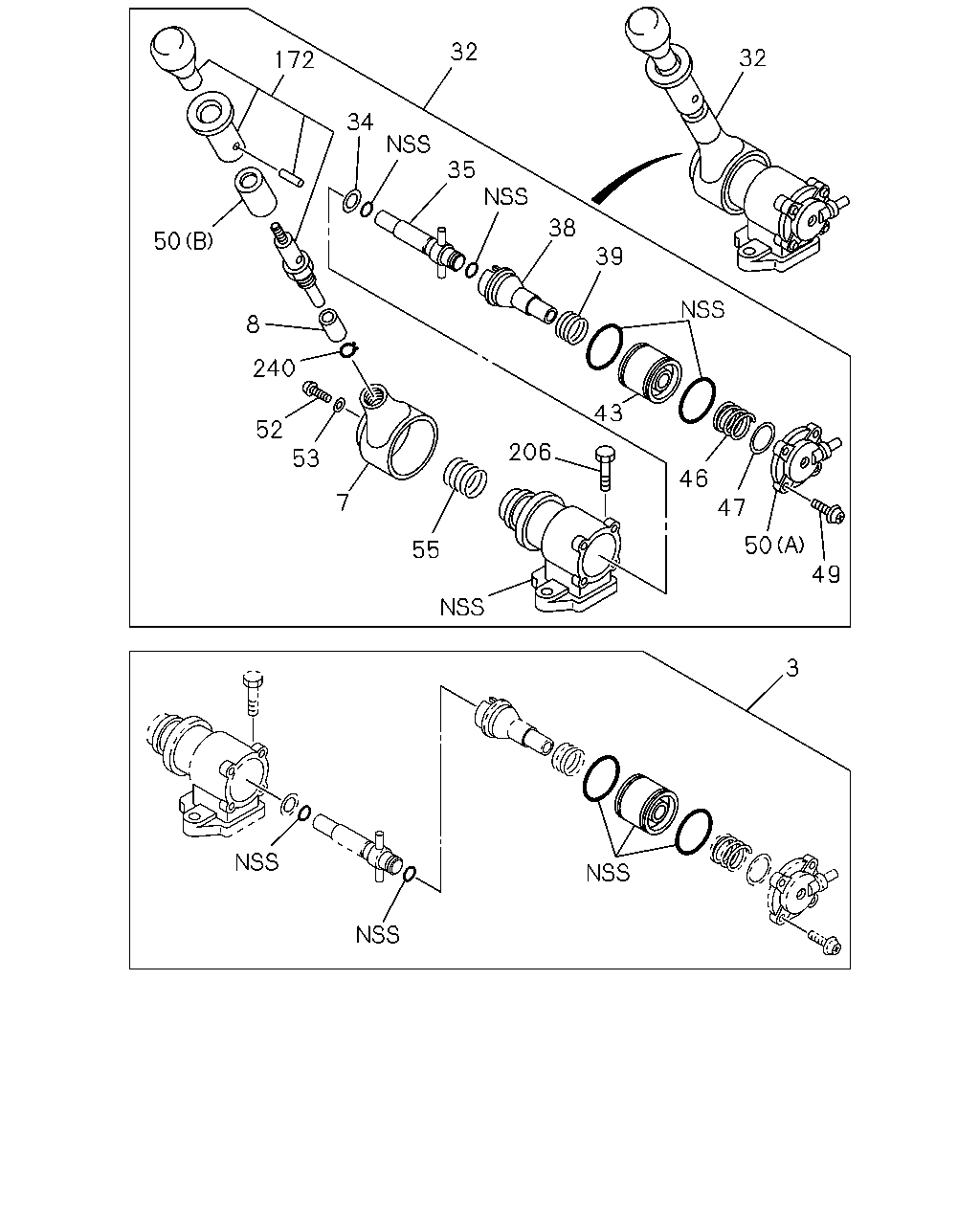

32 172 34 50 8 240 52 53 7 55 206 43 46 50 47 49 3 39 38 35 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV CHI	1-85576-243-0	01	1	1404-
7	HEAD; BRK VLV CHI	1-48469-195-0	01	1	1404-
8	STOPPER; BRK VLV CHI	1-48469-194-0	01	1	1404-
32	VALVE; BRK,HAND CONT	8-97431-186-0	01	1	1404-
34	SHIM; CAM HOLDER CHI	1-48469-055-0	AR	1	1404-
35	HOLDER; CAM CHI	1-48469-148-0	01	1	1404-
38	SEAT; EXH VLV CHI	1-48469-149-0	01	1	1404-
39	SPRING; RETURN,CAM RING CHI	1-48469-150-0	01	1	1404-
43	PISTON; HAND BRK VLV CHI	1-48469-151-0	01	1	1404-
46	SPRING; MAIN,PISTON CHI	1-48469-152-0	01	1	1404-
47	SHIM; MAIN SPRING CHI	1-48469-072-0	01	1	1404-
49	SCREW; COVER CHI	1-48469-169-0	04	1	1404-
50	COVER; HAND BRK VLV (A) CHI	1-48469-153-0	AR	1	1404-
50	COVER; HAND BRK VLV (B) CHI	1-48469-196-0	01	1	1404-
52	SCREW; HANDLE CHI	1-48469-062-0	01	1	1404-
53	WASHER; HANDLE CHI	1-48469-061-0	01	1	1404-
55	SPRING; RETURN,HANDLE CHI	1-48469-155-0	01	1	1404-
172	KNOB; VALVE CHI	1-48469-158-0	01	1	1404-
206	BOLT; HAND BRK VALVE CHI	1-48469-160-0	01	1	1404-
240	RING; STOPPER CHI	1-48469-193-0	01	1	1404-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
