Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#144932) — 289 parça

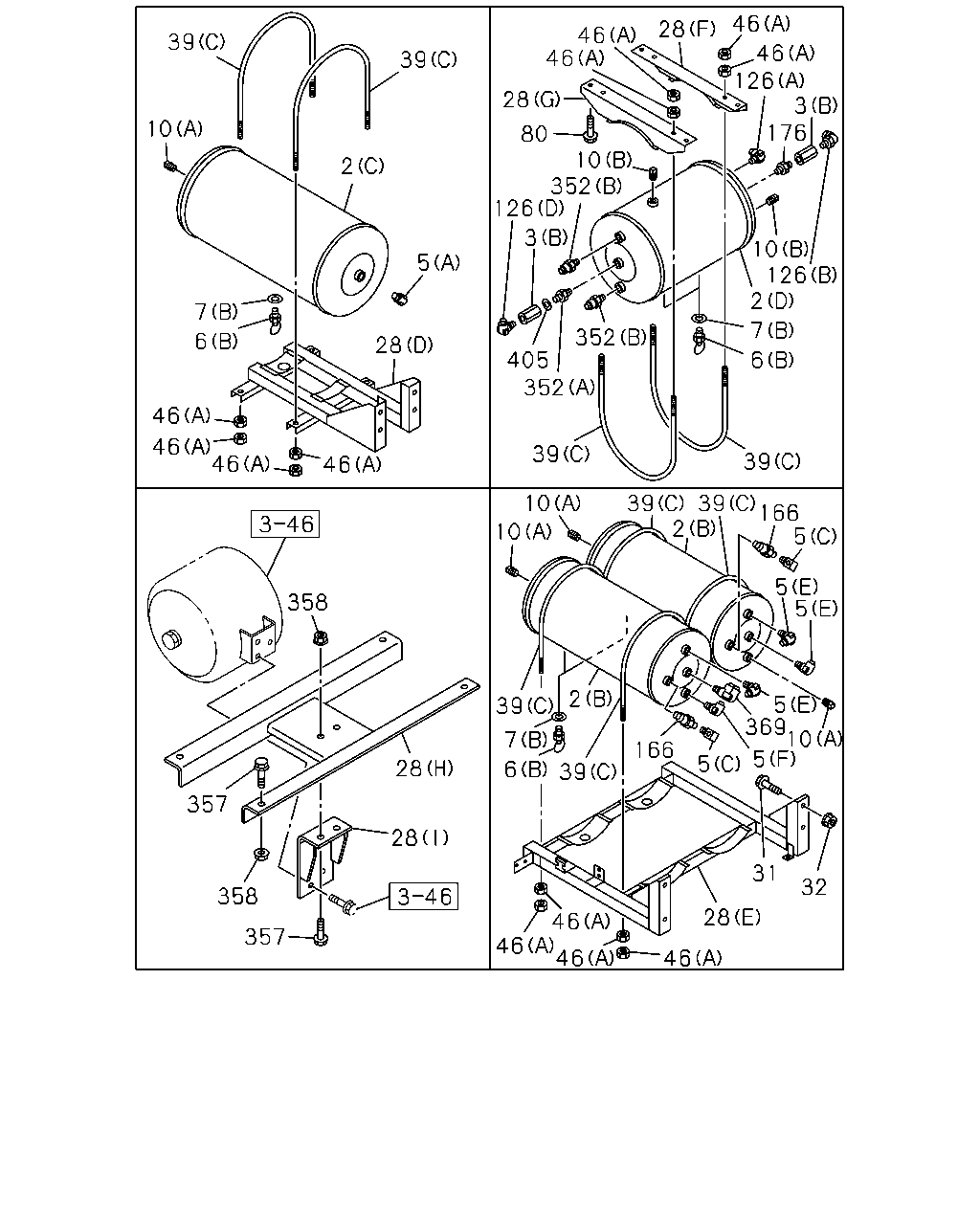

39 10 2 39 5 28 7 6 46 46 46 46 358 28 28 358 357 357 28 46 46 28 10 80 352 126 352 3 405 39 352 46 126 46 3 176 10 2 6 7 126 39 39 166 5 5 5 5 10 369 5 166 5 2 39 7 6 39 10 10 39 2 31 32 28 46 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A) CHI	8-98223-504-0	01	1	1404-
2	TANK; AIR WHEEL BASE 6400MM(64W) (A) CHI	8-98223-504-0	01	1	1404-
2	TANK; AIR WHEEL BASE 7700MM(77W) (A) CHI	8-98223-505-0	01	1	1404-
2	TANK; AIR (D)	8-97431-423-0	01	1	1404-
2	TANK; AIR (C)	8-97431-424-0	01	1	1404-
2	TANK; AIR (B)	8-97431-425-0	02	1	1404-
3	VALVE; CHECK,AIR TANK (A) CHI	1-48320-031-1	01	1	1404-
3	VALVE; CHECK,AIR TANK (A) CHI	1-48320-031-1	01	1	1404-
3	VALVE; CHECK,AIR TANK (B)	8-97431-414-0	02	1	1404-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW CHI	1-09660-652-1	01	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	04	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	02	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	02	1	1404-
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW CHI	1-09660-707-1	01	1	1404-
5	UNION; AIR TANK (C) PT1/4 & PT3/8 2WAY CHI	1-09660-809-0	01	1	1404-
5	UNION; AIR TANK (E) DIN12 & R3/8 ELBOW	8-97431-399-0	03	1	1404-
5	UNION; AIR TANK (F) DIN8 & R3/8 ELBOW	8-97431-398-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	02	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	02	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	02	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	01	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	02	1	1404-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1404-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1404-
28	BRACKET; AIR TANK (A) CHI	8-97618-088-1	01	1	1404-
28	BRACKET; AIR TANK (C) CHI	8-98093-562-1	01	1	1404-
28	BRACKET; AIR TANK (B) CHI	8-98112-257-0	01	1	1404-
28	BRACKET; AIR TANK (E)	8-97431-485-0	01	1	1404-
28	BRACKET; AIR TANK (D)	8-97431-486-0	01	1	1404-
28	BRACKET; AIR TANK (F)	8-97431-487-0	01	1	1404-
28	BRACKET; AIR TANK (G)	8-97431-516-0	01	1	1404-
28	BRACKET; AIR TANK (H)	8-97431-492-0	01	1	1404-
28	BRACKET; AIR TANK (I)	8-97431-493-0	01	1	1404-
31	BOLT; BRKT TO FRAME M12X40 FLANGE CHI	0-28651-240-0	04	1	1404-
32	NUT; BRKT TO FRAME M8 FLANGE CHI	0-91180-108-0	01	1	1404-
32	NUT; BRKT TO FRAME M12 FLANGE CHI	0-91180-212-0	04	1	1404-
39	U-BOLT; AIR TANK (A) L=253 CHI	1-48317-248-1	02	1	1404-
39	U-BOLT; AIR TANK (A) L=253 CHI	1-48317-248-1	04	1	1404-
39	U-BOLT; AIR TANK (B) CHI	1-48317-289-0	02	1	1404-
39	U-BOLT; AIR TANK (B) CHI	1-48317-289-0	02	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	04	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	02	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	02	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	16	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
46	NUT; U-BOLT (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
80	BOLT; BRKT M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
80	BOLT; BRKT WHEEL BASE 7700MM(77W) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
80	BOLT; BRKT M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
80	BOLT; BRKT WHEEL BASE 6400MM(64W) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
80	BOLT; BRKT M10X25 FLANGE CHI	0-28651-025-0	04	1	1404-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY CHI	1-09660-809-0	01	1	1404-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY CHI	1-09660-809-0	01	1	1404-
126	CONNECTOR; ELBOW (A) DIN8 & R1/4 ELBOW	8-97431-400-0	01	1	1404-
126	CONNECTOR; ELBOW (B) DIN8 & M22 ELBOW	8-97431-447-0	01	1	1404-
126	CONNECTOR; ELBOW (D) DIN12 & M22 ELBOW	8-97431-448-0	01	1	1404-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 CHI	8-97609-249-0	01	1	1404-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 CHI	8-97609-249-0	01	1	1404-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 CHI	8-97609-249-0	01	1	1404-
176	ADAPTER	8-97431-462-0	01	1	1404-
352	CONNECTOR; STRAIGHT (A) DIN8 & R3/8 STRAIGHT	8-97431-396-0	01	1	1404-
352	CONNECTOR; STRAIGHT (B) DIN12 & R3/8 STRAIGHT	8-97431-397-0	01	1	1404-
357	BOLT; BRKT M10X25 FLANGE CHI	0-28651-025-0	06	1	1404-
358	NUT; BRKT M10 FLANGE CHI	0-91180-210-0	06	1	1404-
369	CONNECTOR; 3WAY DIN12X2 & PT3/8 DOUBLE ELBOW	8-97431-450-0	01	1	1404-
405	GASKET ID=22.5 CHI	9-09571-422-0	01	1	1404-

158 241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	158	GROMMET; PIPE OD=35 CHI	8-94122-971-0	01	1	1404-
	241	BOLT; SET,CONT VLV M6X16 CHI	0-52000-616-0	02	1	1404-

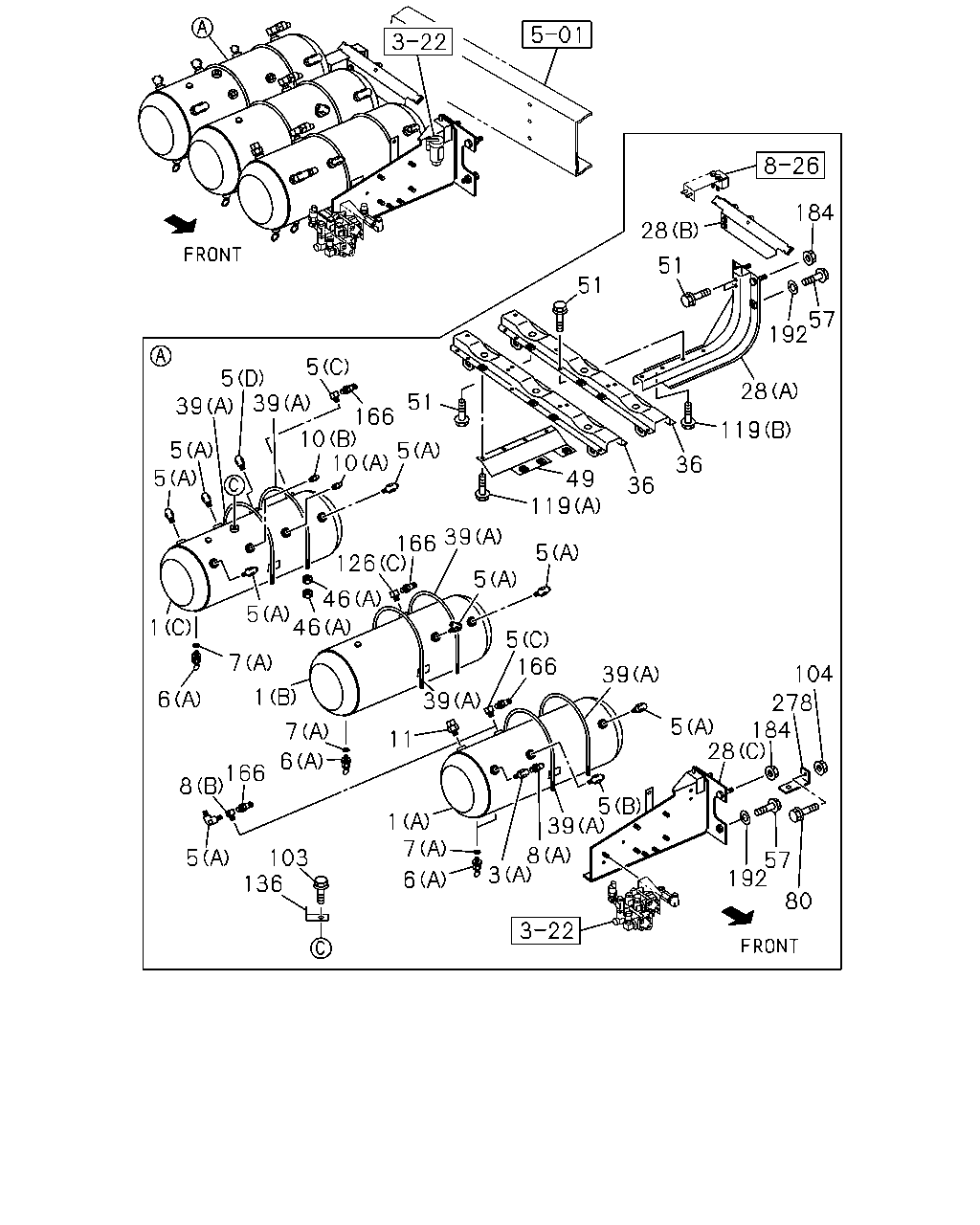

5 39 5 39 5 5 10 166 51 5 10 126 46 46 5 7 1 6 1 7 6 166 8 5 136 6 1 7 103 11 5 166 39 5 39 166 39 5 119 36 36 49 5 28 5 39 8 3 192 80 184 104 278 57 119 28 192 57 184 28 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C) CHI	8-98223-388-0	01	1	1404-
1	TANK ASM; AIR (A) CHI	8-98223-389-0	01	1	1404-
1	TANK ASM; AIR (B) CHI	8-98223-503-0	01	1	1404-
3	VALVE; CHECK,AIR TANK (A) CHI	1-48320-031-1	01	1	1404-
3	VALVE; CHECK,AIR TANK (A) CHI	1-48320-031-1	01	1	1404-
3	VALVE; CHECK,AIR TANK (B)	8-97431-414-0	02	1	1404-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW CHI	1-09660-652-1	01	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	04	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	02	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	02	1	1404-
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW CHI	1-09660-707-1	01	1	1404-
5	UNION; AIR TANK (C) PT1/4 & PT3/8 2WAY CHI	1-09660-809-0	01	1	1404-
5	UNION; AIR TANK (E) DIN12 & R3/8 ELBOW	8-97431-399-0	03	1	1404-
5	UNION; AIR TANK (F) DIN8 & R3/8 ELBOW	8-97431-398-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	02	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	02	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	02	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	01	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	02	1	1404-
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT CHI	1-09660-669-1	01	1	1404-
8	CONNECTOR; AIR TANK (B) CHI	8-98166-127-0	01	1	1404-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1404-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1404-
11	VALVE; SAFETY,AIR TANK CHI	1-48320-012-2	01	1	1404-
28	BRACKET; AIR TANK (A) CHI	8-97618-088-1	01	1	1404-
28	BRACKET; AIR TANK (C) CHI	8-98093-562-1	01	1	1404-
28	BRACKET; AIR TANK (B) CHI	8-98112-257-0	01	1	1404-
28	BRACKET; AIR TANK (E)	8-97431-485-0	01	1	1404-
28	BRACKET; AIR TANK (D)	8-97431-486-0	01	1	1404-
28	BRACKET; AIR TANK (F)	8-97431-487-0	01	1	1404-
28	BRACKET; AIR TANK (G)	8-97431-516-0	01	1	1404-
28	BRACKET; AIR TANK (H)	8-97431-492-0	01	1	1404-
28	BRACKET; AIR TANK (I)	8-97431-493-0	01	1	1404-
36	STAY; MAIN TANK CHI	8-97618-091-1	02	1	1404-
39	U-BOLT; AIR TANK (A) L=253 CHI	1-48317-248-1	02	1	1404-
39	U-BOLT; AIR TANK (A) L=253 CHI	1-48317-248-1	04	1	1404-
39	U-BOLT; AIR TANK (B) CHI	1-48317-289-0	02	1	1404-
39	U-BOLT; AIR TANK (B) CHI	1-48317-289-0	02	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	04	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	02	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	02	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	16	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
46	NUT; U-BOLT (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
49	BRACKET; AIR TANK CHI	8-98110-683-0	01	1	1404-
51	BOLT; STAY TO BRKT M8X20 FLANGE CHI	0-28650-820-0	10	1	1404-
57	BOLT; BRKT,AIR TANK TO FRAME M14X45 CHI	1-09000-764-0	04	1	1404-
80	BOLT; BRKT M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
80	BOLT; BRKT WHEEL BASE 7700MM(77W) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
80	BOLT; BRKT M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
80	BOLT; BRKT WHEEL BASE 6400MM(64W) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
80	BOLT; BRKT M10X25 FLANGE CHI	0-28651-025-0	04	1	1404-
103	BOLT; BRKT M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
104	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	01	1	1404-
119	BOLT; STAY (A) M8X20 FLANGE CHI	0-28650-820-0	04	1	1404-
119	BOLT; STAY (B) M8X25 FLANGE CHI	0-28650-825-0	03	1	1404-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY CHI	1-09660-809-0	01	1	1404-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY CHI	1-09660-809-0	01	1	1404-
126	CONNECTOR; ELBOW (A) DIN8 & R1/4 ELBOW	8-97431-400-0	01	1	1404-
126	CONNECTOR; ELBOW (B) DIN8 & M22 ELBOW	8-97431-447-0	01	1	1404-
126	CONNECTOR; ELBOW (D) DIN12 & M22 ELBOW	8-97431-448-0	01	1	1404-
136	BRACKET; CLIP L=55 B=25 CHI	1-47478-439-0	01	1	1404-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 CHI	8-97609-249-0	01	1	1404-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 CHI	8-97609-249-0	01	1	1404-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5 CHI	8-97609-249-0	01	1	1404-
184	NUT; BRKT M14 CHI	1-09440-072-0	04	1	1404-
192	WASHER; LK,BRKT ID=14.2 CHI	0-91510-514-0	08	1	1404-
278	BRACKET; CONNECTOR L=75 CHI	1-47478-323-0	01	1	1404-

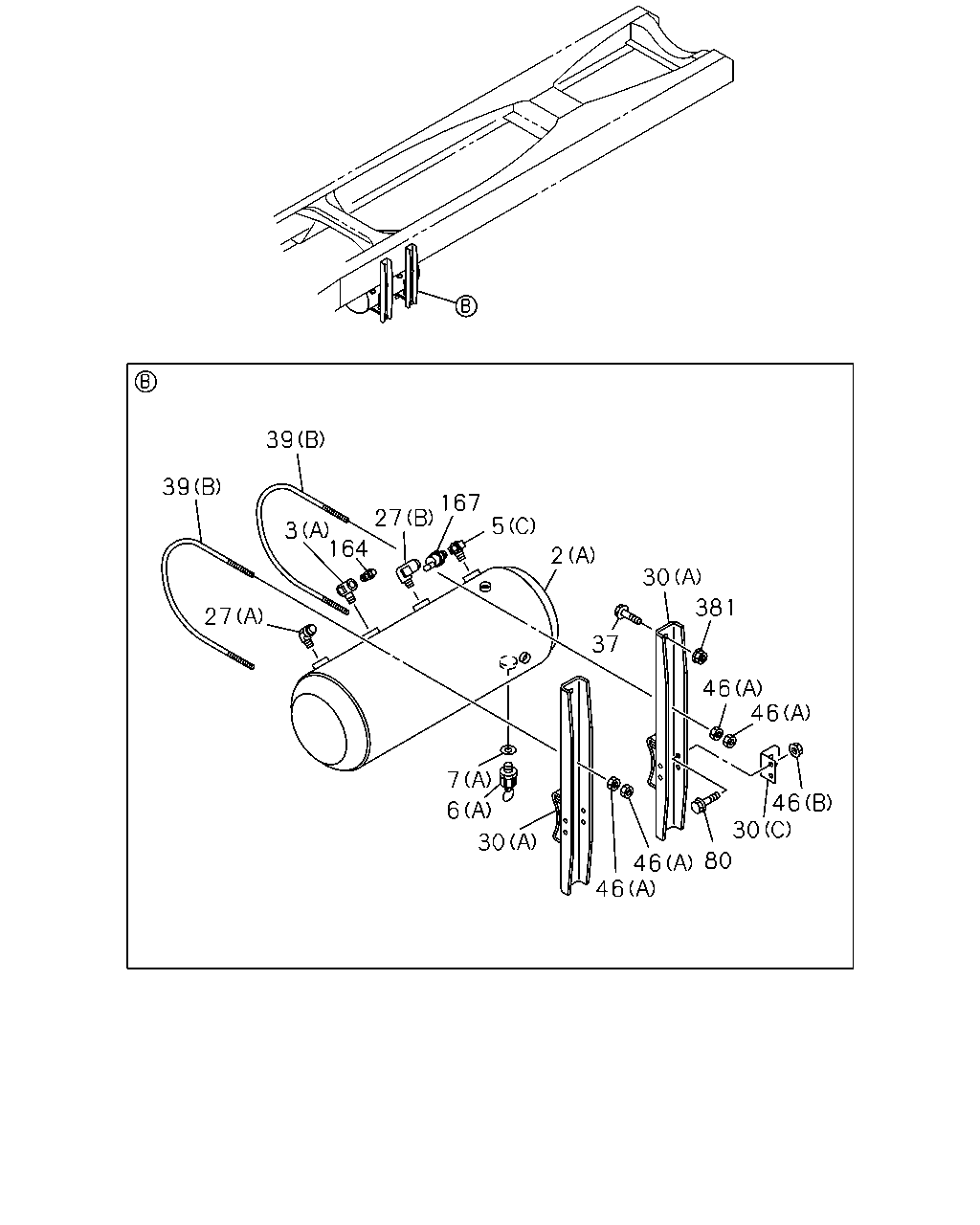

39 39 27 3 164 167 27 5 2 37 7 6 30 46 30 381 46 46 46 30 80 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A) CHI	8-98223-504-0	01	1	1404-
2	TANK; AIR WHEEL BASE 6400MM(64W) (A) CHI	8-98223-504-0	01	1	1404-
2	TANK; AIR WHEEL BASE 7700MM(77W) (A) CHI	8-98223-505-0	01	1	1404-
2	TANK; AIR (D)	8-97431-423-0	01	1	1404-
2	TANK; AIR (C)	8-97431-424-0	01	1	1404-
2	TANK; AIR (B)	8-97431-425-0	02	1	1404-
3	VALVE; CHECK,AIR TANK (A) CHI	1-48320-031-1	01	1	1404-
3	VALVE; CHECK,AIR TANK (A) CHI	1-48320-031-1	01	1	1404-
3	VALVE; CHECK,AIR TANK (B)	8-97431-414-0	02	1	1404-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW CHI	1-09660-652-1	01	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	04	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	02	1	1404-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	02	1	1404-
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW CHI	1-09660-707-1	01	1	1404-
5	UNION; AIR TANK (C) PT1/4 & PT3/8 2WAY CHI	1-09660-809-0	01	1	1404-
5	UNION; AIR TANK (E) DIN12 & R3/8 ELBOW	8-97431-399-0	03	1	1404-
5	UNION; AIR TANK (F) DIN8 & R3/8 ELBOW	8-97431-398-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	02	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	02	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	02	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	01	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	02	1	1404-
27	UNION; ELBOW,AIR TANK (A) DIN8 & R1/4 ELBOW CHI	1-09660-649-1	01	1	1404-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	01	1	1404-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	01	1	1404-
30	BRACKET; AIR TANK,SUB (A) CHI	8-98099-710-0	02	1	1404-
30	BRACKET; AIR TANK,SUB WHEEL BASE 7700MM(77W) (A) CHI	8-98099-710-0	02	1	1404-
30	BRACKET; AIR TANK,SUB (C) CHI	8-98099-781-0	01	1	1404-
30	BRACKET; AIR TANK,SUB (C) CHI	8-98099-781-0	01	1	1404-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W) (B) CHI	8-97430-474-0	01	1	1404-
37	BOLT; AIR TANK WHEEL BASE 6400MM(64W) M12X40 FLANGE CHI	0-28651-240-0	04	1	1404-
37	BOLT; AIR TANK WHEEL BASE 7700MM(77W) M12X40 FLANGE CHI	0-28651-240-0	08	1	1404-
39	U-BOLT; AIR TANK (A) L=253 CHI	1-48317-248-1	02	1	1404-
39	U-BOLT; AIR TANK (A) L=253 CHI	1-48317-248-1	04	1	1404-
39	U-BOLT; AIR TANK (B) CHI	1-48317-289-0	02	1	1404-
39	U-BOLT; AIR TANK (B) CHI	1-48317-289-0	02	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	04	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	02	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	02	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	16	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
46	NUT; U-BOLT (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
80	BOLT; BRKT M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
80	BOLT; BRKT WHEEL BASE 7700MM(77W) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
80	BOLT; BRKT M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
80	BOLT; BRKT WHEEL BASE 6400MM(64W) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
80	BOLT; BRKT M10X25 FLANGE CHI	0-28651-025-0	04	1	1404-
164	CONNECTOR; SUB AIR TANK DIN12 & R3/8 STRAIGHT CHI	1-09660-669-1	01	1	1404-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5 CHI	8-97609-249-0	01	1	1404-
381	NUT; SUB TANK WHEEL BASE 6400MM(64W) M12 FLANGE CHI	0-91180-212-0	04	1	1404-
381	NUT; SUB TANK WHEEL BASE 7700MM(77W) M12 FLANGE CHI	0-91180-212-0	08	1	1404-
381	NUT; SUB TANK WHEEL BASE 7700MM(77W) M10 FLANGE CHI	0-91180-210-0	04	1	1404-

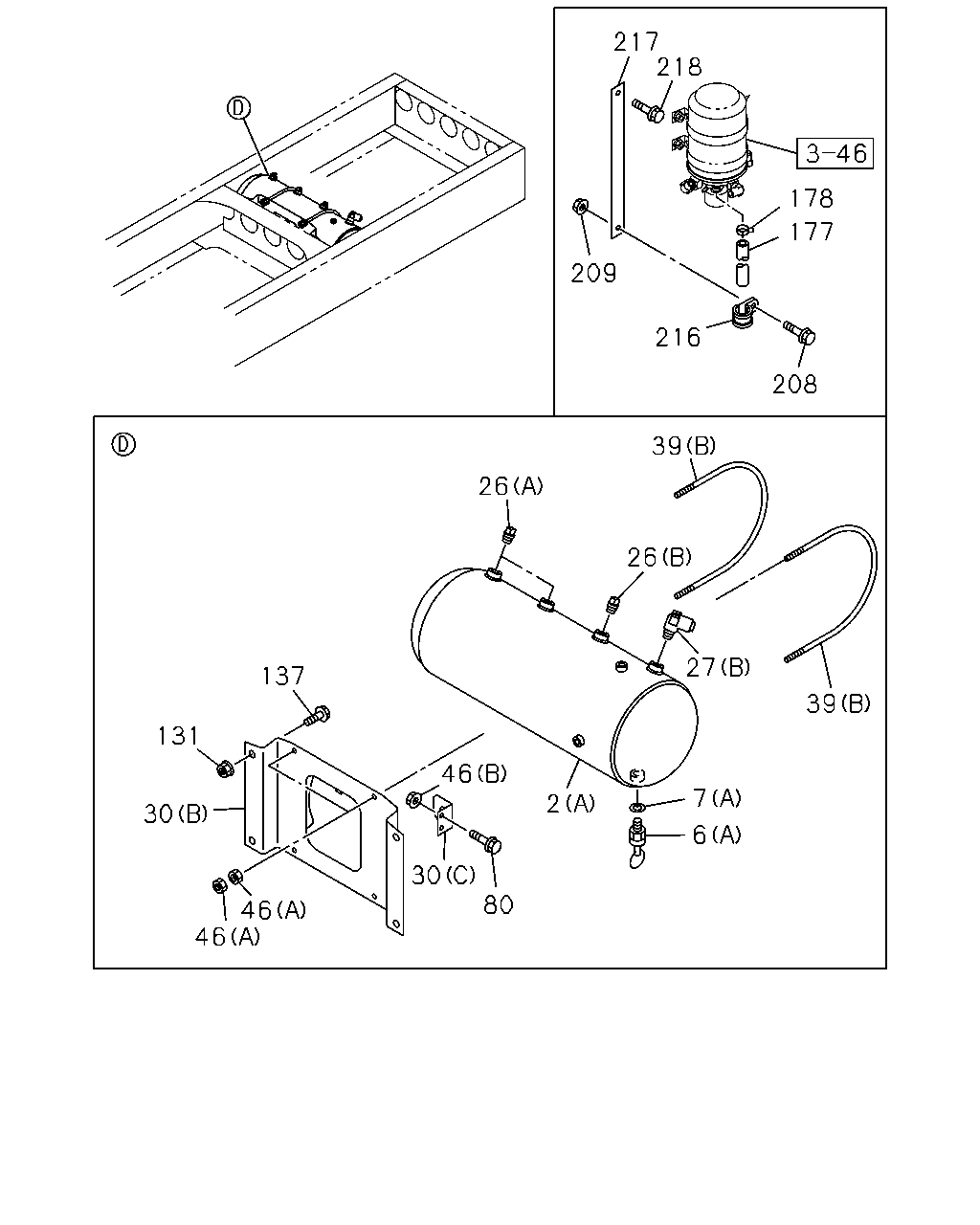

137 131 30 46 46 46 30 80 2 7 6 27 39 26 39 216 208 177 178 209 218 217 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A) CHI	8-98223-504-0	01	1	1404-
2	TANK; AIR WHEEL BASE 6400MM(64W) (A) CHI	8-98223-504-0	01	1	1404-
2	TANK; AIR WHEEL BASE 7700MM(77W) (A) CHI	8-98223-505-0	01	1	1404-
2	TANK; AIR (D)	8-97431-423-0	01	1	1404-
2	TANK; AIR (C)	8-97431-424-0	01	1	1404-
2	TANK; AIR (B)	8-97431-425-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (A) CHI	1-48312-015-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	02	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	01	1	1404-
6	COCK; DRAIN,AIR TANK (B)	8-97431-413-0	02	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	02	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (A) ID=14 CHI	1-09630-145-0	01	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	02	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	01	1	1404-
7	GASKET; DRAIN COCK (B)	9-09572-022-0	02	1	1404-
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W) (A) PT3/8	9-09204-517-0	02	1	1404-
26	PLUG; SUB AIR TANK WHEEL BASE 6400MM(64W) (B) PT1/4	9-99204-513-0	01	1	1404-
27	UNION; ELBOW,AIR TANK (A) DIN8 & R1/4 ELBOW CHI	1-09660-649-1	01	1	1404-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	01	1	1404-
27	UNION; ELBOW,AIR TANK (B) DIN12 & R3/8 ELBOW CHI	1-09660-653-1	01	1	1404-
30	BRACKET; AIR TANK,SUB (A) CHI	8-98099-710-0	02	1	1404-
30	BRACKET; AIR TANK,SUB WHEEL BASE 7700MM(77W) (A) CHI	8-98099-710-0	02	1	1404-
30	BRACKET; AIR TANK,SUB (C) CHI	8-98099-781-0	01	1	1404-
30	BRACKET; AIR TANK,SUB (C) CHI	8-98099-781-0	01	1	1404-
30	BRACKET; AIR TANK,SUB WHEEL BASE 6400MM(64W) (B) CHI	8-97430-474-0	01	1	1404-
39	U-BOLT; AIR TANK (A) L=253 CHI	1-48317-248-1	02	1	1404-
39	U-BOLT; AIR TANK (A) L=253 CHI	1-48317-248-1	04	1	1404-
39	U-BOLT; AIR TANK (B) CHI	1-48317-289-0	02	1	1404-
39	U-BOLT; AIR TANK (B) CHI	1-48317-289-0	02	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	04	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	02	1	1404-
39	U-BOLT; AIR TANK (C) L=290	8-97431-484-0	02	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	16	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (A) M8 CHI	0-91110-508-0	08	1	1404-
46	NUT; U-BOLT (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
46	NUT; U-BOLT (B) M8 FLANGE CHI	0-91180-108-0	02	1	1404-
80	BOLT; BRKT M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
80	BOLT; BRKT WHEEL BASE 7700MM(77W) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
80	BOLT; BRKT M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
80	BOLT; BRKT WHEEL BASE 6400MM(64W) M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
80	BOLT; BRKT M10X25 FLANGE CHI	0-28651-025-0	04	1	1404-
131	NUT; BRKT FIX WHEEL BASE 6400MM(64W) M12 FLANGE CHI	0-91180-212-0	04	1	1404-
137	BOLT; BRKT WHEEL BASE 6400MM(64W) M12X30 FLANGE CHI	0-28651-230-0	04	1	1404-
177	HOSE; RUBBER,DRAIN L=320 SERVICED BY L=3000 CHI	0-03566-300-0	01	1	1404-
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1404-
208	BOLT; CLIP M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
209	NUT; CLIP M8 FLANGE CHI	0-91180-108-0	01	1	1404-
216	CLIP; PIPE,VINYL ID=26 L=27 CHI	1-09701-006-0	01	1	1404-
217	BRACKET; RUBBER HOSE CHI	8-97430-475-0	01	1	1404-
218	BOLT; BRKT M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
