2-05 — CLUTCH PIPING (#144921) — 44 parça
çizim 431569
235 101 16 29 104 115 116 101 27 42
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=16 L=28 CHI 		1-09700-872-0 03 1 1404-
27 NUT; BRKT
M10 FLANGE CHI 		0-91180-210-0 02 1 1404-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
42 BRACKET; FLEX HOSE,CLU CONT
(A) CHI 		8-97430-495-0 01 1 1404-
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 7700MM(77W) (B) 		8-97431-531-0 01 1 1404-
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 6400MM(64W) (B) 		8-97431-713-0 01 1 1404-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-97431-525-0 01 1 1404-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1417 SERVICED BY L=1550 CHI 		1-47428-766-0 01 1 1404-
115 NUT; FLEX HOSE,CLU CONT
M14 CHI 		0-91111-514-0 01 1 1404-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 CHI 		0-91510-514-0 01 1 1404-
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1404-

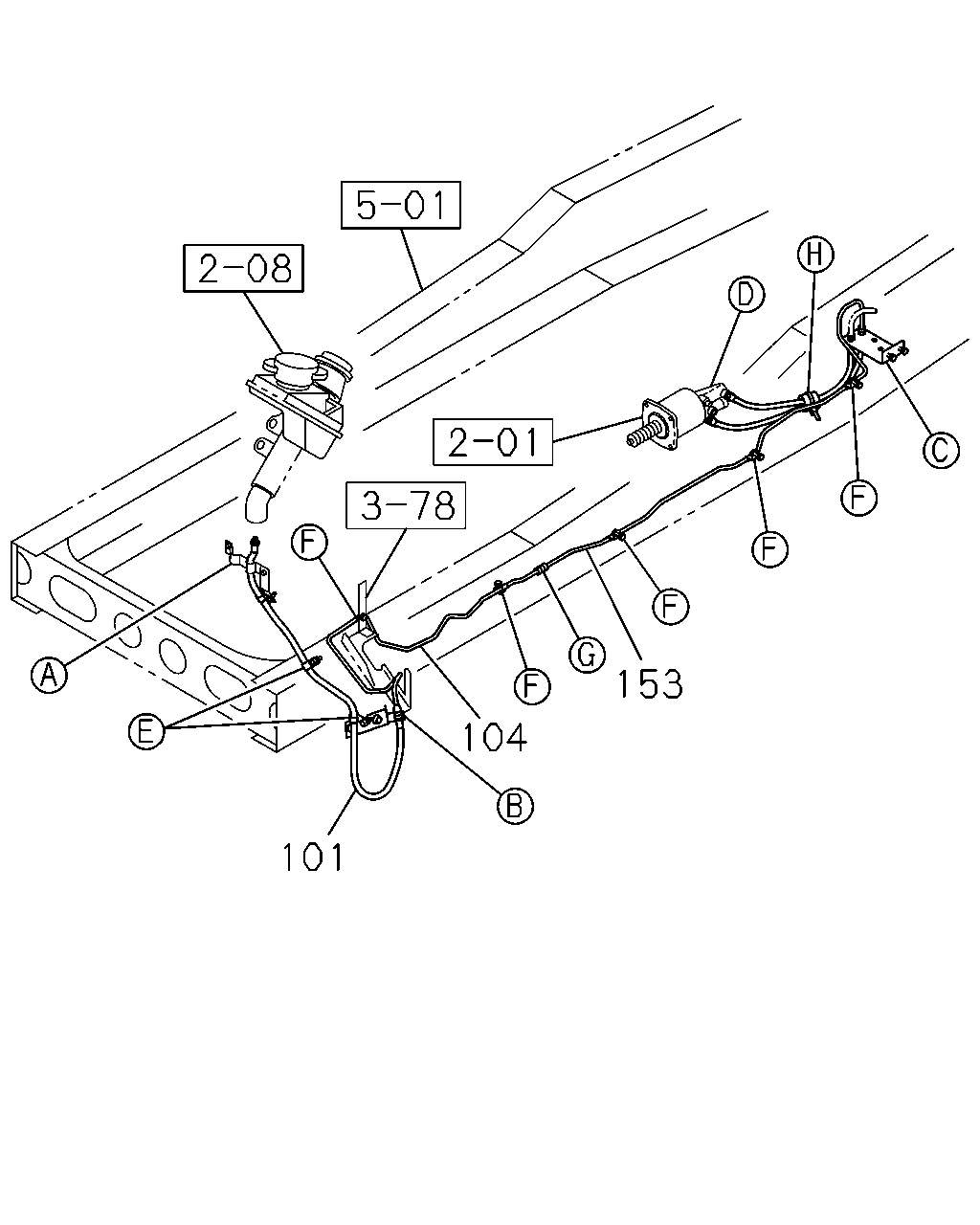

çizim 432038
104 153 101
BalonParca AdiParca NoAdetTipApplied Date
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-97431-525-0 01 1 1404-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1417 SERVICED BY L=1550 CHI 		1-47428-766-0 01 1 1404-
153 PIPE ASM; CLU,UNION TO FLEX 8-97431-714-0 01 1 1404-
çizim 432549
153 115 45 116 46 43 42 44 47 47 48 48 47 47 106 207 34 29 33 28 26 35 44 210 207 29 26 210 44 35 16 164 233 33 34 35 107 51
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=16 L=28 CHI 		1-09700-872-0 03 1 1404-
26 NUT; CLIP,OIL PIPE
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 CHI 		1-09700-604-0 02 1 1404-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 CHI 		1-09700-604-0 03 1 1404-
34 BOLT; PIPE CLIP
M8X30 FLANGE CHI 		0-28650-830-0 03 1 1404-
35 NUT; PIPE CLIP
M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
42 BRACKET; FLEX HOSE,CLU CONT
(A) CHI 		8-97430-495-0 01 1 1404-
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 7700MM(77W) (B) 		8-97431-531-0 01 1 1404-
42 BRACKET; FLEX HOSE,CLU CONT
WHEEL BASE 6400MM(64W) (B) 		8-97431-713-0 01 1 1404-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE CHI 		0-28650-835-0 02 1 1404-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE CHI 		0-91180-108-0 02 1 1404-
45 NUT; FLEX HOSE,CLU CONT
M12 CHI 		9-09840-280-0 01 1 1404-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 CHI 		0-91510-512-0 01 1 1404-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 7700MM(77W) OIL L=570 		8-97431-526-0 01 1 1404-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 6400MM(64W) OIL L=530 		8-97431-527-0 01 1 1404-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 7700MM(77W) AIR L=670 		8-97431-529-0 01 1 1404-
47 HOSE; FLEX,CLU CONT
WHEEL BASE 6400MM(64W) AIR L=600 		8-97431-530-0 01 1 1404-
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 OD=20.0 		9-09571-414-0 01 1 1404-
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 OD=20.0 		9-09571-414-0 01 1 1404-
51 WASHER; LK
ID=14.2 CHI 		0-91510-514-0 01 1 1404-
106 UNION; OIL PIPE
M14 STRAIGHT CHI 		0-92113-008-0 01 1 1404-
107 NUT; UNION,OIL PIPE
M14 CHI 		0-91111-514-0 01 1 1404-
115 NUT; FLEX HOSE,CLU CONT
M14 CHI 		0-91111-514-0 01 1 1404-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 CHI 		0-91510-514-0 01 1 1404-
153 PIPE ASM; CLU,UNION TO FLEX 8-97431-714-0 01 1 1404-
164 CLIP; BAND,FLEX HOSE
L=350 CHI 		1-09707-183-0 01 1 1404-
207 BOLT; CLIP
M8X20 FLANGE CHI 		0-28650-820-0 03 1 1404-
210 NUT; CLIP
M8 FLANGE CHI 		0-91180-108-0 01 1 1404-
233 BAND; FLEX HOSE
L=175 CHI 		1-09707-178-0 01 1 1404-
