Isuzu WW
▶
TRUCKS
▶
FYH
▶
11602 - FYH(LHD)CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#144914) — 40 parça
◀

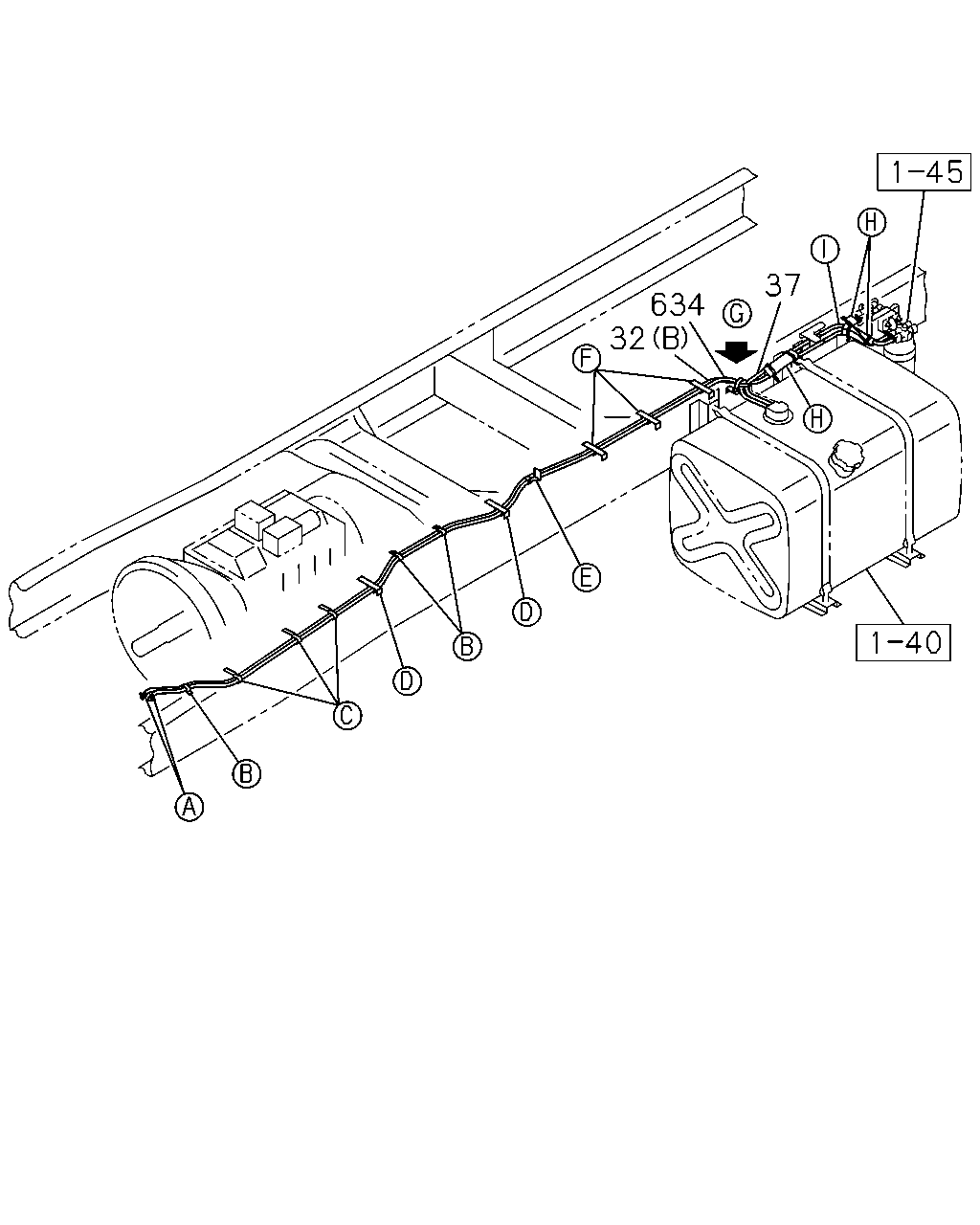

[141A] PIPING (5 parça)

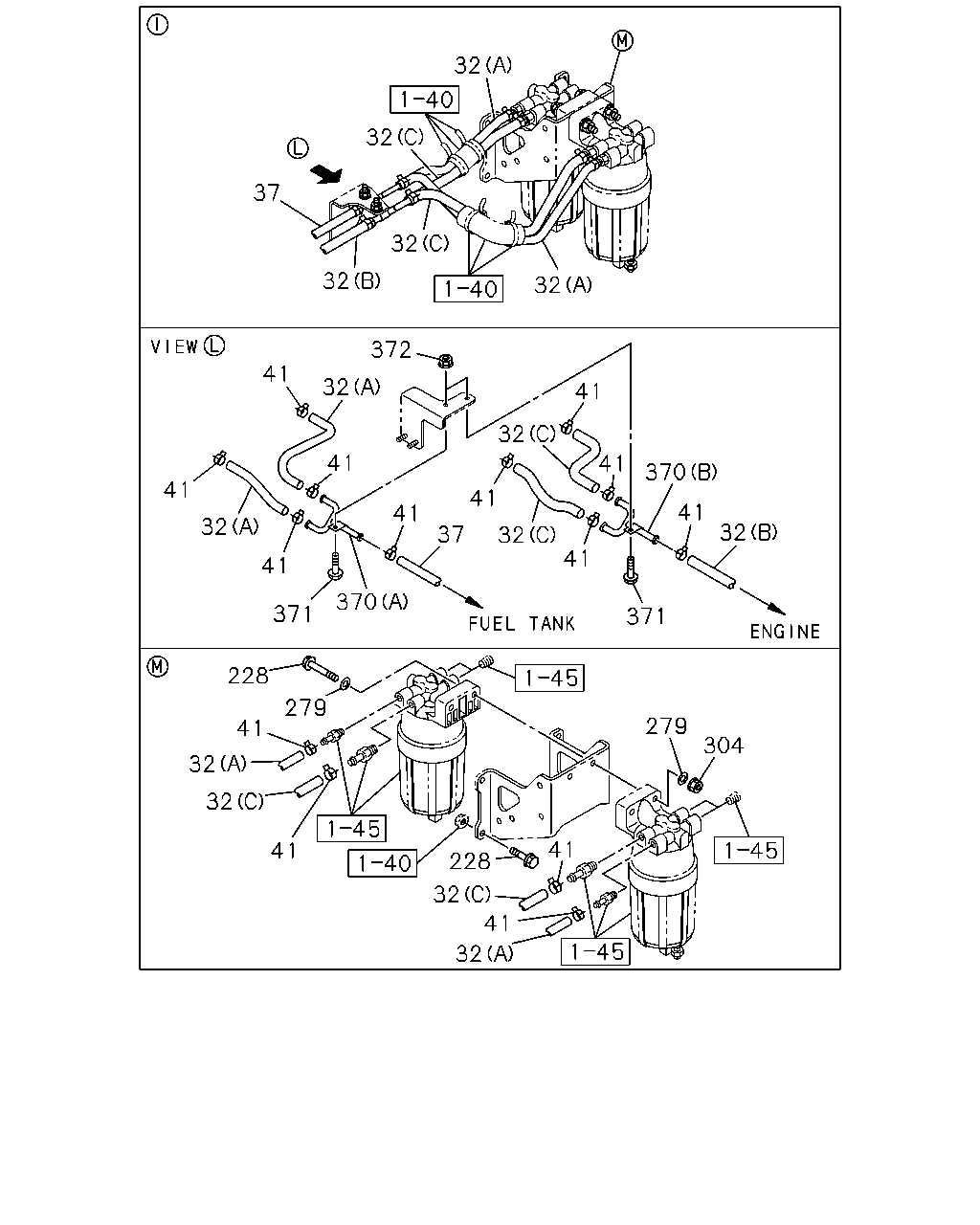

[141A] FIXING NO.2 (14 parça)

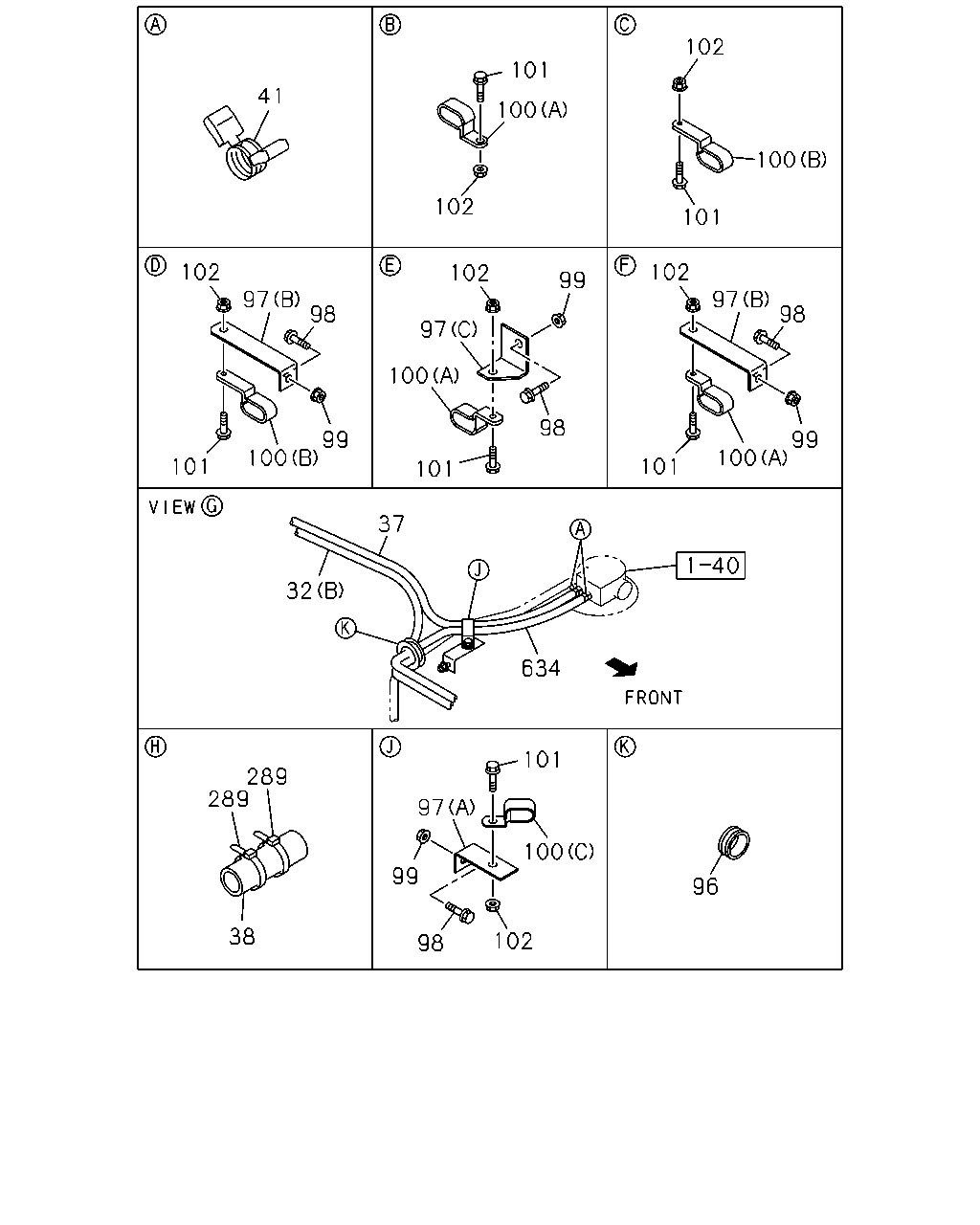

[141A] FIXING NO.1 (21 parça)
▶
32
634
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) ID=9.5,OD=14.5 SERVICED BY L=3000 L=300
0-01210-300-0
01
1
1404-
32
PIPE; DELIVERY,FUEL TANK
(C) ID=11.3,OD=19.0 SERVICED BY L=3000 L=300
0-01212-300-0
01
1
1404-
32
PIPE; DELIVERY,FUEL TANK
(B) SERVICED BY L=5350 L=3600
0-01262-360-0
01
1
1404-
37
HOSE; RUBBER DELIVERY
ID=9.5,OD=14.5 SERVICED BY L=3000 L=860
0-01210-860-0
01
1
1404-
634
HOSE; RUBBER RETURN
SERVICED BY L=8000 L=3300
0-01260-330-0
01
1
1404-
37
32
372
32
41
41
41
41
41
41
41
41
41
41
41
41
41
41
371
32
370
32
32
32
371
370
228
279
32
32
228
32
32
279
304
37
32
32
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) ID=9.5,OD=14.5 SERVICED BY L=3000 L=300
0-01210-300-0
01
1
1404-
32
PIPE; DELIVERY,FUEL TANK
(C) ID=11.3,OD=19.0 SERVICED BY L=3000 L=300
0-01212-300-0
01
1
1404-
32
PIPE; DELIVERY,FUEL TANK
(B) SERVICED BY L=5350 L=3600
0-01262-360-0
01
1
1404-
37
HOSE; RUBBER DELIVERY
ID=9.5,OD=14.5 SERVICED BY L=3000 L=860
0-01210-860-0
01
1
1404-
41
CLIP; FUEL PIPE,FUEL TANK
ID=14 CHI
1-09704-102-0
04
1
1404-
41
CLIP; FUEL PIPE,FUEL TANK
ID=19 CHI
8-94238-569-0
02
1
1404-
228
BOLT; BRKT,SEDIMENTER
M10X60 FLANGE CHI
0-28051-060-0
02
1
1404-
228
BOLT; BRKT,SEDIMENTER
M10X45 FLANGE CHI
0-28051-045-0
04
1
1404-
279
WASHER
ID=10.5 OD=26 CHI
0-91614-710-0
02
1
1404-
304
NUT; BRKT
M10 FLANGE CHI
0-91180-210-0
02
1
1404-
370
JOINT; FUEL
(A) OD=11.5
8-97431-513-0
01
1
1404-
370
JOINT; FUEL
(B) OD=13.5
8-97431-514-0
01
1
1404-
371
BOLT; JOINT
M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
372
NUT; JOINT
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
102
100
101
634
96
97
99
98
38
289
289
32
37
101
98
101
100
99
98
97
102
101
100
102
101
100
102
102
97
100
99
102
101
97
100
99
41
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) ID=9.5,OD=14.5 SERVICED BY L=3000 L=300
0-01210-300-0
01
1
1404-
32
PIPE; DELIVERY,FUEL TANK
(C) ID=11.3,OD=19.0 SERVICED BY L=3000 L=300
0-01212-300-0
01
1
1404-
32
PIPE; DELIVERY,FUEL TANK
(B) SERVICED BY L=5350 L=3600
0-01262-360-0
01
1
1404-
37
HOSE; RUBBER DELIVERY
ID=9.5,OD=14.5 SERVICED BY L=3000 L=860
0-01210-860-0
01
1
1404-
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 CHI
1-09360-677-1
02
1
1404-
41
CLIP; FUEL PIPE,FUEL TANK
ID=14 CHI
1-09704-102-0
04
1
1404-
41
CLIP; FUEL PIPE,FUEL TANK
ID=19 CHI
8-94238-569-0
02
1
1404-
96
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 CHI
1-09891-003-0
01
1
1404-
97
BRACKET; CLIP
(A) L=68 CHI
1-47475-525-0
01
1
1404-
97
BRACKET; CLIP
(B) L=112 CHI
1-47475-694-1
05
1
1404-
97
BRACKET; CLIP
(C) CHI
8-97430-500-0
01
1
1404-
98
BOLT; BRKT,FUEL PIPE
M8X25 FLANGE CHI
0-28650-825-0
06
1
1404-
98
BOLT; BRKT,FUEL PIPE
M8X35 FLANGE CHI
0-28650-835-0
01
1
1404-
99
NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE CHI
0-91180-108-0
07
1
1404-
100
CLIP; FUEL PIPE
(C) ID=14X29 H=15 L=20 CHI
1-09700-744-0
01
1
1404-
100
CLIP; FUEL PIPE
(A) ID=19X32 H=17.5 L=22.5 CHI
1-09701-315-0
07
1
1404-
100
CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 CHI
1-09701-320-0
05
1
1404-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE CHI
0-28650-820-0
12
1
1404-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE CHI
0-91180-108-0
13
1
1404-
289
CLIP; BAND,HOSE
L=250 CHI
5-09707-030-1
04
1
1404-
634
HOSE; RUBBER RETURN
SERVICED BY L=8000 L=3300
0-01260-330-0
01
1
1404-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
