◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#14491) — 31 parça

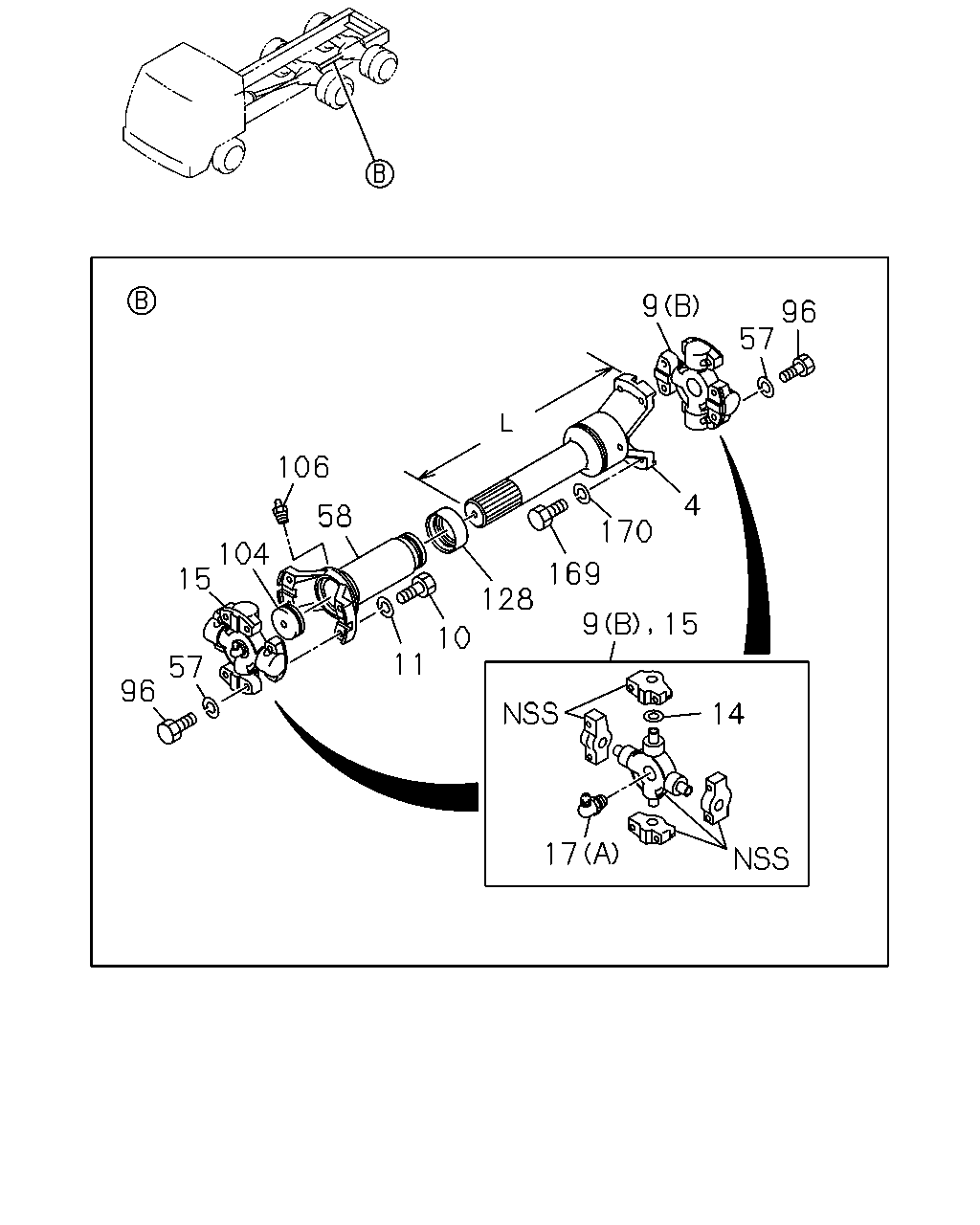

çizim 92138
9 96 57 106 4 58 170 104 15 169 128 9 15 10 11 57 96 14 17
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0611-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0611-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-118-0 02 1 0611-
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0611-0805
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 0806-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0611-
14 COVER; DUST,SPIDER 1-37319-004-0 08 1 0611-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0611-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0611-
17 NIPPLE; GREASE,PROP SHAFT
(B) 		1-37319-013-0 02 1 0611-
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0611-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0611-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0611-0805
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0806-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0611-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0611-
128 SEAL; SLEEVE 8-97603-618-0 01 1 0611-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0611-0805
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0806-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0611-
çizim 106196
56 95 1 8 9 17 17 9 8 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
L=915 		1-37124-592-1 01 1 0611-
8 YOKE; FLANGE,PROP SHAFT 1-37211-083-0 02 1 0611-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0611-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-118-0 02 1 0611-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0611-
17 NIPPLE; GREASE,PROP SHAFT
(B) 		1-37319-013-0 02 1 0611-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0611-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0611-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0611-
