4-01 — PROPELLER SHAFT (#1449) — 131 parça

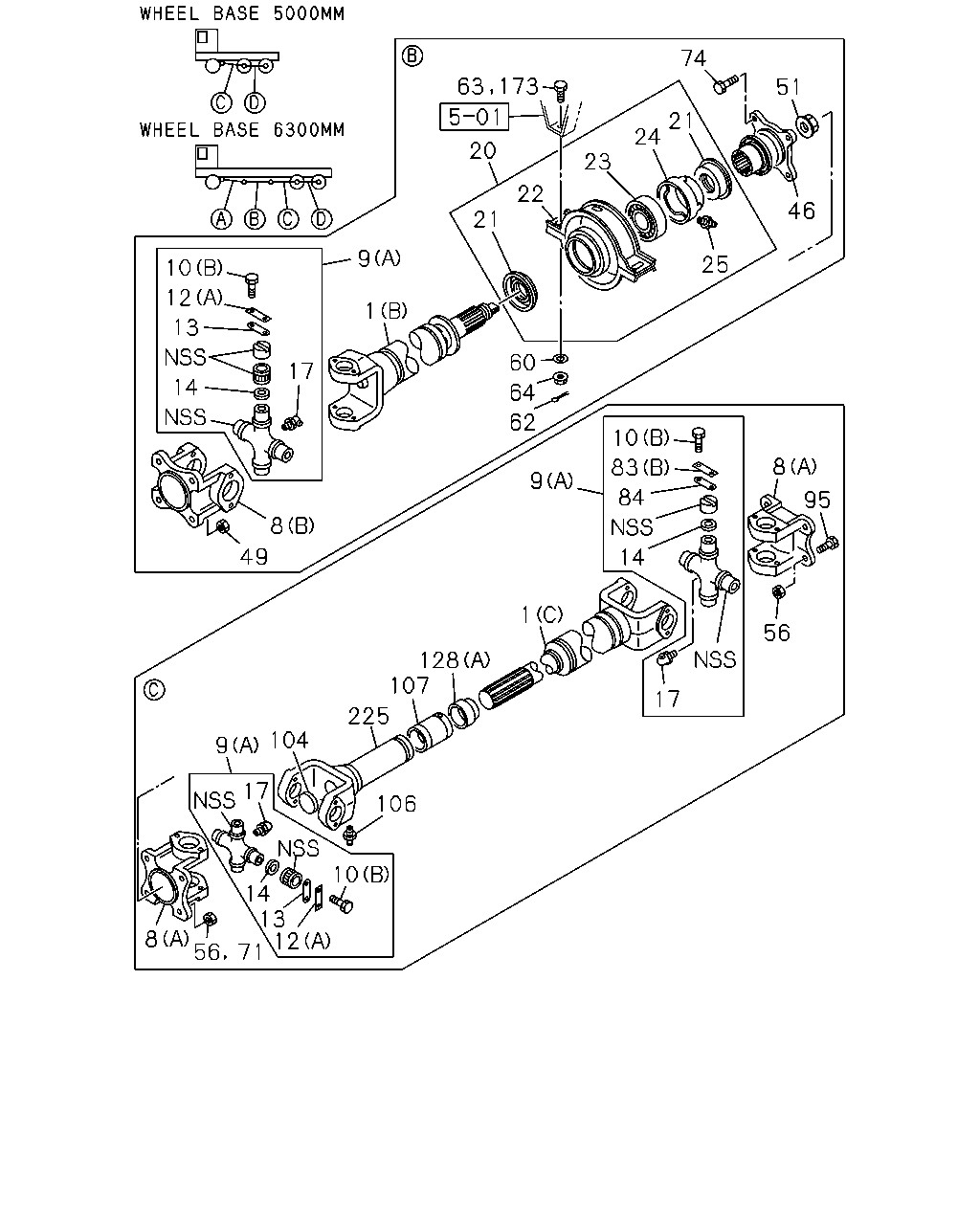

çizim 28825
74 173 51 21 24 20 23 22 46 21 9 25 10 12 1 13 60 17 14 64 62 10 8 83 9 84 95 8 49 14 1 56 128 107 17 225 104 9 17 106 10 14 13 12 8 56 71 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=1139 		1-37117-589-0 01 1 9203- ●
1 SHAFT; PROP
(D) L=476 		1-37141-070-0 01 1 9203- ● ●
1 SHAFT; PROP
(A),(B) L=768 		1-37123-592-0 01 1 9203- ●
1 SHAFT; PROP
FULLER RT6609 M/T(X8M) (A),(B) L=768 		1-37123-592-0 01 1 9203- ●
1 SHAFT; PROP
(C) L=867 		1-37131-257-0 01 1 9203- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=678 		1-37117-706-0 01 1 9203- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-050-1 02 1 9203- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-050-1 02 1 9203- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-080-0 01 1 9203- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-082-0 02 1 9203- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-082-0 02 1 9203- ●
10 BOLT; UJT
(A) 		1-09087-043-0 08 1 9203-9501 ● ●
10 BOLT; UJT
(A) 		1-09087-046-0 08 1 9502- ● ●
10 BOLT; UJT
(B) M8X20 		9-09802-702-0 16 1 9203- ● ●
10 BOLT; UJT
(C) M8X20 		9-09802-702-0 16 1 9203- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-006-0 04 1 9203-9501 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-003-1 04 1 9203- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-003-1 04 1 9203- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-003-1 04 1 9203- ●
14 COVER; DUST,SPIDER 1-37249-130-0 08 1 9203- ● ●
14 COVER; DUST,SPIDER 1-37249-130-0 08 1 9203- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9203- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9203- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 02 1 9203- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 04 1 9203- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 02 1 9203- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 02 1 9203- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 02 1 9203- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 9203- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-052-0 02 1 9203-9408 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 02 1 9409- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9203- ●
51 NUT; FLANGE,SPLINED
M39 		1-09440-035-0 02 1 9203- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9203-9404 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9203-9404 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 9405- ● ●
60 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-0 02 1 9203- ●
62 PIN; SPLIT,BRKT,PROP SHAFT
OD=3.7 L=25 		9-08114-025-0 04 1 9203- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M16X45 		1-09042-030-0 02 1 9203- ●
64 NUT; RET TO BRKT
M16 SLOTTED 		9-99116-516-0 04 1 9203- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9203- ● ●
74 BOLT; YOKE,TRANS
FULLER RT6609 M/T(X8M) M16X48 		1-09000-383-0 04 1 9203-9404 ● ●
74 BOLT; YOKE,TRANS
FULLER RT6609 M/T(X8M) M16X48 		1-09000-383-0 04 1 9405- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9405- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9405- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 9203-9404 ●
83 PLATE; LK,UJT,PROP SHAFT
(A) 		1-37356-006-0 06 1 9203-9501 ● ●
83 PLATE; LK,UJT,PROP SHAFT
(B) 		9-37356-006-1 04 1 9203- ● ●
84 COVER; UJT,PROP SHAFT 1-37355-003-1 04 1 9203- ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9203- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 9203- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9203- ● ●
107 COVER; RET,SLEEVE 1-37249-039-1 01 1 9203- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-016-0 01 1 9203- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 9203- ● ●
173 BOLT; BRKT
M16X45 		1-09042-030-0 02 1 9203- ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-097-0 01 1 9203- ● ●

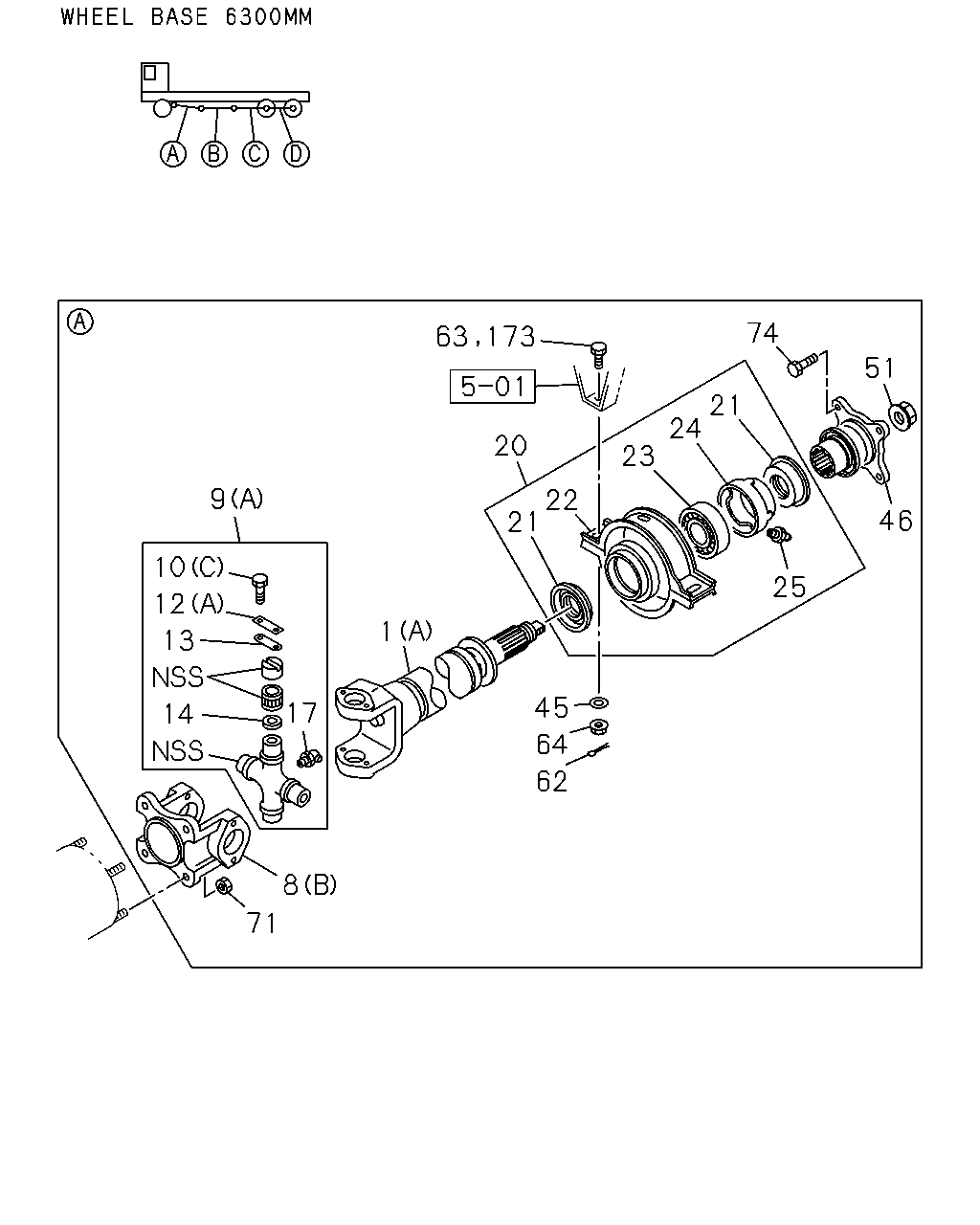

çizim 95078
74 173 51 21 24 20 23 9 22 21 46 10 25 12 1 13 17 45 14 64 62 8 71 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=1139 		1-37117-589-0 01 1 9203- ●
1 SHAFT; PROP
(D) L=476 		1-37141-070-0 01 1 9203- ● ●
1 SHAFT; PROP
(A),(B) L=768 		1-37123-592-0 01 1 9203- ●
1 SHAFT; PROP
FULLER RT6609 M/T(X8M) (A),(B) L=768 		1-37123-592-0 01 1 9203- ●
1 SHAFT; PROP
(C) L=867 		1-37131-257-0 01 1 9203- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=678 		1-37117-706-0 01 1 9203- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-050-1 02 1 9203- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-050-1 02 1 9203- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-080-0 01 1 9203- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-082-0 02 1 9203- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-082-0 02 1 9203- ●
10 BOLT; UJT
(A) 		1-09087-043-0 08 1 9203-9501 ● ●
10 BOLT; UJT
(A) 		1-09087-046-0 08 1 9502- ● ●
10 BOLT; UJT
(B) M8X20 		9-09802-702-0 16 1 9203- ● ●
10 BOLT; UJT
(C) M8X20 		9-09802-702-0 16 1 9203- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-006-0 04 1 9203-9501 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-003-1 04 1 9203- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-003-1 04 1 9203- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-003-1 04 1 9203- ●
14 COVER; DUST,SPIDER 1-37249-130-0 08 1 9203- ● ●
14 COVER; DUST,SPIDER 1-37249-130-0 08 1 9203- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9203- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9203- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 02 1 9203- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 04 1 9203- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 02 1 9203- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 02 1 9203- ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 02 1 9203- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 9203- ●
45 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-0 02 1 9203- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-052-0 02 1 9203-9408 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 02 1 9409- ●
51 NUT; FLANGE,SPLINED
M39 		1-09440-035-0 02 1 9203- ●
62 PIN; SPLIT,BRKT,PROP SHAFT
OD=3.7 L=25 		9-08114-025-0 04 1 9203- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M16X45 		1-09042-030-0 02 1 9203- ●
64 NUT; RET TO BRKT
M16 SLOTTED 		9-99116-516-0 04 1 9203- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9203- ● ●
74 BOLT; YOKE,TRANS
FULLER RT6609 M/T(X8M) M16X48 		1-09000-383-0 04 1 9203-9404 ● ●
74 BOLT; YOKE,TRANS
FULLER RT6609 M/T(X8M) M16X48 		1-09000-383-0 04 1 9405- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9405- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9405- ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 9203-9404 ●
173 BOLT; BRKT
M16X45 		1-09042-030-0 02 1 9203- ●

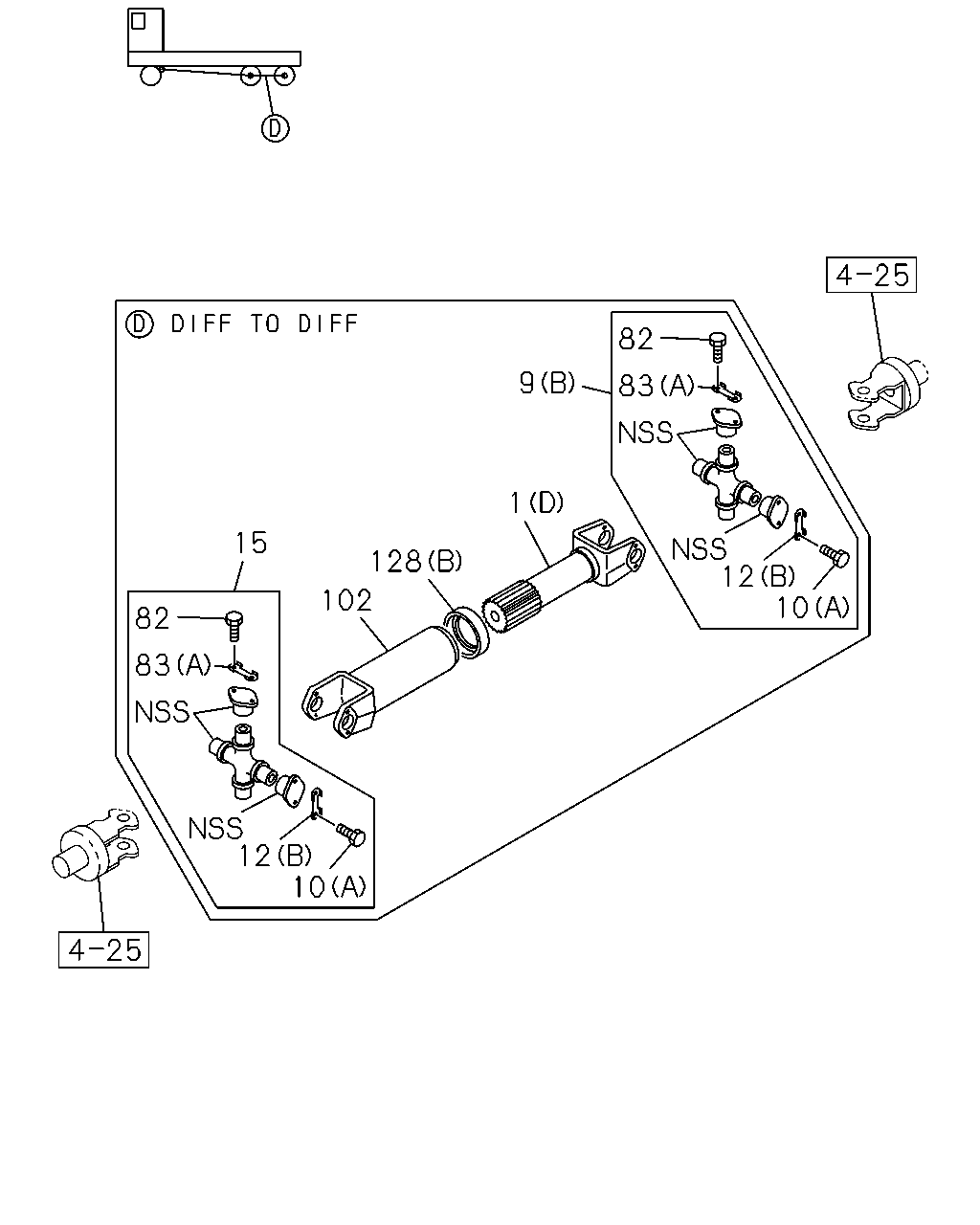

çizim 95568
82 9 83 1 15 12 10 128 102 82 83 12 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=1139 		1-37117-589-0 01 1 9203- ●
1 SHAFT; PROP
(D) L=476 		1-37141-070-0 01 1 9203- ● ●
1 SHAFT; PROP
(A),(B) L=768 		1-37123-592-0 01 1 9203- ●
1 SHAFT; PROP
FULLER RT6609 M/T(X8M) (A),(B) L=768 		1-37123-592-0 01 1 9203- ●
1 SHAFT; PROP
(C) L=867 		1-37131-257-0 01 1 9203- ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=678 		1-37117-706-0 01 1 9203- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-080-0 01 1 9203- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-082-0 02 1 9203- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-082-0 02 1 9203- ●
10 BOLT; UJT
(A) 		1-09087-043-0 08 1 9203-9501 ● ●
10 BOLT; UJT
(A) 		1-09087-046-0 08 1 9502- ● ●
10 BOLT; UJT
(B) M8X20 		9-09802-702-0 16 1 9203- ● ●
10 BOLT; UJT
(C) M8X20 		9-09802-702-0 16 1 9203- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(B) 		1-37356-006-0 04 1 9203-9501 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		9-37356-006-1 04 1 9203- ●
15 UNIVERSAL CENTER 1-37300-080-0 01 1 9203- ● ●
82 BOLT; LK PLATE,UJT,PROP SHAFT 1-09087-043-0 08 1 9203-9501 ● ●
82 BOLT; LK PLATE,UJT,PROP SHAFT 1-09087-046-0 08 1 9502- ● ●
83 PLATE; LK,UJT,PROP SHAFT
(A) 		1-37356-006-0 06 1 9203-9501 ● ●
83 PLATE; LK,UJT,PROP SHAFT
(B) 		9-37356-006-1 04 1 9203- ● ●
102 YOKE; TRANSFER TO AXLE
L=303.3 		1-37241-094-0 01 1 9203- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-016-0 01 1 9203- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 9203- ● ●
