Sayfa 9-01 - Isuzu EPC

4 42 43 31 32 33 34 35 30 12 13 17 9 363 20 21 22 23 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET CHI	1-85000-491-0	01	1	1404-
9	WRENCH; WHEEL PIN B=33X30 L=450 CHI	1-85111-033-1	01	1	1404-
9	WRENCH; WHEEL PIN B=33X30 L=450 CHI	1-85111-033-1	01	1	1404-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480 CHI	1-85116-011-0	01	1	1404-
13	WRENCH; MONKEY L=247 CHI	1-85117-006-0	01	1	1404-
17	HAMMER CHI	9-85121-406-0	01	1	1404-
20	WRENCH; 10X12 10X12 CHI	0-95902-510-0	01	1	1404-
21	WRENCH; 14X17 14X17 CHI	0-95902-514-0	01	1	1404-
22	WRENCH; 19X22 19X22 CHI	0-95902-519-0	01	1	1404-
23	WRENCH; 24X27 24X27 CHI	0-95902-524-0	01	1	1404-
29	DRIVER; SCREW (A) <-> L=285 CHI	1-85151-004-0	01	1	1404-
29	DRIVER; SCREW (C) <+>,<-> L=160 CHI	8-94242-798-1	01	1	1404-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	1404-
30	BOX; SOCKET WRENCH CHI	1-85000-492-0	01	1	1404-
31	WRENCH; 12 CHI	1-85000-495-0	01	1	1404-
32	WRENCH; 14 CHI	1-85000-496-0	01	1	1404-
33	WRENCH; 17 CHI	1-85000-497-0	01	1	1404-
34	WRENCH; 19 CHI	1-85000-498-0	01	1	1404-
35	WRENCH; 22 CHI	1-85000-499-0	01	1	1404-
42	HANDLE; SLIDING CHI	1-85000-500-0	01	1	1404-
43	BAR; EXTENSION,SOCKET WRENCH CHI	1-85000-501-0	01	1	1404-
363	WRENCH; OPEN END 8X10 8X10 CHI	0-95902-508-0	01	1	1404-

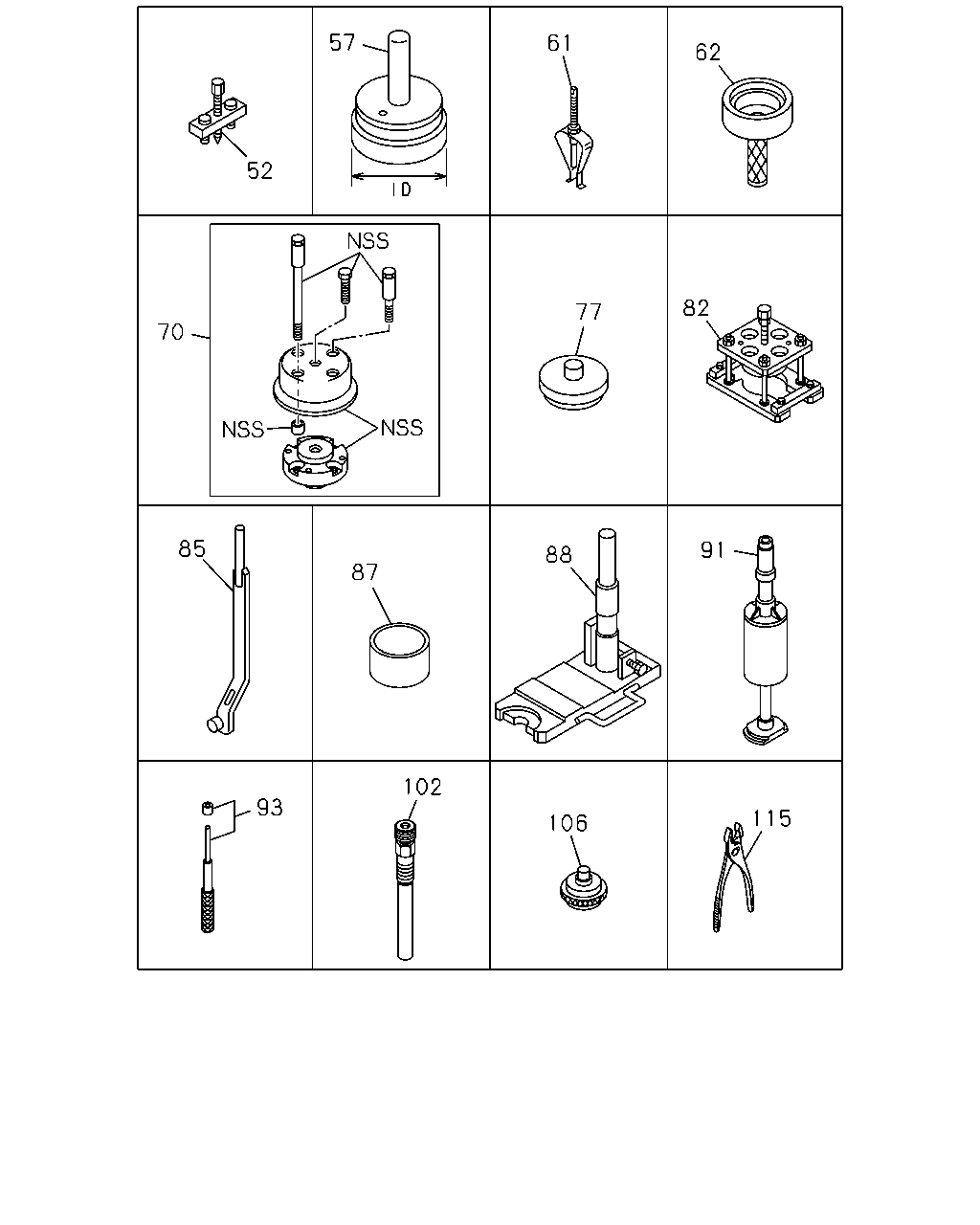

52 57 61 62 70 77 82 91 88 87 85 93 102 106 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	1404-
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	1404-
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	01	1	1404-
61	PULLER ASM; PILOT BRG	1-85220-028-0	01	1	1404-
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	01	1	1404-
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	AR	1	1404-
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	1404-
82	PULLER ASM; CR/SHF GEAR	1-85210-051-0	01	1	1404-
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	1404-
87	TOOL; PISTON	1-85221-082-0	01	1	1404-
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	1404-
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	1404-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	1404-
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	1404-
106	TOOL; SETTING PILOT BRG	1-85221-080-0	01	1	1404-
115	PLIER CHI	5-85171-002-0	01	1	1404-

124 125 126 140 129 127 143 153 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1404-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1404-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1404-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1404-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1404-
140	REMOVER; WEAR RING	1-85210-053-0	01	1	1404-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1404-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1404-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1404-

160 171 172 169 192 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1404-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1404-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1404-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1404-
189	TUBE; AIR BREATHER L=460 CHI	9-85291-414-0	01	1	1404-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1404-

193 208 231 237 227 230 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
193	JACK ASM 15TON CHI	1-85510-019-2	01	1	1404-
208	HANDLE; JACK L=600 CHI	8-98181-437-0	01	1	1404-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1404-
230	PUMP; GREASE CHI	1-85556-007-5	01	1	1404-
231	HOSE; FLEX,GREASE PUMP CHI	8-98228-834-0	01	1	1404-
237	BAG; TOOL CHI	8-97130-902-1	01	1	1404-
453	TOOL; SETTING,COUPLING	8-97620-813-0	01	1	1404-

253 252

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	252	BRACKET; EXTINGUISHER CHI	8-98105-271-0	01	1	1404-
	253	BOLT; EXTINGUISHER M8X20.5 W/LK&PL WASHER CHI	8-94279-207-0	02	1	1404-
