Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

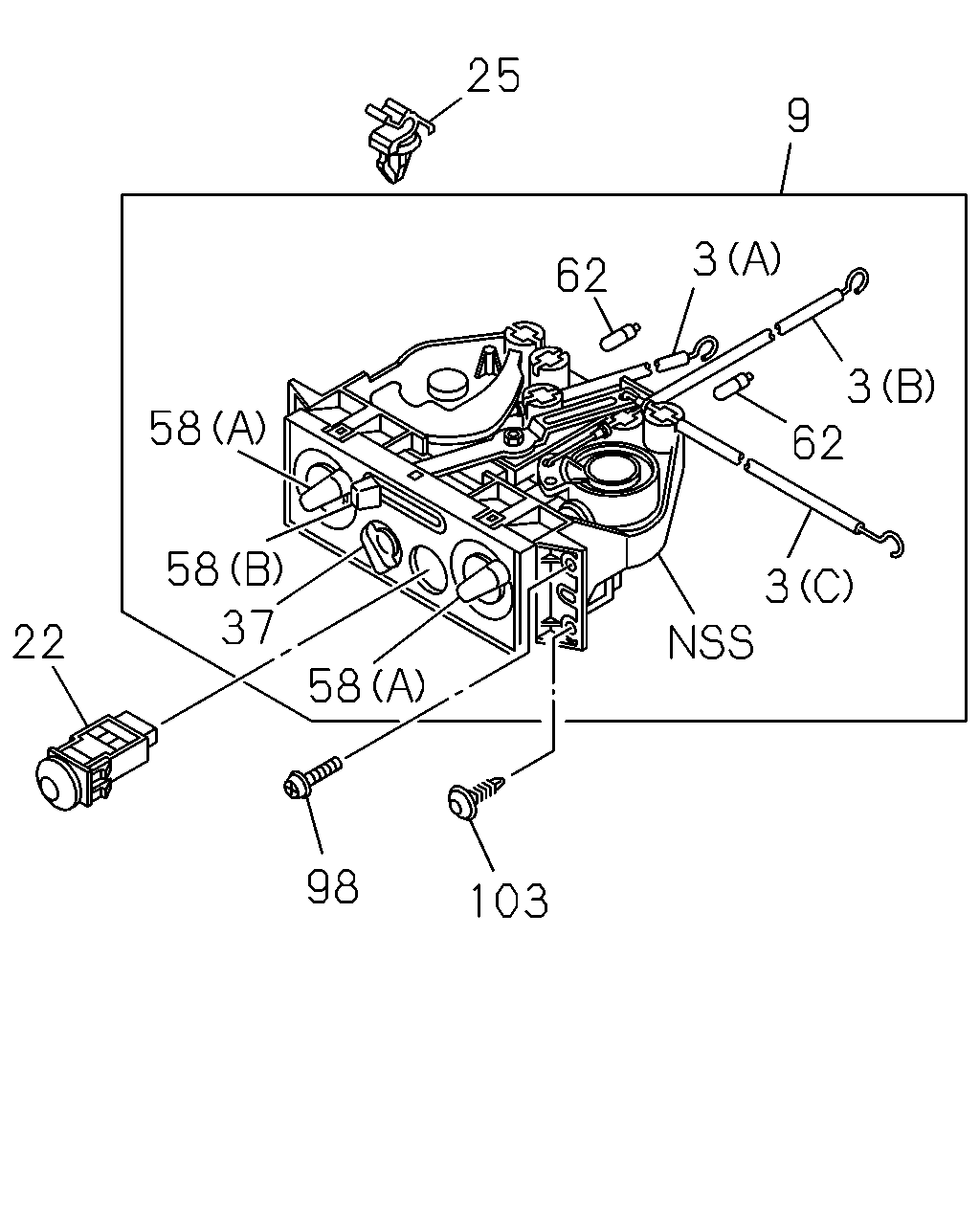

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#144867) — 12 parça
25
9
3
3
62
62
3
58
58
103
98
22
37
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CABLE; HTR CONT LVR
(A) MODE CHI
8-98065-643-0
01
1
1404-
3
CABLE; HTR CONT LVR
(B) A/M CHI
8-98065-644-0
01
1
1404-
3
CABLE; HTR CONT LVR
(C) RECIRC/FRESH CHI
8-98063-316-2
01
1
1404-
9
LEVER ASM; HTR & A/C CONT
8-97431-268-0
01
1
1404-
22
SWITCH; A/C,MAIN
8-97431-269-0
01
1
1404-
25
CLIP; CABLE,CONT LEVER
ID=4.8 CHI
8-94128-483-0
03
1
1404-
37
KNOB; SW,HTR CONT LVR
CHI
8-98037-368-0
01
1
1404-
58
KNOB; LVR,HTR CONT LVR
(A) CHI
8-98037-369-0
02
1
1404-
58
KNOB; LVR,HTR CONT LVR
(B) CHI
8-98037-370-0
01
1
1404-
62
BULB; HTR CONT LVR
24V 1.1W CHI
8-98037-371-0
02
1
1404-
98
SCREW; CONT PANEL
T25 M5X20 TAPPING HEXALOBULAR CHI
0-72180-520-0
01
1
1404-
103
CLIP
DARK GRAY CHI
8-97098-326-0
01
1
1404-
