8-45 — HEATER PIPING (#144863) — 21 parça

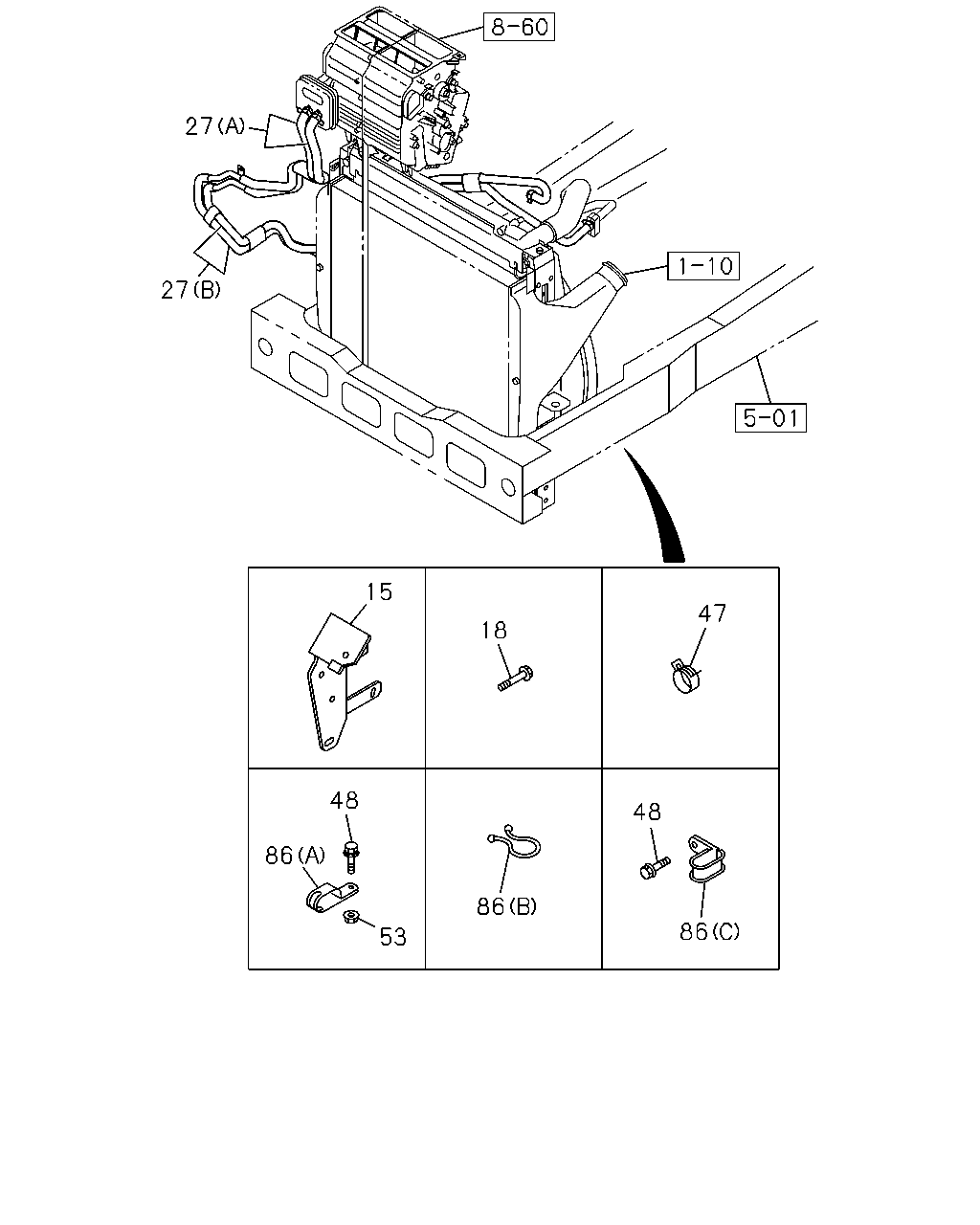

çizim 434319
27 27 15 48 86 53 86 18 47 48 86
BalonParca AdiParca NoAdetTipApplied Date
15 BRACKET; WATER HOSE
CHI 		8-98228-344-0 01 1 1404-
18 BOLT; WATER HOSE
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
27 HOSE; WATER,HTR UNIT TO WATER PIPE
(B) CHI 		8-98228-357-0 01 1 1404-
27 HOSE; WATER,HTR UNIT TO WATER PIPE
(A) CHI 		8-98228-358-0 01 1 1404-
47 CLAMP; WATER HOSE,HTR 8-97431-317-0 04 1 1404-
47 CLAMP; WATER HOSE,HTR 8-97431-317-0 02 1 1404-
48 BOLT; CLIP FIX
M8X20 FLANGE CHI 		0-28650-820-0 02 1 1404-
53 NUT; HOSE CLIP
M8 FLANGE CHI 		0-91180-108-0 03 1 1404-
86 CLIP; HTR HOSE
(A) ID=24X2 L=25 CHI 		1-09700-710-0 04 1 1404-
86 CLIP; HTR HOSE
(B) CHI 		8-94463-508-0 01 1 1404-
86 CLIP; HTR HOSE
(C) 		8-97431-314-0 01 1 1404-
çizim 434381
27 63 63 102 102 102 56 56 56 63 63 56
BalonParca AdiParca NoAdetTipApplied Date
27 HOSE; WATER,HTR UNIT TO WATER PIPE
(B) CHI 		8-98228-357-0 01 1 1404-
27 HOSE; WATER,HTR UNIT TO WATER PIPE
(A) CHI 		8-98228-358-0 01 1 1404-
56 CLAMP; HTR HOSE
ID=22 CHI 		8-94382-401-0 04 1 1404-
63 HOSE; WATER
(A) 		8-97350-951-0 01 1 1404-
63 HOSE; WATER
(B) 		8-97350-952-0 01 1 1404-
63 HOSE; WATER
(C) 		8-97376-325-0 01 1 1404-
63 HOSE; WATER
(D) 		8-97350-954-0 01 1 1404-
102 COVER; WATER HOSE
(A) 		8-97376-326-0 01 1 1404-
102 COVER; WATER HOSE
(B) 		8-97376-327-0 01 1 1404-
102 COVER; WATER HOSE
(C) 		8-97376-328-0 01 1 1404-
