8-40 — HEATER SYSTEM
(#144862) — 29 parça
◀
[840A] OTHER PARTS (5 parça)

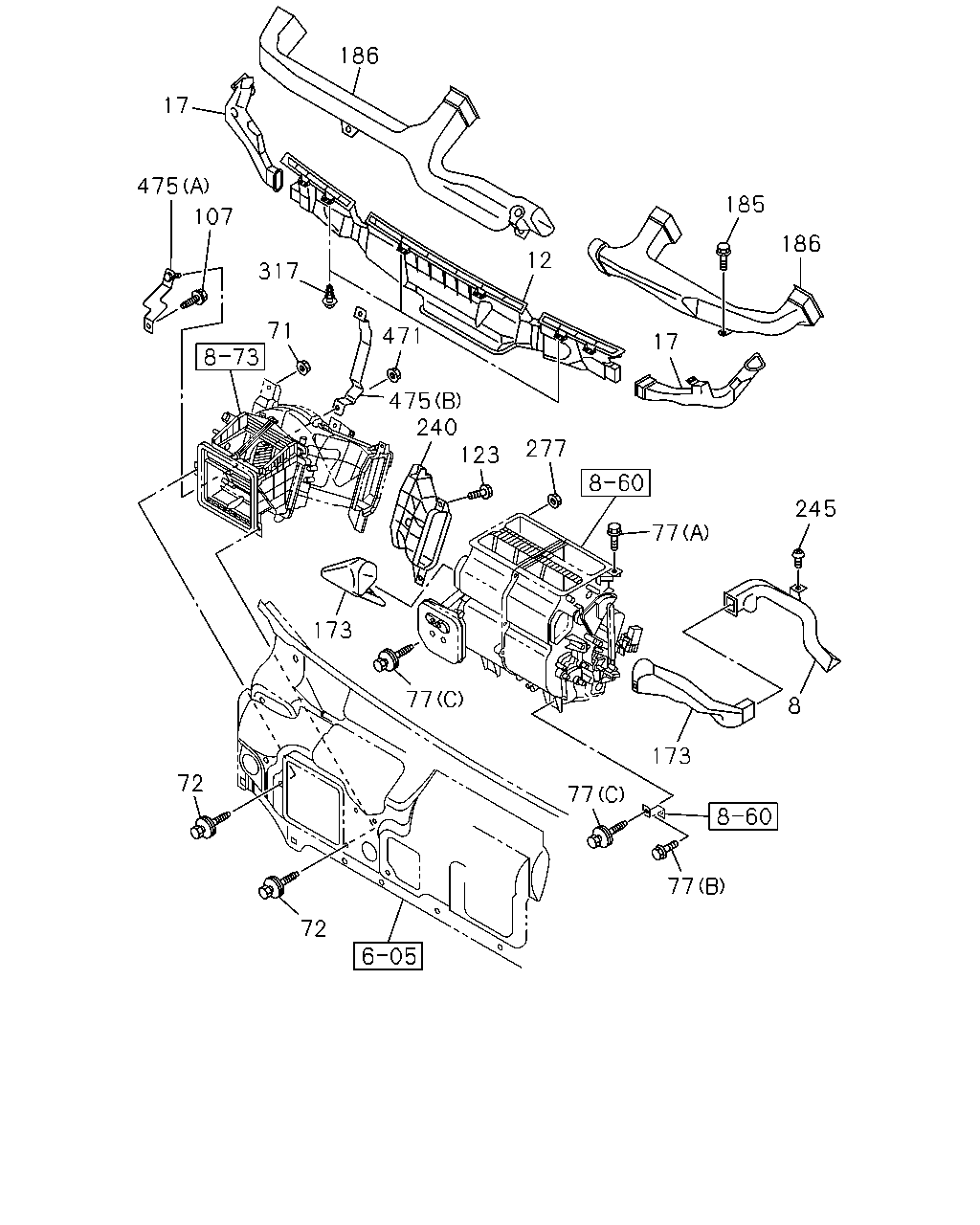

[840A] DUCT (24 parça)
▶
223
50
476
407
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
CHI
8-98080-998-1
01
1
1404-
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-97431-263-0
01
1
1404-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5 CHI
8-94441-539-0
01
1
1404-
407
JOINT; HOSE
CHI
8-98041-758-0
01
1
1404-
476
SCREW; VALVE
T25 M5X16 TAPPING HEXALOBULAR CHI
8-98062-675-0
01
1
1404-
186
12
185
186
17
245
77
8
173
277
123
240
475
471
317
71
107
475
17
173
77
77
77
72
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
DUCT; HTR AIR,DRIVER FOOT
CHI
8-98011-567-0
01
1
1404-
12
NOZZLE; DEFROSTER
CHI
8-98040-010-2
01
1
1404-
17
NOZZLE; DEFROSTER,SIDE
CHI
8-98040-014-0
01
1
1404-
17
NOZZLE; DEFROSTER,SIDE
CHI
8-98040-019-0
01
1
1404-
71
NUT; BLOWER UNIT TO DASH
8-97431-309-0
02
1
1404-
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER CHI
8-98081-175-0
02
1
1404-
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER CHI
8-98081-175-0
03
1
1404-
77
BOLT; HTR UNIT
(A)
8-97431-303-0
01
1
1404-
77
BOLT; HTR UNIT
(B)
8-97431-304-0
02
1
1404-
107
BOLT; STAY,HTR UNIT
8-97431-305-0
01
1
1404-
123
SCREW; DUCT
8-97431-306-0
04
1
1404-
173
DUCT; FOOT,HTR
CHI
8-97585-508-1
01
1
1404-
173
DUCT; FOOT,HTR
CHI
8-98217-774-1
01
1
1404-
185
SCREW; VENT DUCT
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
04
1
1404-
186
DUCT; VENTILATOR
CHI
8-98174-736-0
01
1
1404-
186
DUCT; VENTILATOR
CHI
8-98011-556-3
01
1
1404-
240
DUCT; AIR,HTR
8-97431-265-0
01
1
1404-
245
CLIP; FOOT DUCT
CHI
8-98056-059-0
03
1
1404-
277
NUT; HTR
8-97431-309-0
01
1
1404-
317
SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
02
1
1404-
317
SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
06
1
1404-
471
NUT; BLOWER
8-97431-309-0
01
1
1404-
475
BRACKET; BLOWER
(B)
8-98165-782-0
01
1
1404-
475
BRACKET; BLOWER
(A) CHI
8-98028-309-1
01
1
1404-
