8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#144861) — 60 parça
◀
[828A] RELAY;FRAME HARNESS (4 parça)
[828A] FRONT SIDE NO.1 (12 parça)
[828A] FRONT SIDE NO.2 (28 parça)
[828A] FRONT SIDE NO.3 (10 parça)
[828A] RELAY;CAB HARNESS (6 parça)
▶
531
115
769
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC CHI
8-97173-035-1
02
1
1404-
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO CHI
8-98005-631-0
01
1
1404-
531
RELAY; MAIN
24V 30A MITUBA CHI
8-97238-540-0
01
1
1404-
769
RELAY; TURBO CONT
24V 10A PANASONIC CHI
8-97173-035-1
01
1
1404-
540
2
573
4
2
1
468
440
661
180

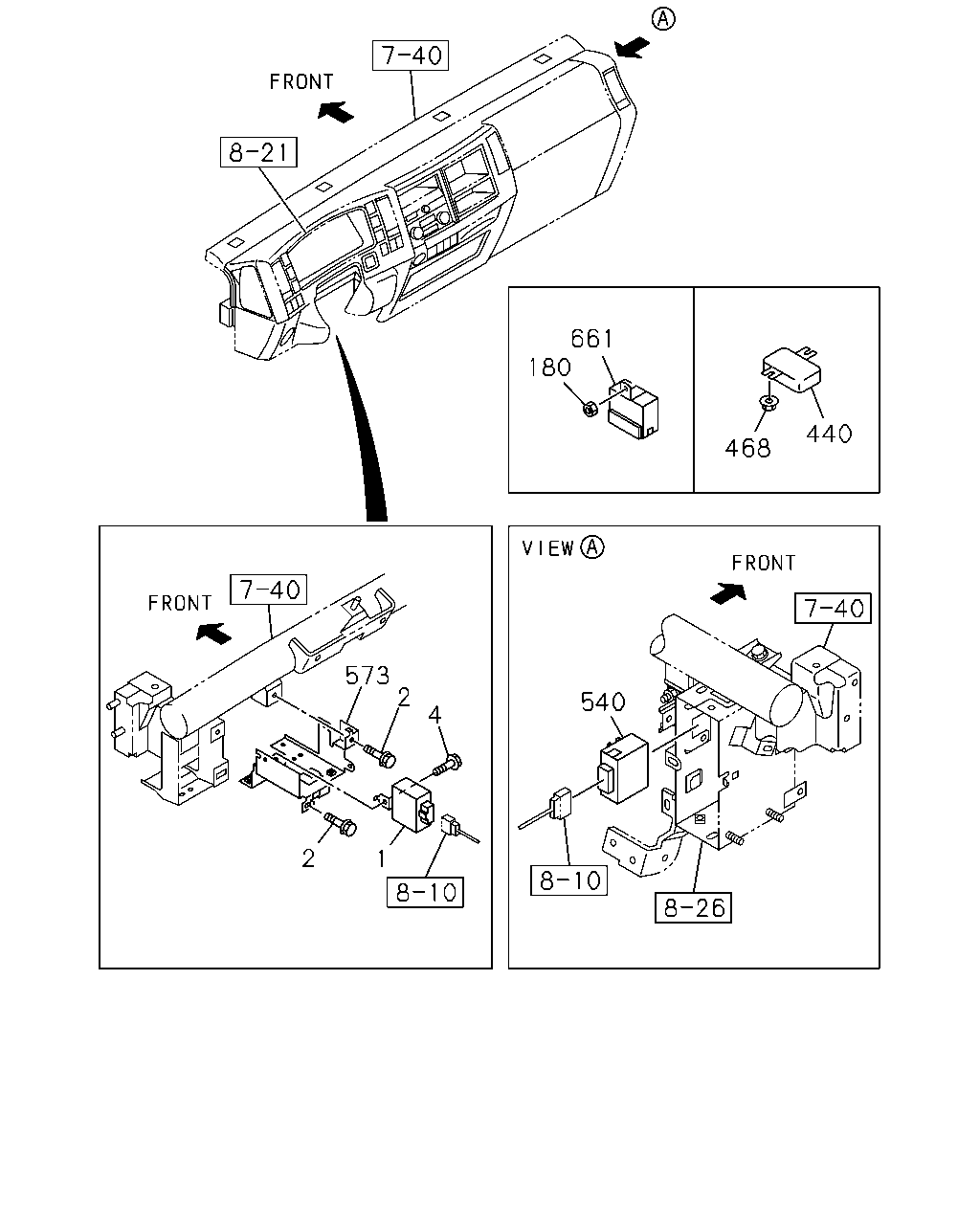

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
CHI
8-97613-970-1
01
1
1404-
2
BOLT; FLASHER UNIT
M6X16 FLANGE CHI
0-28650-616-0
04
1
1404-
2
BOLT; FLASHER UNIT
M6X16 FLANGE CHI
0-28650-616-0
02
1
1404-
2
BOLT; FLASHER UNIT
M6X16 FLANGE CHI
0-28650-616-0
02
1
1404-
4
SCREW; FLASHER UNIT
M6X16 FLANGE CHI
0-28650-616-0
01
1
1404-
4
SCREW; FLASHER UNIT
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
02
1
1404-
180
NUT; FLASHER UNIT
D=8.6X7.7 L=7.5 CHI
8-94279-078-0
02
1
1404-
440
MODULE; INFORMATION,ABS
CHI
1-81510-701-0
01
1
1404-
468
NUT; MODULE
M6 FLANGE CHI
0-91180-106-0
02
1
1404-
540
RELAY; WIPER INTERVAL
CHI
8-98233-976-0
01
1
1404-
573
BRACKET; FLASHER UNIT
CHI
8-97616-351-3
01
1
1404-
661
CONTROL UNIT; FLASHER
CHI
1-83470-066-1
01
1
1404-
602
507
424
386
584
744
34
88
282
132
284
36
275
282
285
261
210
40
87
44
50
51
51
45

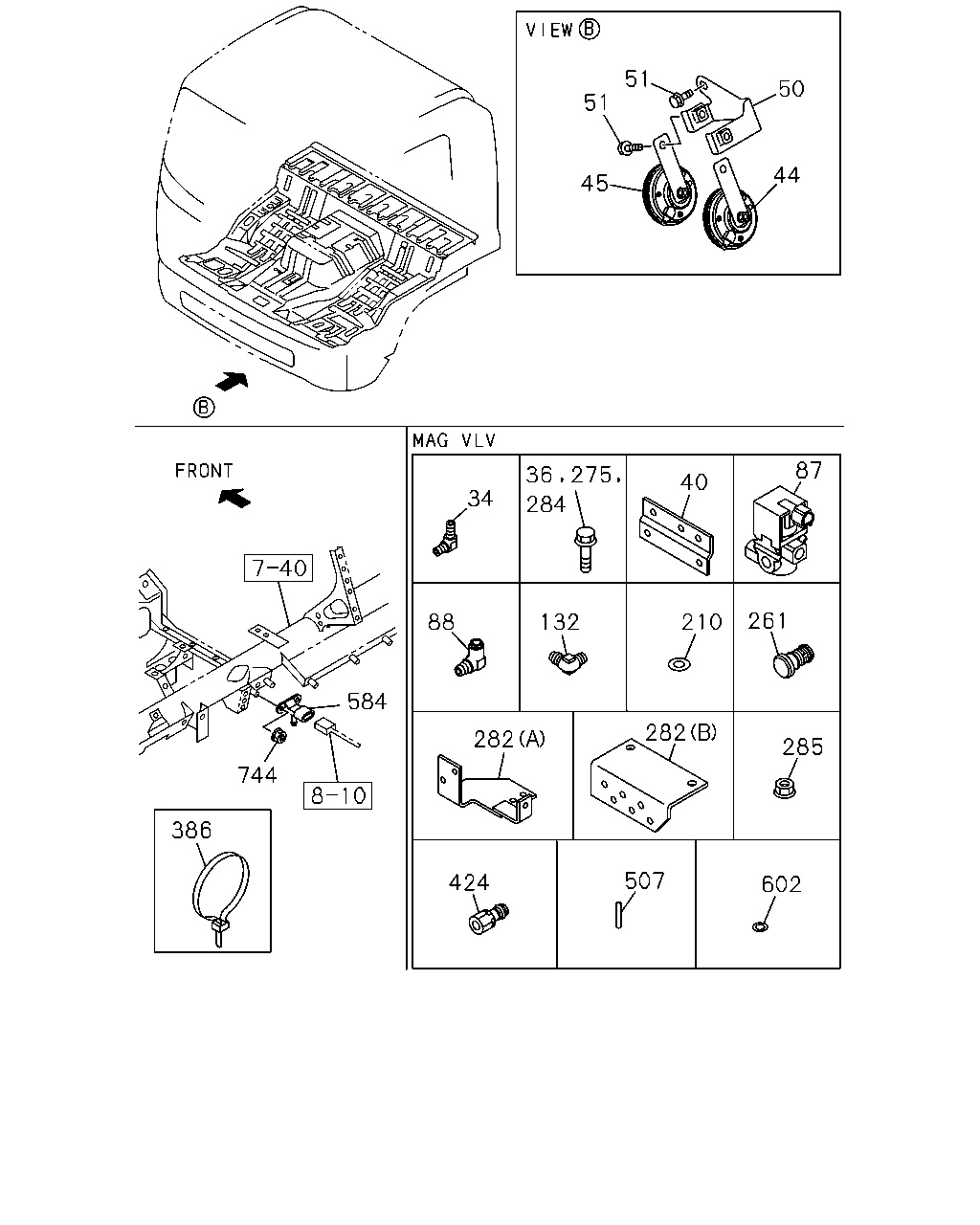

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 3WAY CHI
1-09656-586-1
01
1
1404-
36
BOLT; MAG VLV,PTO CONT
M8X20 FLANGE CHI
0-28650-820-0
03
1
1404-
40
BRACKET; MAG VLV
CHI
8-97431-028-0
01
1
1404-
44
HORN; HIGH NOTE
8-97431-407-0
01
1
1404-
45
HORN; LOW NOTE
8-97431-408-0
01
1
1404-
50
BRACKET; HORN
CHI
8-97616-529-2
01
1
1404-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER CHI
8-97086-825-0
04
1
1404-
87
VALVE; MAG,GOV CONT
8-97431-459-0
01
1
1404-
87
VALVE; MAG,GOV CONT
8-97431-459-0
03
1
1404-
88
CONNECTOR; MAG VLV
DIN8 & R1/4 ELBOW
8-97431-400-0
01
1
1404-
132
CONNECTOR; OUTLET,MAG VLV
M12 & PT1/4 ELBOW CHI
1-09650-430-0
03
1
1404-
210
WASHER; PL,BRKT
CHI
1-82569-266-0
04
1
1404-
261
PLUG; MAG VLV
8-97431-461-0
01
1
1404-
261
PLUG; MAG VLV
8-97431-461-0
01
1
1404-
275
BOLT; BRKT
M8X25 FLANGE CHI
0-28650-825-0
02
1
1404-
282
BRACKET; MAG VLV
(A)
8-97431-501-0
01
1
1404-
282
BRACKET; MAG VLV
(B)
8-97431-500-0
01
1
1404-
284
BOLT; MAG VLV
M6X50 FLANGE CHI
0-28050-650-0
02
1
1404-
284
BOLT; MAG VLV
M8X25 FLANGE CHI
0-28650-825-0
02
1
1404-
285
NUT; MAG VLV
M6 FLANGE CHI
0-91180-106-0
02
1
1404-
285
NUT; MAG VLV
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
386
CLIP; HARNESS
L=350 CHI
1-09707-183-0
01
1
1404-
424
ADAPTER
8-97431-253-0
02
1
1404-
424
ADAPTER
8-97431-253-0
04
1
1404-
507
TUBE; NYLON
FULL FLOATING CAB<W16>
1-09389-003-0
01
1
1404-
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1404-
602
GASKET; MAG VLV
8-97431-460-0
02
1
1404-
744
NUT; SENSOR
M6 FLANGE CHI
0-91180-106-0
02
1
1404-
116
117
115
85
86
84
66
64
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SOCKET; TRAILER
7P CHI
1-82523-014-0
01
1
1404-
65
BOLT; SOCKET FIX
M8X25 FLANGE CHI
0-28650-825-0
02
1
1404-
66
NUT; SOCKET FIX
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
84
BUZZER; POWER CAB TILT
METRO DENSO CHI
8-98069-860-0
01
1
1404-
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE CHI
0-28650-820-0
01
1
1404-
86
NUT; BUZZER
M8 FLANGE CHI
0-91180-108-0
01
1
1404-
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC CHI
8-97173-035-1
02
1
1404-
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO CHI
8-98005-631-0
01
1
1404-
116
BOLT; RELAY FIX
M8X20 FLANGE CHI
0-28650-820-0
02
1
1404-
117
NUT; RELAY FIX
M8 FLANGE CHI
0-91180-108-0
02
1
1404-
770
115
754
22
694

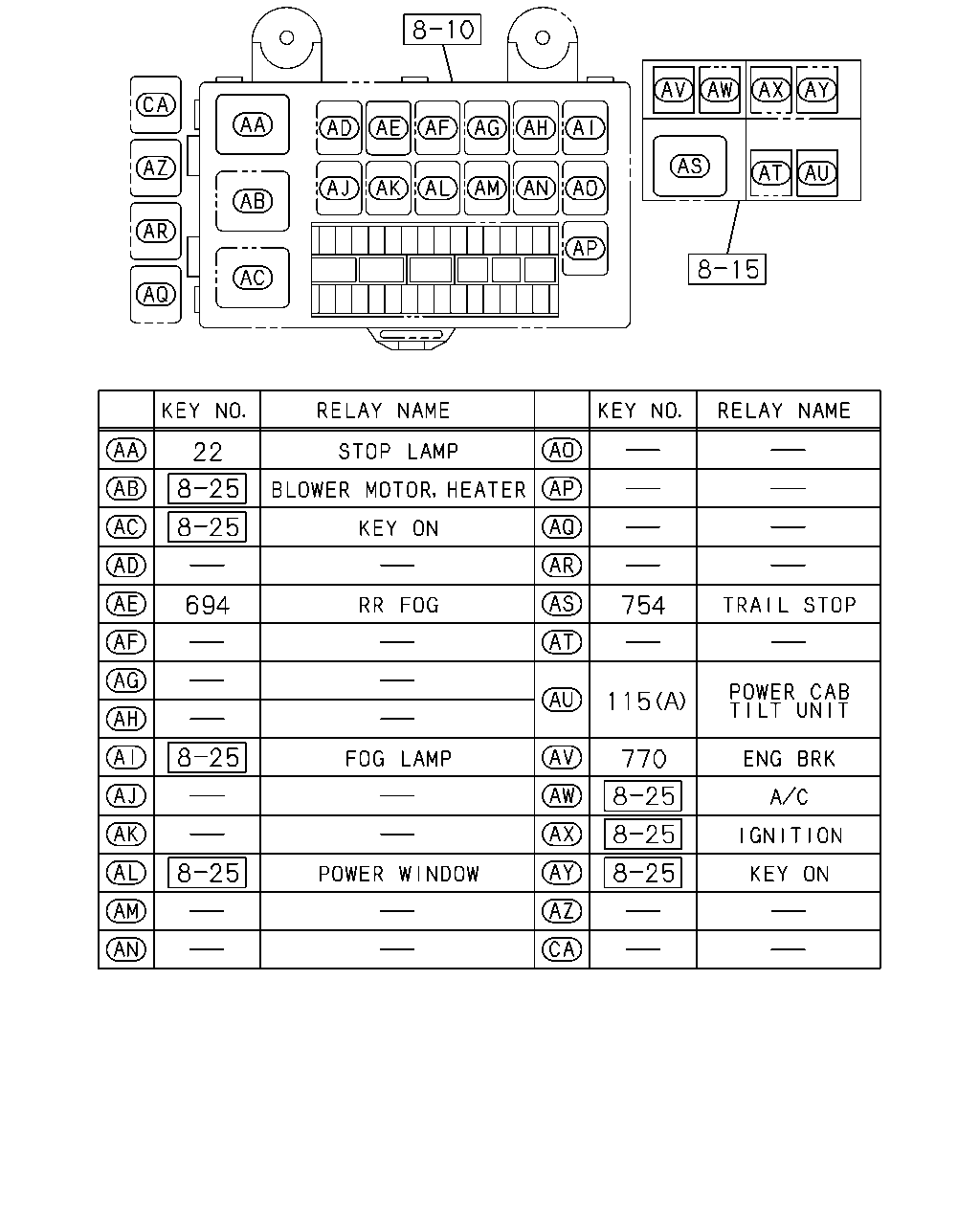

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC CHI
8-97262-933-0
01
1
1404-
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC CHI
8-97173-035-1
02
1
1404-
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO CHI
8-98005-631-0
01
1
1404-
694
RELAY; RR FOG LAMP
24V 10A PANASONIC CHI
8-97173-035-1
01
1
1404-
754
RELAY; TRAILER STOP
24V 10A MATSUSHITA CHI
8-97173-035-1
01
1
1404-
770
RELAY; ENG BRK
24V 10A PANASONIC CHI
8-97173-035-1
01
1
1404-
