Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11048 - EXZ LHD EURO4 WITH 2STEPS
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#14486) — 52 parça
◀

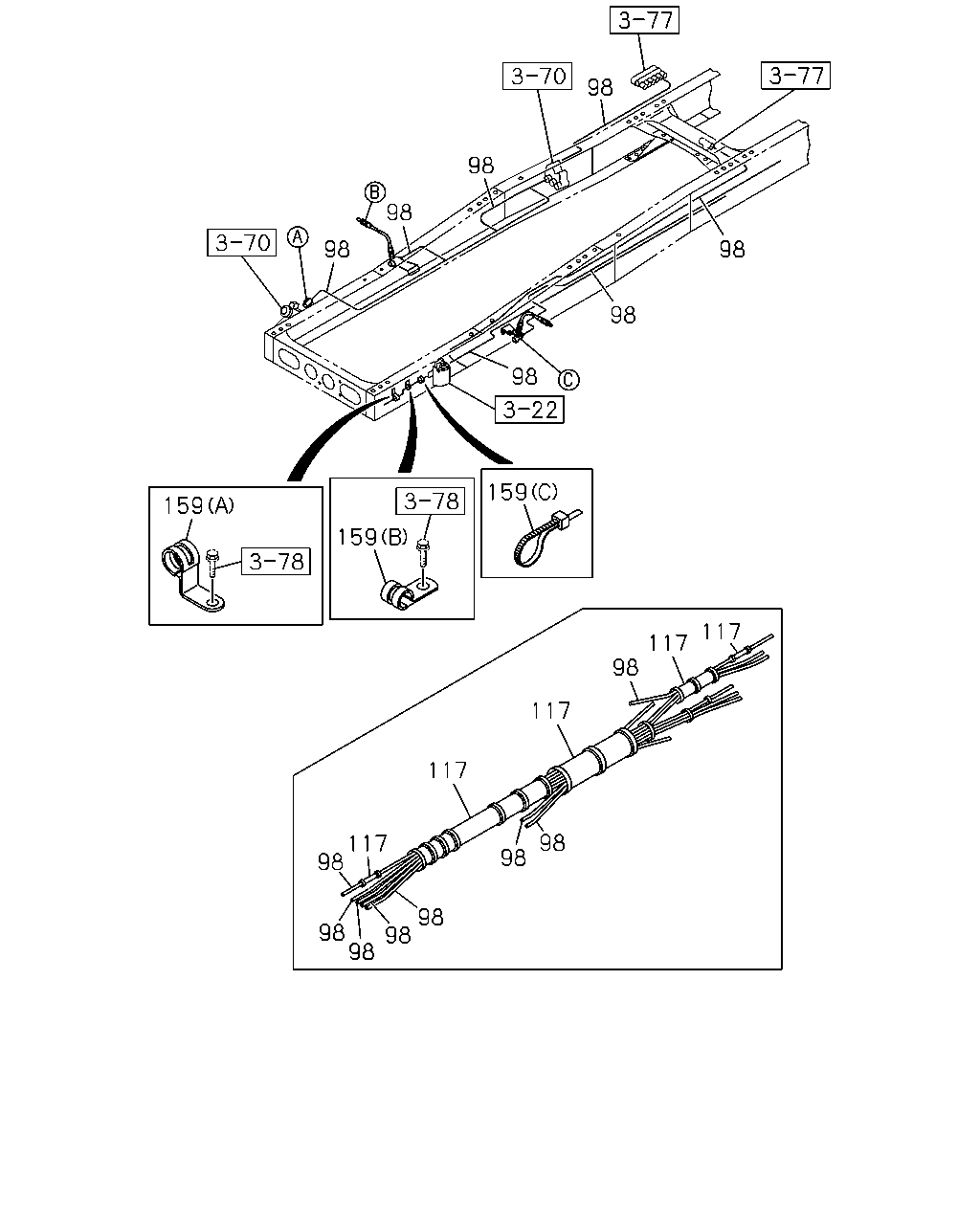

[375A] NO.1 (21 parça)

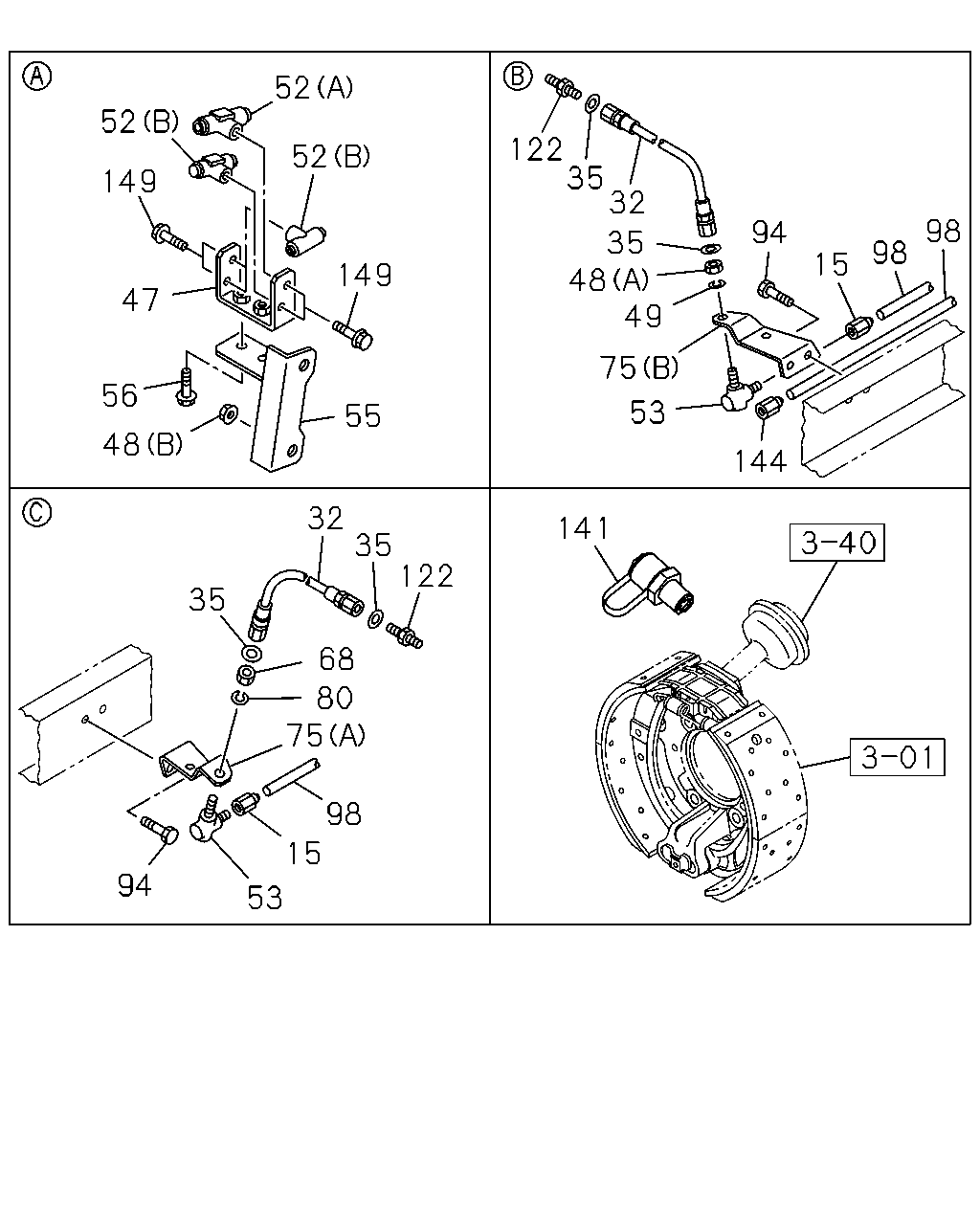

[375A] NO.2 (31 parça)
▶
98
98
98
98
98
98
98
159
159
159
117
117
98
117
117
98
117
98
98
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
L=170 OD=12
1-49222-063-0
02
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
0611-
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
23
1
0611-
159
CLIP; NYLON TUBE
(A) ID=35 H=45 L=33
1-09700-947-0
01
1
0611-
159
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
01
1
0611-
159
CLIP; NYLON TUBE
(B) ID=19 L=28
0-95235-856-0
02
1
0611-
159
CLIP; NYLON TUBE
(B) ID=35 L=33
1-09700-945-0
01
1
0611-
159
CLIP; NYLON TUBE
(A) ID=35 H=45 L=33
1-09700-947-0
03
1
0611-
159
CLIP; NYLON TUBE
(A) ID=21 L=30 H=40
1-09700-991-1
02
1
0611-
159
CLIP; NYLON TUBE
(B) ID=28 L=40
1-09701-261-0
02
1
0611-
52
52
122
35
32
52
149
98
94
35
48
49
98
15
149
47
75
56
53
55
48
144
32
35
122
141
35
68
80
75
98
15
94
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0611-
32
HOSE; FLEX,FRT
0-87847-430-1
02
1
0611-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
0611-
47
BRACKET; PIPE UNION
1-47471-023-0
01
1
0611-
48
NUT; UNION BRKT
(A) M20
0-91111-520-0
01
1
0611-
48
NUT; UNION BRKT
(B) M12 FLANGE
0-91180-212-0
02
1
0611-
49
WASHER; LK,UNION BRKT
ID=20.2
0-91510-520-0
01
1
0611-
52
CONNECTOR; NYLON TUBE
(A)
1-09661-128-0
01
1
0611-
52
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
03
1
0611-
53
UNION; ELBOW
M20 & M20 ELBOW
1-09654-128-1
02
1
0611-
55
BRACKET; TUBE UNION
1-47479-993-1
01
1
0611-
56
BOLT; UNION BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0611-
68
NUT; UNION
M20
0-91111-520-0
01
1
0611-
75
BRACKET; UNION
(A)
1-47479-765-1
01
1
0611-
75
BRACKET; UNION
(B)
1-47479-766-1
01
1
0611-
80
WASHER; LK,UNION
ID=20.2
0-91510-520-0
01
1
0611-
94
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0611-
98
TUBE; NYLON
L=170 OD=12
1-49222-063-0
02
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0611-
122
CONNECTOR; FLEX HOSE
M20 & PT3/8
1-09660-731-1
01
1
0611-
122
CONNECTOR; FLEX HOSE
R3/8 & RC1/4 & M20 3WAY
1-09661-607-0
01
1
0611-
141
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
0611-
144
ADAPTER
DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
0611-
149
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
04
1
0611-
