Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#144857) — 295 parça

38 139 38 150 242 466 150 38 38 127 38 38 386 242 490 490 38 38 139 86 242 38 38 38 313 358 524 377 24 219 294 515 525 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS M8 FLANGE CHI	0-91180-108-0	01	1	1404-
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE CHI	0-28050-610-0	01	1	1404-
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE CHI	0-28050-812-0	02	1	1404-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE CHI	0-28051-216-0	01	1	1404-
38	BOLT; CLIP,HARNESS (H) M12X40 FLANGE CHI	0-28051-240-0	01	1	1404-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE CHI	0-28650-820-0	10	1	1404-
38	BOLT; CLIP,HARNESS (J) M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE CHI	0-28650-830-0	02	1	1404-
38	BOLT; CLIP,HARNESS (C) M8X35 FLANGE CHI	0-28650-835-0	01	1	1404-
38	BOLT; CLIP,HARNESS (C) M8X35 FLANGE CHI	0-28650-835-0	01	1	1404-
38	BOLT; CLIP,HARNESS (G) M10X35 FLANGE CHI	0-28651-035-0	01	1	1404-
38	BOLT; CLIP,HARNESS (K) M8X14 W/PL WASHER CHI	8-98164-837-0	02	1	1404-
38	BOLT; CLIP,HARNESS (A) M8X40 FLANGE CHI	0-28650-840-0	01	1	1404-
86	BOLT; CLIP BRKT M8X30 FLANGE CHI	0-28650-830-0	01	1	1404-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET CHI	8-98063-767-0	01	1	1404-
139	BOLT; BRKT (B) M8X12 FLANGE CHI	0-28050-812-0	01	1	1404-
139	BOLT; BRKT (A) M8X30 FLANGE CHI	0-28650-830-0	09	1	1404-
150	BOLT; CLIP (A) M8X16 FLANGE CHI	0-28050-816-0	08	1	1404-
150	BOLT; CLIP (B) M8X66 FLANGE	8-98081-507-0	01	1	1404-
219	NUT M8 FLANGE CHI	0-91180-108-0	01	1	1404-
219	NUT M8 FLANGE CHI	0-91180-108-0	11	1	1404-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE CHI	0-28050-820-0	02	1	1404-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
242	BOLT; BRKT,HARNESS (A) M8X25 FLANGE CHI	0-28650-825-0	01	1	1404-
294	NUT M8 FLANGE CHI	0-91180-108-0	02	1	1404-
294	NUT M8 FLANGE CHI	0-91180-108-0	06	1	1404-
313	BOLT; BRKT M8X30 FLANGE CHI	0-28650-830-0	06	1	1404-
358	BOLT; EARTH M5X16 W/LK&PL WASHER CHI	8-94198-538-0	01	1	1404-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1404-
386	BOLT; GRAND HARNESS M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
423	WASHER; HARNESS,EARTH ID=8.4 CHI	1-09503-264-0	02	1	1404-
466	BOLT; HEAT PROTECTOR M8X16 FLANGE CHI	0-28050-816-0	02	1	1404-
490	BOLT; CLIP,RELAY BOX (B) M8X25 FLANGE CHI	0-28650-825-0	02	1	1404-
490	BOLT; CLIP,RELAY BOX (A) M8X20 FLANGE CHI	0-28650-820-0	01	1	1404-
515	NUT; BRKT M8 FLANGE CHI	0-91180-108-0	09	1	1404-
524	NUT; HARNESS M6 FLANGE CHI	0-91180-106-0	04	1	1404-
525	NUT; CLIP M8 FLANGE CHI	0-91180-108-0	01	1	1404-

7 600 312 312 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR CHI	8-98090-846-0	01	1	1404-
312	BRACKET; CLIP HARNESS (A) L=120 CHI	8-97619-440-0	01	1	1404-
312	BRACKET; CLIP HARNESS (B)	8-97431-645-0	04	1	1404-
342	BRACKET; HARNESS CAB MTG (B) L=90 B=25 CHI	1-47475-530-0	01	1	1404-
342	BRACKET; HARNESS CAB MTG (A) L=120 H=35 CHI	1-82698-088-0	01	1	1404-
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1404-

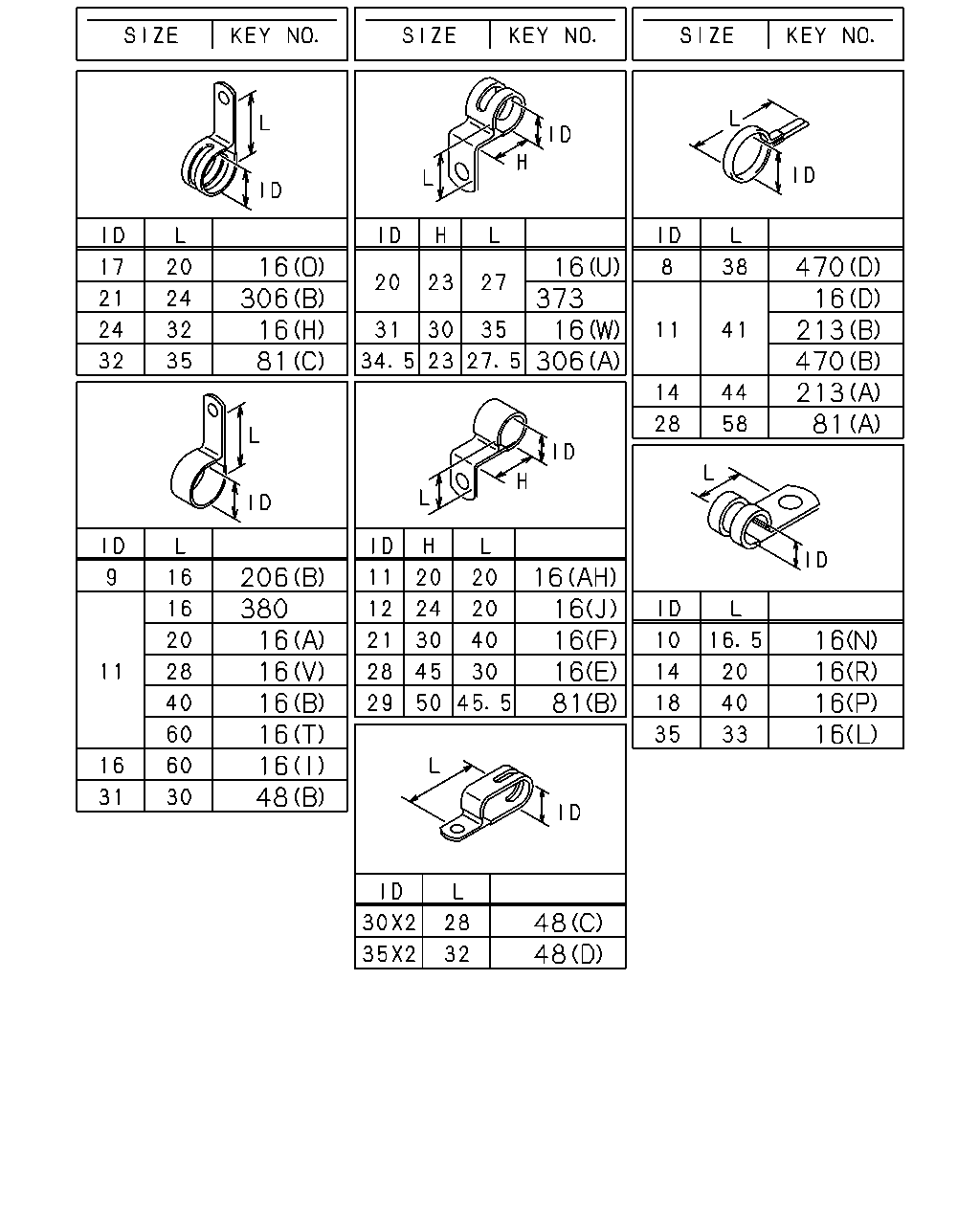

16 16 306 81 206 16 380 16 16 16 16 48 16 373 16 306 16 16 16 16 81 48 48 470 213 16 470 81 213 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1404-
16	CLIP; HARNESS (V) ID=11 L=28 CHI	0-95235-055-0	01	1	1404-
16	CLIP; HARNESS (B) ID=11 L=40 CHI	0-95235-075-0	01	1	1404-
16	CLIP; HARNESS (T) ID=11 L=60 CHI	0-95235-096-0	01	1	1404-
16	CLIP; HARNESS (I) ID=16 L=60 CHI	0-95235-596-0	01	1	1404-
16	CLIP; HARNESS (D) ID=11 L=41 CHI	1-09700-403-0	03	1	1404-
16	CLIP; HARNESS (J) ID=12 H=24 L=20 CHI	1-09700-605-0	01	1	1404-
16	CLIP; HARNESS (E) ID=28 H=45 L=30 CHI	1-09700-707-0	02	1	1404-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1404-
16	CLIP; HARNESS (U) ID=20 H=23 L=27 CHI	1-09700-861-0	01	1	1404-
16	CLIP; HARNESS (L) ID=35 L=33 CHI	1-09700-945-0	01	1	1404-
16	CLIP; HARNESS (F) ID=21 L=30 H=40 CHI	1-09700-991-1	01	1	1404-
16	CLIP; HARNESS (W) ID=31 H=30 L=35 CHI	1-09700-994-0	01	1	1404-
16	CLIP; HARNESS (W) ID=31 H=30 L=35 CHI	1-09700-994-0	01	1	1404-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1404-
16	CLIP; HARNESS (X) L=350 CHI	1-09707-183-0	02	1	1404-
16	CLIP; HARNESS (S) W/SPONGE RUBBER CHI	1-09709-150-0	01	1	1404-
16	CLIP; HARNESS (K) OD=9 H=6 CHI	1-09709-178-0	01	1	1404-
16	CLIP; HARNESS (Q) OD=9 H=13.5 CHI	1-09709-180-0	01	1	1404-
16	CLIP; HARNESS (Z) ID=5-12 L=18 CHI	1-09709-287-0	01	1	1404-
16	CLIP; HARNESS (AI) ID=5-12 L=22 CHI	1-09709-288-0	01	1	1404-
16	CLIP; HARNESS (AI) ID=5-12 L=22 CHI	1-09709-288-0	04	1	1404-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5 CHI	1-09709-290-0	01	1	1404-
16	CLIP; HARNESS (C) ID=13-18 L=18 CHI	1-09709-291-0	01	1	1404-
16	CLIP; HARNESS (C) ID=13-18 L=18 CHI	1-09709-291-0	02	1	1404-
16	CLIP; HARNESS (AJ) ID=13-18 L=22 CHI	1-09709-292-0	01	1	1404-
16	CLIP; HARNESS (G) ID=18-24 L=14.5 CHI	1-09709-298-0	01	1	1404-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5 CHI	1-09987-221-0	04	1	1404-
16	CLIP; HARNESS (AD) L=250 CHI	5-09707-030-1	02	1	1404-
16	CLIP; HARNESS (M) L=36 CHI	8-94224-891-1	01	1	1404-
16	CLIP; HARNESS (AF) ID=10 & 16 CHI	8-94413-325-0	01	1	1404-
16	CLIP; HARNESS (AB) ID=20 & 16.5 CHI	8-94486-835-0	01	1	1404-
16	CLIP; HARNESS (Y) L=155 CHI	8-97173-307-0	18	1	1404-
16	CLIP; HARNESS (AE) L=40.6 CHI	8-97229-357-0	02	1	1404-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	01	1	1404-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20 CHI	8-98033-780-0	01	1	1404-
16	CLIP; HARNESS (AG) CHI	8-98052-679-0	02	1	1404-
16	CLIP; HARNESS (N) ID=10 L=16.5 CHI	8-98082-034-0	02	1	1404-
16	CLIP; HARNESS (R) ID=14 L=20	8-98144-944-0	01	1	1404-
48	CLIP; FRAME HARNESS (B) ID=31 L=30 CHI	1-09700-969-0	01	1	1404-
48	CLIP; FRAME HARNESS (C) ID=30X2 L=28 CHI	1-09701-266-0	02	1	1404-
48	CLIP; FRAME HARNESS (D) ID=35X2 L=32 CHI	1-09701-314-0	02	1	1404-
48	CLIP; FRAME HARNESS (A) L=350 CHI	1-09707-183-0	04	1	1404-
48	CLIP; FRAME HARNESS (A) L=350 CHI	1-09707-183-0	15	1	1404-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=18 CHI	1-09709-287-0	03	1	1404-
81	CLIP; HARNESS (A) ID=28 L=58 CHI	1-09700-400-0	01	1	1404-
81	CLIP; HARNESS (B) ID=29 H=50 L=45.5 CHI	1-09701-027-0	01	1	1404-
81	CLIP; HARNESS (C) ID=32 L=35 CHI	1-09701-244-0	02	1	1404-
206	CLIP; FUEL TANK HARNESS (A) L=250 CHI	5-09707-030-1	02	1	1404-
206	CLIP; FUEL TANK HARNESS (B) ID=9 L=16	0-95234-825-0	01	1	1404-
213	CLIP; END CROSS HARNESS (A) ID=14 L=44 CHI	9-09917-427-0	03	1	1404-
213	CLIP; END CROSS HARNESS (B) ID=11 L=41 CHI	1-09700-403-0	01	1	1404-
306	CLIP; HARNESS,ELEC GOV (A) ID=34.5 H=23 L=27.5 CHI	1-09700-905-0	02	1	1404-
306	CLIP; HARNESS,ELEC GOV (B) ID=21 L=24 CHI	8-94176-807-1	01	1	1404-
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27 CHI	1-09700-861-0	02	1	1404-
380	CLIP; EARTH HARNESS ID=11 L=16 CHI	0-95235-025-0	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41 CHI	1-09700-403-0	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6 CHI	1-09709-178-0	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (C) L=250 CHI	5-09707-030-1	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (D) ID=8 L=38	9-09917-424-0	01	1	1404-

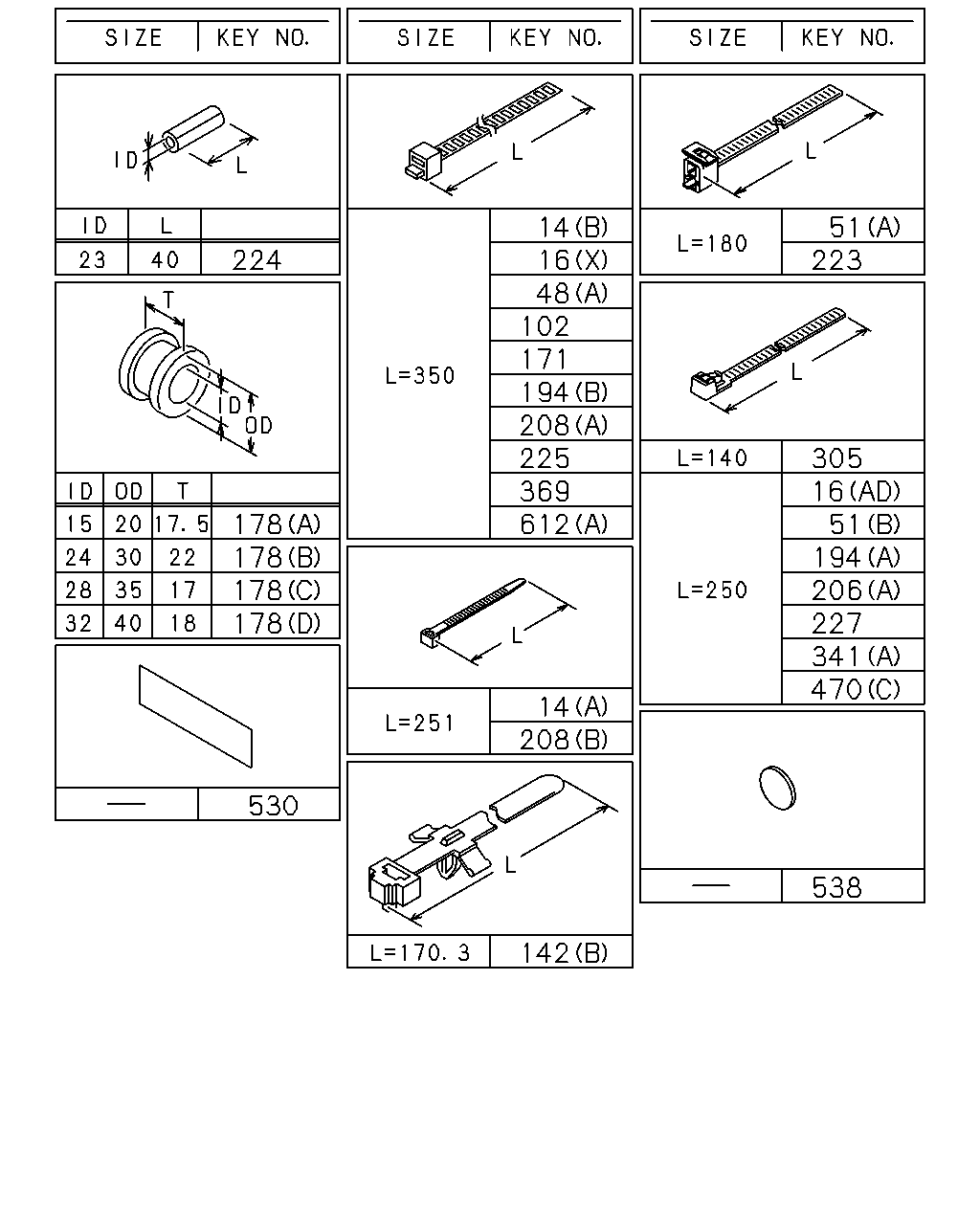

16 16 470 116 16 48 16 612 612 16 16 16 16 16 341 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1404-
16	CLIP; HARNESS (V) ID=11 L=28 CHI	0-95235-055-0	01	1	1404-
16	CLIP; HARNESS (B) ID=11 L=40 CHI	0-95235-075-0	01	1	1404-
16	CLIP; HARNESS (T) ID=11 L=60 CHI	0-95235-096-0	01	1	1404-
16	CLIP; HARNESS (I) ID=16 L=60 CHI	0-95235-596-0	01	1	1404-
16	CLIP; HARNESS (D) ID=11 L=41 CHI	1-09700-403-0	03	1	1404-
16	CLIP; HARNESS (J) ID=12 H=24 L=20 CHI	1-09700-605-0	01	1	1404-
16	CLIP; HARNESS (E) ID=28 H=45 L=30 CHI	1-09700-707-0	02	1	1404-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1404-
16	CLIP; HARNESS (U) ID=20 H=23 L=27 CHI	1-09700-861-0	01	1	1404-
16	CLIP; HARNESS (L) ID=35 L=33 CHI	1-09700-945-0	01	1	1404-
16	CLIP; HARNESS (F) ID=21 L=30 H=40 CHI	1-09700-991-1	01	1	1404-
16	CLIP; HARNESS (W) ID=31 H=30 L=35 CHI	1-09700-994-0	01	1	1404-
16	CLIP; HARNESS (W) ID=31 H=30 L=35 CHI	1-09700-994-0	01	1	1404-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1404-
16	CLIP; HARNESS (X) L=350 CHI	1-09707-183-0	02	1	1404-
16	CLIP; HARNESS (S) W/SPONGE RUBBER CHI	1-09709-150-0	01	1	1404-
16	CLIP; HARNESS (K) OD=9 H=6 CHI	1-09709-178-0	01	1	1404-
16	CLIP; HARNESS (Q) OD=9 H=13.5 CHI	1-09709-180-0	01	1	1404-
16	CLIP; HARNESS (Z) ID=5-12 L=18 CHI	1-09709-287-0	01	1	1404-
16	CLIP; HARNESS (AI) ID=5-12 L=22 CHI	1-09709-288-0	01	1	1404-
16	CLIP; HARNESS (AI) ID=5-12 L=22 CHI	1-09709-288-0	04	1	1404-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5 CHI	1-09709-290-0	01	1	1404-
16	CLIP; HARNESS (C) ID=13-18 L=18 CHI	1-09709-291-0	01	1	1404-
16	CLIP; HARNESS (C) ID=13-18 L=18 CHI	1-09709-291-0	02	1	1404-
16	CLIP; HARNESS (AJ) ID=13-18 L=22 CHI	1-09709-292-0	01	1	1404-
16	CLIP; HARNESS (G) ID=18-24 L=14.5 CHI	1-09709-298-0	01	1	1404-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5 CHI	1-09987-221-0	04	1	1404-
16	CLIP; HARNESS (AD) L=250 CHI	5-09707-030-1	02	1	1404-
16	CLIP; HARNESS (M) L=36 CHI	8-94224-891-1	01	1	1404-
16	CLIP; HARNESS (AF) ID=10 & 16 CHI	8-94413-325-0	01	1	1404-
16	CLIP; HARNESS (AB) ID=20 & 16.5 CHI	8-94486-835-0	01	1	1404-
16	CLIP; HARNESS (Y) L=155 CHI	8-97173-307-0	18	1	1404-
16	CLIP; HARNESS (AE) L=40.6 CHI	8-97229-357-0	02	1	1404-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	01	1	1404-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20 CHI	8-98033-780-0	01	1	1404-
16	CLIP; HARNESS (AG) CHI	8-98052-679-0	02	1	1404-
16	CLIP; HARNESS (N) ID=10 L=16.5 CHI	8-98082-034-0	02	1	1404-
16	CLIP; HARNESS (R) ID=14 L=20	8-98144-944-0	01	1	1404-
48	CLIP; FRAME HARNESS (B) ID=31 L=30 CHI	1-09700-969-0	01	1	1404-
48	CLIP; FRAME HARNESS (C) ID=30X2 L=28 CHI	1-09701-266-0	02	1	1404-
48	CLIP; FRAME HARNESS (D) ID=35X2 L=32 CHI	1-09701-314-0	02	1	1404-
48	CLIP; FRAME HARNESS (A) L=350 CHI	1-09707-183-0	04	1	1404-
48	CLIP; FRAME HARNESS (A) L=350 CHI	1-09707-183-0	15	1	1404-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=18 CHI	1-09709-287-0	03	1	1404-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE CHI	1-09987-246-2	01	1	1404-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE CHI	1-09987-246-2	03	1	1404-
341	CLIP; BAND,STARTER RELAY (B) ID=13-18 L=14.5 CHI	1-09709-290-0	01	1	1404-
341	CLIP; BAND,STARTER RELAY (A) L=250 CHI	5-09707-030-1	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41 CHI	1-09700-403-0	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6 CHI	1-09709-178-0	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (C) L=250 CHI	5-09707-030-1	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (D) ID=8 L=38	9-09917-424-0	01	1	1404-
612	CLIP; HARNESS DPD (A) L=350 CHI	1-09707-183-0	01	1	1404-
612	CLIP; HARNESS DPD (B) ID=5-12 L=18 CHI	1-09709-287-0	01	1	1404-
612	CLIP; HARNESS DPD (C) ID=5-12 L=26 CHI	1-09709-289-0	01	1	1404-

16 16 16 16 16 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1404-
16	CLIP; HARNESS (V) ID=11 L=28 CHI	0-95235-055-0	01	1	1404-
16	CLIP; HARNESS (B) ID=11 L=40 CHI	0-95235-075-0	01	1	1404-
16	CLIP; HARNESS (T) ID=11 L=60 CHI	0-95235-096-0	01	1	1404-
16	CLIP; HARNESS (I) ID=16 L=60 CHI	0-95235-596-0	01	1	1404-
16	CLIP; HARNESS (D) ID=11 L=41 CHI	1-09700-403-0	03	1	1404-
16	CLIP; HARNESS (J) ID=12 H=24 L=20 CHI	1-09700-605-0	01	1	1404-
16	CLIP; HARNESS (E) ID=28 H=45 L=30 CHI	1-09700-707-0	02	1	1404-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1404-
16	CLIP; HARNESS (U) ID=20 H=23 L=27 CHI	1-09700-861-0	01	1	1404-
16	CLIP; HARNESS (L) ID=35 L=33 CHI	1-09700-945-0	01	1	1404-
16	CLIP; HARNESS (F) ID=21 L=30 H=40 CHI	1-09700-991-1	01	1	1404-
16	CLIP; HARNESS (W) ID=31 H=30 L=35 CHI	1-09700-994-0	01	1	1404-
16	CLIP; HARNESS (W) ID=31 H=30 L=35 CHI	1-09700-994-0	01	1	1404-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1404-
16	CLIP; HARNESS (X) L=350 CHI	1-09707-183-0	02	1	1404-
16	CLIP; HARNESS (S) W/SPONGE RUBBER CHI	1-09709-150-0	01	1	1404-
16	CLIP; HARNESS (K) OD=9 H=6 CHI	1-09709-178-0	01	1	1404-
16	CLIP; HARNESS (Q) OD=9 H=13.5 CHI	1-09709-180-0	01	1	1404-
16	CLIP; HARNESS (Z) ID=5-12 L=18 CHI	1-09709-287-0	01	1	1404-
16	CLIP; HARNESS (AI) ID=5-12 L=22 CHI	1-09709-288-0	01	1	1404-
16	CLIP; HARNESS (AI) ID=5-12 L=22 CHI	1-09709-288-0	04	1	1404-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5 CHI	1-09709-290-0	01	1	1404-
16	CLIP; HARNESS (C) ID=13-18 L=18 CHI	1-09709-291-0	01	1	1404-
16	CLIP; HARNESS (C) ID=13-18 L=18 CHI	1-09709-291-0	02	1	1404-
16	CLIP; HARNESS (AJ) ID=13-18 L=22 CHI	1-09709-292-0	01	1	1404-
16	CLIP; HARNESS (G) ID=18-24 L=14.5 CHI	1-09709-298-0	01	1	1404-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5 CHI	1-09987-221-0	04	1	1404-
16	CLIP; HARNESS (AD) L=250 CHI	5-09707-030-1	02	1	1404-
16	CLIP; HARNESS (M) L=36 CHI	8-94224-891-1	01	1	1404-
16	CLIP; HARNESS (AF) ID=10 & 16 CHI	8-94413-325-0	01	1	1404-
16	CLIP; HARNESS (AB) ID=20 & 16.5 CHI	8-94486-835-0	01	1	1404-
16	CLIP; HARNESS (Y) L=155 CHI	8-97173-307-0	18	1	1404-
16	CLIP; HARNESS (AE) L=40.6 CHI	8-97229-357-0	02	1	1404-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	01	1	1404-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20 CHI	8-98033-780-0	01	1	1404-
16	CLIP; HARNESS (AG) CHI	8-98052-679-0	02	1	1404-
16	CLIP; HARNESS (N) ID=10 L=16.5 CHI	8-98082-034-0	02	1	1404-
16	CLIP; HARNESS (R) ID=14 L=20	8-98144-944-0	01	1	1404-
142	CLIP; HARNESS,ENG (B) L=170.3	8-97209-720-0	01	1	1404-
142	CLIP; HARNESS,ENG (A) L=150	8-97355-273-0	01	1	1404-

224 178 178 178 178 530 14 102 48 16 171 208 369 225 194 612 14 208 142 51 223 305 51 16 194 227 206 341 470 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=251 CHI	8-97619-917-0	03	1	1404-
14	CLIP; BAND,HARNESS (B) L=350 CHI	1-09707-183-0	02	1	1404-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1404-
16	CLIP; HARNESS (V) ID=11 L=28 CHI	0-95235-055-0	01	1	1404-
16	CLIP; HARNESS (B) ID=11 L=40 CHI	0-95235-075-0	01	1	1404-
16	CLIP; HARNESS (T) ID=11 L=60 CHI	0-95235-096-0	01	1	1404-
16	CLIP; HARNESS (I) ID=16 L=60 CHI	0-95235-596-0	01	1	1404-
16	CLIP; HARNESS (D) ID=11 L=41 CHI	1-09700-403-0	03	1	1404-
16	CLIP; HARNESS (J) ID=12 H=24 L=20 CHI	1-09700-605-0	01	1	1404-
16	CLIP; HARNESS (E) ID=28 H=45 L=30 CHI	1-09700-707-0	02	1	1404-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1404-
16	CLIP; HARNESS (U) ID=20 H=23 L=27 CHI	1-09700-861-0	01	1	1404-
16	CLIP; HARNESS (L) ID=35 L=33 CHI	1-09700-945-0	01	1	1404-
16	CLIP; HARNESS (F) ID=21 L=30 H=40 CHI	1-09700-991-1	01	1	1404-
16	CLIP; HARNESS (W) ID=31 H=30 L=35 CHI	1-09700-994-0	01	1	1404-
16	CLIP; HARNESS (W) ID=31 H=30 L=35 CHI	1-09700-994-0	01	1	1404-
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1404-
16	CLIP; HARNESS (X) L=350 CHI	1-09707-183-0	02	1	1404-
16	CLIP; HARNESS (S) W/SPONGE RUBBER CHI	1-09709-150-0	01	1	1404-
16	CLIP; HARNESS (K) OD=9 H=6 CHI	1-09709-178-0	01	1	1404-
16	CLIP; HARNESS (Q) OD=9 H=13.5 CHI	1-09709-180-0	01	1	1404-
16	CLIP; HARNESS (Z) ID=5-12 L=18 CHI	1-09709-287-0	01	1	1404-
16	CLIP; HARNESS (AI) ID=5-12 L=22 CHI	1-09709-288-0	01	1	1404-
16	CLIP; HARNESS (AI) ID=5-12 L=22 CHI	1-09709-288-0	04	1	1404-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5 CHI	1-09709-290-0	01	1	1404-
16	CLIP; HARNESS (C) ID=13-18 L=18 CHI	1-09709-291-0	01	1	1404-
16	CLIP; HARNESS (C) ID=13-18 L=18 CHI	1-09709-291-0	02	1	1404-
16	CLIP; HARNESS (AJ) ID=13-18 L=22 CHI	1-09709-292-0	01	1	1404-
16	CLIP; HARNESS (G) ID=18-24 L=14.5 CHI	1-09709-298-0	01	1	1404-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5 CHI	1-09987-221-0	04	1	1404-
16	CLIP; HARNESS (AD) L=250 CHI	5-09707-030-1	02	1	1404-
16	CLIP; HARNESS (M) L=36 CHI	8-94224-891-1	01	1	1404-
16	CLIP; HARNESS (AF) ID=10 & 16 CHI	8-94413-325-0	01	1	1404-
16	CLIP; HARNESS (AB) ID=20 & 16.5 CHI	8-94486-835-0	01	1	1404-
16	CLIP; HARNESS (Y) L=155 CHI	8-97173-307-0	18	1	1404-
16	CLIP; HARNESS (AE) L=40.6 CHI	8-97229-357-0	02	1	1404-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	01	1	1404-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20 CHI	8-98033-780-0	01	1	1404-
16	CLIP; HARNESS (AG) CHI	8-98052-679-0	02	1	1404-
16	CLIP; HARNESS (N) ID=10 L=16.5 CHI	8-98082-034-0	02	1	1404-
16	CLIP; HARNESS (R) ID=14 L=20	8-98144-944-0	01	1	1404-
48	CLIP; FRAME HARNESS (B) ID=31 L=30 CHI	1-09700-969-0	01	1	1404-
48	CLIP; FRAME HARNESS (C) ID=30X2 L=28 CHI	1-09701-266-0	02	1	1404-
48	CLIP; FRAME HARNESS (D) ID=35X2 L=32 CHI	1-09701-314-0	02	1	1404-
48	CLIP; FRAME HARNESS (A) L=350 CHI	1-09707-183-0	04	1	1404-
48	CLIP; FRAME HARNESS (A) L=350 CHI	1-09707-183-0	15	1	1404-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=18 CHI	1-09709-287-0	03	1	1404-
51	CLIP; COOLER CMPR (A) L=180 CHI	1-09707-162-1	01	1	1404-
51	CLIP; COOLER CMPR (B) L=250 CHI	5-09707-030-1	03	1	1404-
102	CLIP; BAND L=350 CHI	1-09707-183-0	04	1	1404-
142	CLIP; HARNESS,ENG (B) L=170.3	8-97209-720-0	01	1	1404-
142	CLIP; HARNESS,ENG (A) L=150	8-97355-273-0	01	1	1404-
171	CLIP; STARTER HARNESS L=350 CHI	1-09707-183-0	03	1	1404-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22 CHI	1-09332-126-0	01	1	1404-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5 CHI	1-09332-130-0	01	1	1404-
178	GROMMET; HARNESS (D) ID=32 OD=40 T=18 CHI	1-09891-003-0	02	1	1404-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17 CHI	9-09956-256-2	02	1	1404-
194	CLIP; BAND (B) L=350 CHI	1-09707-183-0	08	1	1404-
194	CLIP; BAND (A) L=250 CHI	5-09707-030-1	01	1	1404-
206	CLIP; FUEL TANK HARNESS (A) L=250 CHI	5-09707-030-1	02	1	1404-
206	CLIP; FUEL TANK HARNESS (B) ID=9 L=16	0-95234-825-0	01	1	1404-
208	CLIP; HARNESS,MAG VLV (A) L=350 CHI	1-09707-183-0	01	1	1404-
208	CLIP; HARNESS,MAG VLV (B) L=251 CHI	8-97619-917-0	01	1	1404-
223	CLIP; AIR TANK HARNESS L=180 CHI	1-09707-162-1	01	1	1404-
224	SLEEVE; RUBBER,HARNESS ID=23 OD=27 L=40 CHI	1-09337-015-0	01	1	1404-
225	CLIP; AIR TANK HARNESS L=350 CHI	1-09707-183-0	01	1	1404-
227	CLIP; FOG LAMP HARNESS L=250 CHI	5-09707-030-1	01	1	1404-
305	CLIP; ENG HARNESS L=140 CHI	5-09707-031-1	01	1	1404-
341	CLIP; BAND,STARTER RELAY (B) ID=13-18 L=14.5 CHI	1-09709-290-0	01	1	1404-
341	CLIP; BAND,STARTER RELAY (A) L=250 CHI	5-09707-030-1	01	1	1404-
369	CLIP; BAND EDS HARNESS L=350 CHI	1-09707-183-0	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41 CHI	1-09700-403-0	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6 CHI	1-09709-178-0	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (C) L=250 CHI	5-09707-030-1	01	1	1404-
470	CLIP; HARNESS,LICENSE LAMP (D) ID=8 L=38	9-09917-424-0	01	1	1404-
530	SEAL; HARNESS 180X40 CHI	1-72498-019-1	16	1	1404-
538	SEAL; HOLE OD=25 BLACK CHI	1-76798-019-0	02	1	1404-
612	CLIP; HARNESS DPD (A) L=350 CHI	1-09707-183-0	01	1	1404-
612	CLIP; HARNESS DPD (B) ID=5-12 L=18 CHI	1-09709-287-0	01	1	1404-
612	CLIP; HARNESS DPD (C) ID=5-12 L=26 CHI	1-09709-289-0	01	1	1404-

53 53 53 53 53 53 53 53 53 53 335 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (A) CHI	1-47479-537-0	05	1	1404-
53	BRACKET; HARNESS (A) CHI	1-47479-537-0	06	1	1404-
53	BRACKET; HARNESS (D) CHI	8-97430-874-0	01	1	1404-
53	BRACKET; HARNESS (E) CHI	8-97430-877-0	01	1	1404-
53	BRACKET; HARNESS (F) CHI	8-97430-943-0	01	1	1404-
53	BRACKET; HARNESS (G) CHI	8-97430-944-0	01	1	1404-
53	BRACKET; HARNESS (H) CHI	8-97431-240-0	01	1	1404-
53	BRACKET; HARNESS (I)	8-97611-413-0	01	1	1404-
53	BRACKET; HARNESS (C) CHI	8-98052-458-0	01	1	1404-
53	BRACKET; HARNESS (B) CHI	8-98124-778-0	01	1	1404-
53	BRACKET; HARNESS (J) L=68 CHI	1-47475-525-0	01	1	1404-
335	BRACKET; CONNECTOR CHI	8-97430-873-0	01	1	1404-
342	BRACKET; HARNESS CAB MTG (B) L=90 B=25 CHI	1-47475-530-0	01	1	1404-
342	BRACKET; HARNESS CAB MTG (A) L=120 H=35 CHI	1-82698-088-0	01	1	1404-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
