Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

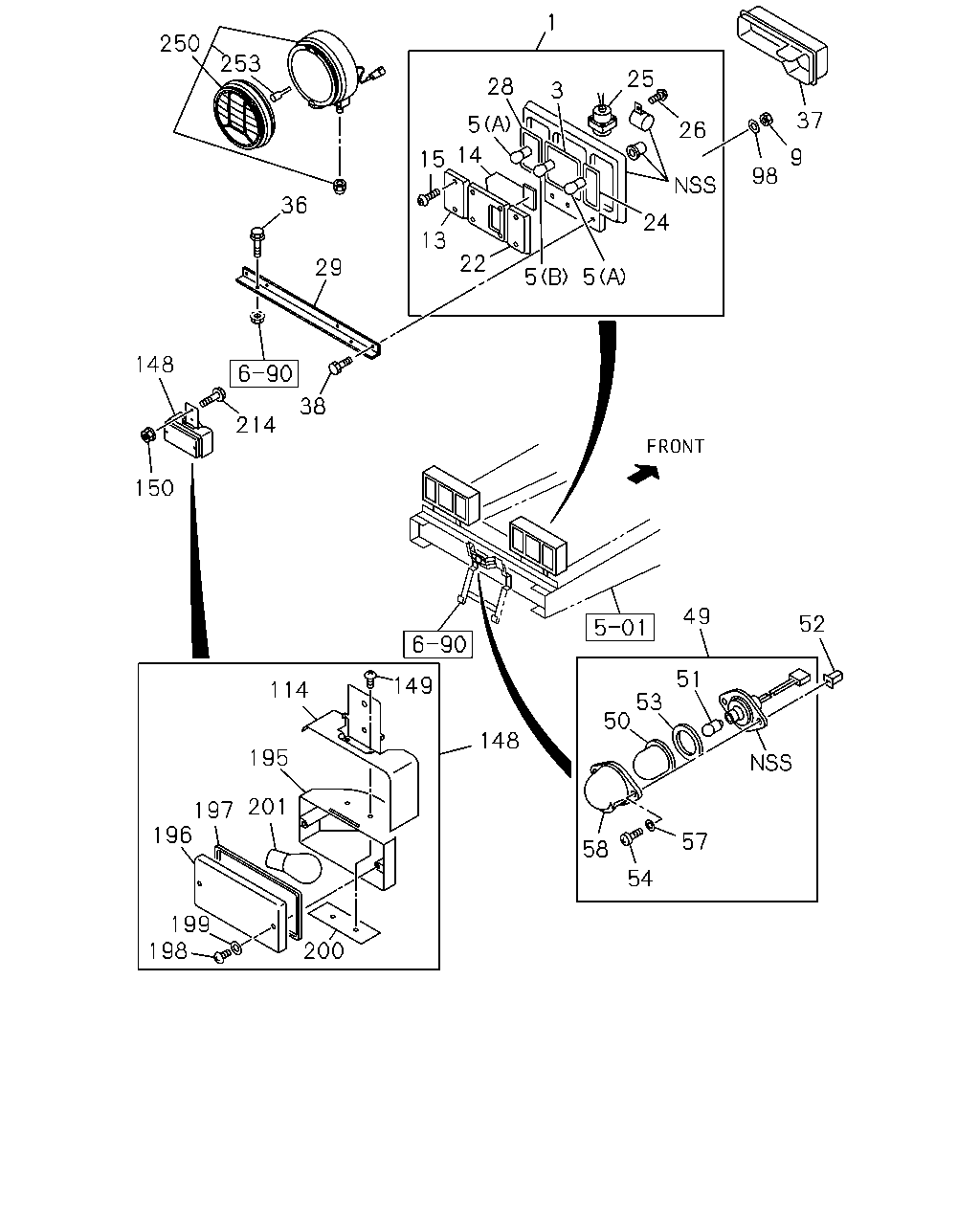

8-03 — LAMP; REAR AND REAR SIDE
(#144854) — 45 parça
1
28
3
25
26
37
9
98
24
5
5
22
13
15
14
5
36
253
250
29
148
214
38
150
114
149
195
201
197
196
199
198
200
148
50
53
51
52
57
54
58
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
CHI
1-82230-209-0
01
1
1404-
1
LAMP ASM; RR COMB
CHI
1-82230-208-0
01
1
1404-
3
GASKET; RR COMB LAMP
CHI
8-94257-505-0
02
1
1404-
5
BULB; RR COMB LAMP
(A) 24V 21W CHI
1-82194-036-0
04
1
1404-
5
BULB; RR COMB LAMP
(B) 24V 21/5W CHI
1-82194-038-0
02
1
1404-
9
NUT; LAMP,RR COMB
M6 CHI
0-91110-506-0
04
1
1404-
13
LENS; TURN SIGNAL
CHI
8-94174-638-0
01
1
1404-
13
LENS; TURN SIGNAL
CHI
8-94174-639-0
01
1
1404-
14
LENS; TAIL & STOP,RR COMB LAMP
CHI
8-94178-624-0
01
1
1404-
14
LENS; TAIL & STOP,RR COMB LAMP
CHI
8-94178-625-0
01
1
1404-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
16
1
1404-
22
LENS; BACKUP,RR COMB LAMP
CHI
8-94257-512-1
02
1
1404-
24
GASKET; BACK,LAMP
CHI
8-94257-506-0
02
1
1404-
25
HORN ASM; BACK
CHI
8-94257-518-0
01
1
1404-
26
SCREW; BACK HORN
M4X12 TAPPING
9-07076-412-0
02
1
1404-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
1404-
28
GASKET; TURN,LAMP
CHI
8-94257-507-0
02
1
1404-
29
BRACKET; LAMP,RR COMB
CHI
1-53178-016-1
01
1
1404-
36
BOLT; BRKT,RR COMB
M10X40 FLANGE CHI
0-28651-040-0
02
1
1404-
37
COVER; RR COMB LAMP
CHI
1-82239-008-0
01
1
1404-
37
COVER; RR COMB LAMP
CHI
1-82239-007-0
01
1
1404-
38
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER CHI
0-50640-630-0
04
1
1404-
49
LAMP; LICENSE PLATE
24V 10W CHI
1-82120-024-1
01
1
1404-
50
LENS; LICENSE PLATE LAMP
CHI
1-82235-006-0
01
1
1404-
51
BULB; LICENSE PLATE LAMP
24V 10W CHI
1-82194-037-0
01
1
1404-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK CHI
8-94275-946-0
02
1
1404-
53
GASKET; LICENSE LAMP
CHI
1-82126-005-0
01
1
1404-
54
SCREW; LICENSE PLATE LAMP
M5X20 CHI
1-82129-007-0
02
1
1404-
57
WASHER; PL,LICENSE PLATE LAMP
CHI
1-82129-008-0
02
1
1404-
58
COVER; LICENSE PLATE LAMP
CHI
1-82129-005-0
01
1
1404-
98
WASHER
ID=6.4 OD=18 CHI
0-91610-706-0
04
1
1404-
114
BRACKET; RR FOG LAMP
CHI
8-97108-583-0
01
1
1404-
148
LAMP ASM; RR FOG
CHI
1-82110-477-0
01
1
1404-
149
SCREW; BRKT TO LAMP BODY
CHI
8-94336-372-0
02
1
1404-
150
NUT; RR FOG LAMP
M6 FLANGE
5-09440-004-0
01
1
1404-
195
LAMP UNIT; RR FOG
CHI
8-94336-322-0
01
1
1404-
196
LENS; RR FOG LAMP
CHI
8-94336-325-0
01
1
1404-
197
GASKET; RR FOG LAMP
CHI
8-94336-324-0
01
1
1404-
198
SCREW; LENS TO BODY
0-71190-416-0
02
1
1404-
199
WASHER; LENS,RR FOG LAMP
CHI
8-94336-326-0
02
1
1404-
200
PLATE; SET,RR FOG LAMP
CHI
8-94336-323-0
01
1
1404-
201
BULB; RR FOG LAMP
24V 21W CHI
1-82194-036-0
01
1
1404-
214
BOLT; RR FOG LAMP
M6X20 FLANGE CHI
0-28650-620-0
01
1
1404-
250
LAMP ASM; SEARCH LIGHT
1-82180-014-0
01
1
1404-
253
BULB; SEARCH LIGHT
24V 70W
1-82194-087-0
01
1
1404-
