◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11601 - GXR(LHD)CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#144850) — 119 parça

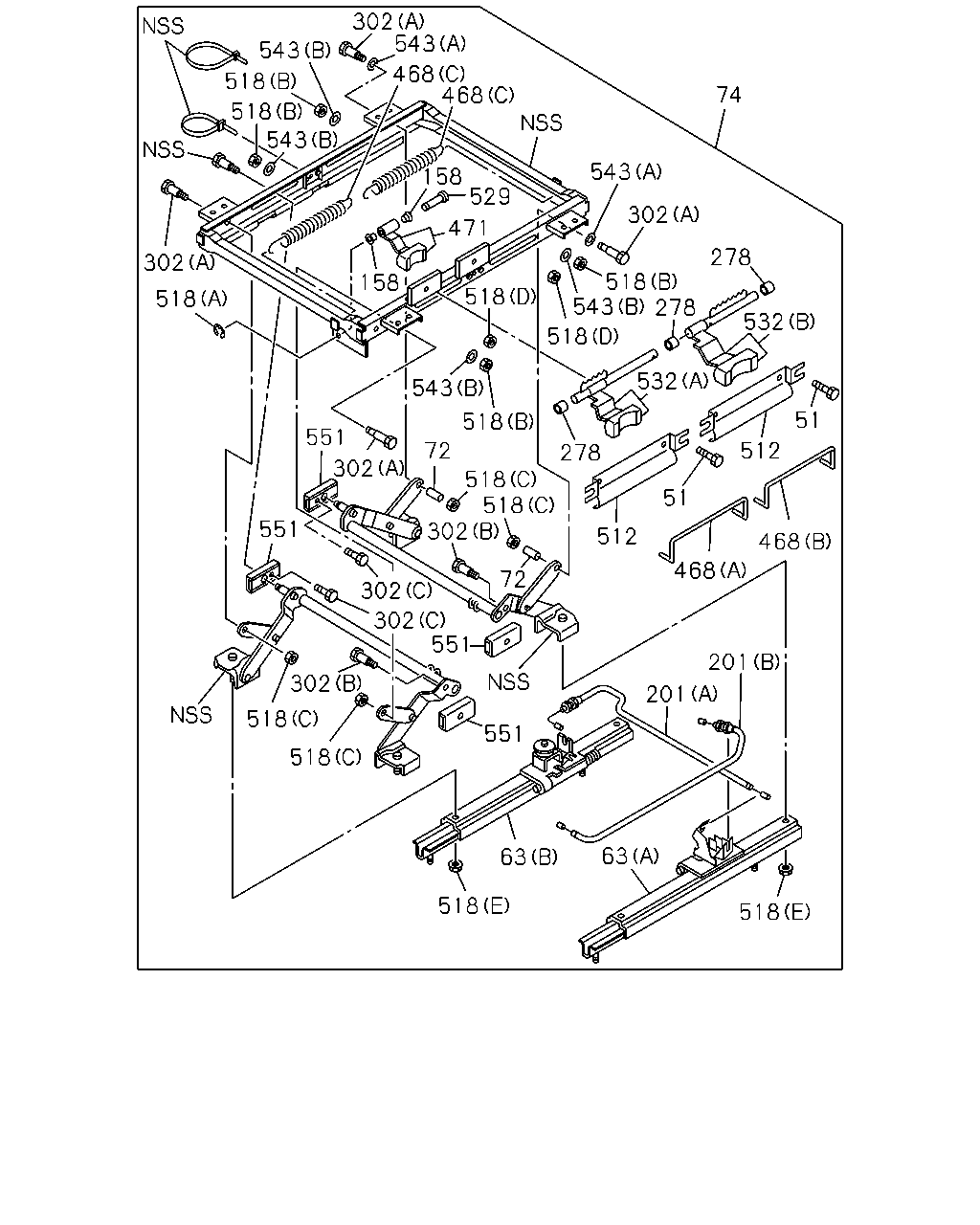

çizim 432740
518 63 63 518 518 518 302 551 201 201 468 468 51 512 512 51 532 532 278 278 278 518 543 518 518 543 518 518 72 302 72 551 302 302 551 551 302 518 158 518 302 543 518 518 543 302 543 468 468 158 471 302 543 74 529
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
CHI 		1-75518-325-1 04 1 1404-
63 ADJUSTER; SEAT SLIDE
(B) CHI 		1-75518-227-1 01 1 1404-
63 ADJUSTER; SEAT SLIDE
(A) CHI 		1-75518-324-0 01 1 1404-
72 SPACER; SEAT ADJ
CHI 		1-75518-334-1 02 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
CHI 		8-98093-429-0 01 1 1404-
158 BUSHING; LINK ARM
CHI 		1-75518-209-0 02 1 1404-
201 CABLE; ADJ
(A) L=667 CHI 		1-75518-288-0 01 1 1404-
201 CABLE; ADJ
(B) L=605 CHI 		1-75518-289-1 01 1 1404-
278 COLLAR; FRT SEAT
CHI 		1-75518-244-0 03 1 1404-
302 BOLT; ADJ,HEIGHT CONT
(B) CHI 		1-75518-266-2 02 1 1404-
302 BOLT; ADJ,HEIGHT CONT
(A) CHI 		1-75518-270-1 04 1 1404-
302 BOLT; ADJ,HEIGHT CONT
(C) CHI 		1-75518-336-1 02 1 1404-
468 SPRING; RETURN
(C) CHI 		1-75518-208-0 02 1 1404-
468 SPRING; RETURN
(A) CHI 		1-75518-206-0 01 1 1404-
468 SPRING; RETURN
(B) CHI 		1-75518-207-0 01 1 1404-
468 SPRING; RETURN
(D) CHI 		1-75538-132-0 01 1 1404-
471 LEVER; SEAT ADJ
CHI 		8-98107-870-0 01 1 1404-
512 COVER; LEVER
CHI 		1-75518-245-1 02 1 1404-
518 NUT; TILT ADJ
(E) M8 FLANGE CHI 		1-75538-207-0 04 1 1404-
518 NUT; TILT ADJ
(A) CHI 		1-75518-263-0 01 1 1404-
518 NUT; TILT ADJ
(D) M6 LOCK NUT CHI 		5-09984-020-0 02 1 1404-
518 NUT; TILT ADJ
(C) M8 FLANGE CHI 		8-94152-886-0 04 1 1404-
518 NUT; TILT ADJ
(B) CHI 		1-75518-264-0 04 1 1404-
529 PIN; LINK
CHI 		1-75518-262-0 01 1 1404-
532 LEVER ASM; TILT
(A) CHI 		1-75518-221-0 01 1 1404-
532 LEVER ASM; TILT
(B) CHI 		1-75518-222-1 01 1 1404-
543 WASHER; HEIGHT ADJUSTER
(B) CHI ID=8.4 		9-09160-508-0 04 1 1404-
543 WASHER; HEIGHT ADJUSTER
(A) CHI 		1-75518-335-0 02 1 1404-
551 SLIDER; HEIGHT ADJ
CHI 		1-75518-265-0 04 1 1404-

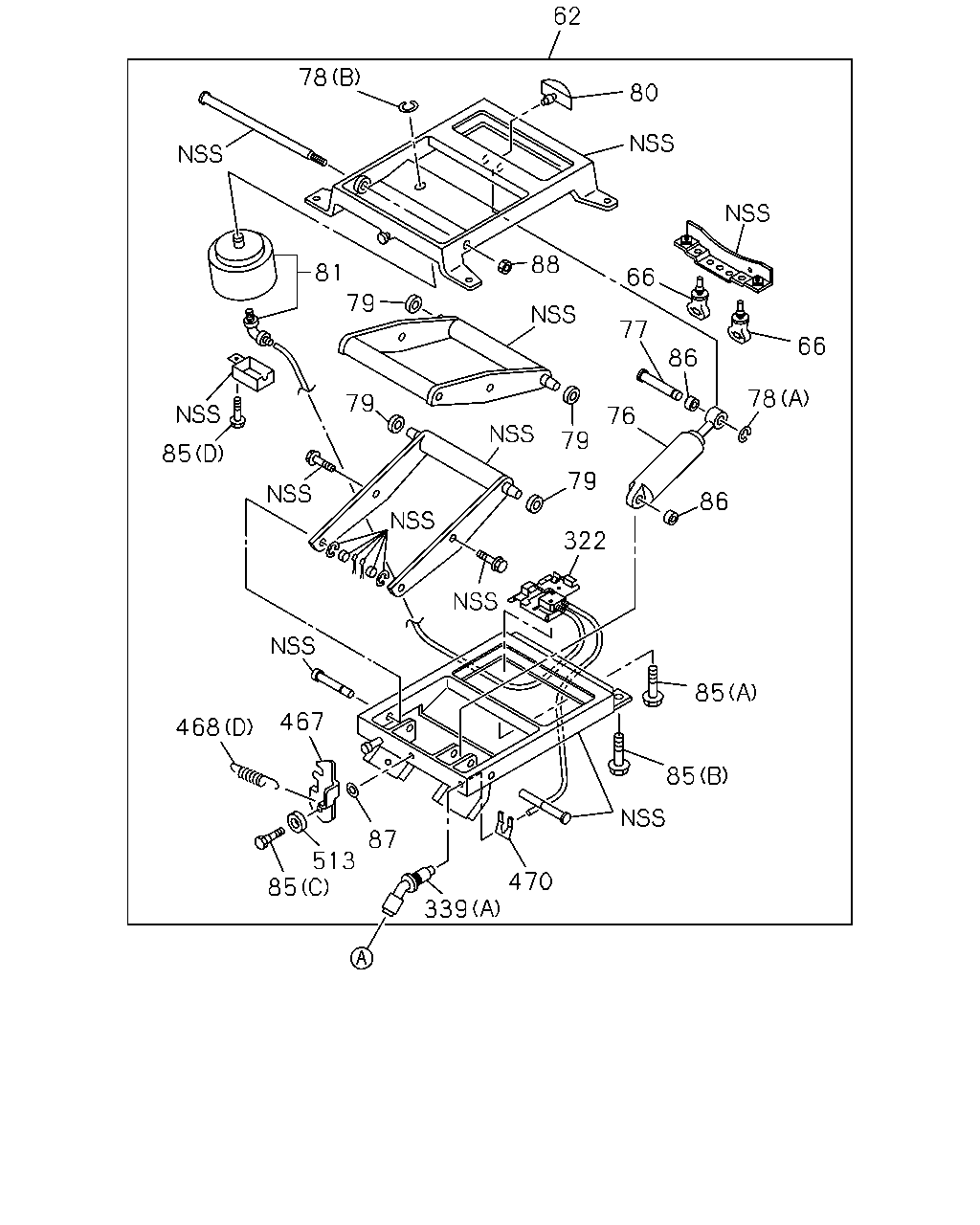

çizim 433487
339 470 85 85 86 78 66 76 79 79 322 87 513 85 468 467 85 79 79 81 88 66 80 62 78 86 77
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
CHI 		1-75538-185-9 01 1 1404-
66 RUBBER; LWR STOPPER
CHI 		1-75538-145-0 02 1 1404-
76 DAMPER; AIR SUSP
CHI 		1-75538-139-0 01 1 1404-
77 PIN; DAMPER
CHI 		1-75538-138-2 01 1 1404-
78 RING; SNAP
(B) CHI ID=15 		9-09185-415-0 01 1 1404-
78 RING; SNAP
(A) CHI ID=8 		9-09185-408-0 01 1 1404-
79 ROLLER ASM; AIR SUSP
CHI 		1-75538-159-0 04 1 1404-
80 RUBBER; STOPPER
CHI 		1-09987-123-0 01 1 1404-
81 SPRING; AIR
CHI 		8-98242-816-0 01 1 1404-
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER CHI 		1-75538-209-0 02 1 1404-
85 BOLT; AIR SUSP
(C) CHI 		1-09980-577-1 01 1 1404-
85 BOLT; AIR SUSP
(A) CHI 		1-75538-208-1 02 1 1404-
85 BOLT; AIR SUSP
(D) M8X25 W/LK&PL WASHER CHI 		8-98243-394-0 01 1 1404-
86 BUSHING; GUIDE
CHI OD=6.2 LIGHT GRAY CHI 		1-09983-173-1 02 1 1404-
87 WASHER; AIR SUSP
CHI ID=8.2 CHI 		0-91510-508-0 01 1 1404-
88 NUT; AIR SUSP
CHI CHI 		1-75537-273-1 01 1 1404-
322 VALVE; AIR SPRING
CHI 		1-75538-187-3 01 1 1404-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) FULL FLOATING CAB<W16> (B) 		8-98222-114-0 01 1 1404-
339 UNION; DRIVER SEAT
(A) CHI 		1-75538-131-3 01 1 1404-
467 LEVER; LOCK
CHI 		1-75538-134-0 01 1 1404-
468 SPRING; RETURN
(C) CHI 		1-75518-208-0 02 1 1404-
468 SPRING; RETURN
(A) CHI 		1-75518-206-0 01 1 1404-
468 SPRING; RETURN
(B) CHI 		1-75518-207-0 01 1 1404-
468 SPRING; RETURN
(D) CHI 		1-75538-132-0 01 1 1404-
470 CLIP; HOSE
CHI 		1-75538-137-0 01 1 1404-
513 SPACER; LEVER
CHI 		1-75538-133-0 01 1 1404-
çizim 433669
595 339 632
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT(A56) FULL FLOATING CAB<W16> (B) 		8-98222-114-0 01 1 1404-
339 UNION; DRIVER SEAT
(A) CHI 		1-75538-131-3 01 1 1404-
595 TUBE; NYLON
AIR SUSP DRIVER SEAT(A56) CHI 		8-97430-788-0 01 1 1404-
632 GROMMET
RIGID SEAT WO/ARM REST(TAZ) EXC. FULL FLOATING CAB<W16> OD=24 CHI 		8-94119-796-0 01 1 1404-

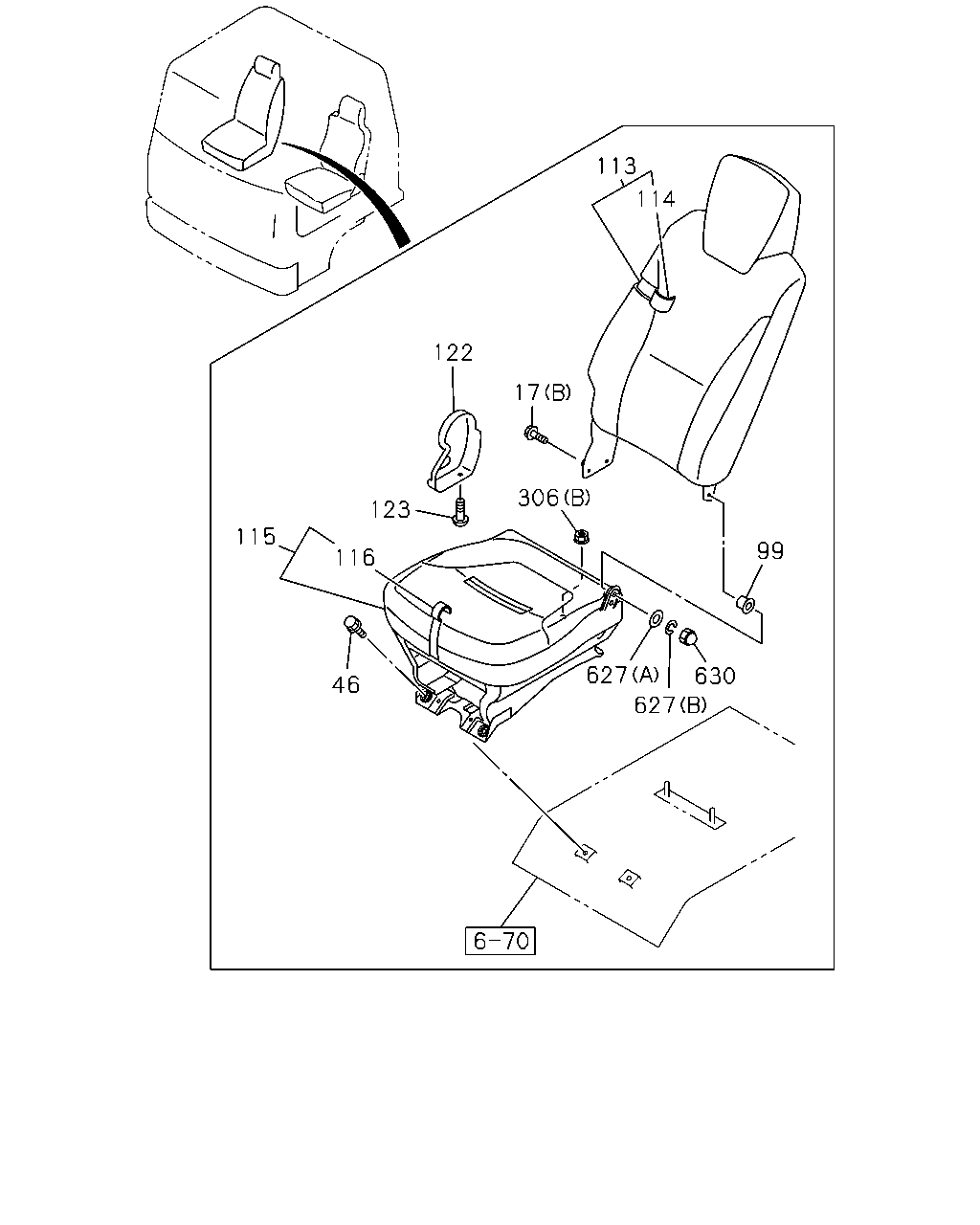

çizim 433702
627 627 630 99 306 123 116 115 46 122 17 114 113
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(A) M10X20 CHI 		8-98062-661-0 02 1 1404-
17 BOLT; RECLINING
(B) CHI 		8-98092-334-0 02 1 1404-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE CHI 		0-28451-020-0 02 1 1404-
99 BUSHING; SEAT BACK
CHI CHI 		8-98112-751-0 01 1 1404-
113 BACK ASM; SEAT
CHI DARK GRAY 		8-97421-423-0 01 1 1404-
114 COVER; TRIM,PASSENGER SEAT,BACK
CHI DARK GRAY 		8-97421-425-0 01 1 1404-
115 CUSHION ASM; PASSENGER SEAT
CHI DARK GRAY 		8-97421-419-0 01 1 1404-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
CHI DARK GRAY 		8-97421-421-0 01 1 1404-
122 COVER; ADJ,RECLINING
CHI GRAY 		8-97414-043-0 01 1 1404-
123 SCREW; COVER,RECLINING
CHI 		8-98070-026-0 01 1 1404-
306 NUT; SEAT ADJ
(B) M10 FLANGE CHI 		0-91180-110-0 02 1 1404-
306 NUT; SEAT ADJ
(A) M8 FLANGE CHI 		1-75538-207-0 06 1 1404-
627 WASHER; FRT SEAT
(A) CHI 		8-98063-223-0 01 1 1404-
627 WASHER; FRT SEAT
(B) CHI 		8-98063-224-0 01 1 1404-
630 NUT; CAP
M8 CHI 		8-98063-225-0 01 1 1404-
çizim 433772
188 188 16 176 175 360 506 359 126 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
CHI 		1-75418-062-1 01 1 1404-
126 BUSHING; HINGE,RECLINING
(A) CHI 		8-98063-218-0 01 1 1404-
126 BUSHING; HINGE,RECLINING
(B) CHI 		8-97854-900-0 01 1 1404-
175 BACK ASM; PASSENGER CENTER SEAT
CHI DARK GRAY 		8-97421-434-1 01 1 1404-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CHI DARK GRAY 		8-97421-435-1 01 1 1404-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CHI DARK GRAY 		8-97421-433-0 01 1 1404-
182 CUSHION ASM; CENTER SEAT
CHI DARK GRAY 		8-97421-431-2 01 1 1404-
188 BOLT; BACK TO CUSHION
M10X16 FLANGE CHI 		1-75198-053-0 04 1 1404-
359 BOX; PARCEL
CHI GRAY 		8-97417-261-0 01 1 1404-
360 SCREW; PARCEL
(B) M4X16 CHI 		0-70040-416-0 06 1 1404-
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD CHI 		0-70040-514-0 02 1 1404-
360 SCREW; PARCEL
(C) M5 CHI 		8-98062-663-0 04 1 1404-
403 NUT; CENTER SEAT
M8 FLANGE CHI 		0-91180-108-0 04 1 1404-
506 CAP; PARCEL BOX
CHI GRAY 		8-97409-980-1 02 1 1404-

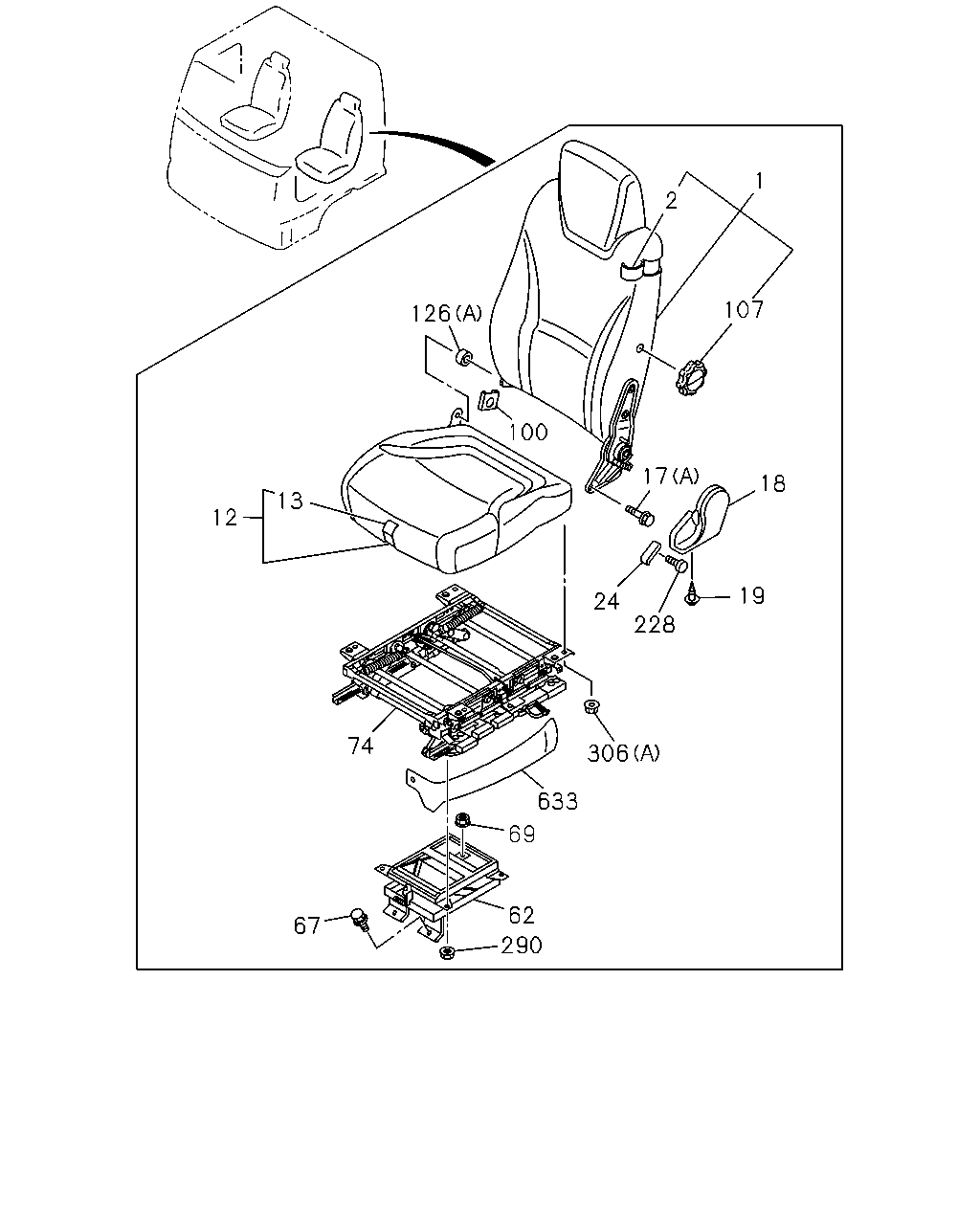

çizim 433846
290 62 69 633 67 74 306 228 24 19 18 17 107 1 2 126 100 13 12
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
DARK GRAY CHI 		8-97421-408-1 01 1 1404-
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY CHI 		8-97421-413-0 01 1 1404-
12 CUSHION; SEAT,FRT
DARK GRAY CHI 		8-97421-400-0 01 1 1404-
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY CHI 		8-97421-404-0 01 1 1404-
17 BOLT; RECLINING
(A) M10X20 CHI 		8-98062-661-0 02 1 1404-
17 BOLT; RECLINING
(B) CHI 		8-98092-334-0 02 1 1404-
18 COVER; RECLINING
GRAY CHI 		8-97409-361-0 01 1 1404-
19 SCREW; COVER
M5 CHI 		8-98062-663-0 01 1 1404-
24 KNOB; RECLINING,FRT,SEAT
GRAY CHI 		8-97409-362-0 01 1 1404-
62 DAMPER ASM; SEAT SUSP
CHI 		1-75538-185-9 01 1 1404-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE CHI 		0-28451-020-0 02 1 1404-
69 NUT; FRT SEAT
M10 FLANGE CHI 		0-91180-110-0 02 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
CHI 		8-98093-429-0 01 1 1404-
100 COVER; HINGE
CHI CHI 		8-98203-070-0 01 1 1404-
107 DIAL; SEAT RECLINING
CHI CHI 		8-98063-174-0 01 1 1404-
126 BUSHING; HINGE,RECLINING
(A) CHI 		8-98063-218-0 01 1 1404-
126 BUSHING; HINGE,RECLINING
(B) CHI 		8-97854-900-0 01 1 1404-
228 SCREW; KNOB
M4 CHI 		8-98062-662-0 01 1 1404-
290 NUT; ADJ TO SUSP
M8 FLANGE CHI 		1-75538-207-0 04 1 1404-
306 NUT; SEAT ADJ
(B) M10 FLANGE CHI 		0-91180-110-0 02 1 1404-
306 NUT; SEAT ADJ
(A) M8 FLANGE CHI 		1-75538-207-0 06 1 1404-
633 COVER; ADJ,TILT
GRAY CHI 		8-97414-118-0 01 1 1404-

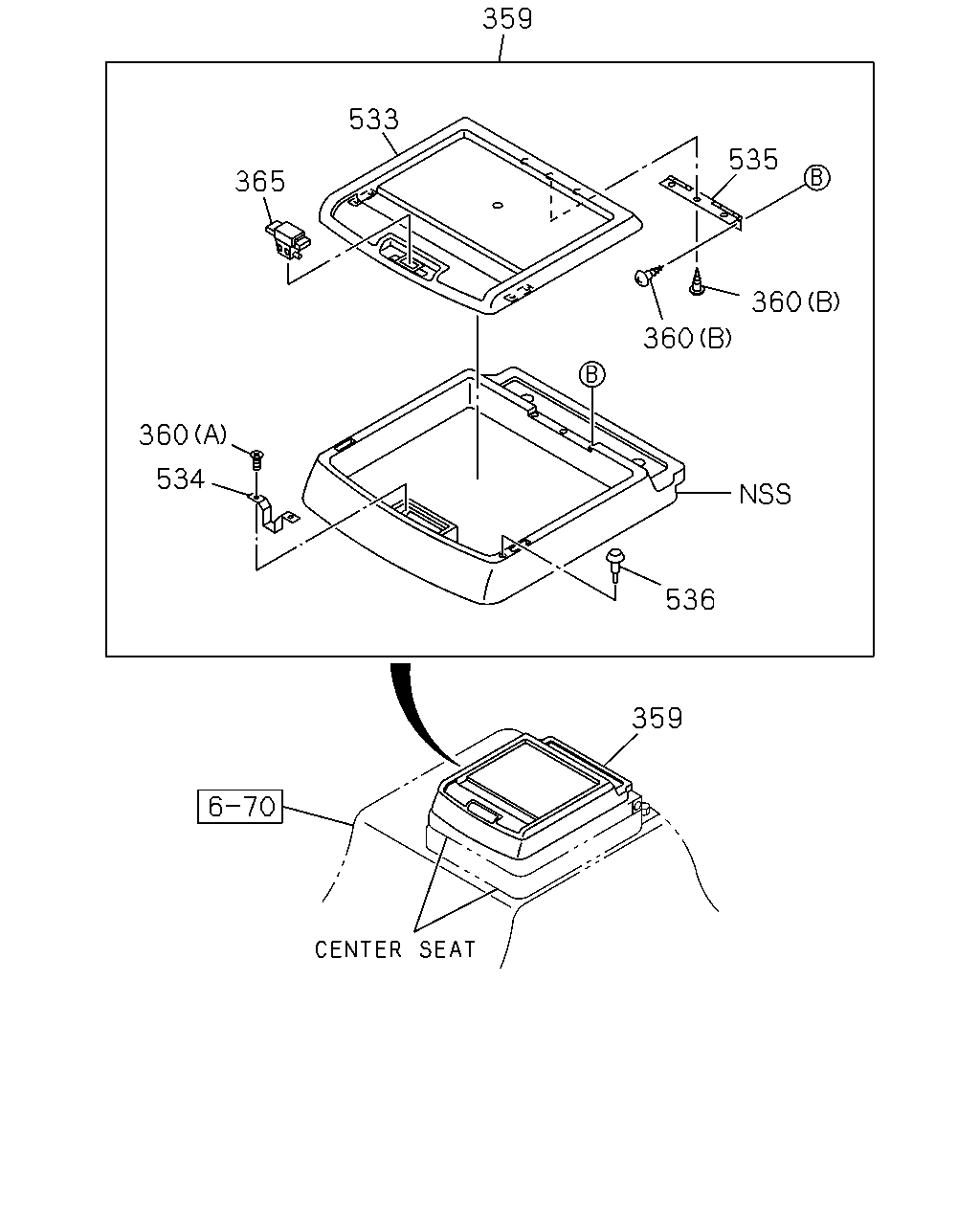

çizim 433888
359 533 365 360 534 535 360 360 536 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
CHI GRAY 		8-97417-261-0 01 1 1404-
360 SCREW; PARCEL
(B) M4X16 CHI 		0-70040-416-0 06 1 1404-
360 SCREW; PARCEL
(A) M5X14 TAPPING CK-HEAD CHI 		0-70040-514-0 02 1 1404-
360 SCREW; PARCEL
(C) M5 CHI 		8-98062-663-0 04 1 1404-
365 LOCK ASM; SEAT
CHI 		1-72538-312-0 01 1 1404-
533 LID; PARCEL BOX
CHI GRAY 		8-97417-263-0 01 1 1404-
534 STRIKER; PARCEL BOX
CHI 		1-72538-190-0 01 1 1404-
535 HINGE; PARCEL BOX
CHI 		1-72447-391-1 01 1 1404-
536 RUBBER; CUSHION
CHI 		1-72538-187-0 02 1 1404-
