Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#144848) — 66 parça

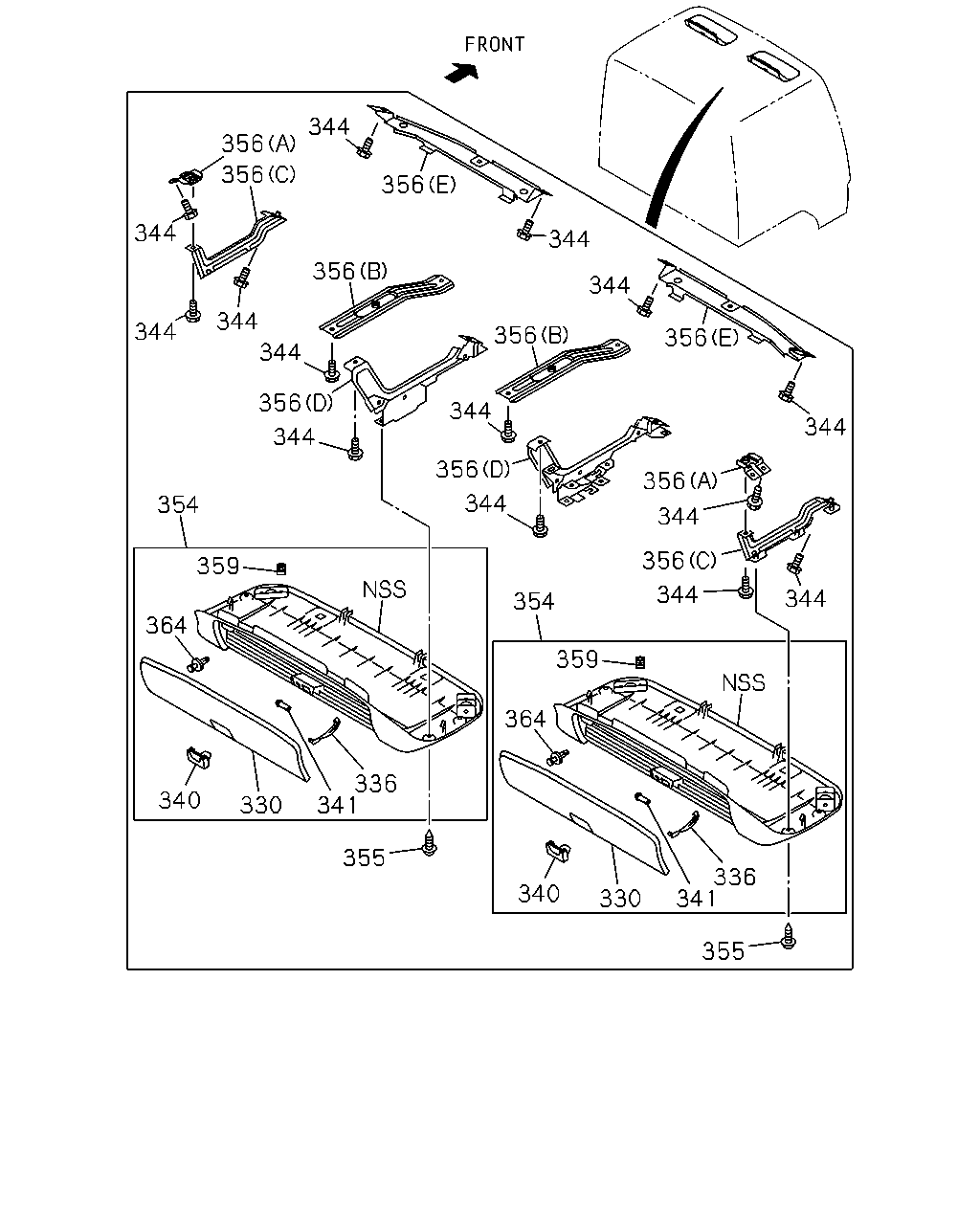

344 356 344 344 356 344 356 344 356 356 344 344 344 344 356 344 356 344 344 356 344 344 354 359 364 340 330 336 341 355 354 359 364 340 330 341 355 336 356 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
330	LID; HEADER SHELF DARK GRAY CHI	8-97407-834-1	02	1	1404-
330	LID; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY CHI	8-97407-834-1	02	1	1404-
336	STAY; LID CHI	1-72448-379-3	02	1	1404-
336	STAY; LID HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI	1-72448-379-3	02	1	1404-
340	LOCK; HEADER SHELF CHI	1-72448-376-0	01	1	1404-
340	LOCK; HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI	1-72448-376-0	01	1	1404-
341	HINGE; LID,HEADER SHELF CHI	8-98025-428-2	02	1	1404-
341	HINGE; LID,HEADER SHELF HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI	8-98025-428-2	02	1	1404-
344	BOLT; BRKT,FRT M6X12 FLANGE CHI	8-97108-669-0	12	1	1404-
344	BOLT; BRKT,FRT HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE CHI	8-97108-669-0	08	1	1404-
354	TRAY; HEADER ROOF DARK GRAY CHI	8-97407-386-5	01	1	1404-
354	TRAY; HEADER ROOF HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY CHI	8-97407-386-5	01	1	1404-
355	SCREW; TRAY T25 M5X16 TAPPING HEXALOBULAR CHI	0-72380-516-0	04	1	1404-
355	SCREW; TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG> T25 M5X16 TAPPING HEXALOBULAR CHI	0-72380-516-0	04	1	1404-
356	BRACKET; ROOF OUTER (A) CHI	8-97386-874-1	01	1	1404-
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) CHI	8-97386-874-1	01	1	1404-
356	BRACKET; ROOF OUTER (B) CHI	8-98010-059-0	01	1	1404-
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) CHI	8-98010-059-0	01	1	1404-
356	BRACKET; ROOF OUTER (C) CHI	8-98016-871-3	01	1	1404-
356	BRACKET; ROOF OUTER (D) CHI	8-98042-009-2	01	1	1404-
356	BRACKET; ROOF OUTER (E) CHI	8-98042-016-3	01	1	1404-
356	BRACKET; ROOF OUTER (E) CHI	8-98042-015-3	01	1	1404-
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) CHI	8-98014-088-3	01	1	1404-
356	BRACKET; ROOF OUTER HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) CHI	8-98023-257-2	01	1	1404-
359	HOLDER; HEADER TRAY CHI	8-98041-754-0	04	1	1404-
359	HOLDER; HEADER TRAY HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI	8-98041-754-0	04	1	1404-
364	STOPPER; LID CHI	8-98010-867-1	03	1	1404-
364	STOPPER; LID HEADER CONSOLE DRIVER & PASSENGER<EDG> CHI	8-98010-867-1	03	1	1404-

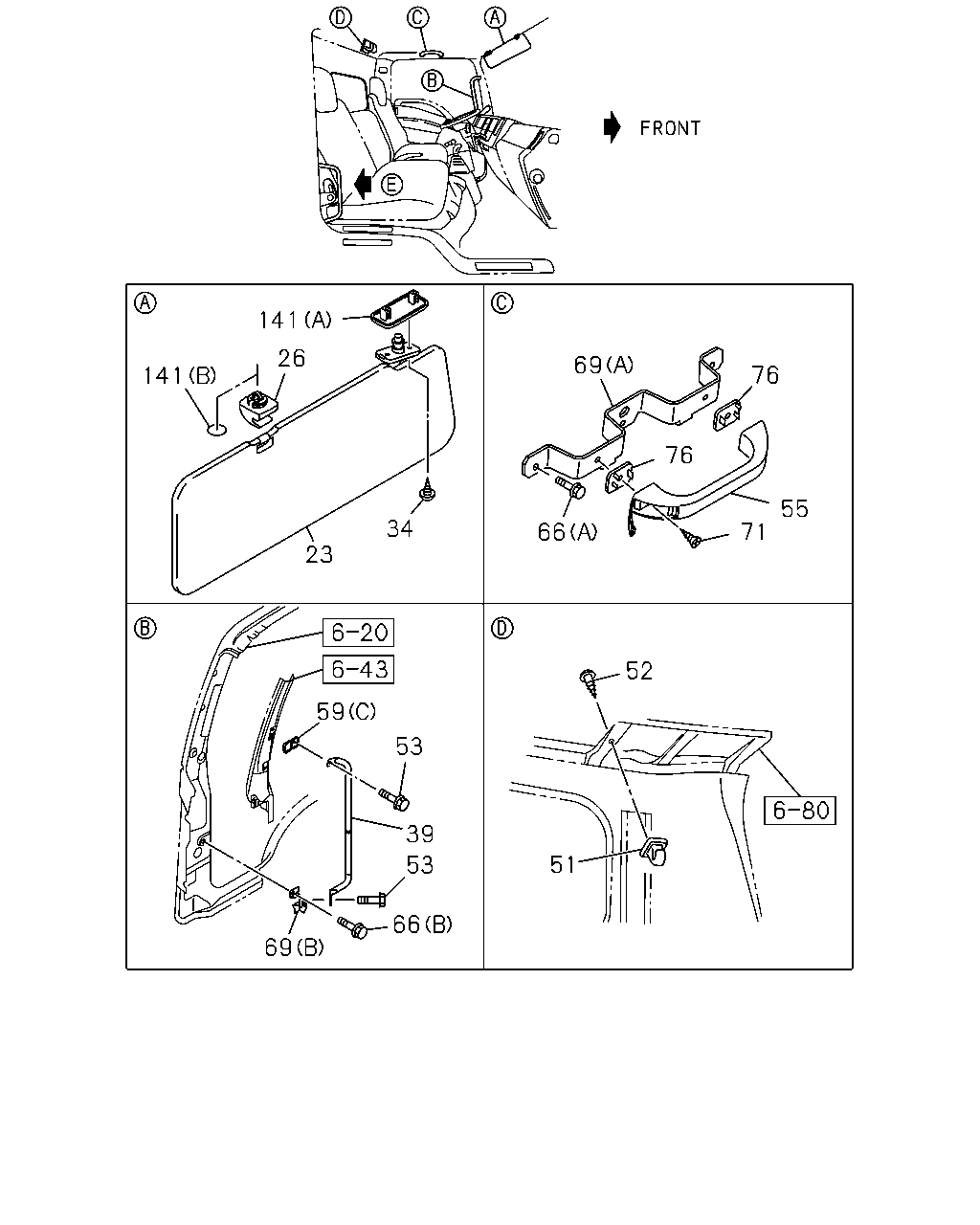

141 141 26 23 34 66 71 55 76 76 69 59 53 39 53 66 69 51 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR DARK GRAY CHI	8-97405-170-3	01	1	1404-
23	SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY CHI	8-97407-373-2	01	1	1404-
26	HOLDER; SUN VISOR DARK GRAY CHI	8-97405-171-0	01	1	1404-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20> DARK GRAY CHI	8-97405-171-0	01	1	1404-
34	SCREW; SUN VISOR M6X26 CHI	8-98033-674-0	04	1	1404-
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X26 CHI	8-98033-674-0	02	1	1404-
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 CHI	8-98033-674-0	02	1	1404-
34	SCREW; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26 CHI	8-98033-674-0	02	1	1404-
39	HANDLE; ASSIST,A-POST CHI	8-97431-084-0	01	1	1404-
39	HANDLE; ASSIST,A-POST CHI	8-97431-083-0	01	1	1404-
51	HOOK; COAT HANGER DARK GRAY CHI	8-97409-845-0	02	1	1404-
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD CHI	0-70540-420-0	02	1	1404-
53	SCREW; ASSIST HANDLE M8X16 FLANGE CHI	0-28050-816-0	02	1	1404-
53	SCREW; ASSIST HANDLE M8X20 FLANGE CHI	0-28650-820-0	02	1	1404-
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY CHI	8-97405-285-2	01	1	1404-
59	COVER; ASSIST GRIP (B) CHI	1-71998-789-2	02	1	1404-
59	COVER; ASSIST GRIP (A) CHI	1-71998-790-2	02	1	1404-
59	COVER; ASSIST GRIP (C) DARK GRAY CHI	8-97407-417-1	02	1	1404-
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE CHI	0-28050-816-0	03	1	1404-
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE CHI	8-97108-669-0	06	1	1404-
69	BRACKET; ASSIST GRIP (A) CHI	8-98014-094-0	02	1	1404-
69	BRACKET; ASSIST GRIP (B) CHI	8-98057-973-3	01	1	1404-
71	SCREW M6X28 CHI	8-98004-344-0	02	1	1404-
76	SPACER; ASSIST GRIP DARK GRAY CHI	8-97405-286-0	02	1	1404-
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY CHI	8-97408-029-0	01	1	1404-
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY CHI	8-97408-029-0	01	1	1404-
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY CHI	8-97408-029-0	01	1	1404-
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY CHI	8-97408-030-0	01	1	1404-
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY CHI	8-97408-030-0	01	1	1404-
141	COVER; SUN VISOR HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY CHI	8-97408-030-0	01	1	1404-

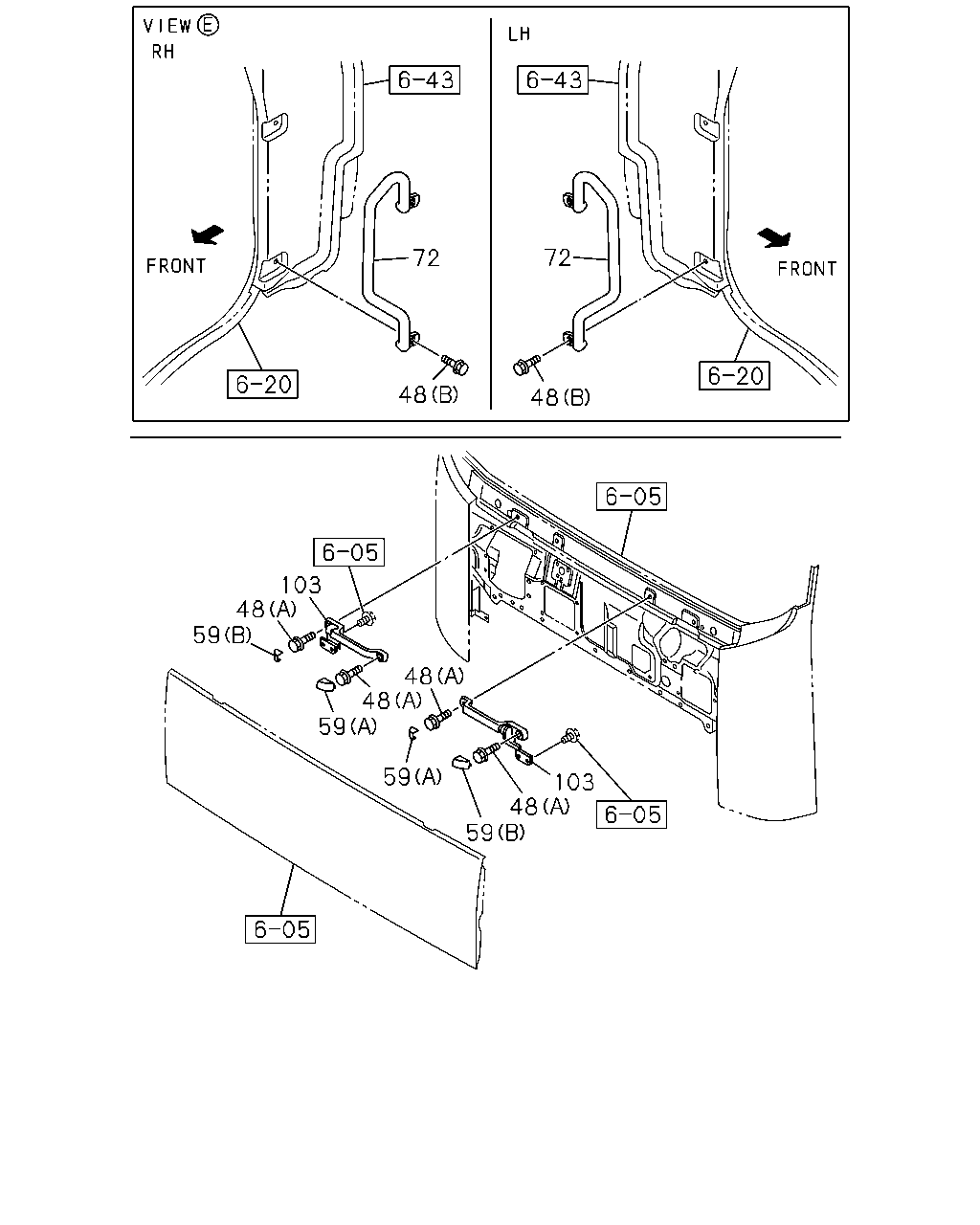

72 72 48 48 103 48 59 59 59 48 48 59 103 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE CHI	0-28060-816-0	04	1	1404-
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE CHI	0-28660-830-0	04	1	1404-
59	COVER; ASSIST GRIP (B) CHI	1-71998-789-2	02	1	1404-
59	COVER; ASSIST GRIP (A) CHI	1-71998-790-2	02	1	1404-
59	COVER; ASSIST GRIP (C) DARK GRAY CHI	8-97407-417-1	02	1	1404-
72	GRIP; ASSIST,CAB ENTRY,BACK CHI	8-97386-939-0	02	1	1404-
103	GRIP; ASSIST,FRT PNL CHI	8-98036-565-1	01	1	1404-
103	GRIP; ASSIST,FRT PNL CHI	8-98036-566-1	01	1	1404-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
