Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#144846) — 100 parça
◀

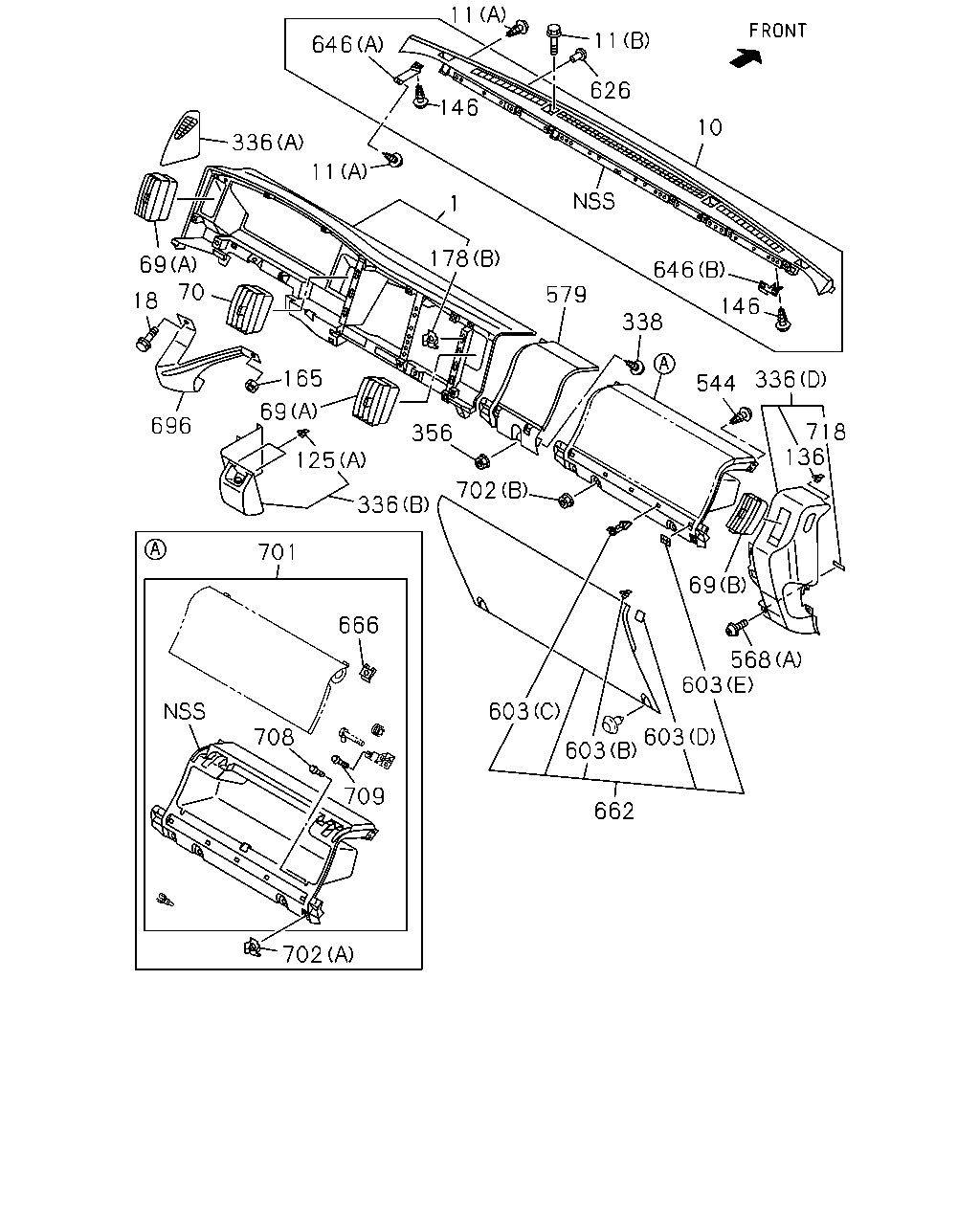

[740A] PANEL AND OTHER PARTS (42 parça)

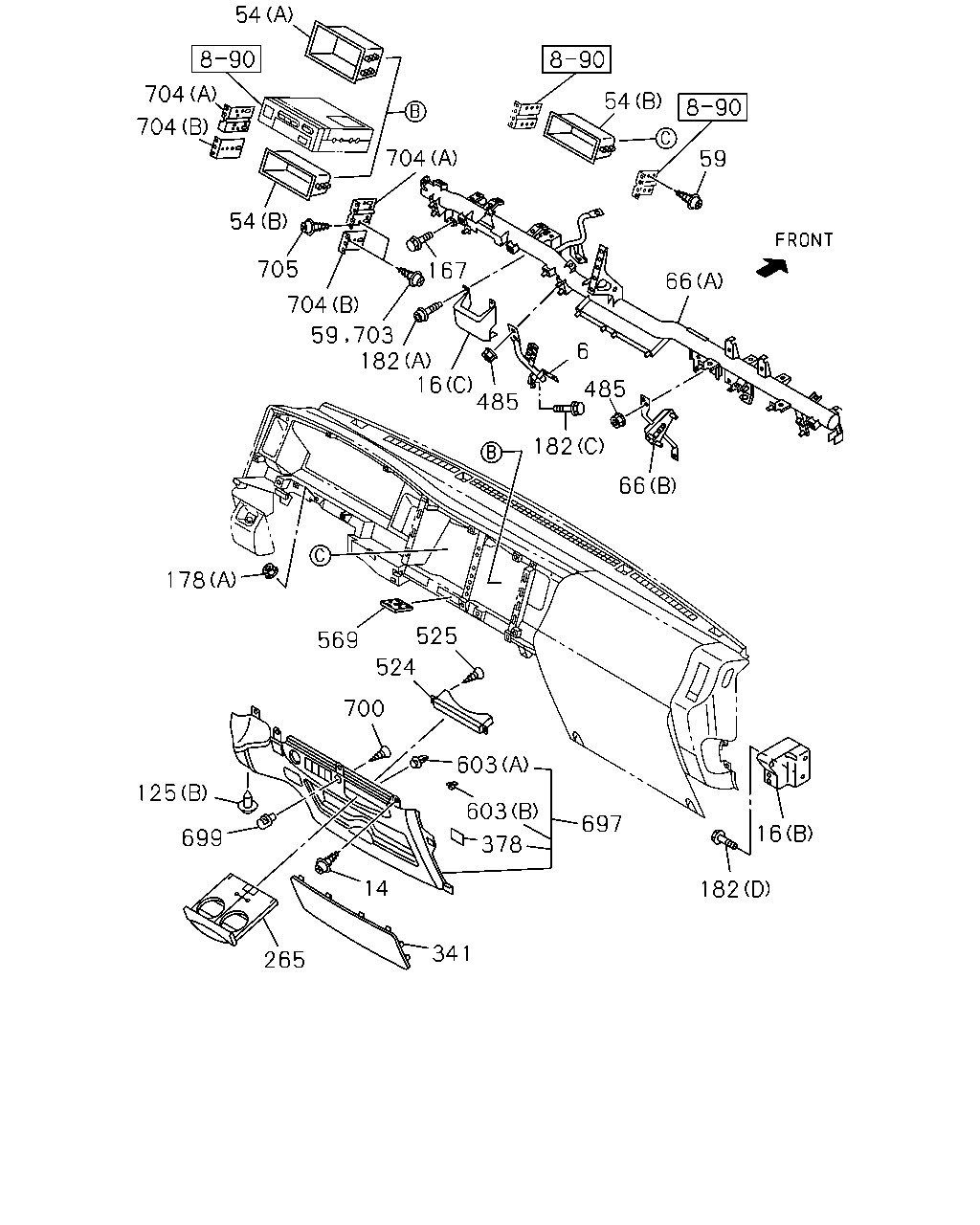

[740A] REINFORCEMENT AND OTHER PARTS (39 parça)

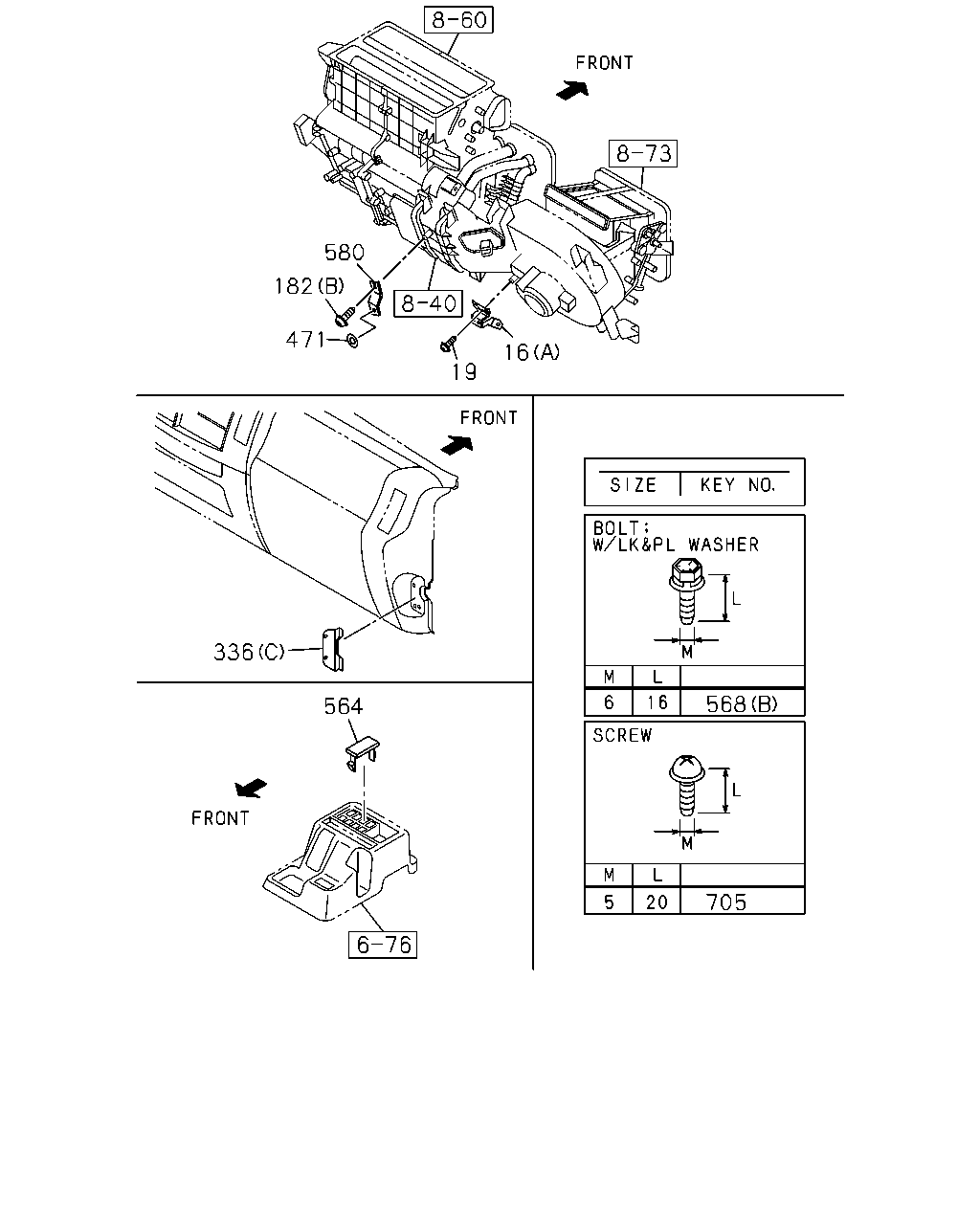

[740A] BRACKET AND OTHER PARTS (19 parça)
▶
10
646
146
336
718
136
69
568
603
603
603
603
662
702
336
701
666
709
708
165
69
125
356
178
1
579
338
11
646
336
11
69
18
70
696
544
11
146
702
626
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; INST
GRAY CHI
8-97409-777-3
01
1
1404-
10
PANEL ASM; GARNISH
GRAY CHI
8-97422-098-0
01
1
1404-
11
BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
08
1
1404-
11
BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER CHI
8-98018-440-0
04
1
1404-
18
BOLT; BRKT
M6X12 W/LK&PL WASHER CHI
0-52000-612-0
01
1
1404-
69
GRILLE; SIDE,AIR OUTLET
(B) CHI
8-98028-562-2
01
1
1404-
69
GRILLE; SIDE,AIR OUTLET
(A) CHI
8-98028-563-2
02
1
1404-
70
GRILLE; CENTER,AIR OUTLET
CHI
8-98028-561-2
01
1
1404-
125
CLIP; INST PANEL
(B) GRAY CHI
8-97408-817-0
04
1
1404-
125
CLIP; INST PANEL
(A) CHI
8-98021-271-0
02
1
1404-
136
CLIP; INST COVER
CHI
8-98076-254-0
02
1
1404-
146
SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
03
1
1404-
165
NUT; BRKT KNEE PAD
M6 FLANGE CHI
0-91180-106-0
01
1
1404-
178
NUT; INST PANEL
(A) M6 FLANGE CHI
0-91180-106-0
01
1
1404-
178
NUT; INST PANEL
(B) CHI
8-98037-629-0
15
1
1404-
336
COVER; INST PANEL SIDE
(A) GRAY CHI
8-97409-779-0
01
1
1404-
336
COVER; INST PANEL SIDE
(B) GRAY CHI
8-97409-780-3
01
1
1404-
336
COVER; INST PANEL SIDE
(C) GRAY CHI
8-97411-635-2
01
1
1404-
336
COVER; INST PANEL SIDE
(D) GRAY CHI
8-97424-712-0
01
1
1404-
338
SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
04
1
1404-
356
NUT; COVER
M6 FLANGE CHI
0-91180-106-0
01
1
1404-
544
SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
03
1
1404-
568
BOLT; COVER
(B) M6X16 W/LK&PL WASHER CHI
0-52010-616-0
02
1
1404-
568
BOLT; COVER
(A) T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
01
1
1404-
579
COVER; INST PNL
GRAY CHI
8-97411-560-2
01
1
1404-
603
CLIP; COVER
(A) CHI
8-98004-025-0
01
1
1404-
603
CLIP; COVER
(B) CHI
8-98021-271-0
05
1
1404-
603
CLIP; COVER
(C) CHI
8-98152-030-0
03
1
1404-
603
CLIP; COVER
(E) CHI
8-98152-031-0
03
1
1404-
603
CLIP; COVER
(D) CHI
8-98167-222-0
02
1
1404-
626
RETAINER
OD=15 BLACK CHI
8-94279-804-0
02
1
1404-
646
BRACKET; GARNISH PANEL
(A) CHI
8-98066-952-1
01
1
1404-
646
BRACKET; GARNISH PANEL
(B) CHI
8-98066-953-1
01
1
1404-
662
COVER; LWR,INST PANEL
CHI
8-97422-093-2
01
1
1404-
666
INSERT; INST PANEL
CHI
8-98037-629-0
02
1
1404-
696
BRACKET; KNEE
CHI
8-98098-126-1
01
1
1404-
701
TRAY; INST
CHI
8-97431-081-0
01
1
1404-
702
NUT; TRAY
(B) M6 FLANGE CHI
0-91180-106-0
02
1
1404-
702
NUT; TRAY
(A) CHI
8-98037-629-0
01
1
1404-
708
STOPPER; TRAY INST LID
CHI
8-97431-096-0
01
1
1404-
709
SCREW; TRAY INST
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
03
1
1404-
718
SEAL; COVER
CHI
8-98185-153-0
01
1
1404-
182
66
485
16
182
59
703
704
705
54
704
704
54
704
54
59
66
6
485
569
525
603
603
697
182
16
700
178
125
699
14
167
341
265
524
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
SUPPORT; INST PANEL
CHI
8-98064-936-1
01
1
1404-
14
SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
04
1
1404-
16
BRACKET; INST PNL
(A) CHI
8-97585-612-2
01
1
1404-
16
BRACKET; INST PNL
(C) CHI
8-98063-326-0
01
1
1404-
16
BRACKET; INST PNL
(B) CHI
8-98017-204-1
01
1
1404-
16
BRACKET; INST PNL
(B) CHI
8-98017-202-1
01
1
1404-
54
POCKET; CENTER CLUSTER
(A) H=108.4 BLACK CHI
8-97407-129-2
01
1
1404-
54
POCKET; CENTER CLUSTER
(B) H=69.8 BLACK CHI
8-97408-865-2
01
1
1404-
59
SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR CHI
8-98058-632-0
02
1
1404-
66
REINFORCEMENT; INST PANEL
(B) CHI
8-97430-064-0
01
1
1404-
66
REINFORCEMENT; INST PANEL
(A) CHI
8-98069-419-7
01
1
1404-
125
CLIP; INST PANEL
(B) GRAY CHI
8-97408-817-0
04
1
1404-
125
CLIP; INST PANEL
(A) CHI
8-98021-271-0
02
1
1404-
167
BOLT; REINF TO INST
M8X23 FLANGE CHI
8-97264-766-0
04
1
1404-
178
NUT; INST PANEL
(A) M6 FLANGE CHI
0-91180-106-0
01
1
1404-
178
NUT; INST PANEL
(B) CHI
8-98037-629-0
15
1
1404-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE CHI
0-28050-816-0
04
1
1404-
182
BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER CHI
0-52000-612-0
02
1
1404-
182
BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
01
1
1404-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER CHI
8-98018-439-0
01
1
1404-
265
HOLDER; CUP
GRAY CHI
8-97418-528-0
01
1
1404-
341
LID; FUSE BOX
GRAY CHI
8-97422-209-0
01
1
1404-
378
SEAL; INST PANEL
5X30 CHI
8-98176-199-0
01
1
1404-
485
NUT; SUPPORT CLIP,HARNESS
M6 FLANGE CHI
0-91180-106-0
04
1
1404-
524
STAND ASM; CUP,INST
CHI
8-98054-414-0
01
1
1404-
525
SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
03
1
1404-
569
HOLDER; CARD
CHI
8-97410-276-0
01
1
1404-
603
CLIP; COVER
(A) CHI
8-98004-025-0
01
1
1404-
603
CLIP; COVER
(B) CHI
8-98021-271-0
05
1
1404-
603
CLIP; COVER
(C) CHI
8-98152-030-0
03
1
1404-
603
CLIP; COVER
(E) CHI
8-98152-031-0
03
1
1404-
603
CLIP; COVER
(D) CHI
8-98167-222-0
02
1
1404-
697
PANEL; INST CENTER
GRAY CHI
8-97422-208-1
01
1
1404-
699
HOOK; INST PANEL
GRAY CHI
8-97408-927-0
01
1
1404-
700
BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
01
1
1404-
703
SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR CHI
8-98058-632-0
04
1
1404-
704
BRACKET; CENTER POCKET
(B) CHI
8-97585-616-2
02
1
1404-
704
BRACKET; CENTER POCKET
(A) CHI
8-97585-618-2
02
1
1404-
705
SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR CHI
0-72180-520-0
08
1
1404-
580
182
471
19
16
568
705
336
564
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
BRACKET; INST PNL
(A) CHI
8-97585-612-2
01
1
1404-
16
BRACKET; INST PNL
(C) CHI
8-98063-326-0
01
1
1404-
16
BRACKET; INST PNL
(B) CHI
8-98017-204-1
01
1
1404-
16
BRACKET; INST PNL
(B) CHI
8-98017-202-1
01
1
1404-
19
SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
01
1
1404-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE CHI
0-28050-816-0
04
1
1404-
182
BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER CHI
0-52000-612-0
02
1
1404-
182
BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
01
1
1404-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER CHI
8-98018-439-0
01
1
1404-
336
COVER; INST PANEL SIDE
(A) GRAY CHI
8-97409-779-0
01
1
1404-
336
COVER; INST PANEL SIDE
(B) GRAY CHI
8-97409-780-3
01
1
1404-
336
COVER; INST PANEL SIDE
(C) GRAY CHI
8-97411-635-2
01
1
1404-
336
COVER; INST PANEL SIDE
(D) GRAY CHI
8-97424-712-0
01
1
1404-
471
WASHER; PL
CHI
8-98179-641-0
02
1
1404-
564
COVER; SW
CHI
8-97043-732-1
04
1
1404-
568
BOLT; COVER
(B) M6X16 W/LK&PL WASHER CHI
0-52010-616-0
02
1
1404-
568
BOLT; COVER
(A) T25 M5X16 TAPPING HEXALOBULAR CHI
0-72180-516-0
01
1
1404-
580
BRACKET; COVER
CHI
8-98180-279-1
01
1
1404-
705
SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR CHI
0-72180-520-0
08
1
1404-
