Isuzu WW
▶
TRUCKS
▶
GXR
▶
11601 - GXR(LHD)CHINA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#144844) — 75 parça
◀

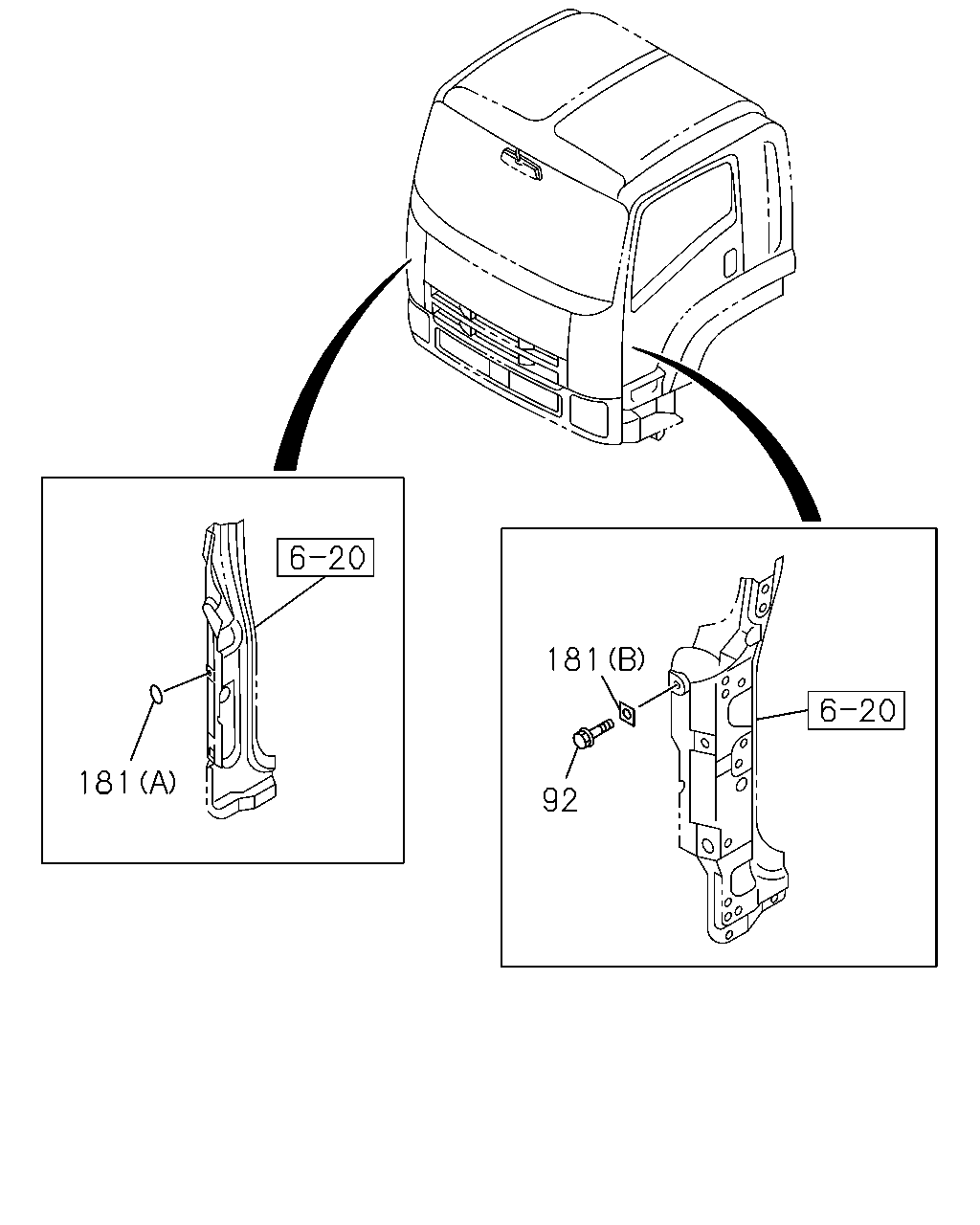

[720A] OTHER PARTS (3 parça)
[720A] RH (39 parça)

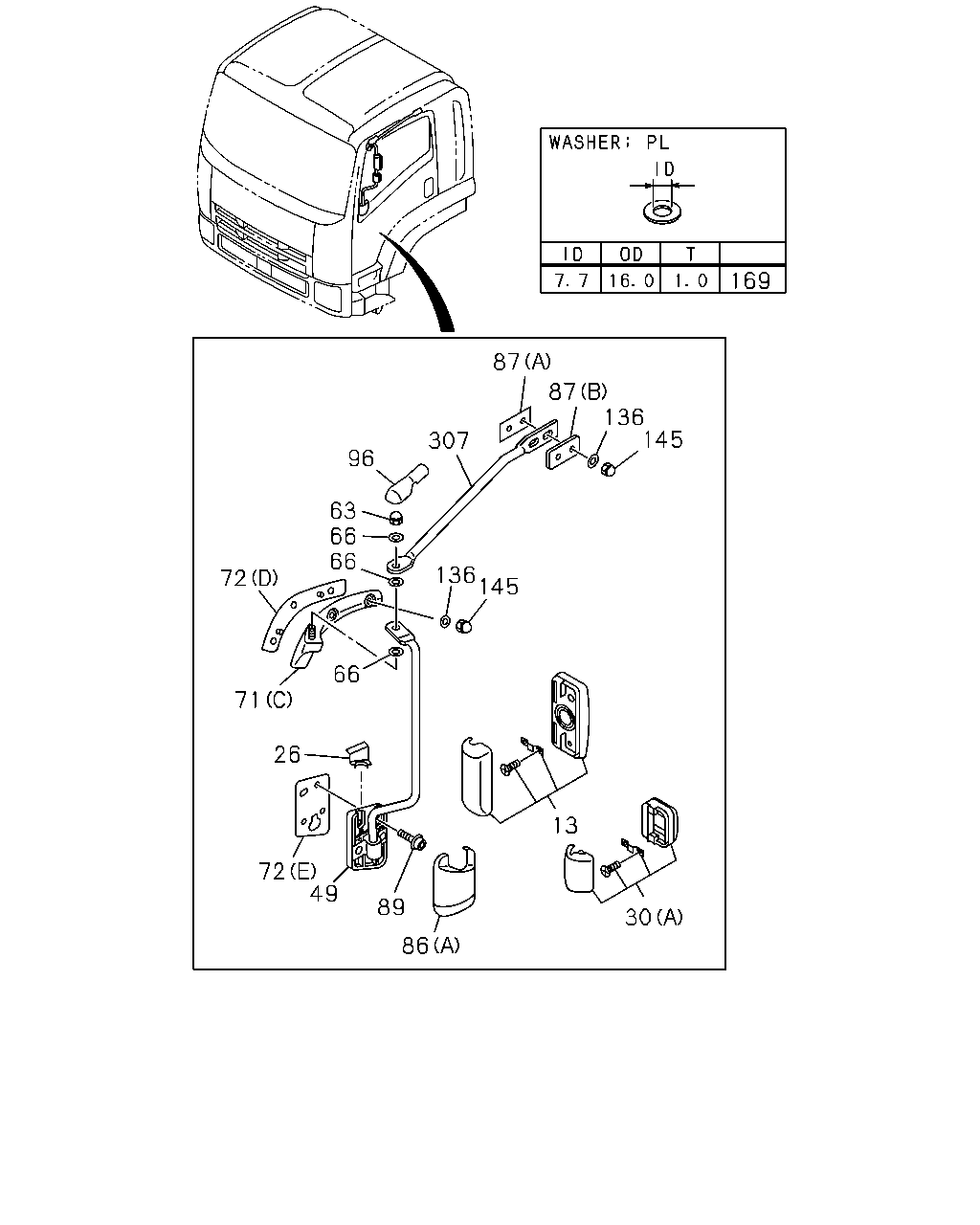

[720A] LH (33 parça)
▶
181
181
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE CHI
8-98076-109-0
01
1
1404-
181
SEAL; BRKT
(A) OD=25 BLACK CHI
1-76798-019-0
02
1
1404-
181
SEAL; BRKT
(B) 25X25 CHI
8-94272-533-0
01
1
1404-
30
53
53
105
69
66
66
87
136
145
32
72
21
68
72
32
71
68
71
68
68
22
21
71
307
96
66
63
66
145
53
53
136
30
66
26
72
71
72
89
49
86
30
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-97431-225-0
01
1
1404-
13
MIRROR ASM; OUTSIDE RR VIEW
8-97431-224-0
01
1
1404-
21
NUT; MIRROR
M10 CAP NUT CHI
1-09984-134-0
02
1
1404-
22
STAY; OUTSIDE MIRROR
CHI
8-98092-493-0
01
1
1404-
26
COVER; OUTSIDE MIRROR
CHI
8-98031-806-0
01
1
1404-
26
COVER; OUTSIDE MIRROR
CHI
8-98031-805-0
01
1
1404-
30
MIRROR; UNDER
(A) CHI
8-98081-673-2
02
1
1404-
30
MIRROR; UNDER
(B)
8-97431-222-0
01
1
1404-
30
MIRROR; UNDER
(C)
8-97431-226-0
01
1
1404-
32
SCREW; UNDER MIRROR
M8X26 W/PL WASHER CHI
8-98067-249-2
04
1
1404-
49
STAY; MIRROR SIDE
CHI
8-97431-070-0
01
1
1404-
49
STAY; MIRROR SIDE
CHI
8-97431-069-0
01
1
1404-
53
PIVOT; SIDE MIRROR
ID=19.1 CHI
1-71737-633-2
04
1
1404-
63
NUT; STAY
M10 CAP NUT CHI
1-09984-134-0
02
1
1404-
66
WASHER; PL
ID=10.5 OD=26 T=2.6 CHI
1-09985-204-0
08
1
1404-
68
WASHER; STAY
ID=10.5 OD=26 T=2.6 CHI
1-09985-204-0
04
1
1404-
69
NUT; CAP
M10 CAP NUT CHI
1-09984-134-0
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(C) CHI
8-98031-794-2
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(E) CHI
1-71798-484-1
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(D) CHI
8-98031-793-2
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(A) CHI
8-98064-775-0
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(B) CHI
8-98092-491-3
01
1
1404-
72
SHEET
(E) CHI
8-97431-072-0
01
1
1404-
72
SHEET
(D) CHI
8-98031-797-0
01
1
1404-
72
SHEET
(F) CHI
8-97431-071-0
01
1
1404-
72
SHEET
(C) CHI
8-98031-796-0
01
1
1404-
72
SHEET
(B) CHI
8-98060-225-1
01
1
1404-
72
SHEET
(A) CHI
8-98064-773-0
01
1
1404-
86
COVER; STAY,OUTSIDE MIRROR
(A) CHI
8-98031-803-2
01
1
1404-
86
COVER; STAY,OUTSIDE MIRROR
(B) CHI
8-98031-802-2
01
1
1404-
87
SPACER
(A) CHI
8-98063-786-0
02
1
1404-
87
SPACER
(B) CHI
8-98063-789-0
01
1
1404-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23 CHI
8-97310-216-1
08
1
1404-
96
CAP; MIRROR STAY
CHI
8-98080-173-0
02
1
1404-
105
STAY; SUB UNDER MIRROR
CHI
8-98080-109-2
01
1
1404-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 CHI
1-09985-191-0
10
1
1404-
145
NUT; CAP,SUB STAY
M8 CAP NUT CHI
8-98059-914-0
10
1
1404-
307
STAY; MIRROR SUPPORT
CHI
8-98063-785-2
01
1
1404-
307
STAY; MIRROR SUPPORT
CHI
8-98063-784-2
01
1
1404-
169
87
136
87
145
136
145
96
307
63
66
66
72
71
26
66
72
49
89
86
13
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
8-97431-225-0
01
1
1404-
13
MIRROR ASM; OUTSIDE RR VIEW
8-97431-224-0
01
1
1404-
26
COVER; OUTSIDE MIRROR
CHI
8-98031-806-0
01
1
1404-
26
COVER; OUTSIDE MIRROR
CHI
8-98031-805-0
01
1
1404-
30
MIRROR; UNDER
(A) CHI
8-98081-673-2
02
1
1404-
30
MIRROR; UNDER
(B)
8-97431-222-0
01
1
1404-
30
MIRROR; UNDER
(C)
8-97431-226-0
01
1
1404-
49
STAY; MIRROR SIDE
CHI
8-97431-070-0
01
1
1404-
49
STAY; MIRROR SIDE
CHI
8-97431-069-0
01
1
1404-
63
NUT; STAY
M10 CAP NUT CHI
1-09984-134-0
02
1
1404-
66
WASHER; PL
ID=10.5 OD=26 T=2.6 CHI
1-09985-204-0
08
1
1404-
71
BRACKET; OUTSIDE MIRROR
(C) CHI
8-98031-794-2
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(E) CHI
1-71798-484-1
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(D) CHI
8-98031-793-2
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(A) CHI
8-98064-775-0
01
1
1404-
71
BRACKET; OUTSIDE MIRROR
(B) CHI
8-98092-491-3
01
1
1404-
72
SHEET
(E) CHI
8-97431-072-0
01
1
1404-
72
SHEET
(D) CHI
8-98031-797-0
01
1
1404-
72
SHEET
(F) CHI
8-97431-071-0
01
1
1404-
72
SHEET
(C) CHI
8-98031-796-0
01
1
1404-
72
SHEET
(B) CHI
8-98060-225-1
01
1
1404-
72
SHEET
(A) CHI
8-98064-773-0
01
1
1404-
86
COVER; STAY,OUTSIDE MIRROR
(A) CHI
8-98031-803-2
01
1
1404-
86
COVER; STAY,OUTSIDE MIRROR
(B) CHI
8-98031-802-2
01
1
1404-
87
SPACER
(A) CHI
8-98063-786-0
02
1
1404-
87
SPACER
(B) CHI
8-98063-789-0
01
1
1404-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X23 CHI
8-97310-216-1
08
1
1404-
96
CAP; MIRROR STAY
CHI
8-98080-173-0
02
1
1404-
136
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 CHI
1-09985-191-0
10
1
1404-
145
NUT; CAP,SUB STAY
M8 CAP NUT CHI
8-98059-914-0
10
1
1404-
169
WASHER; PL,POWER UNIT
ID=7.7 OD=16.0 T=1.0
8-98067-964-0
01
1
1404-
307
STAY; MIRROR SUPPORT
CHI
8-98063-785-2
01
1
1404-
307
STAY; MIRROR SUPPORT
CHI
8-98063-784-2
01
1
1404-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
