◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11601 - GXR(LHD)CHINA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#144843) — 15 parça
çizim 433451
49 160 60 60
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX 8-97431-406-0 01 1 1404-
60 PLATE; CAUTION,CAB TILT
(A) CHI 		8-98191-063-0 01 1 1404-
60 PLATE; CAUTION,CAB TILT
(B) 		8-98171-036-0 01 1 1404-
160 PLATE; CAUTION,TOWING
CHI 		8-98155-058-0 01 1 1404-

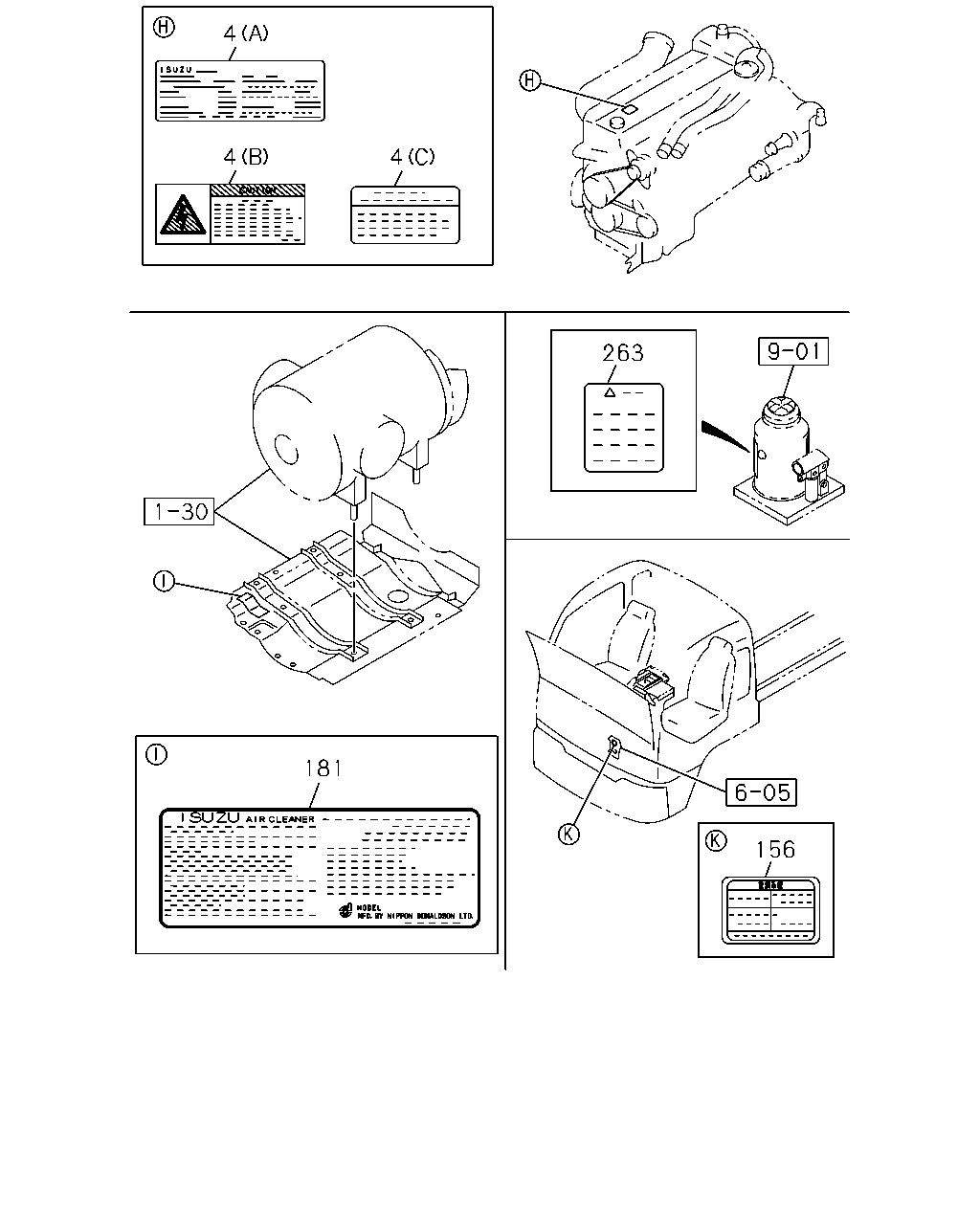

çizim 433483
4 4 4 181 156 263
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		1-85875-456-0 01 1 1404-
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1404-
4 LABEL; ENG MAINTENANCE
(C) 		8-97431-646-0 01 1 1405-
156 PLATE; CAUTION,A/C 8-97431-426-0 01 1 1404-
181 PLATE; CAUTION,AIR CLEANER
CHI 		1-85886-796-1 01 1 1404-
263 PLATE; CAUTION,JACK
CHI 		1-85881-878-0 01 1 1404-

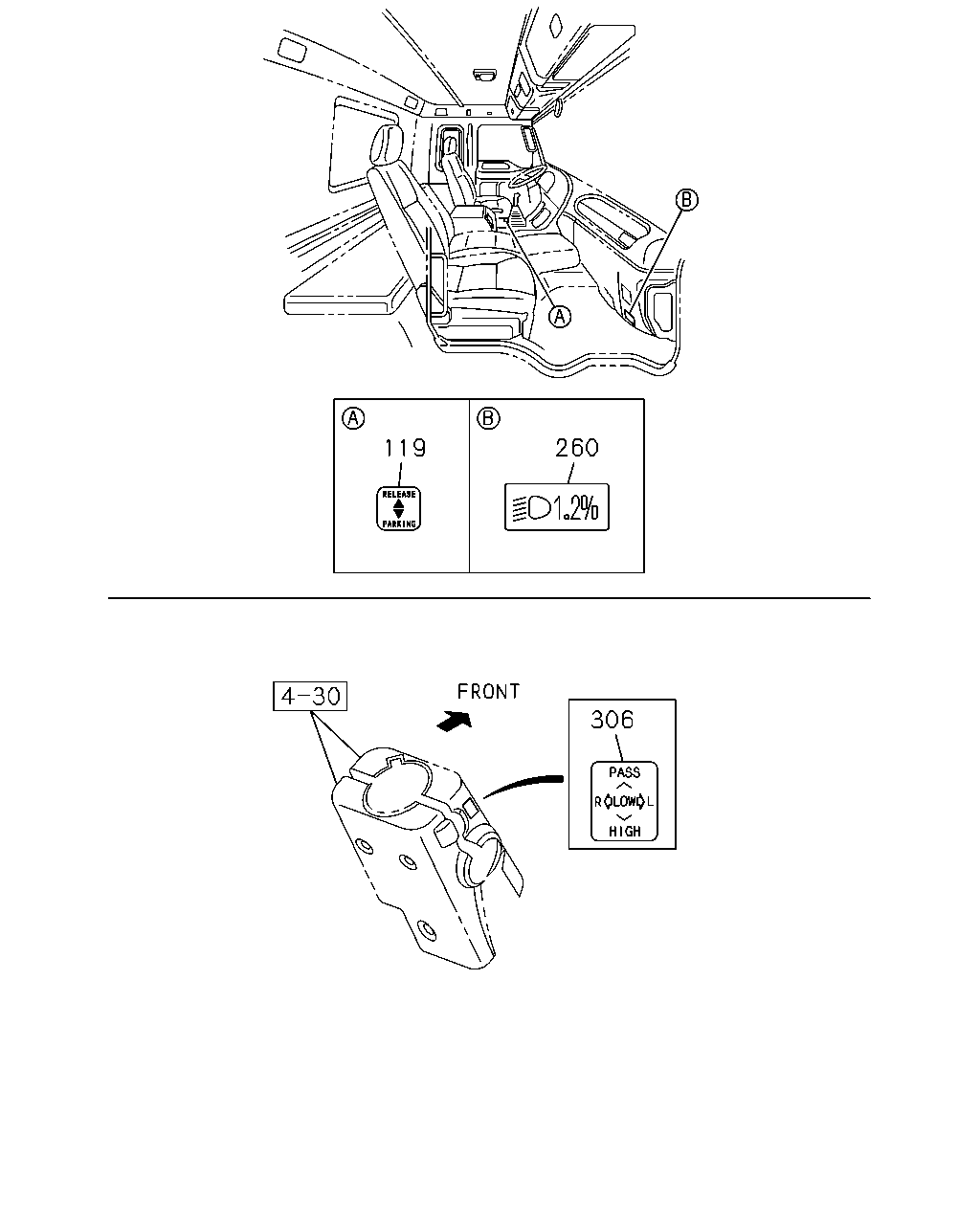

çizim 433921
260 119 306
BalonParca AdiParca NoAdetTipApplied Date
119 PLATE; CAUTION,HAND BRK LEVER
CHI 		1-85881-874-0 01 1 1404-
260 PLATE; CAUTION,HEAD LAMP LEVELING
CHI 		1-85878-416-1 01 1 1404-
306 LABEL; BEAM & PASS
CHI 		8-98070-239-0 01 1 1404-
çizim 433996
289 5
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85881-887-0 01 1 1404-
289 PLATE; CAUTION,DRIVING 1-85880-777-0 01 1 1404-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
