Isuzu WW
▶
TRUCKS
▶
FVM
▶
11565 - FVM(INDONESIA)6HK1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

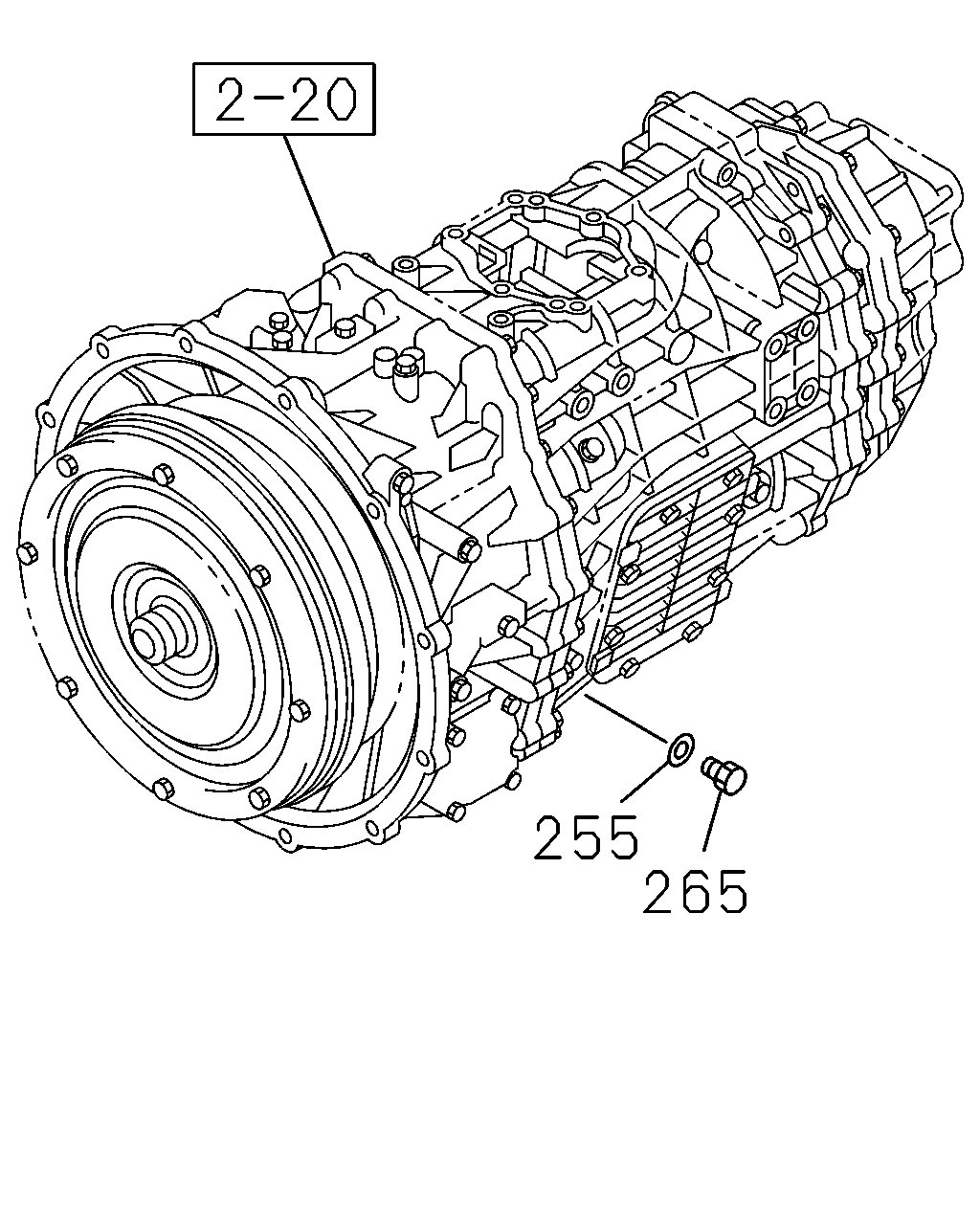

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#144842) — 4 parça
255
265
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
255
GASKET; SENSOR
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P60 PROP SHAFT<C2M> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> ID=12.2
9-09571-412-0
01
1
1405-
255
GASKET; SENSOR
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P60 PROP SHAFT<C2M> 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> ID=12.2
9-09571-412-0
01
1
1405-
265
PLUG; HOLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P60 PROP SHAFT<C2M> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6> M12X9
0-92002-412-0
01
1
1405-
265
PLUG; HOLE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) P60 PROP SHAFT<C2M> 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> MANUAL TRANSMISSION<X9C> M12X9
0-92002-412-0
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
