Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11600 - FXZ/GXZ(LHD)CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶

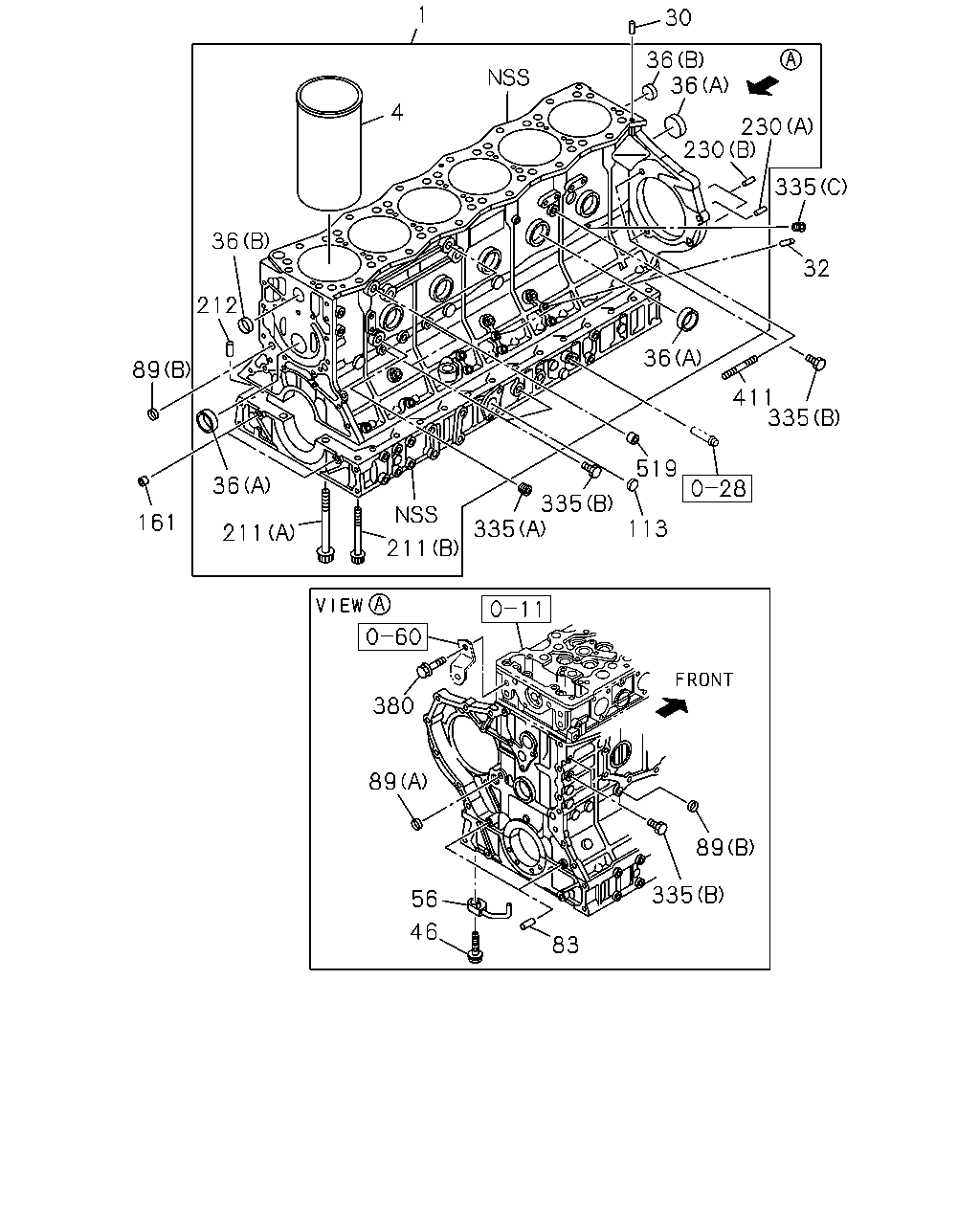

0-12 — CYLINDER BLOCK
(#144840) — 29 parça
1
4
36
212
89
161
36
211
211
335
335
113
519
36
411
335
32
335
230
230
36
36
30
380
89
56
46
83
335
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-98125-948-5
01
1
1404-1404
1
BLOCK ASM; CYL
8-97430-638-0
01
1
1404-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX
8-98112-230-0
06
1
1404-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX
8-98112-231-0
06
1
1404-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX
8-98112-232-0
06
1
1404-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX
8-98112-233-0
06
1
1404-
30
PIN; CYL HD GASKET SETTING
OD=8 L=16 CHI
9-08150-816-0
02
1
1404-
32
PIN; INJ PUMP BRKT
OD=8 L=16 CHI
9-08150-816-0
02
1
1404-
36
CUP; SEALING,WATER JACKET
(A) OD=45
1-09600-058-1
07
1
1404-
36
CUP; SEALING,WATER JACKET
(B) OD=32
1-09600-059-1
02
1
1404-
46
BOLT; JOINT,OIL JET,PISTON COOLING
M10X21 FLANGE CHI
8-97372-238-0
06
1
1404-
56
JET; OIL,PISTON COOLING
8-98031-273-0
06
1
1404-1405
56
JET; OIL,PISTON COOLING
8-98275-246-0
06
1
1406-
83
PIN; FLYWHEEL HSG
OD=10 L=22 CHI
9-08151-022-0
02
1
1404-
89
CUP; SEALING,OIL GALLERY
(A) OD=16 CHI
5-11129-006-0
01
1
1404-
89
CUP; SEALING,OIL GALLERY
(B) OD=20 CHI
9-11129-128-0
02
1
1404-
113
CUP; SEALING
OD=32 CHI
1-09600-012-2
01
1
1404-
161
DOWEL; FRT COVER
1-13119-004-0
02
1
1404-
211
BOLT; CRANKCASE
(B)
8-98141-538-0
28
1
1404-
211
BOLT; CRANKCASE
(A)
8-98229-864-0
14
1
1404-
212
PIN; CRANKCASE
1-09740-031-0
02
1
1404-
230
PIN; THRUST METAL,CR/SHF
(A) L=25
1-09749-025-1
02
1
1404-
230
PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10
9-08160-510-0
02
1
1404-
335
PLUG; C/BL,SIDE
(C) PT1/8
1-09605-050-0
01
1
1404-
335
PLUG; C/BL,SIDE
(A) PT3/8
1-09605-056-0
01
1
1404-
335
PLUG; C/BL,SIDE
(B) M14X16.5 CHI
8-97329-617-0
06
1
1404-
380
BOLT; BRKT,HEAT PROTECTOR
POWER TAKE OFF-FLYWHEEL(6SZ) M12X16
0-28151-216-0
01
1
1404-
411
STUD; BRG CASE
M12X40 L=58
9-94411-240-0
02
1
1404-
519
DOWEL; RAIL BRKT
OD=14 L=9 CHI
9-19759-019-1
02
1
1404-
