Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11048 - EXZ LHD EURO4 WITH 2STEPS
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#14482) — 53 parça
◀
[346A] COMPONENT (22 parça)
[346A] FIXING (24 parça)
[346A] KIT SET (7 parça)
▶

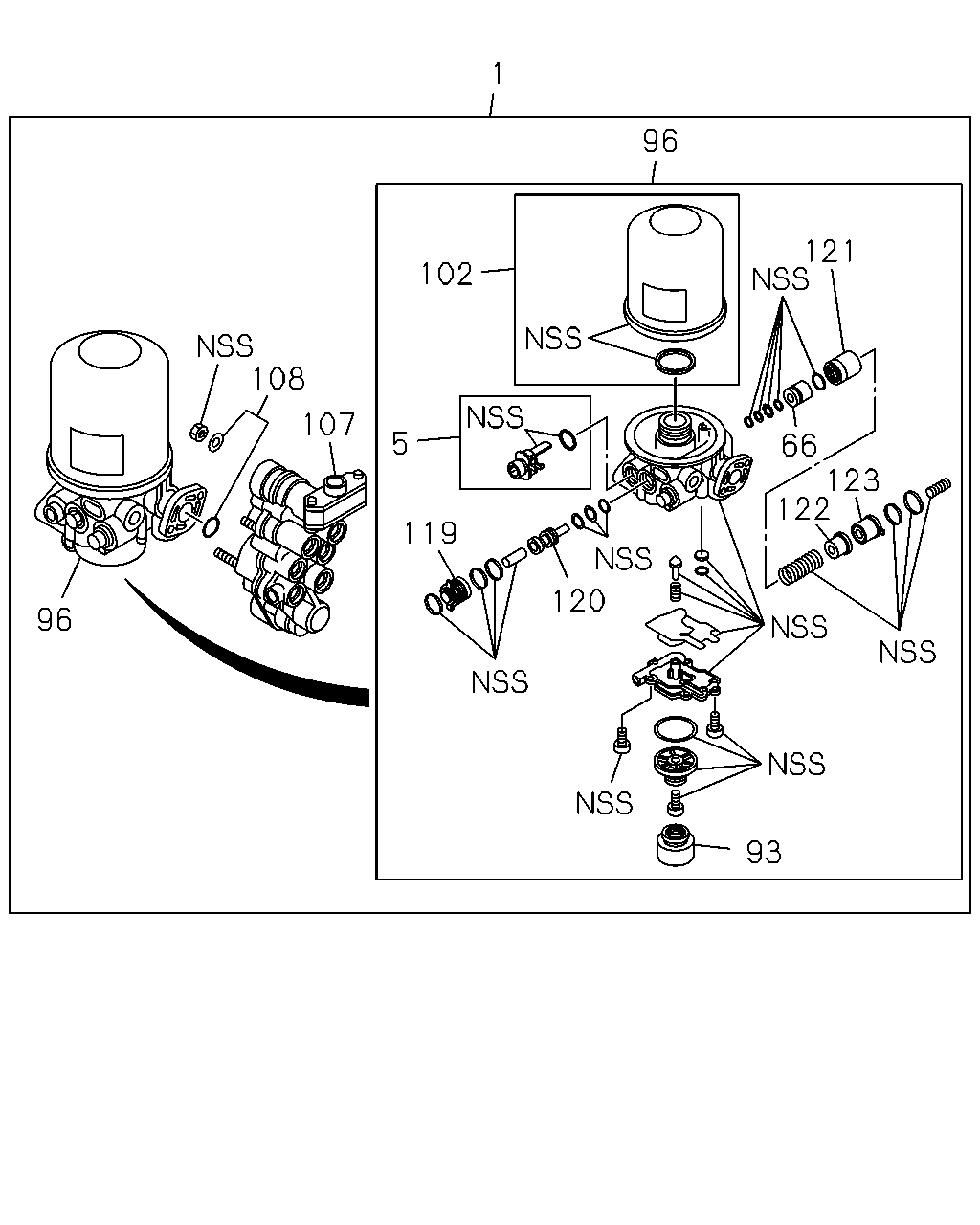

1
96
121
102
108
107
5
66
123
122
119
120
96
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-335-2
01
1
0611-0612
1
DRYER; AIR
1-48190-368-5
01
1
0701-1401
1
DRYER; AIR
8-98219-852-1
01
1
1402-
5
HEATER ASM; AIR DRYER
1-85576-363-0
01
1
0611-
66
PISTON; AIR DRYER
1-85576-475-0
01
1
0701-
93
SILENCER; AIR DRYER
1-85576-362-0
01
1
0611-1401
93
SILENCER; AIR DRYER
8-98219-823-0
01
1
1402-
96
DRYER KIT; AIR
1-85576-399-0
01
1
0611-0612
96
DRYER KIT; AIR
1-85576-455-1
01
1
0701-1102
96
DRYER KIT; AIR
8-98161-322-1
01
1
1103-1401
96
DRYER KIT; AIR
8-98219-822-1
01
1
1402-
102
CARTRIDGE; AIR DRYER
1-85576-365-0
01
1
0611-0612
102
CARTRIDGE; AIR DRYER
1-85576-450-2
01
1
0701-
107
VALVE ASM; PROTECTION,AIR DRYER
1-85576-369-3
01
1
0611-
108
FIXING KIT; PROTECTION,AIR DRYER
1-85576-371-0
01
1
0611-
119
COVER; PURGE VALVE
1-85576-473-0
01
1
0701-
120
TAPPET
1-87411-310-0
01
1
0611-0612
120
TAPPET
1-85576-474-0
01
1
0701-1401
120
TAPPET
8-98185-666-0
01
1
1402-
121
HOLDER; SPRING
1-85576-476-0
01
1
0701-
122
SEAT; SPRING
1-85576-477-0
01
1
0701-
123
COVER; GOVERNER
1-85576-478-0
01
1
0701-

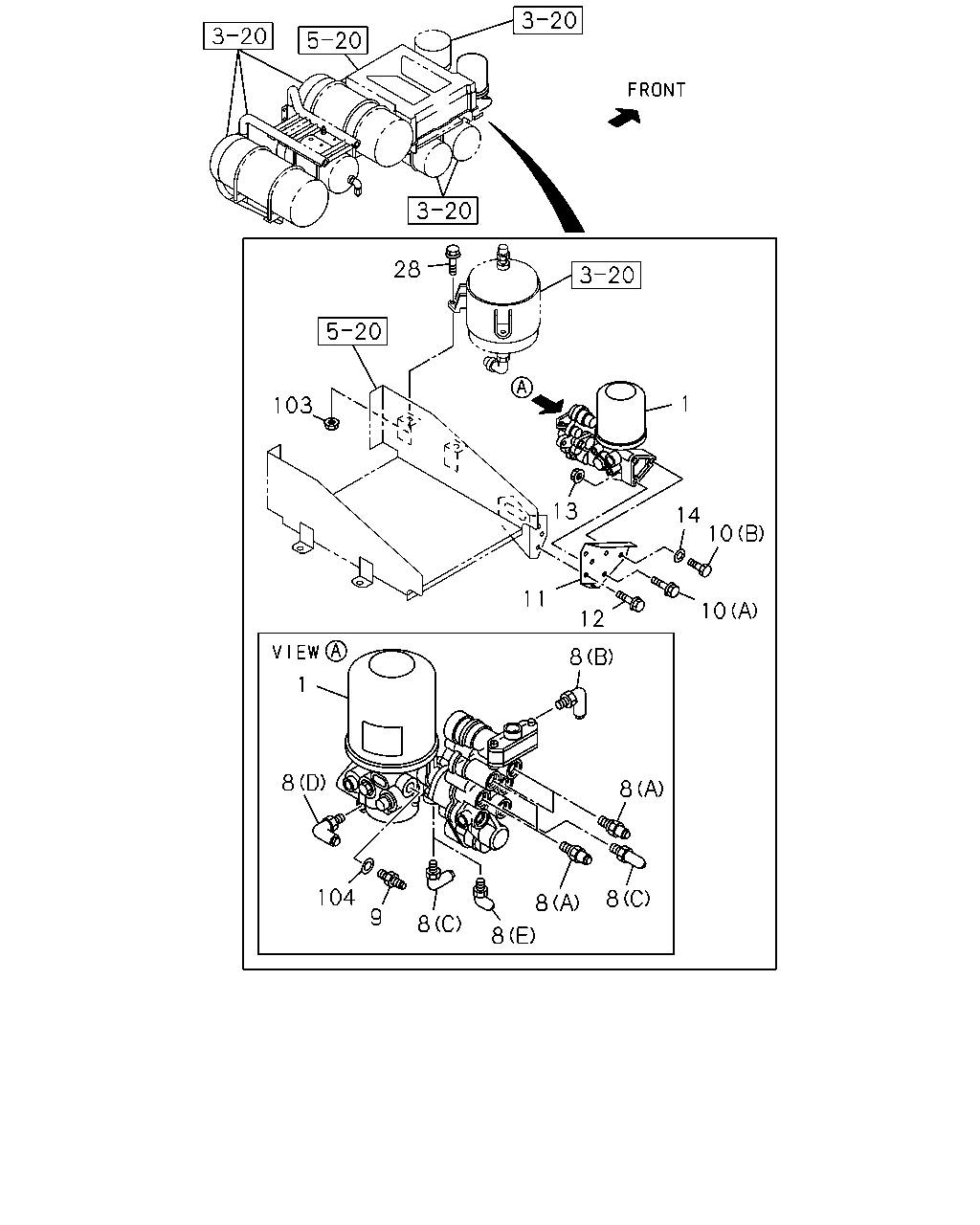

28
1
103
13
14
10
11
10
12
8
1
8
8
104
8
8
9
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-335-2
01
1
0611-0612
1
DRYER; AIR
1-48190-368-5
01
1
0701-1401
1
DRYER; AIR
8-98219-852-1
01
1
1402-
8
CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW
1-09661-521-0
01
1
1402-
8
CONNECTOR; OUT,AIR DRYER
(E)
1-09661-499-0
01
1
0701-
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
04
1
0611-1401
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
05
1
1402-1402
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
04
1
1402-
8
CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW
1-09661-520-0
01
1
0611-
8
CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW
1-09661-521-0
02
1
0611-0612
8
CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW
1-09661-521-0
01
1
0701-1401
8
CONNECTOR; OUT,AIR DRYER
(D) DIN6 & M10 ELBOW
1-09661-574-0
01
1
0611-
9
CONNECTOR; PIPE,AIR DRYER
1-09654-416-1
01
1
0611-0611
9
CONNECTOR; PIPE,AIR DRYER
8-97618-539-0
01
1
0611-0803
9
CONNECTOR; PIPE,AIR DRYER
DIN12 M22 STRAIGHT
8-98107-103-0
01
1
0804-
10
BOLT; AIR DRYER
(A) M12X50 FLANGE
0-28051-250-0
01
1
0611-
10
BOLT; AIR DRYER
(B) M12X25
1-09009-081-0
02
1
0611-
11
BRACKET; AIR DRYER
1-48316-019-0
01
1
0611-
12
BOLT; BRKT
M12X30 FLANGE
0-28651-230-0
03
1
0611-
13
NUT; AIR DRYER
M12 FLANGE
0-91180-212-0
01
1
0611-
14
WASHER; PL,AIR DRYER
ID=12.5 OD=22
0-91610-512-0
02
1
0611-
28
BOLT; PURGE TANK
M10X25 FLANGE
0-28651-025-0
02
1
0611-
103
NUT; PURGE TANK
M10 FLANGE
0-91180-210-0
02
1
0611-
104
GASKET
9-09572-022-0
01
1
0611-0803

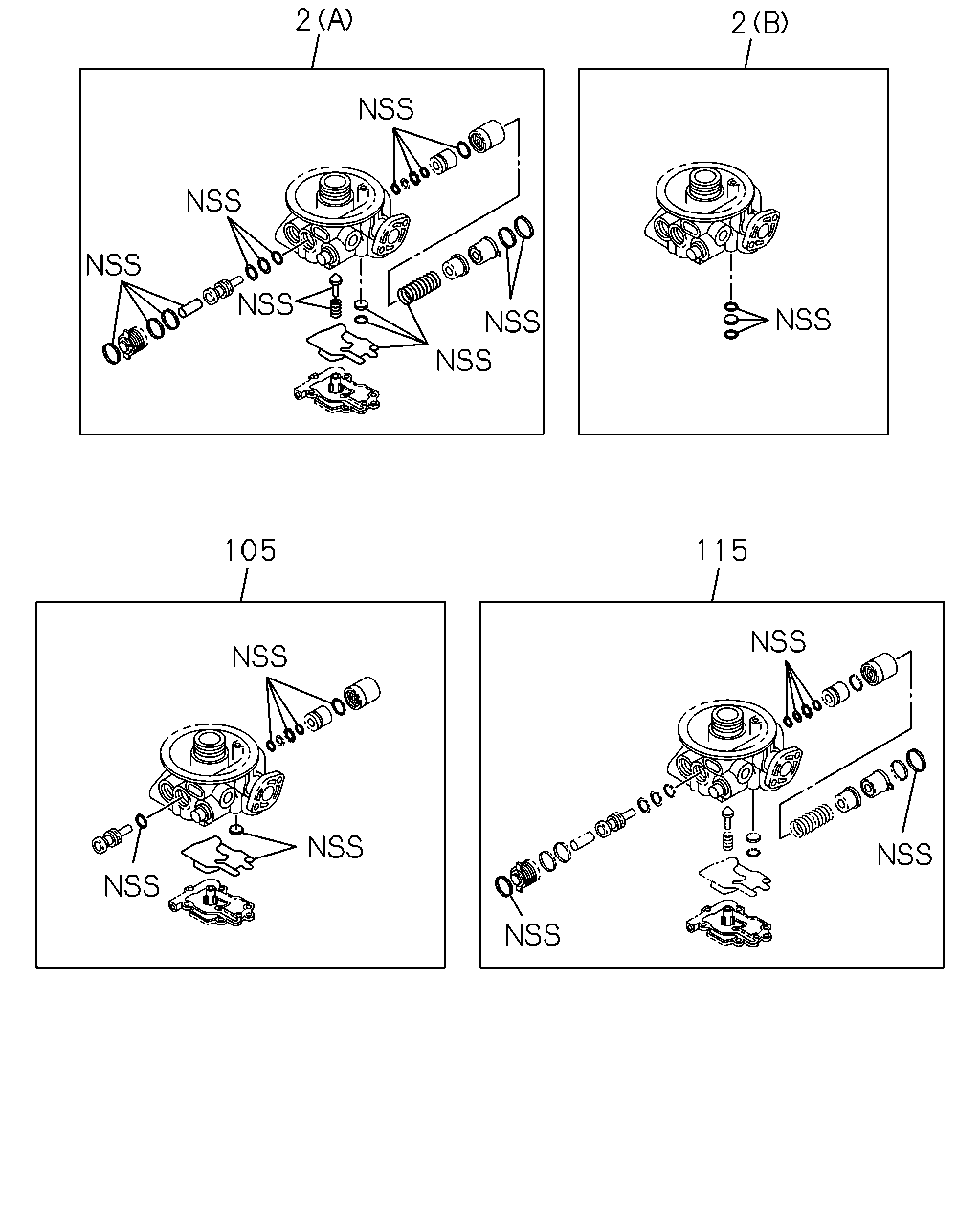

2
2
115
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
(B)
8-98302-391-0
01
1
1412-
2
REPAIR KIT; AIR DRYER
(A)
1-85576-398-0
01
1
0611-1102
2
REPAIR KIT; AIR DRYER
(A)
8-98161-324-0
01
1
1103-1401
2
REPAIR KIT; AIR DRYER
(A)
8-98185-664-0
01
1
1402-
105
SEAL KIT; AIR DRYER
1-85576-397-0
01
1
0611-1401
105
SEAL KIT; AIR DRYER
8-98185-665-0
01
1
1402-
115
REPAIR KIT; GOVERNOR,AIR DRYER
1-85576-400-0
01
1
0611-
