◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11599 - FVM(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#144819) — 171 parça

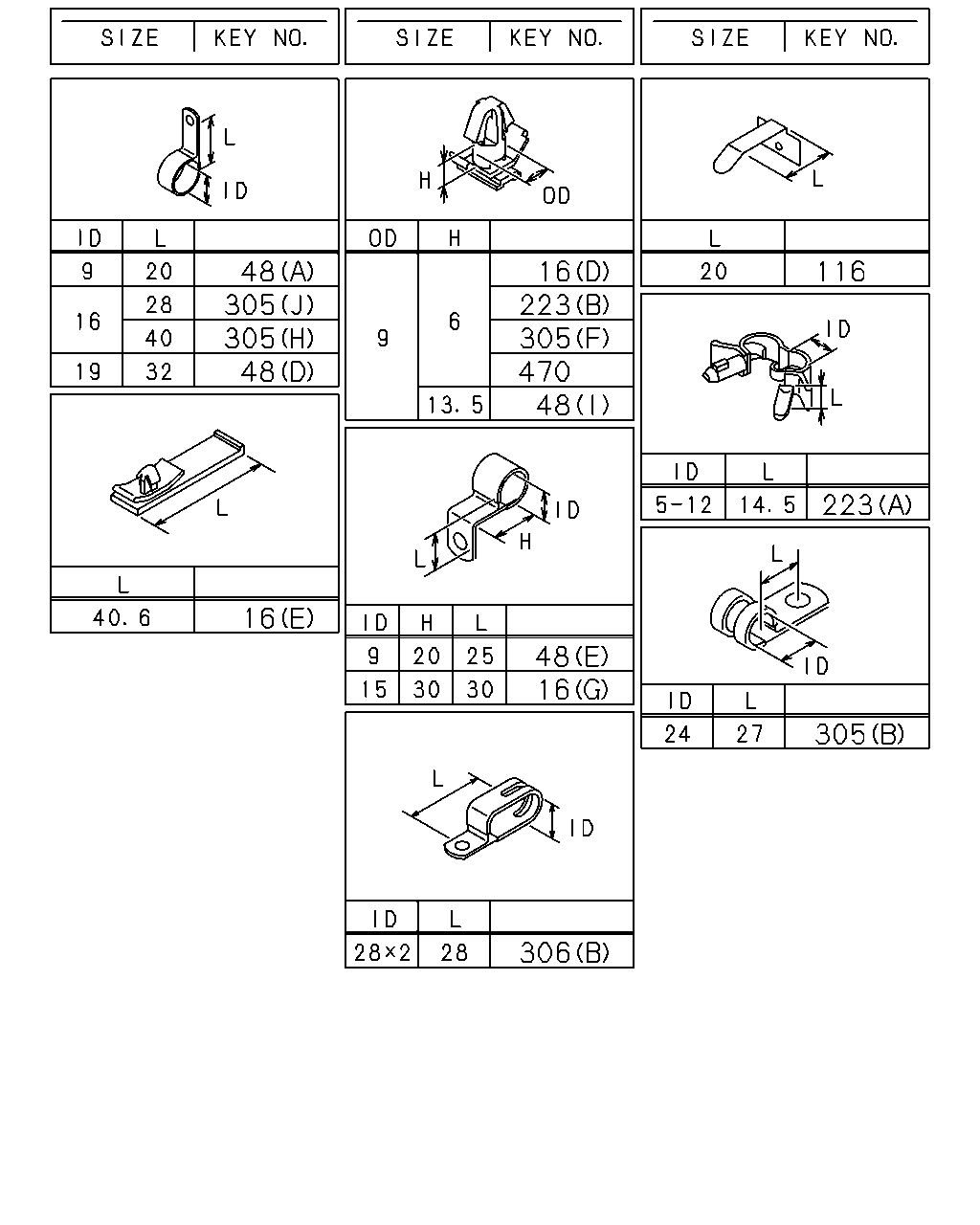

çizim 434137
48 305 305 48 16 48 16 306 305 223 116 16 223 305 470 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1407-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1407-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1407-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1407-
16 CLIP; HARNESS
(I) L=600 		1-09707-107-1 01 1 1407-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (J) ID=15 L=65 		1-09700-466-0 24 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (J) ID=15 L=65 		1-09700-466-0 32 1 1407-
48 CLIP; FRAME HARNESS
(A) ID=9 L=20 		0-95234-835-0 01 1 1407-
48 CLIP; FRAME HARNESS
(D) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1407-
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 02 1 1407-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 1407-
48 CLIP; FRAME HARNESS
(E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1407-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1407-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1407-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1407-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1407-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1407-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1407-
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 01 1 1407-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 1407-
305 CLIP; ENG HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1407-
305 CLIP; ENG HARNESS
(E) ID=19 L=39 H=21 		1-09700-972-1 01 1 1407-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1407-
305 CLIP; ENG HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 1407-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1407-
305 CLIP; ENG HARNESS
(D) L=100 		8-94443-021-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1407-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1407-

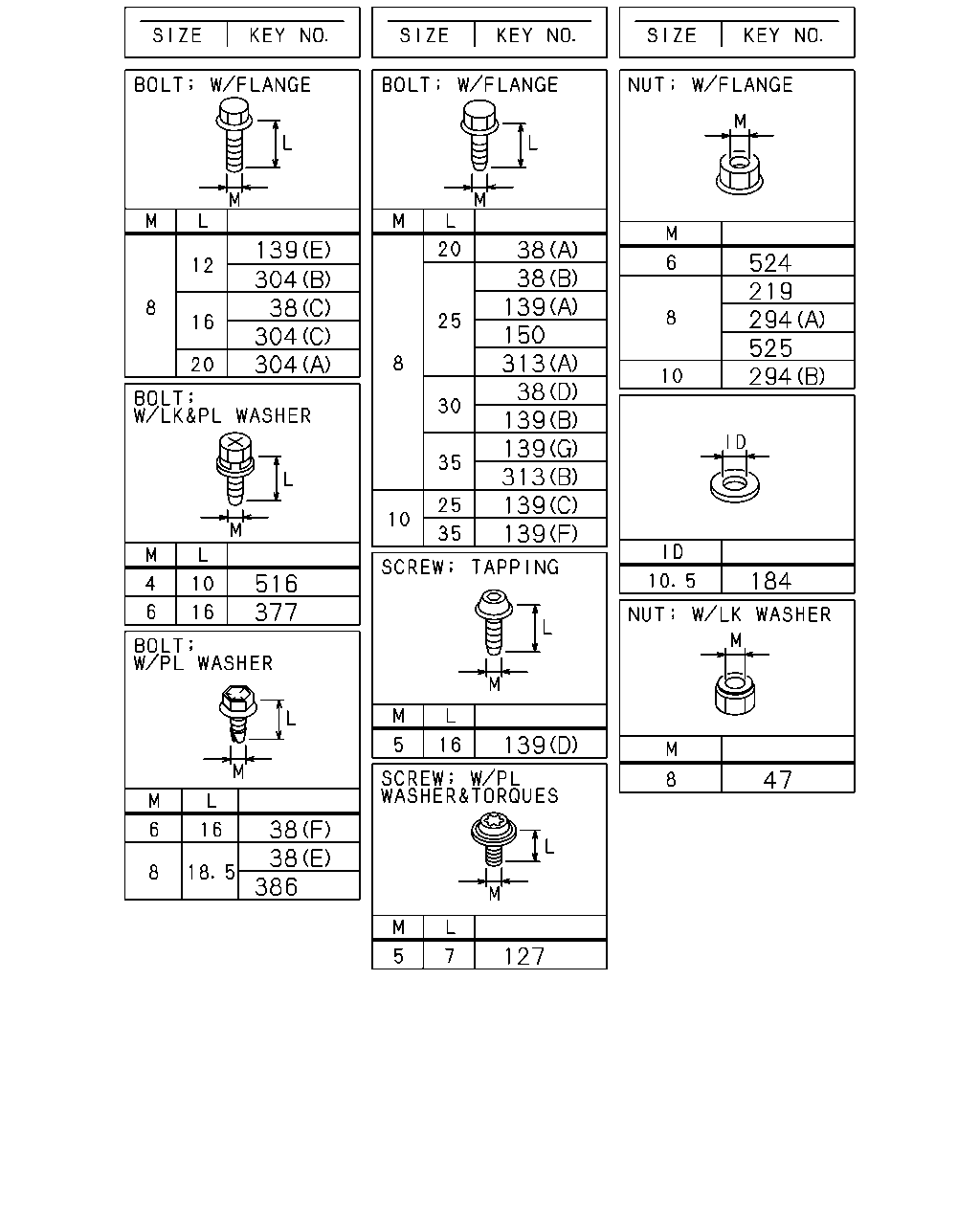

çizim 434336
139 38 304 304 304 516 377 38 38 386 38 139 38 150 38 313 139 139 313 139 139 139 127 524 294 219 525 294 184 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1407-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1407-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1407-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(F) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1407-
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1407-
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1407-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1407-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1407-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1407-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
139 BOLT; BRKT
(G) M8X35 FLANGE 		0-28650-835-0 01 1 1407-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1407-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1407-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1407-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1407-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1407-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1407-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1407-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1407-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1407-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1407-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1407-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1407-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1407-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1407-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1407-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1407-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1407-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1407-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1407-
çizim 434365
48 14 16 206 217 225 491 530 14 16 538 503 503 1 1 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1407-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1407-
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 09 1 1407-
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
(G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1407-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1407-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1407-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1407-
16 CLIP; HARNESS
(I) L=600 		1-09707-107-1 01 1 1407-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (J) ID=15 L=65 		1-09700-466-0 24 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (J) ID=15 L=65 		1-09700-466-0 32 1 1407-
48 CLIP; FRAME HARNESS
(A) ID=9 L=20 		0-95234-835-0 01 1 1407-
48 CLIP; FRAME HARNESS
(D) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1407-
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 02 1 1407-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 1407-
48 CLIP; FRAME HARNESS
(E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1407-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1407-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1407-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1407-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1407-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1407-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1407-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 08 1 1407-
491 CLIP; BAND,HTR HOSE & HARNESS
L=250 		5-09707-030-1 06 1 1407-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1407-
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1407-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1407-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1407-

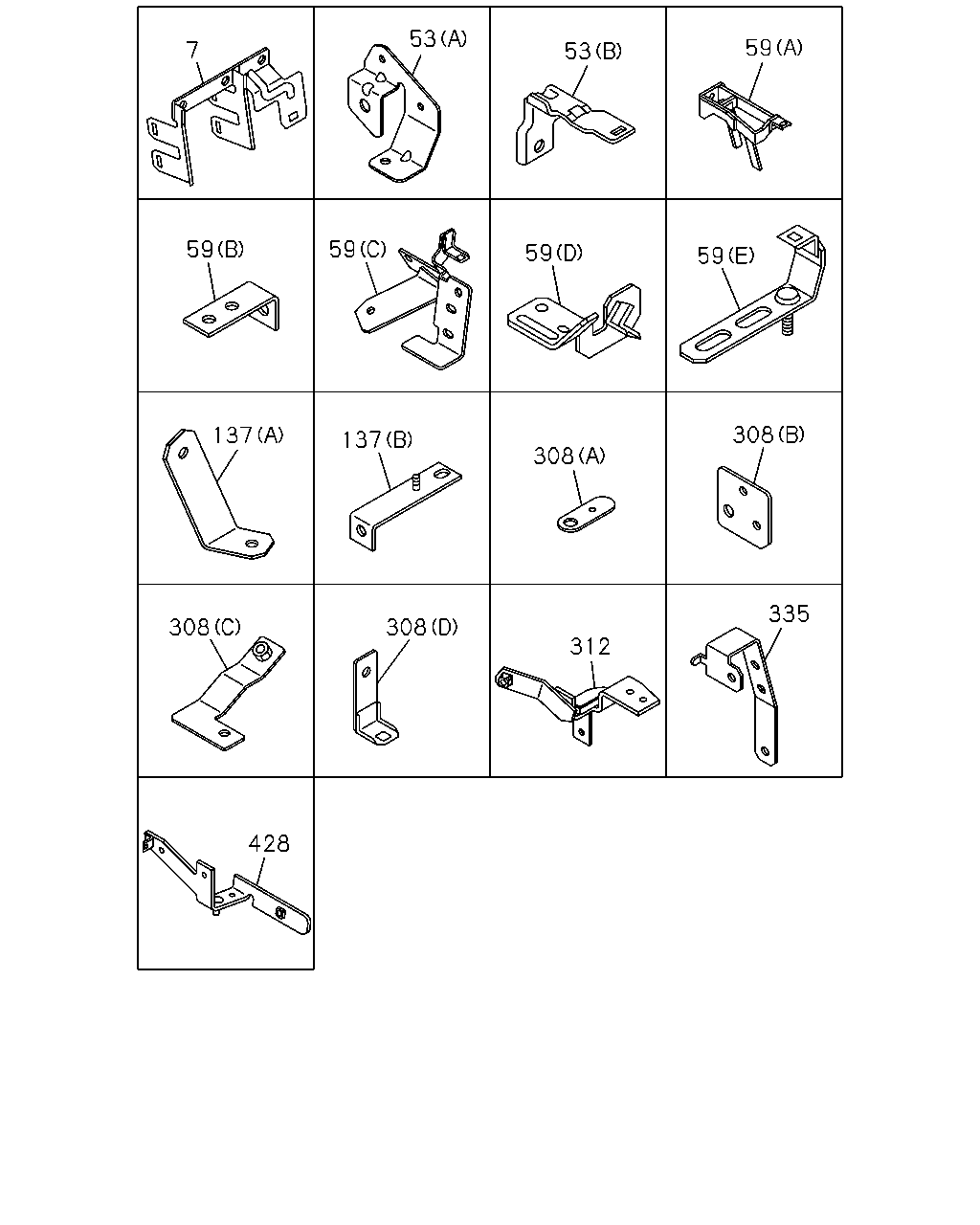

çizim 434452
7 53 53 59 59 59 59 59 137 137 308 308 308 308 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1407-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1407-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1407-
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 1407-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1407-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1407-1502
59 BRACKET; FRAME HARNESS
(D) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 1407-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1407-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1407-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1407-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 1407-
312 BRACKET; CLIP HARNESS 8-98230-458-1 01 1 1407-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1407-
428 BRACKET 8-98212-082-1 01 1 1407-

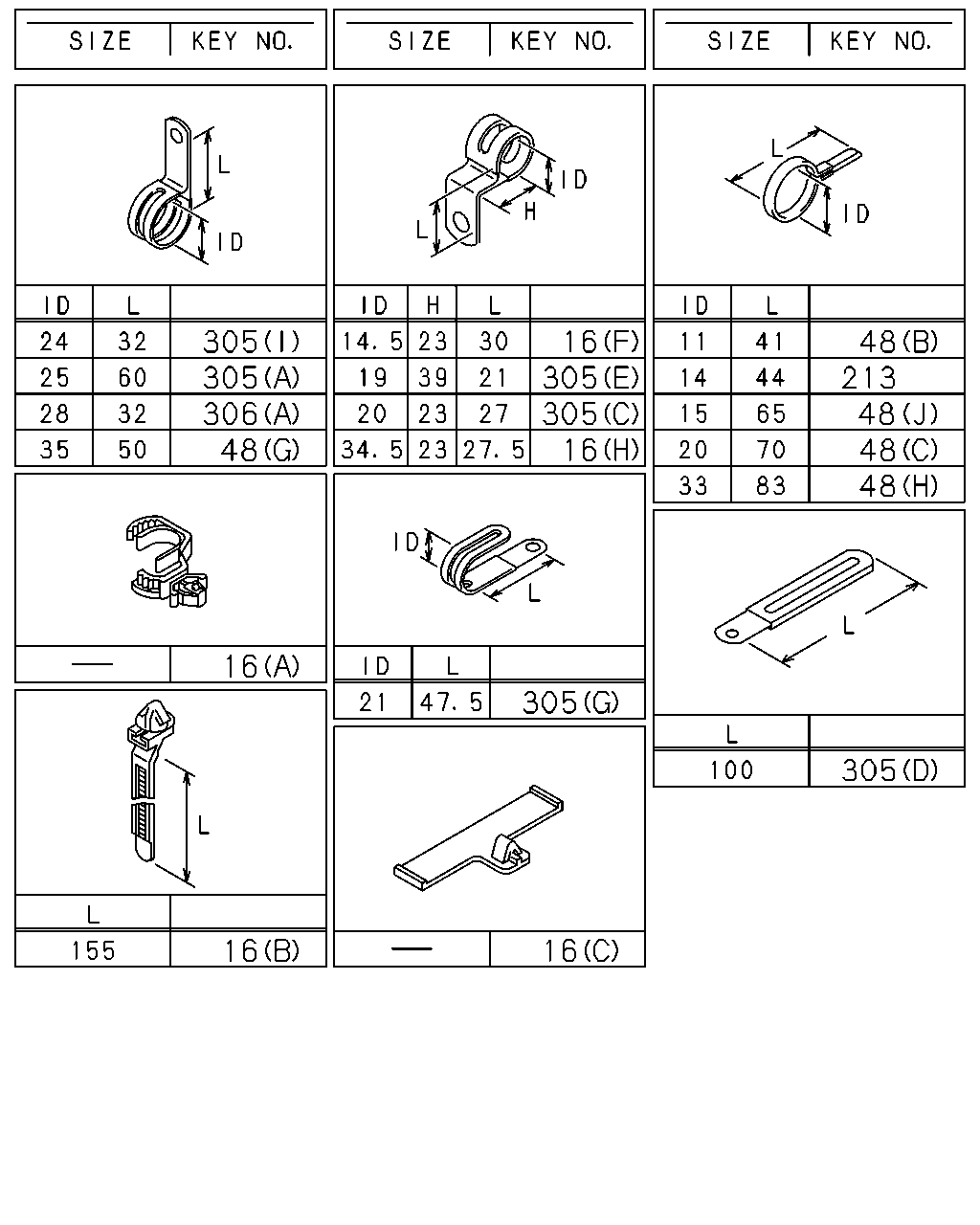

çizim 434510
305 305 306 48 16 16 16 305 305 16 305 16 48 213 48 48 48 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1407-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1407-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1407-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1407-
16 CLIP; HARNESS
(I) L=600 		1-09707-107-1 01 1 1407-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 1407-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1407-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1407-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1407-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1407-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 1407-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (J) ID=15 L=65 		1-09700-466-0 24 1 1407-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (J) ID=15 L=65 		1-09700-466-0 32 1 1407-
48 CLIP; FRAME HARNESS
(A) ID=9 L=20 		0-95234-835-0 01 1 1407-
48 CLIP; FRAME HARNESS
(D) ID=19 L=32 		0-95235-866-0 02 1 1407-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1407-
48 CLIP; FRAME HARNESS
(J) ID=15 L=65 		1-09700-466-0 02 1 1407-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 1407-
48 CLIP; FRAME HARNESS
(E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1407-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1407-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1407-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1407-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1407-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1407-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1407-
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 01 1 1407-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 1407-
305 CLIP; ENG HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1407-
305 CLIP; ENG HARNESS
(E) ID=19 L=39 H=21 		1-09700-972-1 01 1 1407-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1407-
305 CLIP; ENG HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 1407-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1407-
305 CLIP; ENG HARNESS
(D) L=100 		8-94443-021-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1407-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
