◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11599 - FVM(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#144808) — 114 parça

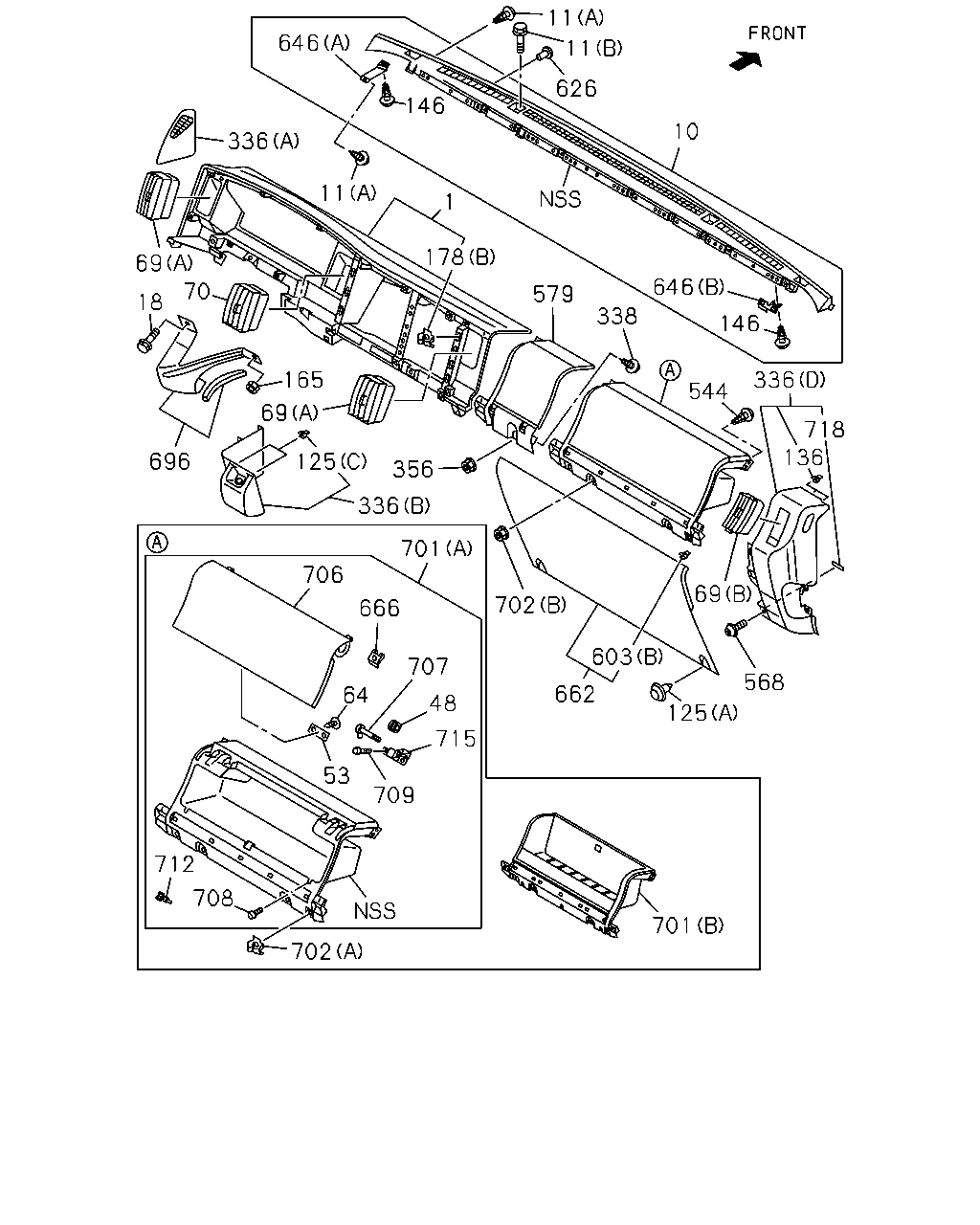

çizim 431768
626 11 11 146 646 1 646 146 336 718 136 69 568 125 603 662 701 702 336 125 356 69 165 11 336 69 696 18 70 706 701 666 707 48 715 709 53 64 178 579 544 338 712 708 702 10
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1407-
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1407-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1407-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1407-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1407-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1407-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1407-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1407-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1407-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1407-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1407-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1407-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1407-
136 CLIP; INST COVER 8-98076-254-0 02 1 1407-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1407-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1407-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1407-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1407-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1407-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1407-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1407-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1407-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1407-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 1407-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1407-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1407-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1407-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1407-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1407-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1407-
696 BRACKET; KNEE 8-98098-126-1 01 1 1407-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1407-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1407-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1407-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1407-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1407-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1407-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1407-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1407-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1407-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1407-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1407-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1407-

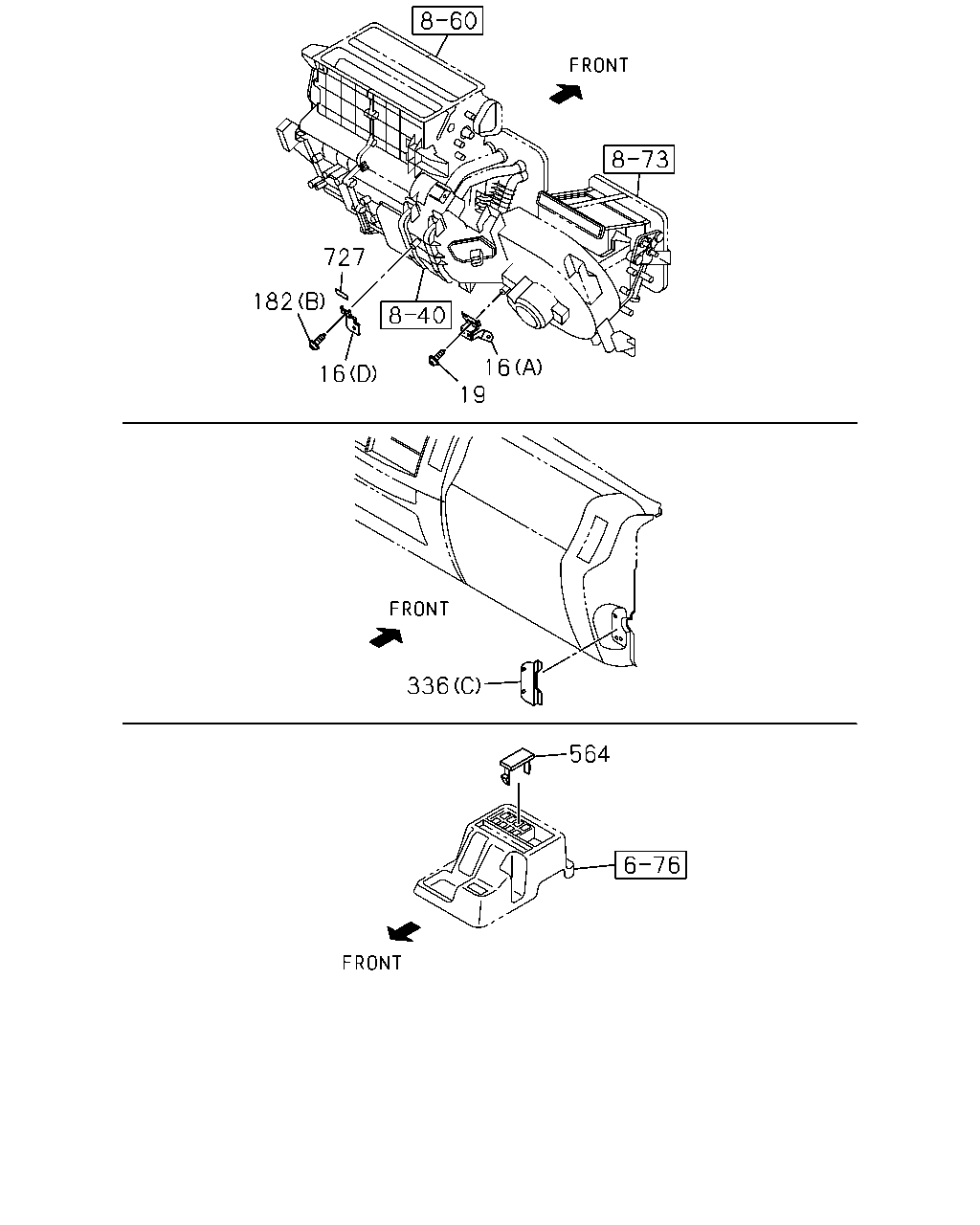

çizim 431882
727 182 16 19 16 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1407-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1407-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1407-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1407-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1407-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1407-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1407-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1407-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1407-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1407-
564 COVER; SW 8-97043-732-1 06 1 1407-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1407-

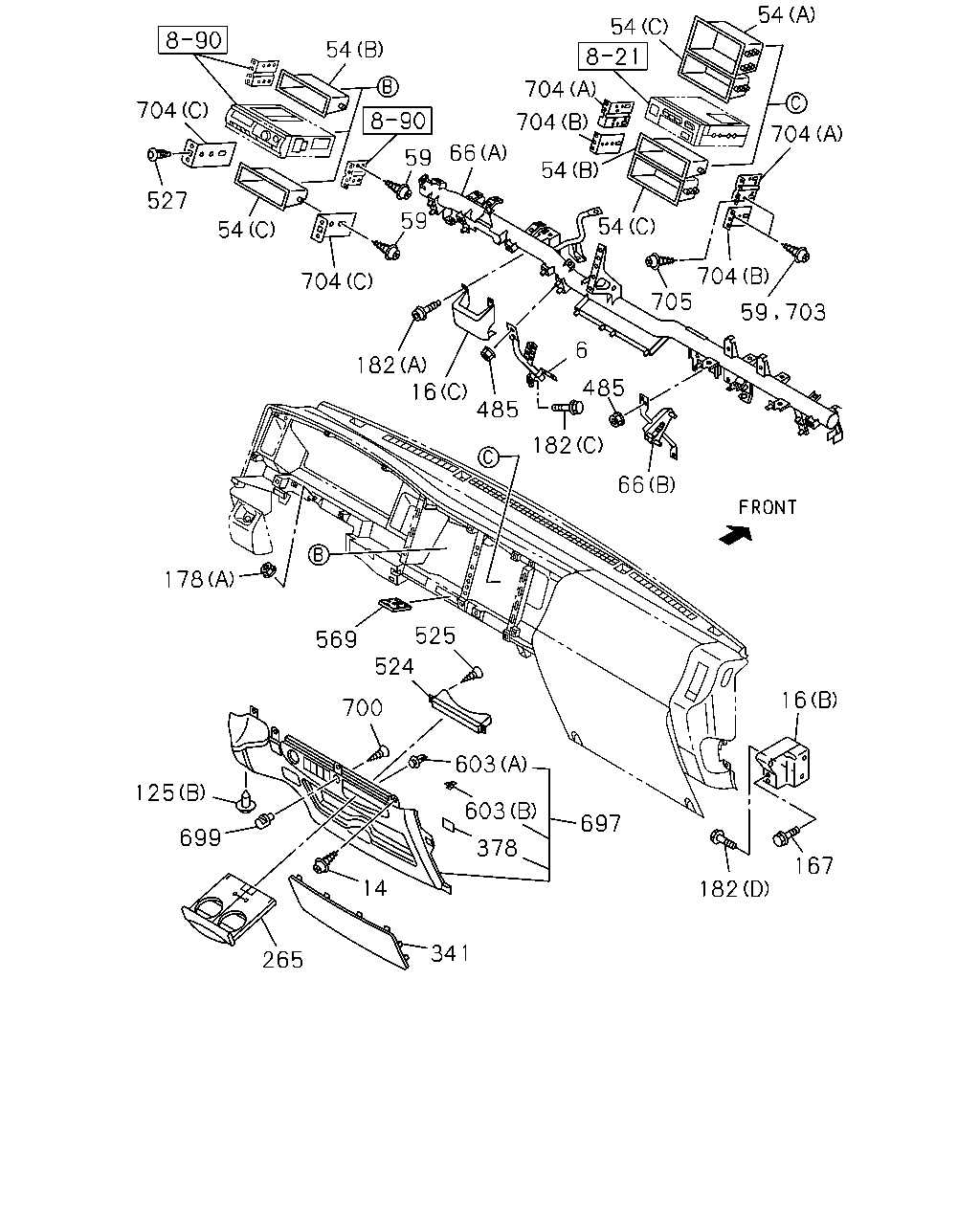

çizim 432671
182 167 16 697 603 603 378 341 14 265 699 125 700 524 525 178 66 569 182 485 16 182 704 54 527 704 54 59 59 6 485 66 704 704 54 54 705 59 703 704 54 54 704
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1407-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1407-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1407-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1407-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1407-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1407-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1407-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1407-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1407-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1407-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1407-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1407-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1407-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1407-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1407-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1407-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1407-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1407-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1407-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1407-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1407-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1407-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1407-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1407-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1407-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1407-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1407-
569 HOLDER; CARD 8-97410-276-1 01 1 1407-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1407-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1407-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1407-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1407-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1407-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1407-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1407-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1407-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1407-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1407-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1407-
