Isuzu WW
▶
TRUCKS
▶
FVM
▶
11599 - FVM(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶
7-30 — LOCK CYLINDER SET
(#144807) — 17 parça
◀

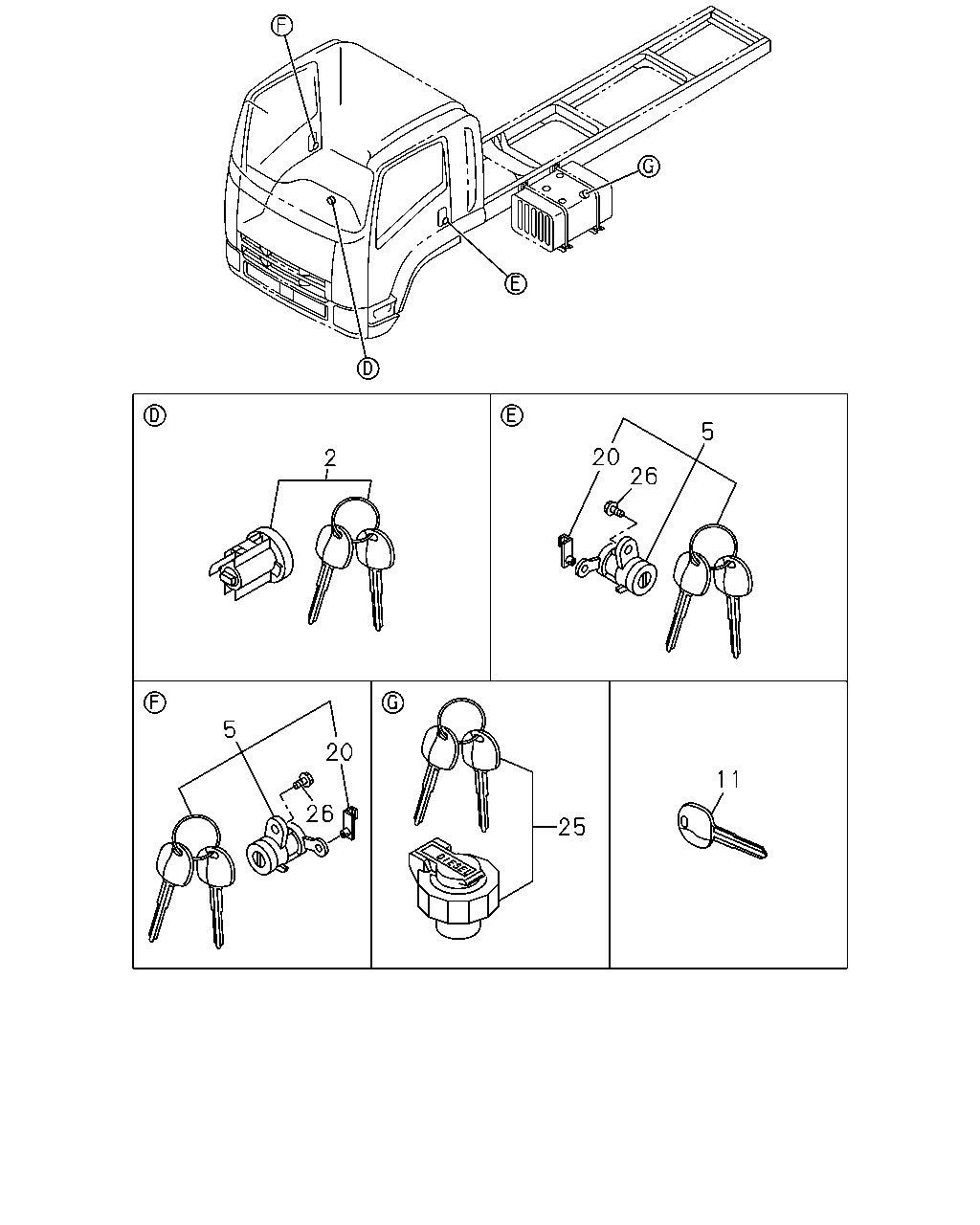

[730A] NO.2 FUEL TANK CAP KEY LOCK (8 parça)
[730A] NO.1 EXC.FUEL TANK CAP KEY LOCK (7 parça)

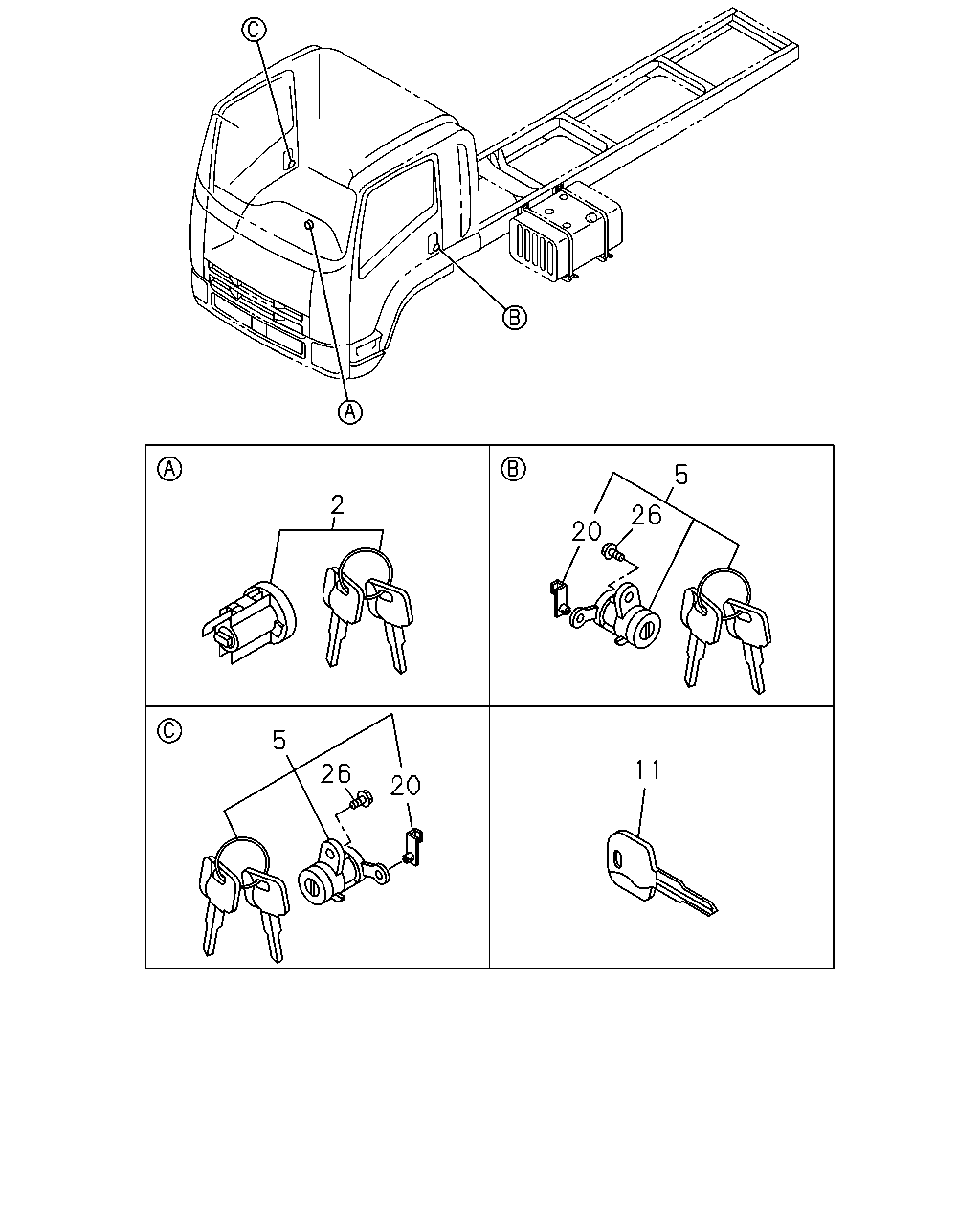

[730A] NO.3 (2 parça)
▶
5
26
20
2
5
20
26
25
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
8-98201-342-0
01
1
1407-
5
CYLINDER ASM; DOOR LOCK
8-98055-149-0
01
1
1407-
5
CYLINDER ASM; DOOR LOCK
8-98055-150-0
01
1
1407-
11
KEY; BLANK
8-98055-170-0
AR
1
1407-
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1407-
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1407-
25
CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05>
8-98146-010-0
01
1
1407-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1407-
2
5
26
20
11
5
26
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
8-98201-342-0
01
1
1407-
5
CYLINDER ASM; DOOR LOCK
8-98055-149-0
01
1
1407-
5
CYLINDER ASM; DOOR LOCK
8-98055-150-0
01
1
1407-
11
KEY; BLANK
8-98055-170-0
AR
1
1407-
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1407-
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1407-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1407-
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A)
8-98201-216-0
01
1
1407-
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B)
8-98201-161-0
01
1
1407-
