Isuzu WW
▶
TRUCKS
▶
FVM
▶
11599 - FVM(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

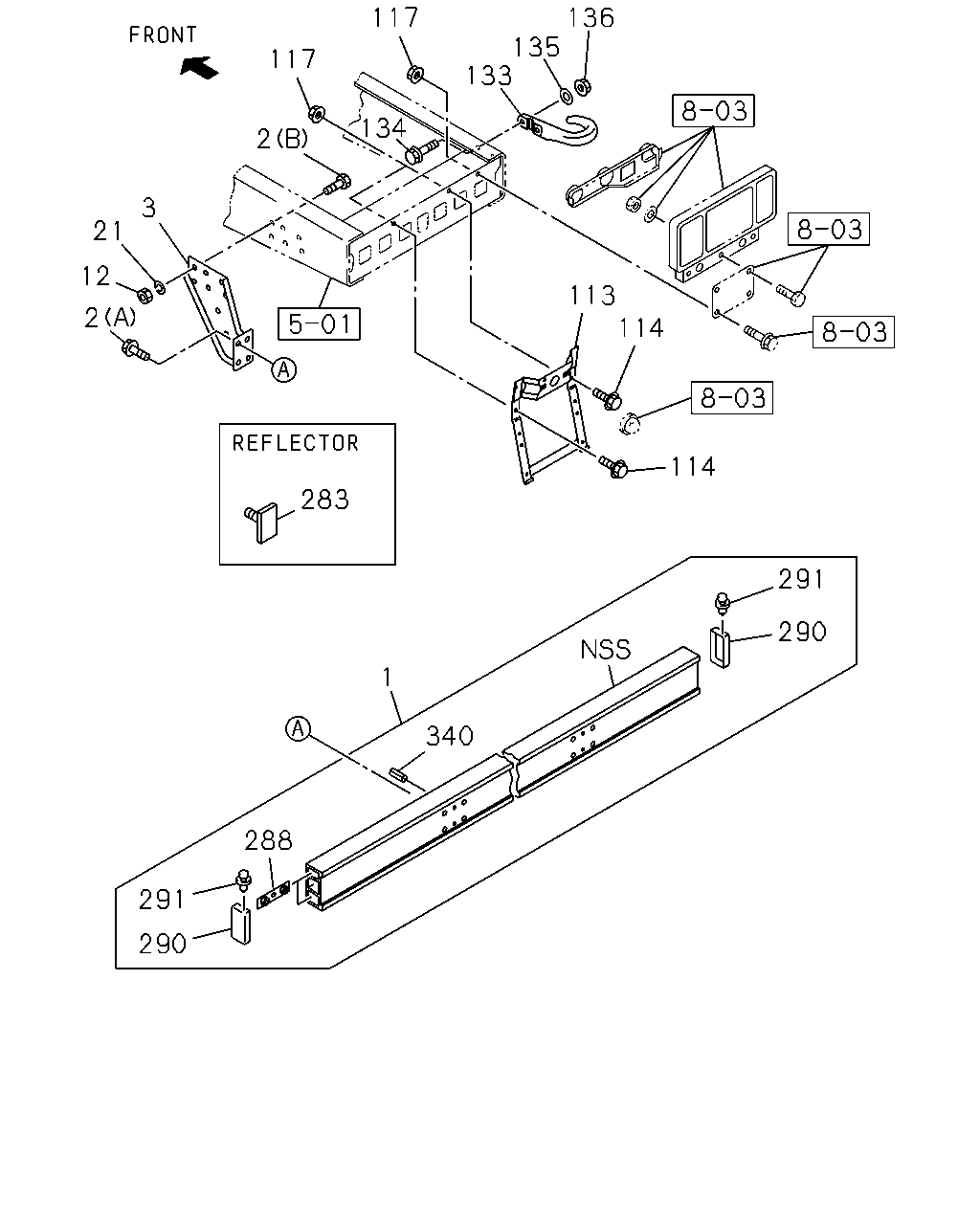

6-90 — REAR BUMPER
(#144803) — 21 parça
2
12
21
3
2
117
117
133
135
136
113
114
114
291
290
1
340
288
291
290
283
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER; RR
BUMPER REAR<7HZ> STAMP D7W
1-71220-216-0
01
1
1407-
2
BOLT; BACK BAR
BUMPER REAR<7HZ> (B) M16X40
0-20851-640-0
04
1
1407-
2
BOLT; BACK BAR
BUMPER REAR<7HZ> (A) M12X30 FLANGE
0-28651-230-0
08
1
1407-
3
BRACKET; BUMPER
BUMPER REAR<7HZ> STAMP BL1
1-71230-587-0
01
1
1407-
3
BRACKET; BUMPER
BUMPER REAR<7HZ> STAMP BL1
1-71230-594-0
01
1
1407-
12
NUT; BRKT
BUMPER REAR<7HZ> M16
0-91110-516-0
04
1
1407-
21
WASHER; LK,BUMPER
BUMPER REAR<7HZ> ID=16.2
0-91510-816-0
04
1
1407-
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
1407-
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
1407-
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1407-
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1407-
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
1407-
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20851-650-0
01
1
1407-
134
BOLT; HOOK
TOW HOOK<V76> M16X60
0-20851-660-0
01
1
1407-
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
0-91510-816-0
02
1
1407-
136
NUT; HOOK
TOW HOOK<V76> M16
0-91110-516-0
02
1
1407-
283
REFLECTOR; REFLEX,RR
1-82290-061-0
04
1
1407-
288
PLATE; RR BUMPER,REFLECTOR
BUMPER REAR<7HZ>
1-71290-066-0
04
1
1407-
290
COVER; RR
BUMPER REAR<7HZ>
1-71290-063-0
02
1
1407-
291
RIVET; REFLECTOR
BUMPER REAR<7HZ>
1-71290-062-0
04
1
1407-
340
RIVET
BUMPER REAR<7HZ>
1-71290-065-0
04
1
1407-
