◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#1448) — 113 parça

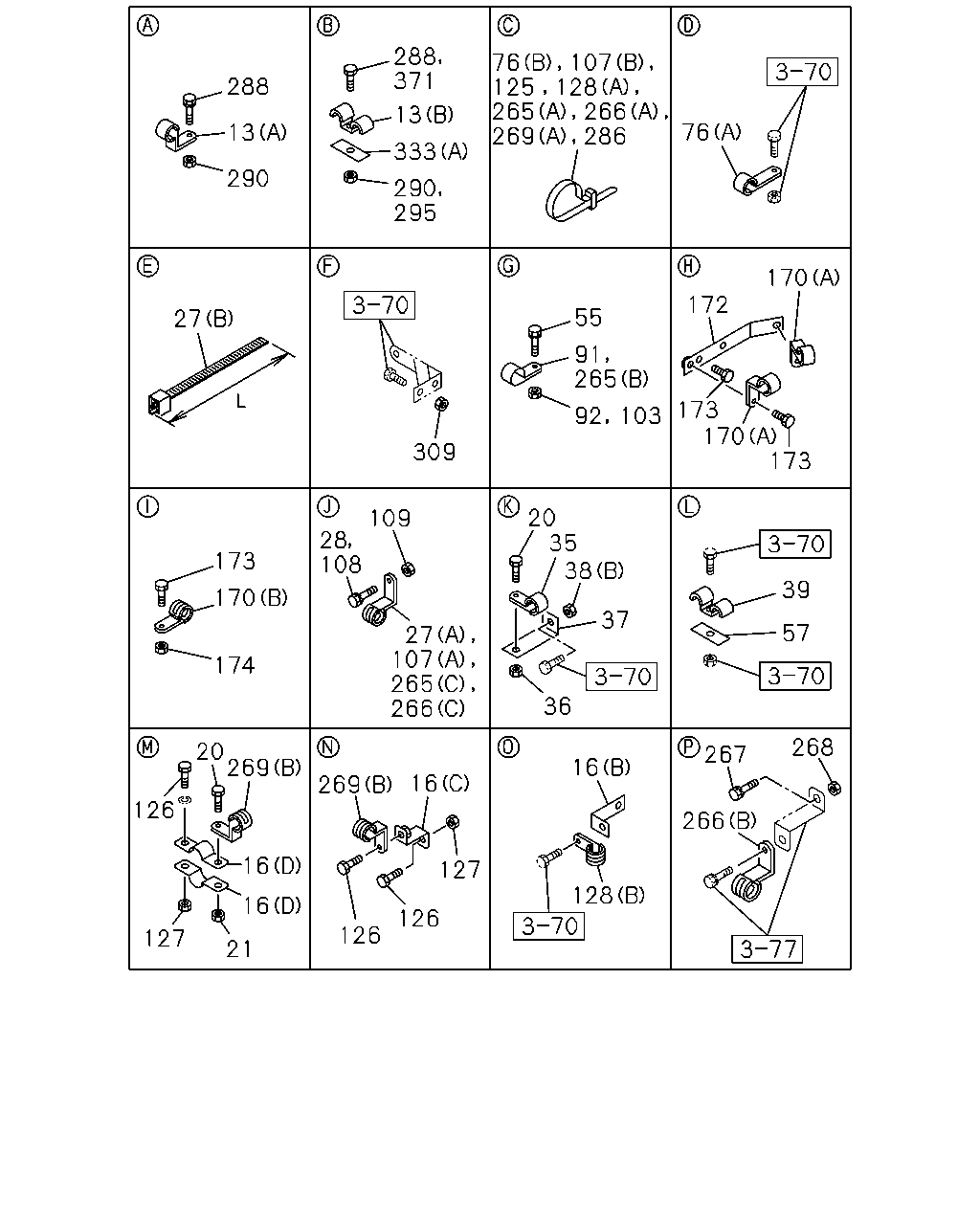

çizim 29039
288 371 76 107 125 128 288 13 76 13 333 290 290 295 170 172 55 27 91 265 173 170 92 103 173 309 20 35 38 109 28 108 173 39 170 37 57 27 107 265 266 174 36 268 20 269 267 16 16 269 126 266 16 127 128 16 126 126 127 21 265 266 269 286
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
(A) 		1-09700-603-0 01 1 9203-
13 CLIP; AIR PIPE
(B) 		1-09700-746-0 01 1 9203-
13 CLIP; AIR PIPE
(C) 		5-09700-165-0 01 1 9203-
16 BRACKET; PIPE CLIP
(A) 		1-47465-168-1 01 1 9203-
16 BRACKET; PIPE CLIP
(B) 		1-47475-739-0 01 1 9203-
16 BRACKET; PIPE CLIP
(C) 		1-47475-868-0 02 1 9203-
16 BRACKET; PIPE CLIP
(D) 		1-47476-273-0 08 1 9203-
20 BOLT; CLIP
M8X16 FLANGE 		0-28010-816-0 01 1 9203-9204
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9205-
20 BOLT; CLIP
M8X20 FLANGE 		0-28010-820-0 06 1 9203-9204
20 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 06 1 9205-
21 NUT; CLIP
M8 		9-09110-408-0 04 1 9203-
27 CLIP; FLEX HOSE
(A) ID=23 H=30 L=35 		1-09700-743-0 03 1 9203-
27 CLIP; FLEX HOSE
(B) L=250 		5-09707-030-0 01 1 9203-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28010-820-0 03 1 9203-9204
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28080-820-0 03 1 9205-
35 CLIP; AIR PIPE
ID=16.5 		5-09700-364-0 01 1 9203-
36 NUT; CLIP
M8 		9-09110-408-0 01 1 9203-
37 BRACKET; PIPE CLIP
L=55 		1-47475-304-0 01 1 9203-
38 NUT; BRKT
(A) M6 FLANGE 		1-09984-141-0 01 1 9203-
38 NUT; BRKT
(B) M8 		9-09110-408-0 01 1 9203-
39 CLIP; AIR PIPE
AIR DRYER<PS7> ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 9203-9206
55 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28010-825-0 04 1 9203-9204
55 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 04 1 9205-
57 BRACKET; PIPE CLIP,AIR
AIR DRYER<PS7> L=50 		1-47475-299-2 01 1 9203-9206
76 CLIP; NYLON TUBE
(A) 		1-09701-019-0 02 1 9203-
76 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 03 1 9203-
91 CLIP; AIR PIPE
ID=11 H=20 L=20 		5-09700-351-0 04 1 9203-
92 NUT; PIPE CLIP
M8 		9-09110-408-0 02 1 9203-
103 NUT; PIPE CLIP
M8 		9-09110-408-0 02 1 9203-
107 CLIP; NYLON TUBE
(A) 		1-09700-743-0 01 1 9203-
107 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 13 1 9203-9205
107 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 14 1 9206-
108 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28010-816-0 01 1 9203-9204
108 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9205-
109 NUT; TUBE CLIP
M8 		9-09110-408-0 01 1 9203-
125 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 9203-
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28010-820-0 05 1 9203-9204
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28080-820-0 05 1 9205-
126 BOLT; CLIP BRKT
M10X30 W/LK WASHER 		0-50041-030-0 02 1 9203-
127 NUT; CLIP BRKT
M8 		9-09110-408-0 05 1 9203-
127 NUT; CLIP BRKT
M10 		9-09110-410-0 02 1 9203-
128 CLIP; NYLON TUBE
(B) ID=32 L=50 		1-09701-055-1 01 1 9203-
128 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 9203-
128 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=250 		1-09707-126-0 13 1 9203-9205
128 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=250 		1-09707-126-0 14 1 9206-
128 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=250 		1-09707-126-0 16 1 9203-
170 CLIP; NYLON TUBE
(A) 		1-09700-905-0 02 1 9203-
170 CLIP; NYLON TUBE
(B) 		1-09701-041-1 01 1 9203-
172 BRACKET; TUBE CLIP 1-47476-053-1 01 1 9203-
173 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28010-816-0 02 1 9203-9204
173 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9205-
173 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28010-820-0 01 1 9203-9204
173 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 9205-
173 BOLT; CLIP BRKT
M10X20 W/LK WASHER 		9-01921-020-0 02 1 9203-9204
173 BOLT; CLIP BRKT
M10X20 W/LK WASHER 		0-50051-020-0 02 1 9205-
174 NUT; CLIP BRKT
M8 		9-09110-408-0 01 1 9204-
265 CLIP; NYLON TUBE
(C) 		1-09700-743-0 01 1 9203-
265 CLIP; NYLON TUBE
(B) 		9-09525-856-0 01 1 9203-
265 CLIP; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250 		1-09707-126-0 01 1 9203-
266 CLIP; NYLON TUBE
(B) 		1-09700-743-0 01 1 9203-
266 CLIP; NYLON TUBE
(C) 		1-09700-861-0 01 1 9203-
266 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 02 1 9203-
266 CLIP; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250 		1-09707-126-0 01 1 9203-
267 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28010-820-0 01 1 9203-9204
267 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 9203-9204
267 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9205-
268 NUT; CLIP BRKT 9-09110-408-0 02 1 9203-
269 CLIP; BAND,NYLON TUBE
(B) 		1-09700-905-0 10 1 9203-
269 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 11 1 9203-9204
269 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 12 1 9205-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 06 1 9305-
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (A) L=250 		1-09707-126-0 03 1 9203-9304
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (A) L=250 		1-09707-126-0 04 1 9305-
269 CLIP; BAND,NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250 		1-09707-126-0 05 1 9203-9304
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 05 1 9203-9304
269 CLIP; BAND,NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250 		1-09707-126-0 05 1 9305-
269 CLIP; BAND,NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250 		1-09707-126-0 07 1 9203-
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 02 1 9203-9205
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 03 1 9206-
286 CLIP; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=250 		1-09707-126-0 01 1 9203-
288 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28010-816-0 01 1 9203-9204
288 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9205-
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28010-825-0 01 1 9203-9204
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 9205-
290 NUT; CLIP,AIR PIPE
M8 		9-09110-408-0 02 1 9203-
295 NUT; CLIP,AIR PIPE
AIR DRYER<PS7> M8 		9-09110-408-0 01 1 9203-9206
309 NUT; BRKT FIX
M8 		9-09110-408-0 02 1 9203-
333 BRACKET; BRK AIR PIPE
(A) L=50 		1-47475-299-2 01 1 9203-
333 BRACKET; BRK AIR PIPE
(B) 		1-79738-179-1 01 1 9203-
371 BOLT; CLIP,AIR PIPE
AIR DRYER<PS7> M8X16 FLANGE 		0-28010-816-0 01 1 9203-9204
371 BOLT; CLIP,AIR PIPE
AIR DRYER<PS7> M8X16 FLANGE 		0-28080-816-0 01 1 9205-9206
371 BOLT; CLIP,AIR PIPE
AIR DRYER<PS7> M8X25 FLANGE 		0-28080-825-0 01 1 9205-
çizim 95000
13 16 42 38 356
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
(A) 		1-09700-603-0 01 1 9203-
13 CLIP; AIR PIPE
(B) 		1-09700-746-0 01 1 9203-
13 CLIP; AIR PIPE
(C) 		5-09700-165-0 01 1 9203-
16 BRACKET; PIPE CLIP
(A) 		1-47465-168-1 01 1 9203-
16 BRACKET; PIPE CLIP
(B) 		1-47475-739-0 01 1 9203-
16 BRACKET; PIPE CLIP
(C) 		1-47475-868-0 02 1 9203-
16 BRACKET; PIPE CLIP
(D) 		1-47476-273-0 08 1 9203-
38 NUT; BRKT
(A) M6 FLANGE 		1-09984-141-0 01 1 9203-
38 NUT; BRKT
(B) M8 		9-09110-408-0 01 1 9203-
42 BOLT; CLIP,AIR PIPE
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9203-
356 CLIP; AIR PIPE
ID=6 H=20 L=20 		9-09527-005-0 01 1 9203-
çizim 95468
333 254 184 362 203 203 354 353
BalonParca AdiParca NoAdetTipApplied Date
184 BOLT; PIPE CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 01 1 9203-
203 BOLT; CLIP BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 04 1 9203-
254 BOLT; PIPE CLIP
M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9203-
333 BRACKET; BRK AIR PIPE
(A) L=50 		1-47475-299-2 01 1 9203-
333 BRACKET; BRK AIR PIPE
(B) 		1-79738-179-1 01 1 9203-
353 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 9203-
354 BOLT; PIPE CLIP
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9203-
362 BOLT; FLEX HOSE CLIP
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9203-9204
362 BOLT; FLEX HOSE CLIP
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9205-
