6-60 — ROOF PANEL (#144794) — 24 parça

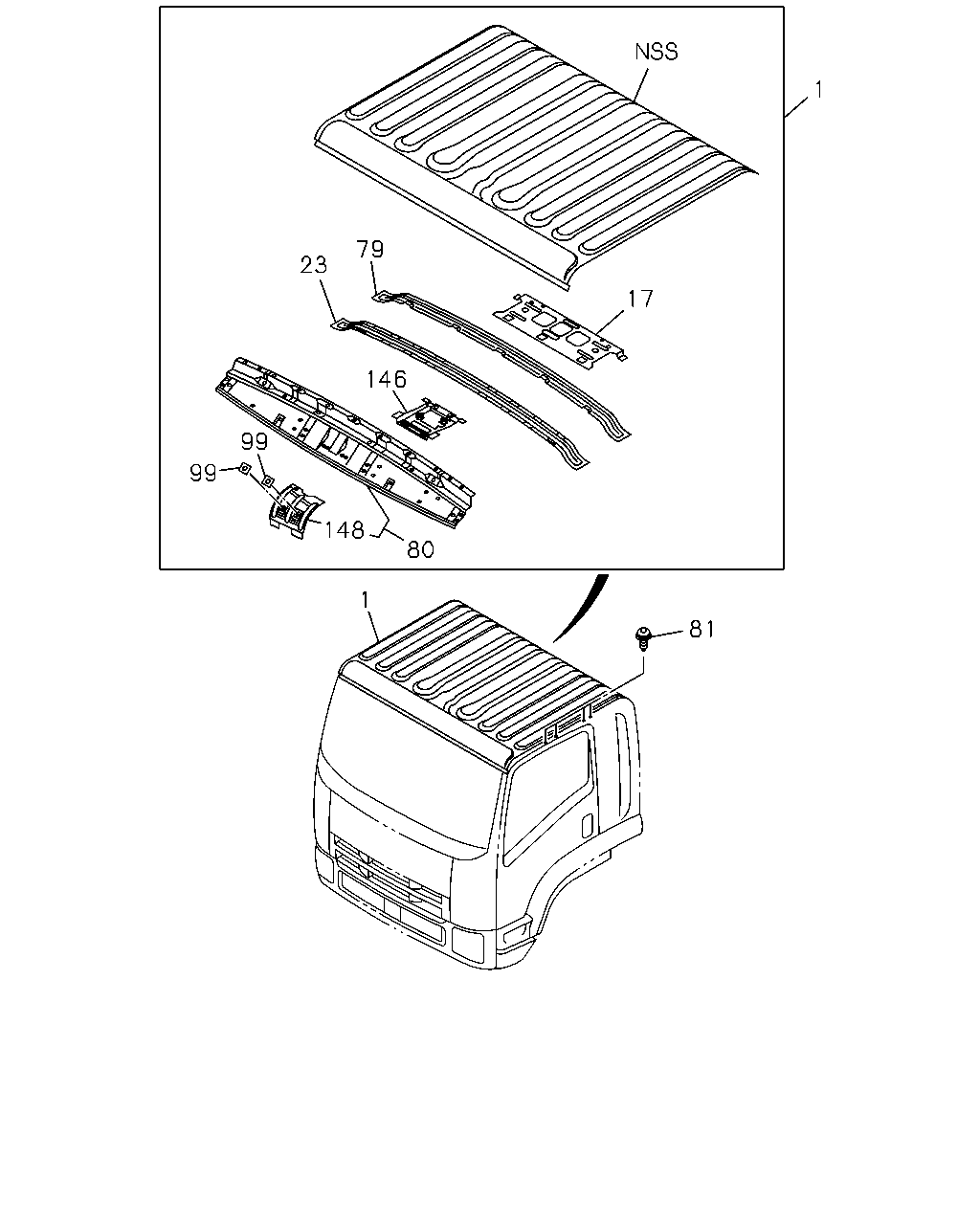

çizim 433623
1 17 81 80 1 148 99 99 23 79 146
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> 		8-98246-480-0 01 1 1407-
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC> 		8-98246-482-0 01 1 1407-
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-479-0 01 1 1407-
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98246-483-0 01 1 1407-
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1407-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1407-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1407-
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-472-0 01 1 1407-
80 PANEL; HEADER,ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98196-920-0 01 1 1407-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1407-
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1407-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1407-
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-013-0 01 1 1407-

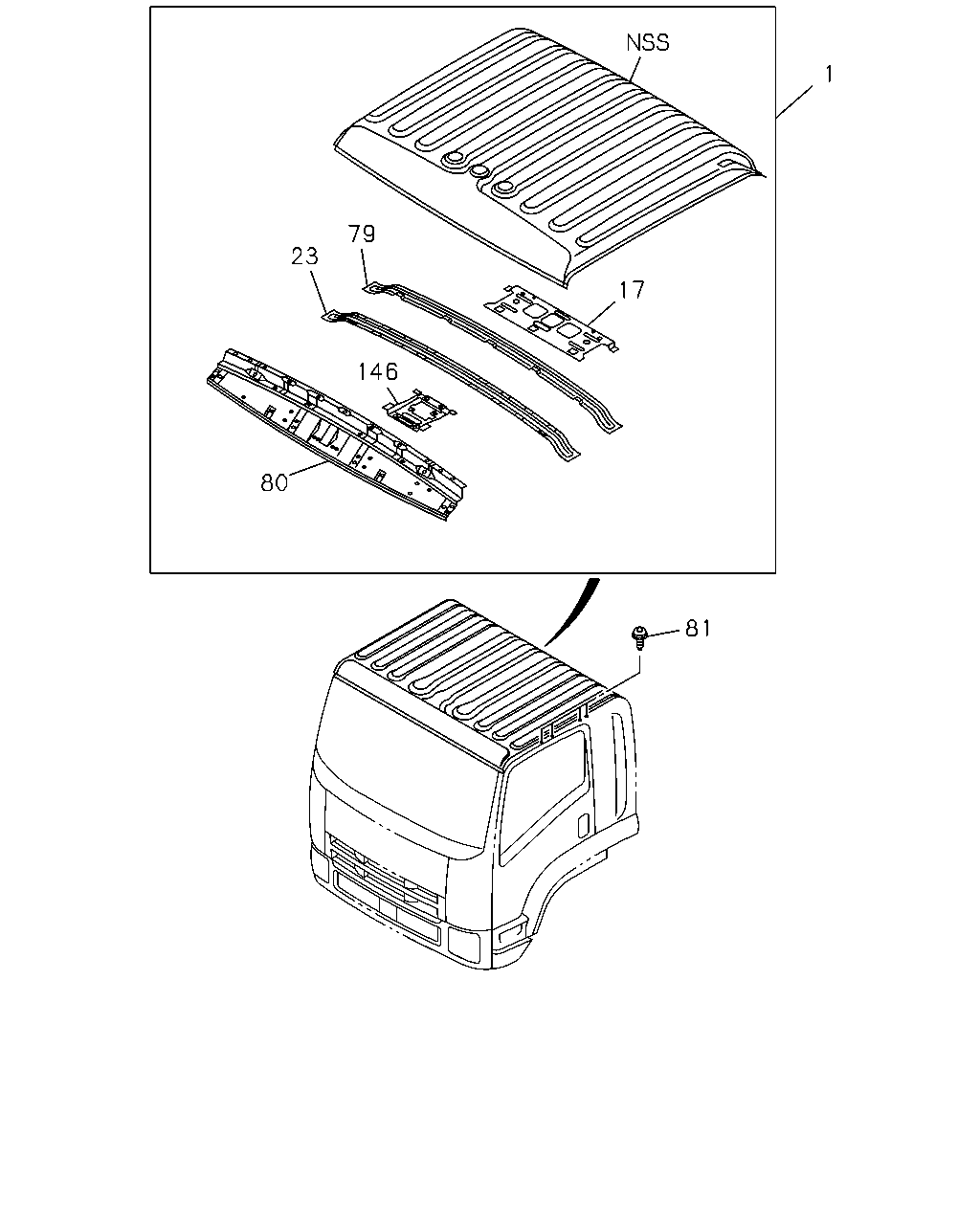

çizim 433792
1 17 79 23 146 80 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> 		8-98246-480-0 01 1 1407-
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC> 		8-98246-482-0 01 1 1407-
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-479-0 01 1 1407-
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98246-483-0 01 1 1407-
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1407-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1407-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1407-
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-472-0 01 1 1407-
80 PANEL; HEADER,ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98196-920-0 01 1 1407-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1407-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1407-
