Isuzu WW
▶
TRUCKS
▶
FVM
▶
11599 - FVM(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

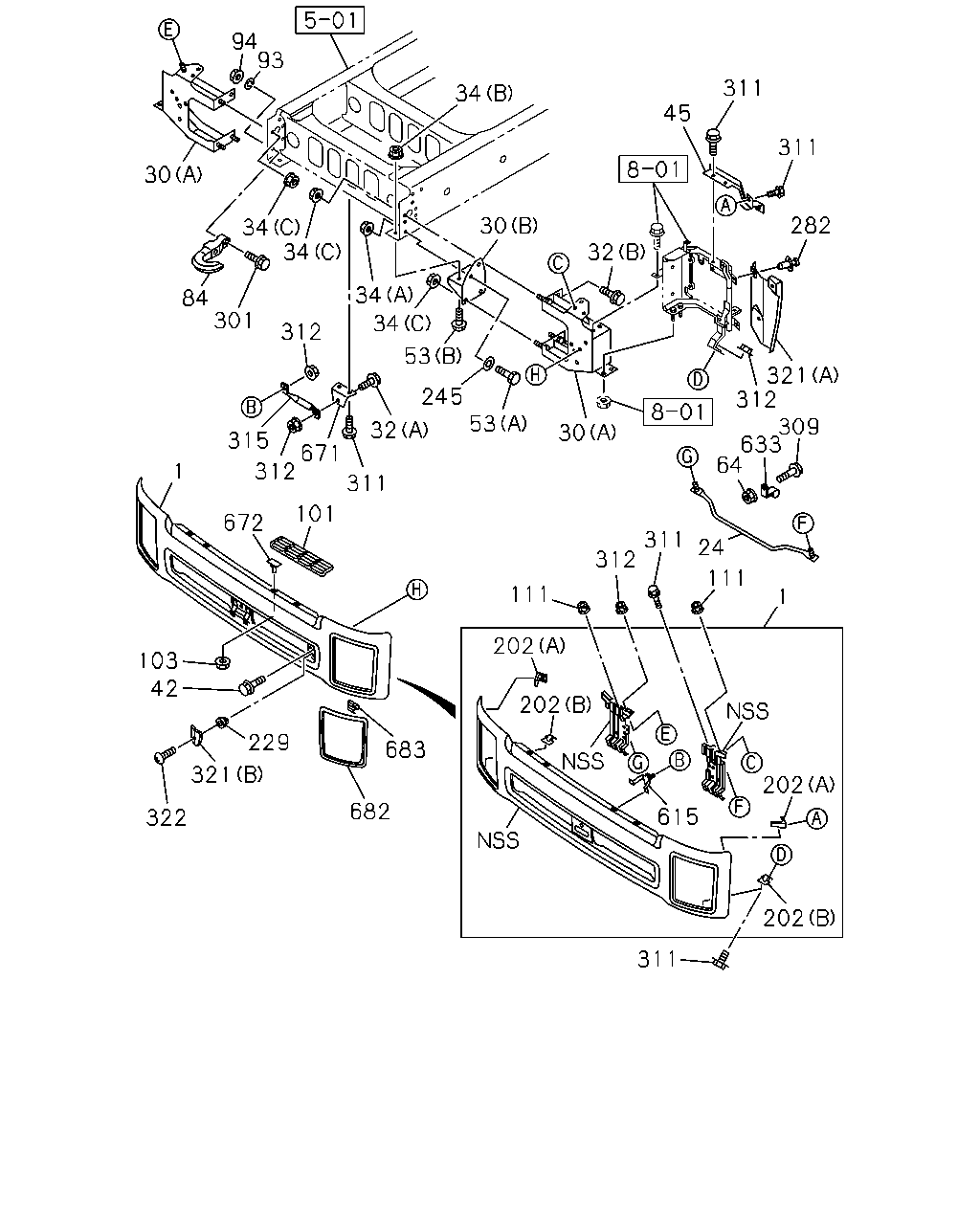

6-01 — FRONT BUMPER
(#144782) — 50 parça
311
311
282
321
312
633
309
64
30
53
32
245
53
34
34
34
34
312
671
32
30
45
111
1
24
311
312
111
202
202
615
202
202
311
682
683
229
101
311
672
312
315
301
84
30
93
94
34
321
42
322
103
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
8-97409-903-1
01
1
1407-
24
BAR; FRT BUMPER
8-97625-359-0
01
1
1407-
30
BRACKET; FRT BUMPER
(A)
8-98034-434-2
01
1
1407-
30
BRACKET; FRT BUMPER
(A)
8-98034-435-2
01
1
1407-
30
BRACKET; FRT BUMPER
(B)
8-98053-546-1
01
1
1407-
30
BRACKET; FRT BUMPER
(B)
8-98053-547-1
01
1
1407-
32
BOLT; BRKT,BUMPER
(B) M12X35 FLANGE
0-28051-235-0
02
1
1407-
32
BOLT; BRKT,BUMPER
(A) M10X30
8-94324-205-0
01
1
1407-
34
NUT; BRKT,BUMPER
(A) M16
0-91110-516-0
02
1
1407-
34
NUT; BRKT,BUMPER
(C) M12 FLANGE
0-91180-212-0
06
1
1407-
34
NUT; BRKT,BUMPER
(B) M14 FLANGE
0-91180-214-0
04
1
1407-
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1407-
45
BRACKET; BRKT TO BUMPER
8-97613-647-2
01
1
1407-
45
BRACKET; BRKT TO BUMPER
8-97613-648-2
01
1
1407-
53
BOLT; BRKT TO FRAME
(A) M16X40
0-20851-640-0
02
1
1407-
53
BOLT; BRKT TO FRAME
(B) M14X45 FLANGE
0-28851-445-0
04
1
1407-
64
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
1407-
84
HOOK
1-57181-027-1
01
1
1407-
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
1407-
94
NUT; HOOK
M16
0-91110-516-0
02
1
1407-
101
STEP; BUMPER
8-97611-542-0
01
1
1407-
101
STEP; BUMPER
8-97611-543-0
01
1
1407-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1407-
111
NUT; STAY
M8 FLANGE
0-91180-108-0
02
1
1407-
202
BRACKET; BUMPER SIDE
(A)
8-97613-636-0
01
1
1407-
202
BRACKET; BUMPER SIDE
(A)
8-97613-637-0
01
1
1407-
202
BRACKET; BUMPER SIDE
(B)
8-97613-640-1
01
1
1407-
202
BRACKET; BUMPER SIDE
(B)
8-97613-641-1
01
1
1407-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1407-
245
WASHER; PL,BRKT TO FRAME
ID=17 OD=30
0-91610-516-0
02
1
1407-
282
FASTENER; BUMPER FILLER
D8X13.5
1-09987-248-1
08
1
1407-
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
02
1
1407-
309
BOLT; CLIP
M6X16 FLANGE
0-28650-616-0
01
1
1407-
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
06
1
1407-
311
BOLT; BRKT
M10X30
8-94324-205-0
07
1
1407-
312
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1407-
312
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1407-
315
STAY; BUMPER
8-97613-645-1
01
1
1407-
321
COVER; BUMPER FRT SIDE
(B)
8-97616-296-1
01
1
1407-
321
COVER; BUMPER FRT SIDE
(B)
8-97616-297-1
01
1
1407-
321
COVER; BUMPER FRT SIDE
(A)
8-97619-119-0
01
1
1407-
321
COVER; BUMPER FRT SIDE
(A)
8-97619-120-0
01
1
1407-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1407-
615
BRACKET; BUMPER CENTER
8-97613-643-1
01
1
1407-
633
CLIP; BUMPER
ID=16 H=24 L=20
0-95207-315-0
01
1
1407-
671
BRACKET; STAY
8-97620-889-0
01
1
1407-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1407-
682
BEZEL; BUMPER
8-97611-530-2
01
1
1407-
682
BEZEL; BUMPER
8-97611-531-2
01
1
1407-
683
CLIP; BEZEL,BUMPER
8-98084-293-0
08
1
1407-
