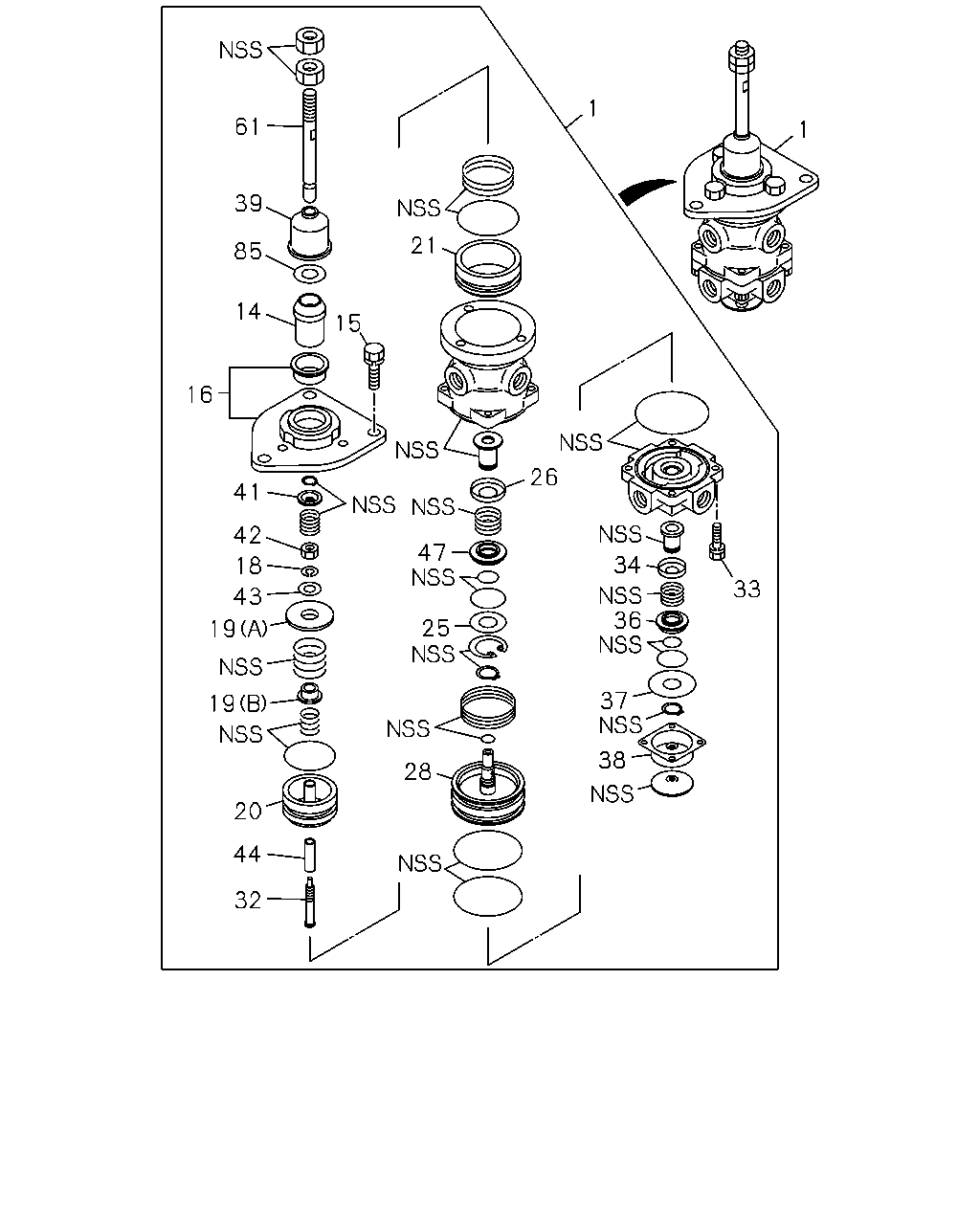

3-34 — BRAKE VALVE; AIR (#14478) — 29 parça

1 61 1 39 21 85 14 15 16 26 41 42 47 34 18 33 36 43 25 19 37 19 38 28 20 44 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK	1-48100-872-0	01	1	0611-1004
1	VALVE; BRK	8-98166-520-0	01	1	1005-
14	PLUNGER; BRK VLV	1-48119-365-0	01	1	0611-
15	BOLT; PLATE,BRK VLV	1-48119-232-1	03	1	0611-
16	PLATE; MTG,BRKT VLV	1-48119-364-3	01	1	0611-
18	WASHER; LK,SEAT,BRK VLV	1-48199-024-0	01	1	0611-
19	SEAT; SPRING,BRK VLV (B)	1-48119-370-1	01	1	0611-
19	SEAT; SPRING,BRK VLV (A)	1-48119-371-0	01	1	0611-
20	PISTON; UPR,BRK VLV	1-48119-318-0	01	1	0611-
21	BUSHING; UPR BODY	1-48119-317-0	01	1	0611-
25	WASHER; PISTON,BRK VLV	1-48129-149-0	01	1	0611-
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	0611-
28	PISTON; LWR,BRK VLV	1-48119-337-0	01	1	0611-
32	SCREW; BRK VLV	1-48119-323-0	01	1	0611-
33	BOLT; BODY,BRK VLV	1-48129-068-0	04	1	0611-
34	RETAINER; VLV,BRK VLV	1-48122-010-0	01	1	0611-
36	RETAINER; GASKET,BRK VLV	1-48129-298-0	01	1	0611-
37	WASHER; VLV LWR,BRK VLV	1-48129-321-0	01	1	0611-
38	COVER; EXH,BRK VLV	1-48119-597-0	01	1	0611-
39	BOOT; PLUNGER,BRK VLV	1-48119-438-0	01	1	0611-
41	PLATE; STEM,BRK VLV	1-48129-167-0	01	1	0611-
42	NUT; SPR SEAT,BRK VLV	1-48199-025-0	01	1	0611-
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	0611-
44	SLEEVE; PISTON,BRK VLV	1-48119-322-0	01	1	0611-
47	RETAINER; GASKET,BRK VLV	1-48129-297-0	01	1	0611-
61	ROD; PUSH,BRK VLV	1-48119-363-0	01	1	0611-
85	WASHER; PUSH ROD	1-48119-366-0	01	1	0611-

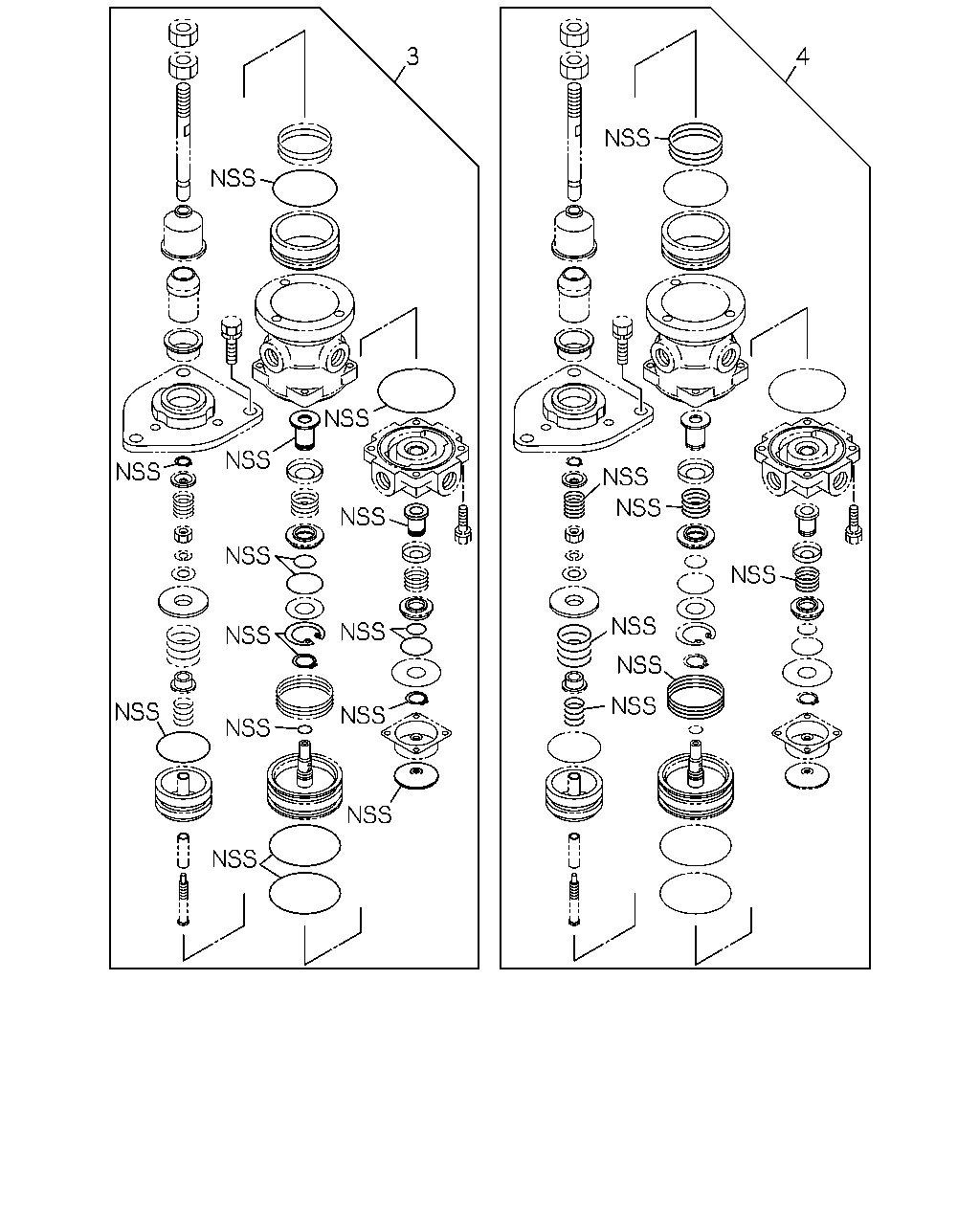

3 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; RUBBER,BRK VLV	1-85576-391-0	01	1	0611-
	4	REPAIR KIT; SPRING,BRK VLV	1-85576-179-0	01	1	0611-
