Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#14477) — 107 parça

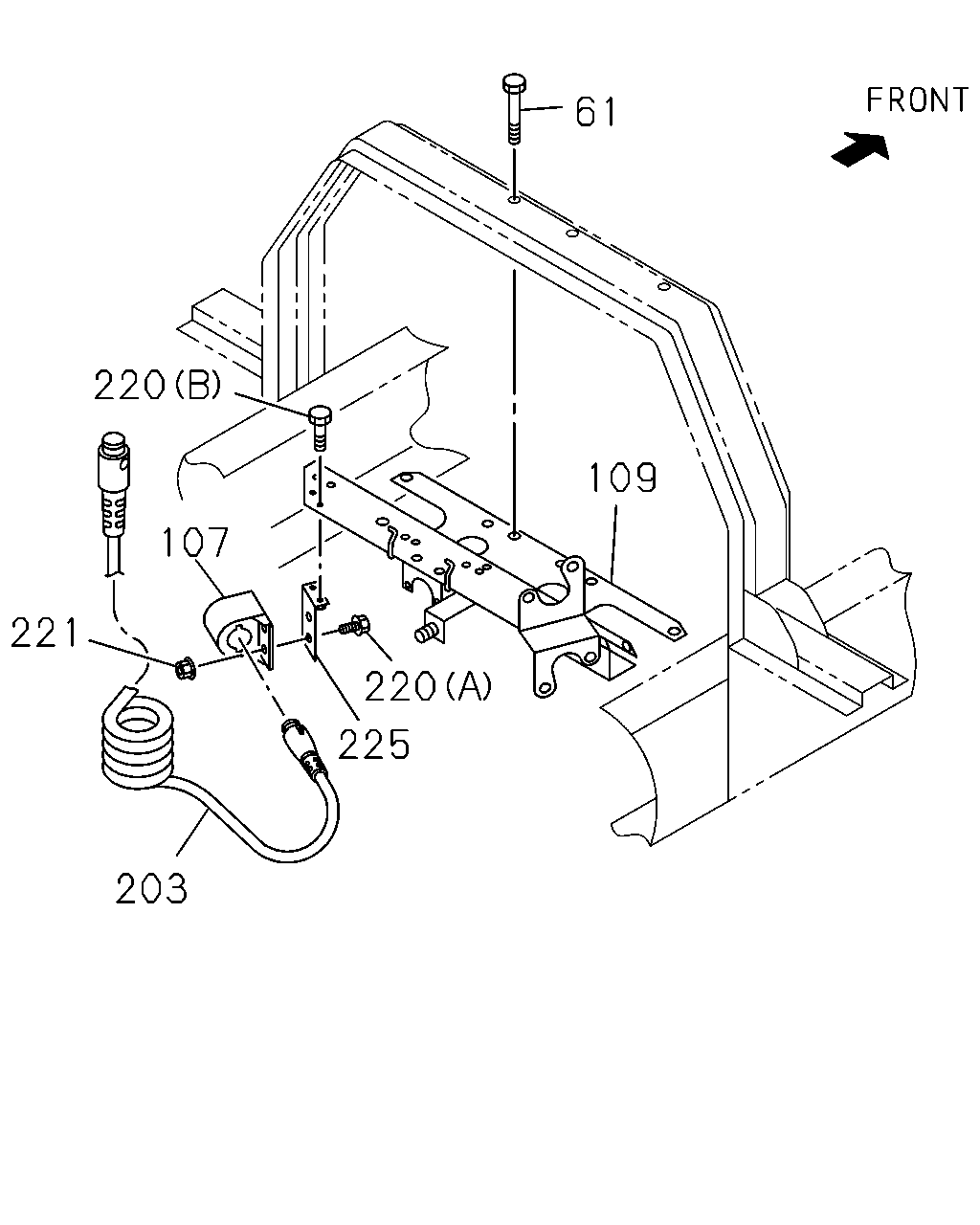

61 220 109 107 221 220 225 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X30 FLANGE	0-28651-030-0	08	1	0611-
107	HANGER; JUMPER HOSE	1-57550-022-2	01	1	0611-
109	BRACKET; HOSE HANGER	8-98049-444-0	01	1	0611-
203	CABLE; JUMPER L=5500	1-82659-201-2	01	1	0611-1009
203	CABLE; JUMPER L=5500	8-98107-178-0	01	1	1010-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28650-616-0	02	1	0611-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28650-825-0	02	1	0611-
221	NUT; HANGER M6 FLANGE	0-91180-106-0	02	1	0611-
225	BRACKET; HANGER	1-82698-002-0	01	1	0611-

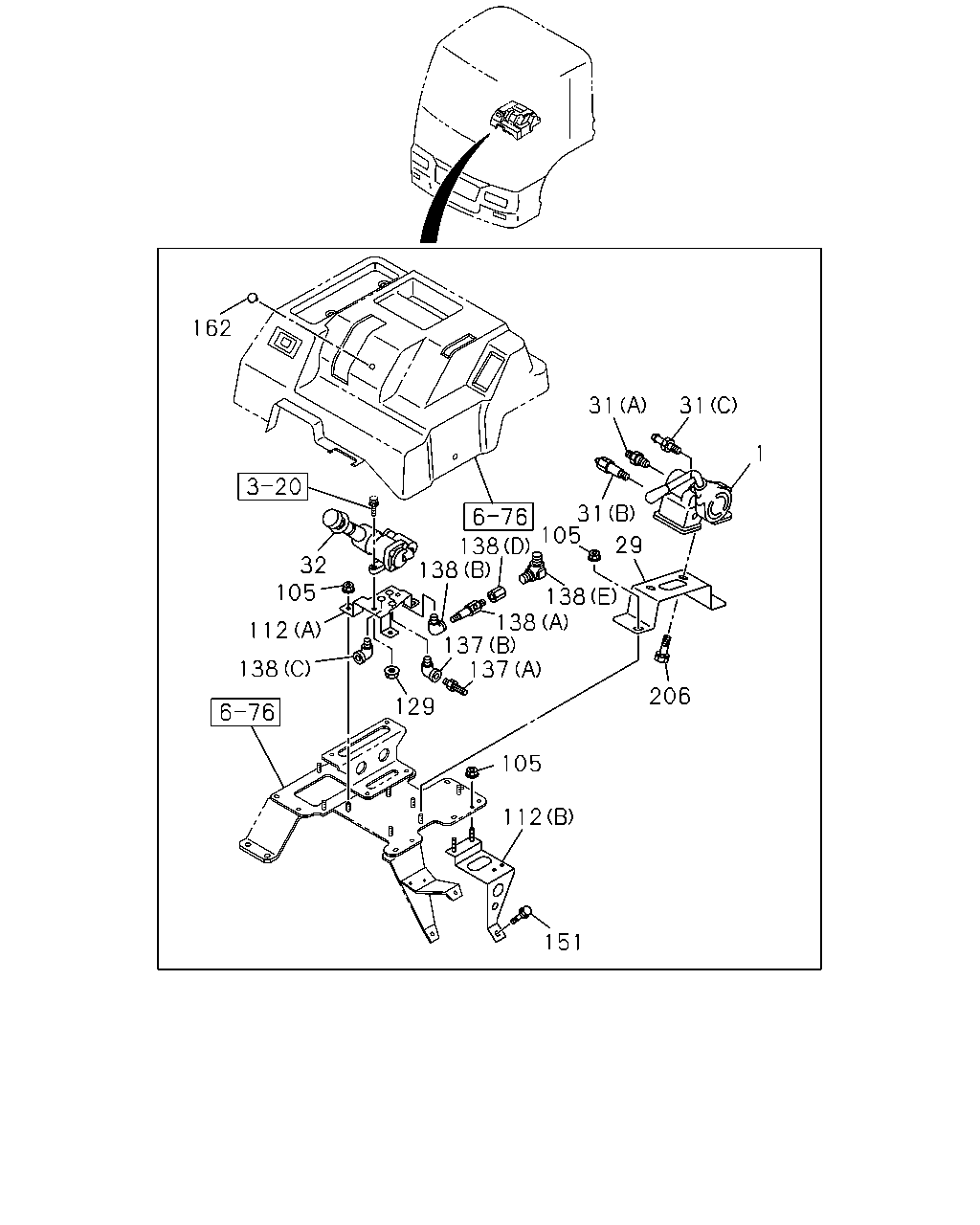

162 31 31 1 105 29 138 138 32 105 138 138 137 137 112 138 206 129 112 151 105 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-849-0	01	1	0611-
29	BRACKET; HAND BRK	1-79996-131-2	01	1	0611-
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0611-
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	0611-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0611-
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	0611-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0611-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0611-
112	BRACKET; CONT VLV (A)	1-79996-112-2	01	1	0611-
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	0611-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0611-
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0611-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0611-
138	CONNECTOR; DELIVERY (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	0611-
138	CONNECTOR; DELIVERY (A) M14	1-09656-391-2	01	1	0611-
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0611-
138	CONNECTOR; DELIVERY (D)	1-09660-880-0	01	1	0611-
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0611-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0611-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	0611-
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50541-020-0	02	1	0611-

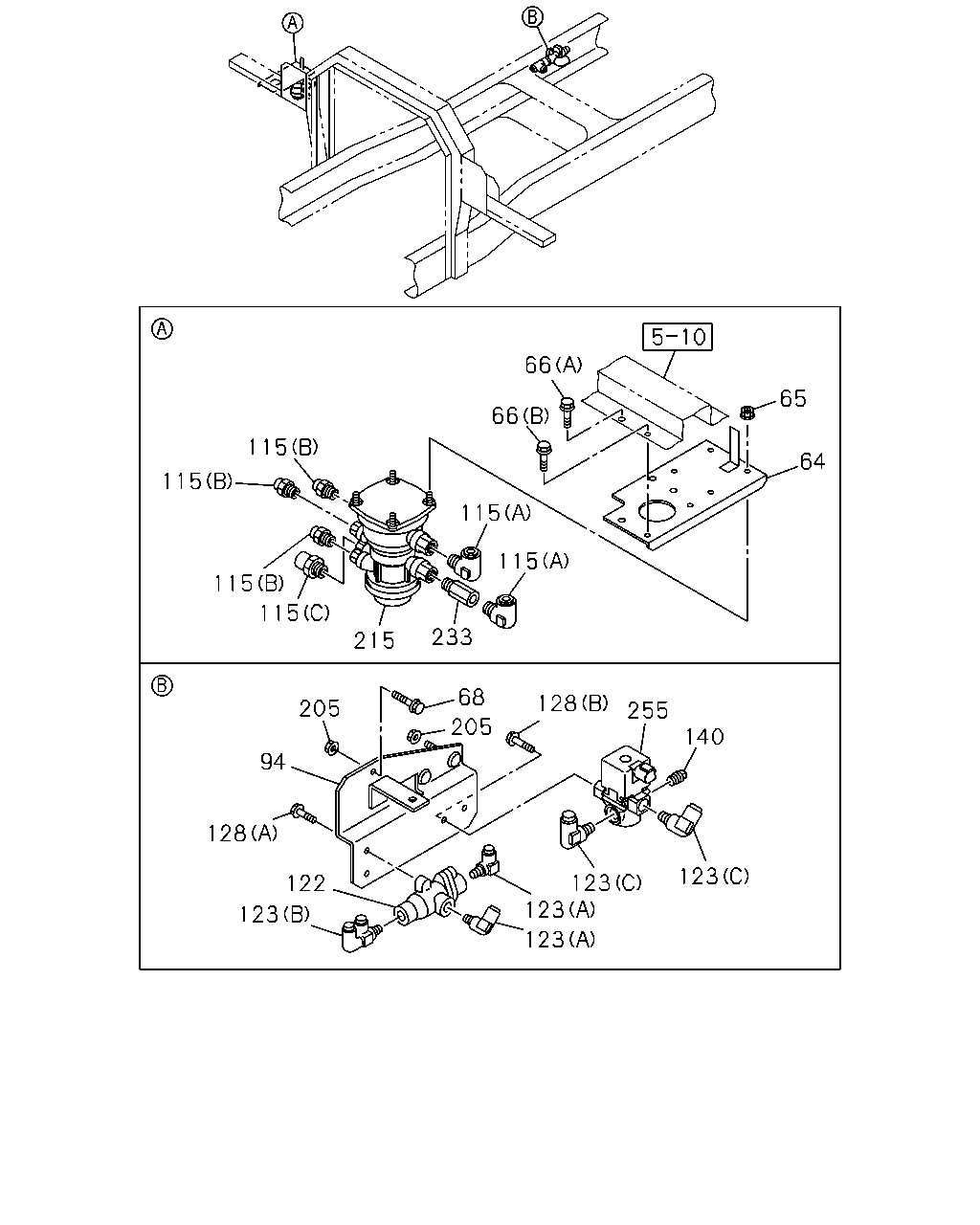

66 65 66 115 64 115 115 115 115 115 233 215 68 128 205 255 205 140 94 128 123 123 123 122 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV	1-48495-216-0	01	1	0611-
65	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	04	1	0611-
66	BOLT; VLV BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0611-
66	BOLT; VLV BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	0611-
68	BOLT; DOUBLE CHECK VLV M8X30 FLANGE	0-28650-830-0	01	1	0611-
94	BRACKET; CHECK VLV	8-98036-330-0	01	1	0611-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0611-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0611-
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0611-
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	0611-
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0611-
123	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0611-
123	CONNECTOR; DBL CHECK VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0611-
128	BOLT; VLV (A) M8X14 FLANGE	0-28080-814-0	02	1	0611-
128	BOLT; VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X20 FLANGE	0-28650-820-0	02	1	0611-
140	PLUG TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0611-
205	NUT; DOUBLE CHECK VLV M8 FLANGE	0-91180-108-0	03	1	0611-
215	VALVE; TRAILER CONT	1-48240-045-1	01	1	0611-
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	0611-
255	VALVE; MAG TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0611-

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	0611-

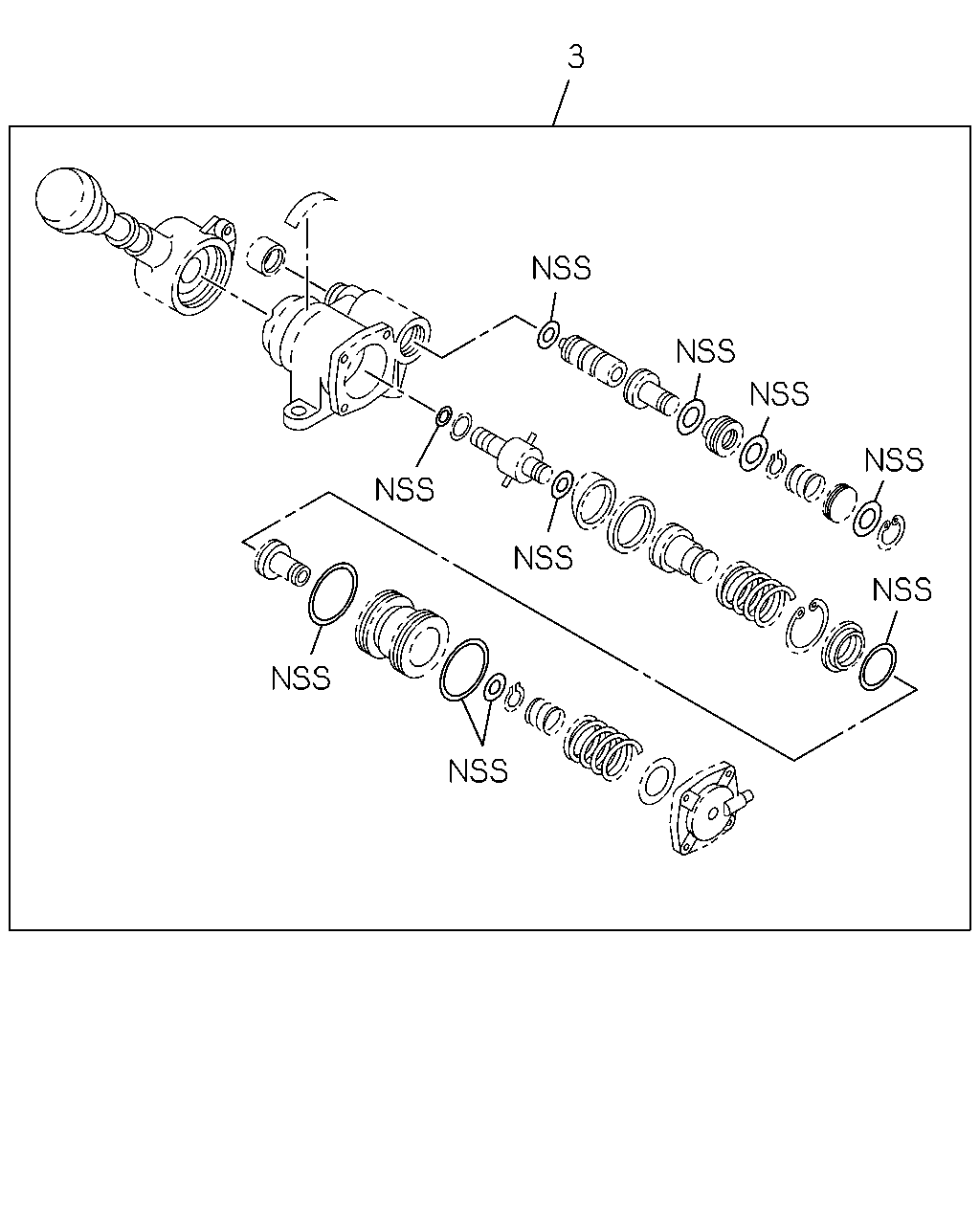

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV	1-48469-083-0	01	1	0611-

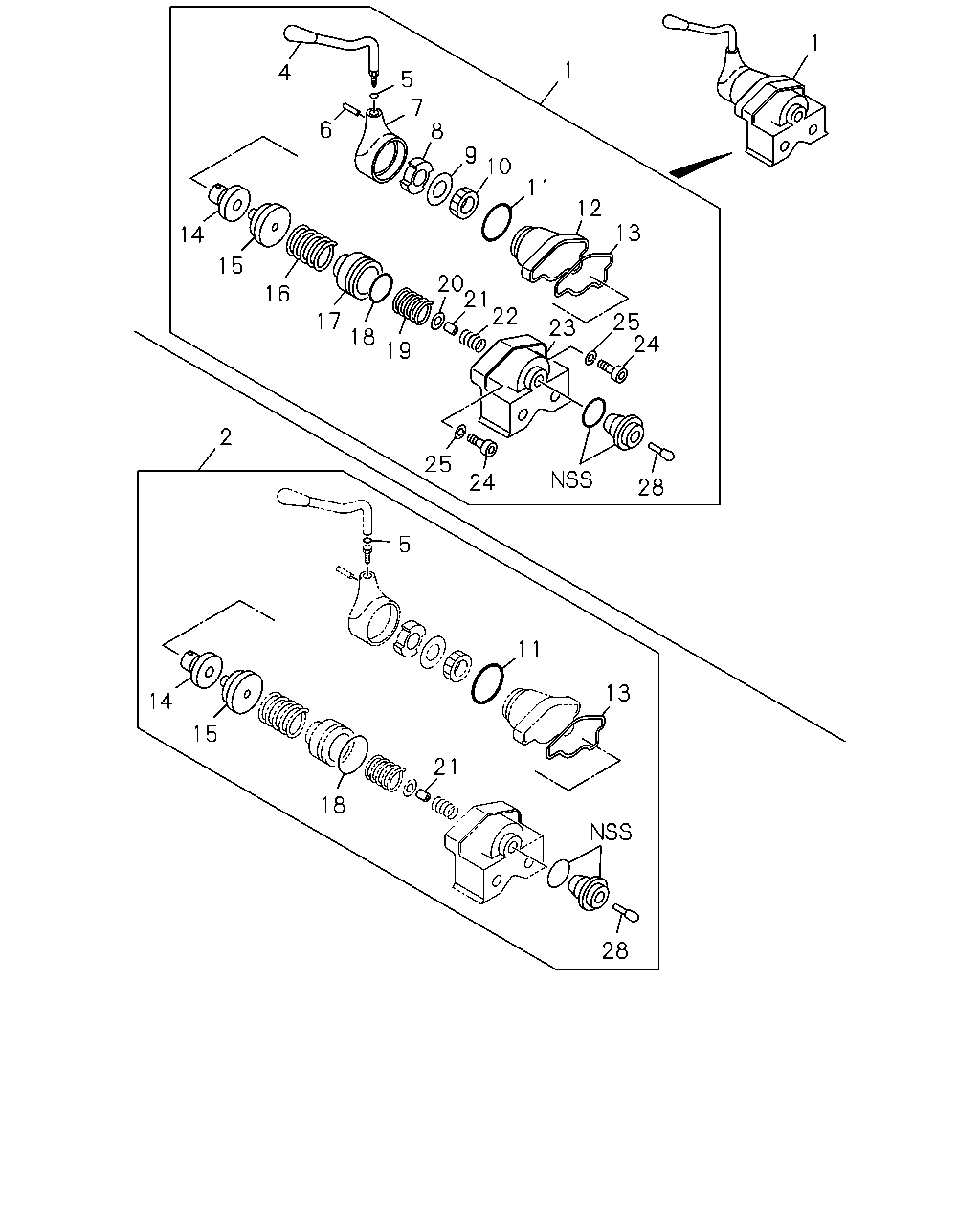

1 1 4 5 7 8 6 9 10 11 12 13 14 15 20 21 22 16 23 17 25 24 18 19 2 25 24 28 5 11 13 14 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-849-0	01	1	0611-
2	REPAIR KIT; HAND BRK VLV	1-85576-180-0	01	1	0611-
4	HANDLE ASM; BRK VLV	1-48119-517-0	01	1	0611-
5	GASKET; HANDLE	1-48119-128-0	01	1	0611-
6	PIN; SPR	1-48119-143-0	01	1	0611-
7	HEAD; BRK VLV	1-48119-131-1	01	1	0611-
8	STOPPER; BRK VLV	1-48119-136-0	01	1	0611-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0611-
10	RING; ADJ	1-48119-122-0	01	1	0611-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	0611-
12	COVER; BRK VLV	1-48129-097-1	01	1	0611-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0611-
14	FOLLOWER; CAM	1-48129-109-0	01	1	0611-
15	CAM; FOLLOWER	1-48129-110-0	01	1	0611-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0611-
17	PISTON; SPR	1-48129-095-0	01	1	0611-
18	GASKET; BODY	1-48129-096-0	01	1	0611-
19	SPRING; PISTON	1-48129-094-0	01	1	0611-
20	GUIDE; VLV	1-48129-090-0	01	1	0611-
21	VALVE; IN & EXH	1-48121-017-0	01	1	0611-
22	SPRING; VLV	1-48123-024-0	01	1	0611-
23	BODY; BRK VLV	1-48111-060-1	01	1	0611-
24	BOLT; EXH VLV	1-48129-092-0	02	1	0611-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0611-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0611-

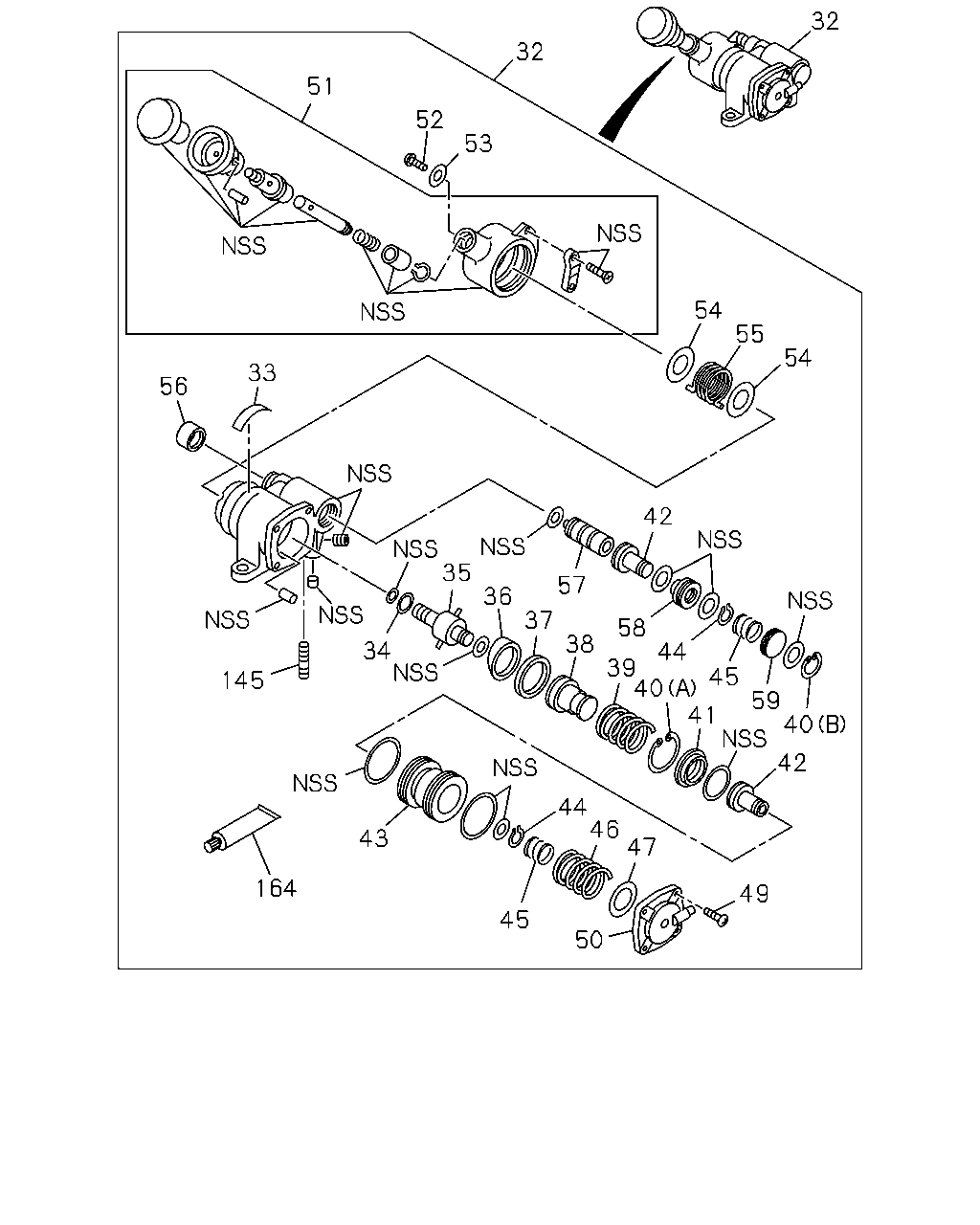

32 32 51 52 53 54 55 54 33 56 42 35 57 36 37 58 38 34 44 39 40 45 145 41 42 59 40 44 46 47 43 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	0611-
33	PLATE; CAUTION	1-48469-121-0	01	1	0611-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0611-
35	HOLDER; CAM	1-48469-054-0	01	1	0611-
36	RING; CAM	1-48469-056-0	01	1	0611-
37	GUIDE; CAM RING	1-48469-058-0	01	1	0611-
38	SEAT; EXH VLV	1-48469-057-0	01	1	0611-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0611-
40	RING; SNAP (A)	1-48469-067-0	01	1	0611-
40	RING; SNAP (B)	1-48469-079-0	01	1	0611-
41	SEAT; FEED VLV	1-48469-066-0	01	1	0611-
42	VALVE; FEED	1-48469-065-0	02	1	0611-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0611-
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0611-
45	SPRING; FEED VLV	1-48469-070-0	02	1	0611-
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	0611-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0611-
49	SCREW; COVER	1-48469-120-0	04	1	0611-
50	COVER; HAND BRK VLV	1-48469-073-0	01	1	0611-
51	HANDLE ASM; HAND BRK VLV	1-48469-060-0	01	1	0611-
52	SCREW; HANDLE	1-48469-062-0	01	1	0611-
53	WASHER; HANDLE	1-48469-061-0	01	1	0611-
54	SEAT; SPRING	1-48469-082-0	02	1	0611-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0611-
56	BOOT; PLUNGER	1-48469-080-0	01	1	0611-
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	0611-
58	HOLDER; FEED VLV	1-48469-077-0	01	1	0611-
59	HOLDER; SPRING	1-48469-078-0	01	1	0611-
145	STUD; HAND BRK VLV	1-48469-069-0	01	1	0611-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0611-
