4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#144768) — 40 parça

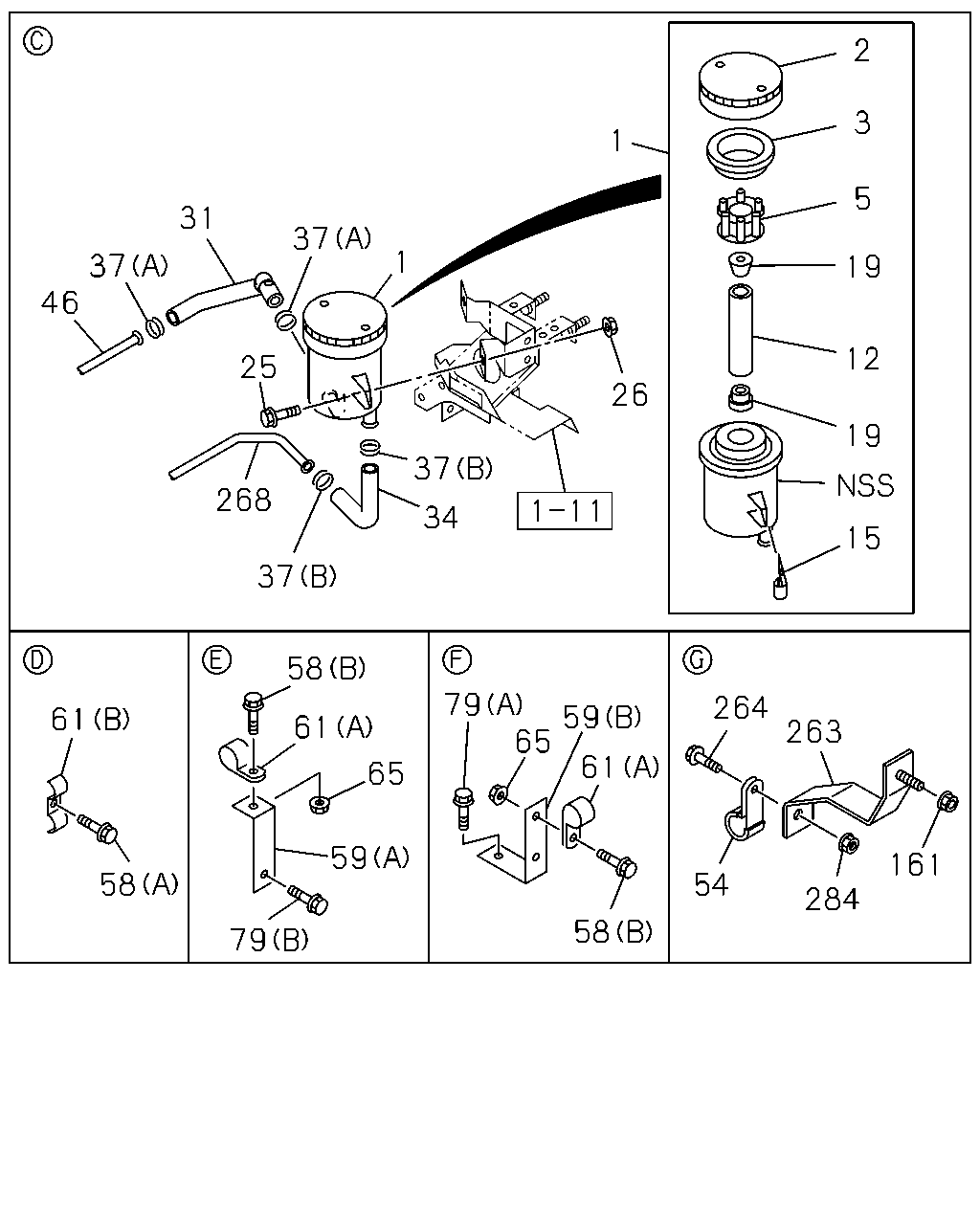

2 3 5 19 12 19 15 1 26 1 31 37 46 25 268 37 61 58 79 58 61 59 65 37 34 79 59 65 61 58 54 284 263 161 264 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1407-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1407-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1407-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1407-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1407-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1407-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1407-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1407-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1407-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1407-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1407-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1407-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1407-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	1407-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1407-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1407-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1407-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1407-
59	BRACKET; CLIP,OIL PIPE (B)	8-98083-607-0	01	1	1407-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	1407-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1407-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1407-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1407-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1407-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1407-
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	1407-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1407-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1407-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1407-

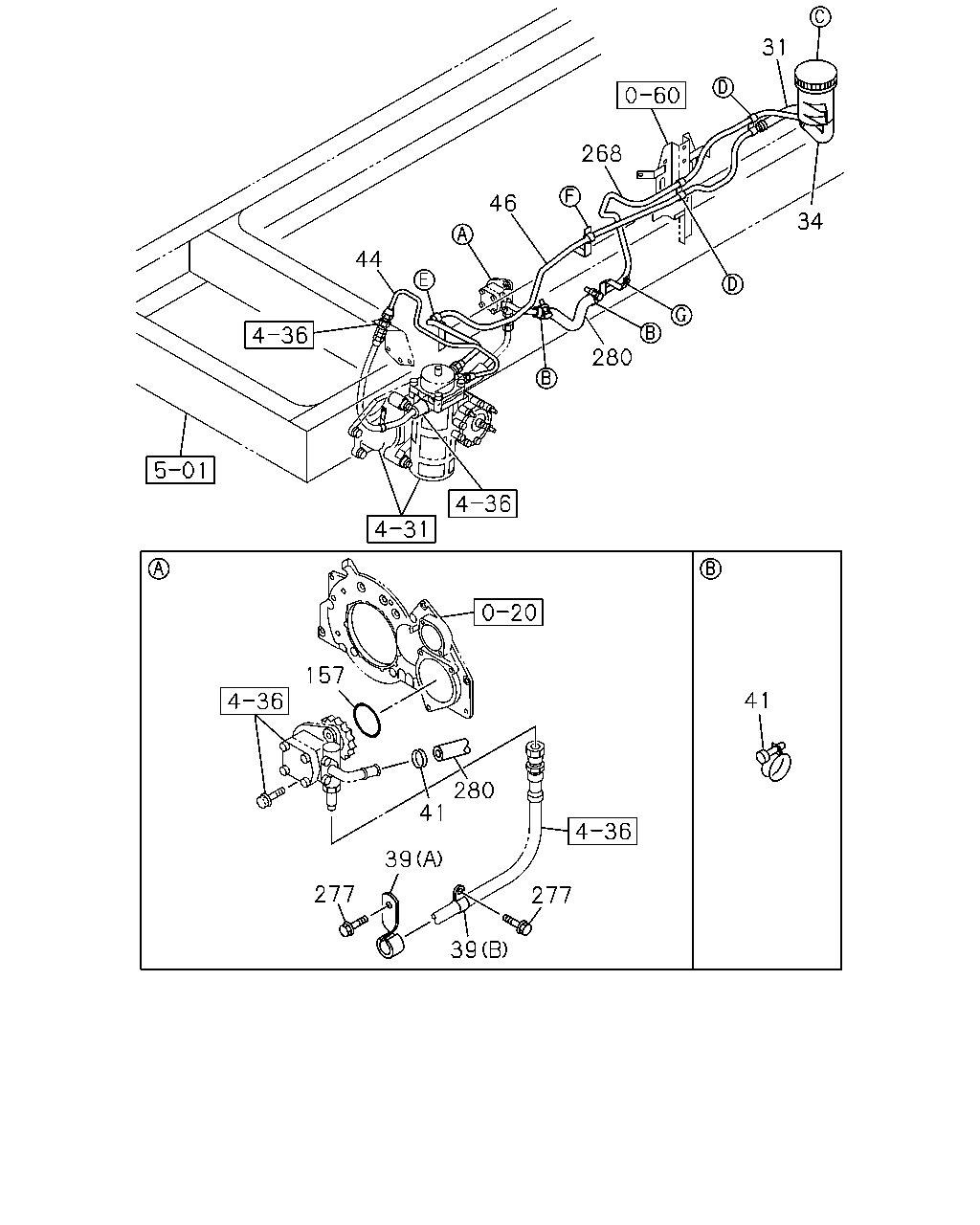

31 34 280 268 46 44 41 280 41 157 277 39 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1407-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1407-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1407-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1407-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1407-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98079-653-1	01	1	1407-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1874	8-98126-456-0	01	1	1407-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1407-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1407-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1407-
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	1407-
