◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11599 - FVM(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#144760) — 90 parça

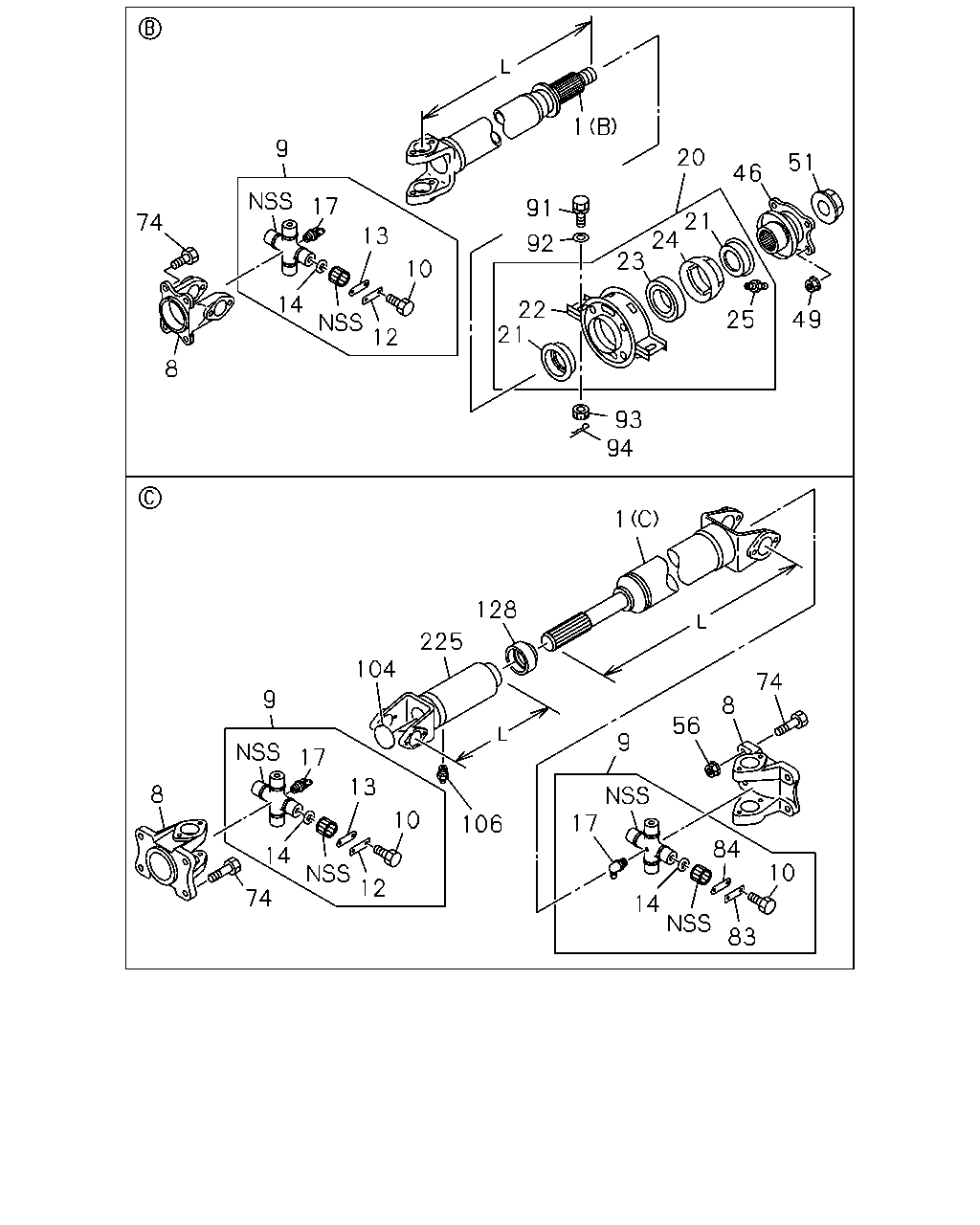

çizim 432496
51 46 20 49 25 21 24 23 93 94 21 22 92 91 1 10 13 17 9 74 12 14 1 128 225 104 9 8 10 13 17 14 12 74 106 10 84 17 14 83 74 8 56 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) END L=977 		1-37124-100-0 01 1 1407- ●
1 SHAFT; PROP
(A) 1ST L=803 		8-98261-096-0 01 1 1407- ●
1 SHAFT; PROP
(B) 2ND L=853 		8-98261-097-0 01 1 1407- ●
1 SHAFT; PROP
(C) END L=762 		1-37123-902-0 01 1 1407- ●
1 SHAFT; PROP
(A) 1ST L=1168 		8-98261-098-0 01 1 1407- ●
1 SHAFT; PROP
(B) 2ND L=1463 		8-98261-099-0 01 1 1407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 04 1 1407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1407- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-091-1 AR 1 1407- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-091-1 AR 1 1407- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 32 1 1407- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1407- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1407- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 12 1 1407- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1407- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 08 1 1407- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 12 1 1407- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1407- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 08 1 1407- ●
14 COVER; DUST,SPIDER 1-37249-131-0 16 1 1407- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1407- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1407- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 02 1 1407- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 04 1 1407- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 02 1 1407- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 02 1 1407- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 02 1 1407- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 1407- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 02 1 1407- ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1407- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 02 1 1407- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 1407- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1407- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 1407- ● ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 1407- ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 1407- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1407- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1407- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1407- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1407- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1407- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1407- ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 1407- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 1407- ● ●

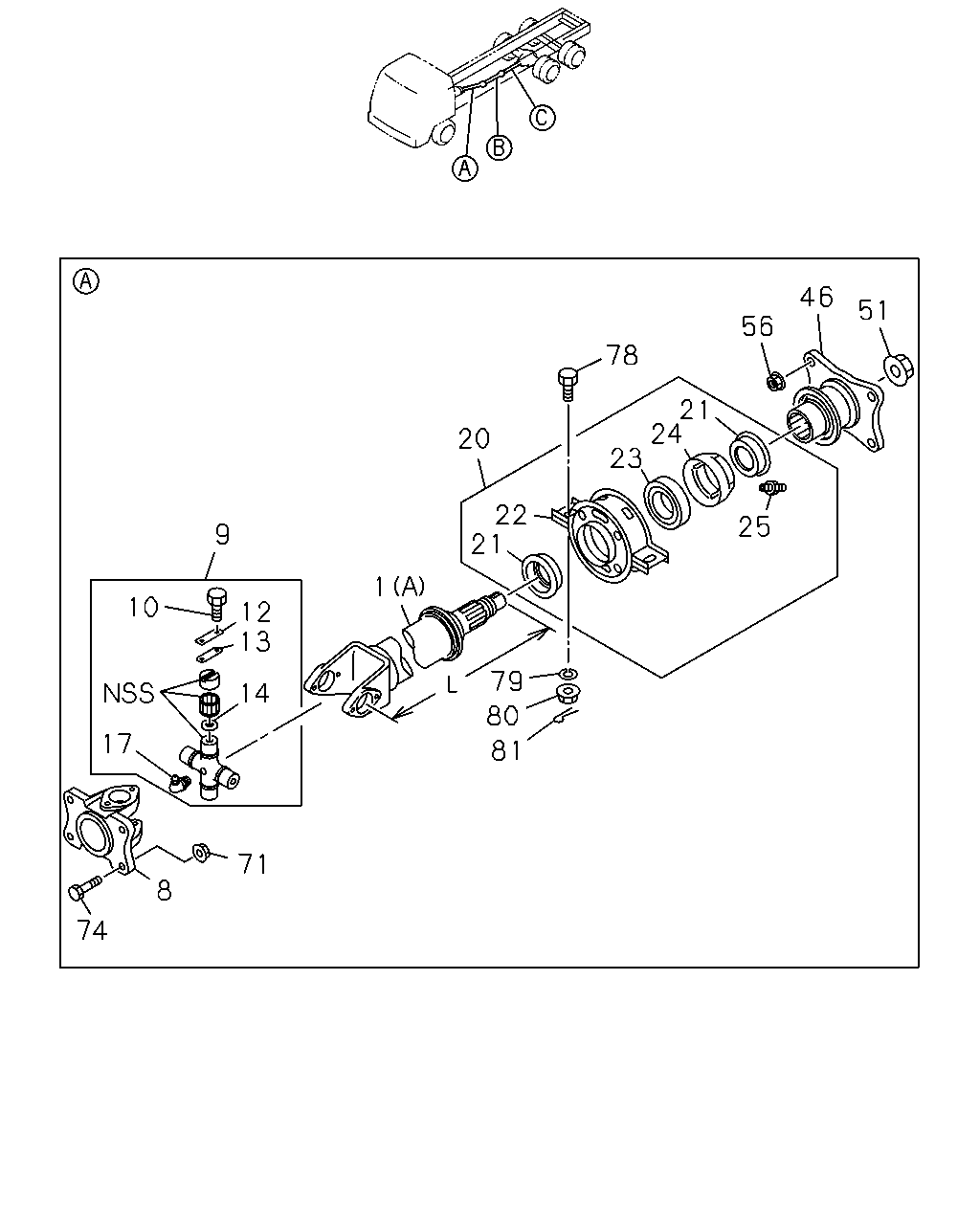

çizim 433374
51 46 56 25 21 24 23 78 20 22 21 81 79 80 1 9 12 13 14 10 17 71 8 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) END L=977 		1-37124-100-0 01 1 1407- ●
1 SHAFT; PROP
(A) 1ST L=803 		8-98261-096-0 01 1 1407- ●
1 SHAFT; PROP
(B) 2ND L=853 		8-98261-097-0 01 1 1407- ●
1 SHAFT; PROP
(C) END L=762 		1-37123-902-0 01 1 1407- ●
1 SHAFT; PROP
(A) 1ST L=1168 		8-98261-098-0 01 1 1407- ●
1 SHAFT; PROP
(B) 2ND L=1463 		8-98261-099-0 01 1 1407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 04 1 1407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 1407- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-091-1 AR 1 1407- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-091-1 AR 1 1407- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 32 1 1407- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1407- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 1407- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 12 1 1407- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 04 1 1407- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 08 1 1407- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 12 1 1407- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 04 1 1407- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 08 1 1407- ●
14 COVER; DUST,SPIDER 1-37249-131-0 16 1 1407- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1407- ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1407- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 02 1 1407- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 04 1 1407- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 02 1 1407- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 02 1 1407- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 02 1 1407- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 1407- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 02 1 1407- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 02 1 1407- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 1407- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1407- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 1407- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 1407- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1407- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1407- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1407- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1407- ● ●
